2018 Rohner Powder Coat Line

This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you.

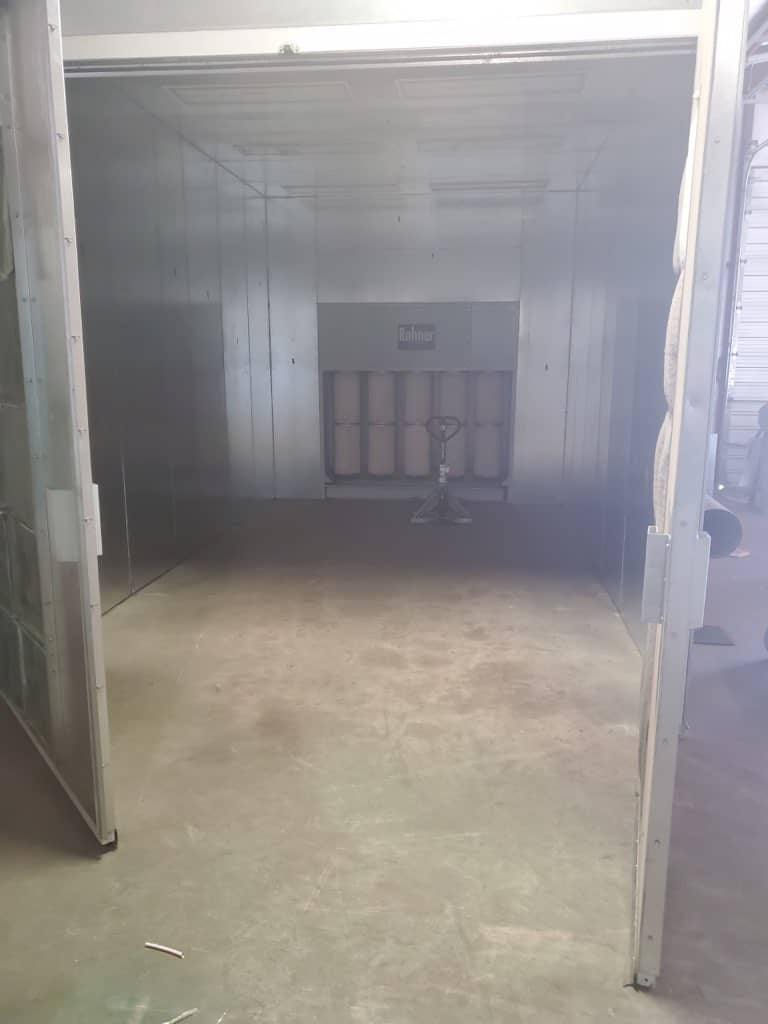

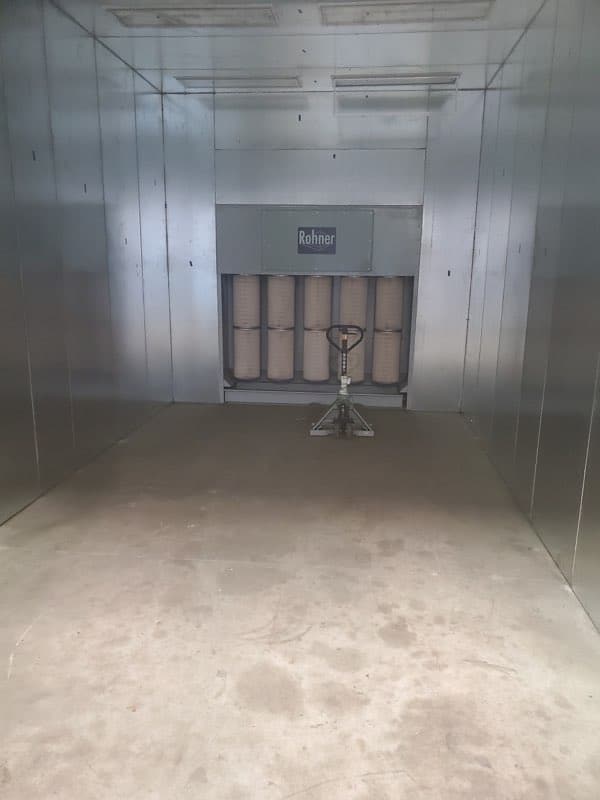

(1) 10,000CFM Cartridge Collector Module Mounted in Rear of Booth

Passive Air Pulled Through Filtered Product Doors

12’ W x 12’ H x 20’ D

12’-4" W x 12’-2” H x 24’-5" D (Includes Module Depth)

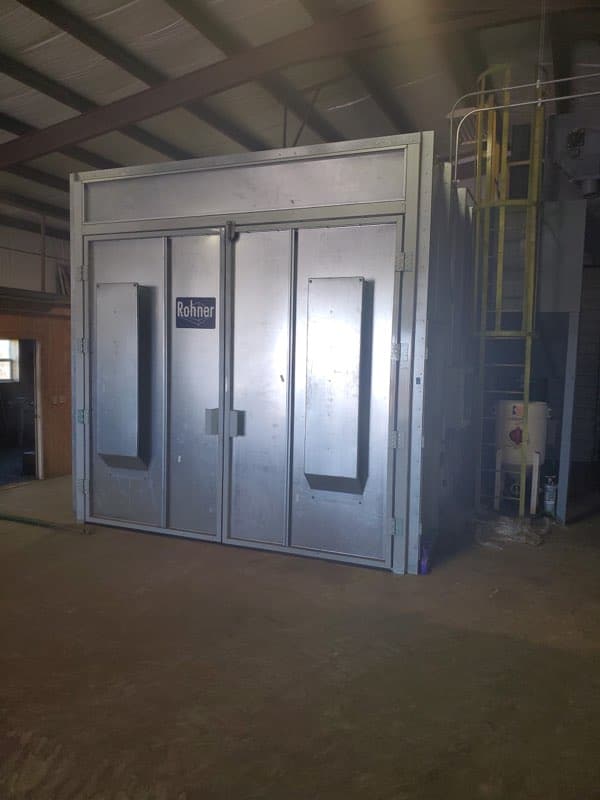

One Set of Filtered Product Doors, 10’ W x 10’ H Clear Opening

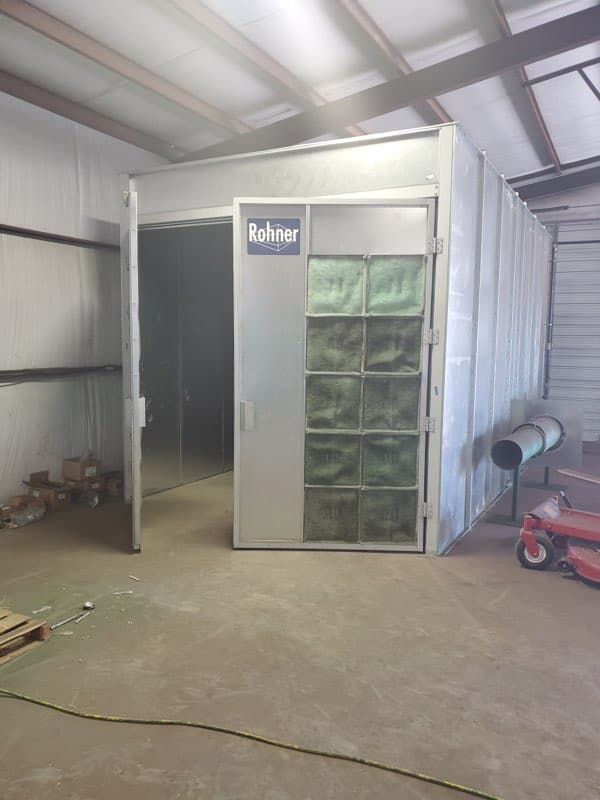

Cartridge Collector Module with Filtered Product Doors

10' W x 10' H x 20' D

12’-8" W x 11’-4” H x 26’-6" D

(1) Set of Insulated Product Doors 10’ W x 10’ H Clear Opening

160 – 450 Deg. F (500 Deg. F Maximum)

1.5 Million BTUH

10,000 Pounds of Steel Per Hour

14,000 CFM, 10HP, For a Minimum of 6.5 Air Turnovers Per Minute

800 CFM, .5 HP, Sized for 2 Gallons of Solvent Per Hour

Return Plenum - Return Air Inlet Located at Top of Process Heater, Discharge Plenum - Two Lower Side Wall Plenums Will Discharge Heated Air Toward The Center of The Oven Creating a Mixed Flow, Process Heater - Rear Mounted

12' W x 12’ H x 20’ D

12’-8” W x 12’-4” H x 24’-8” D

(1) Set Standard Product Doors, 11’ W x 10’ H with Double Baffled Inlet Air

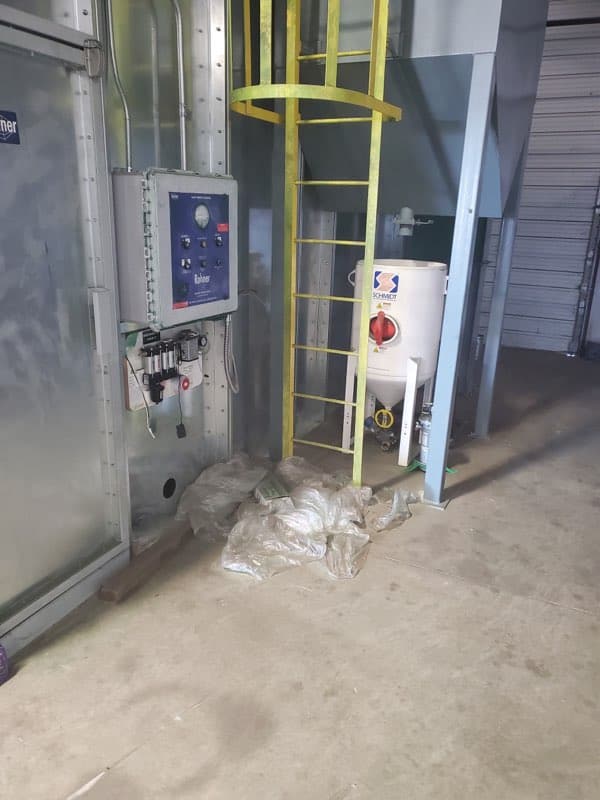

Attached Dust Collector Module
