| Year | |
|---|---|
| Make | SIP |
| Model | MP-5E |
Description |
Jig Boring Mill |
| Reference # | 8070959 |

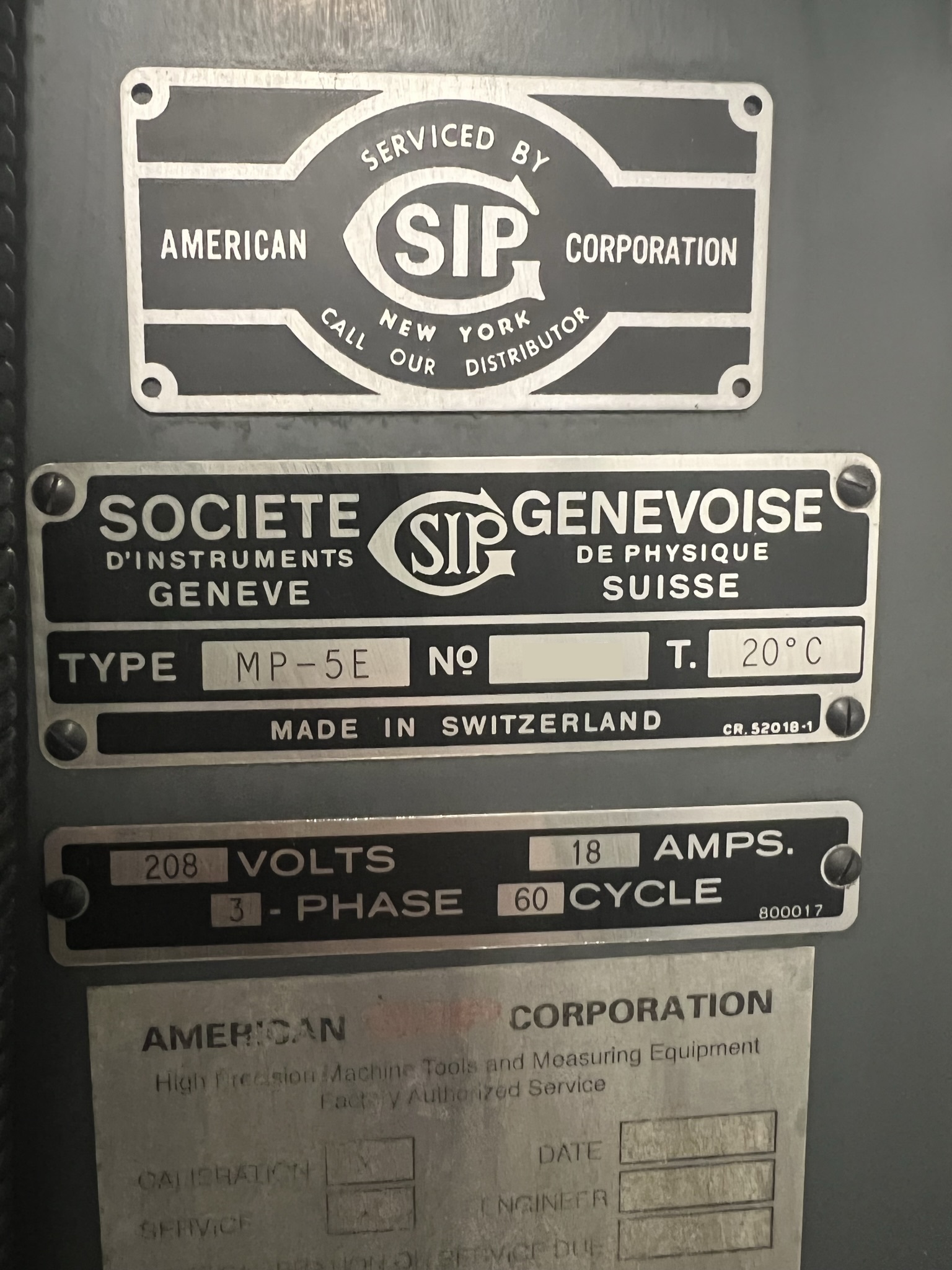

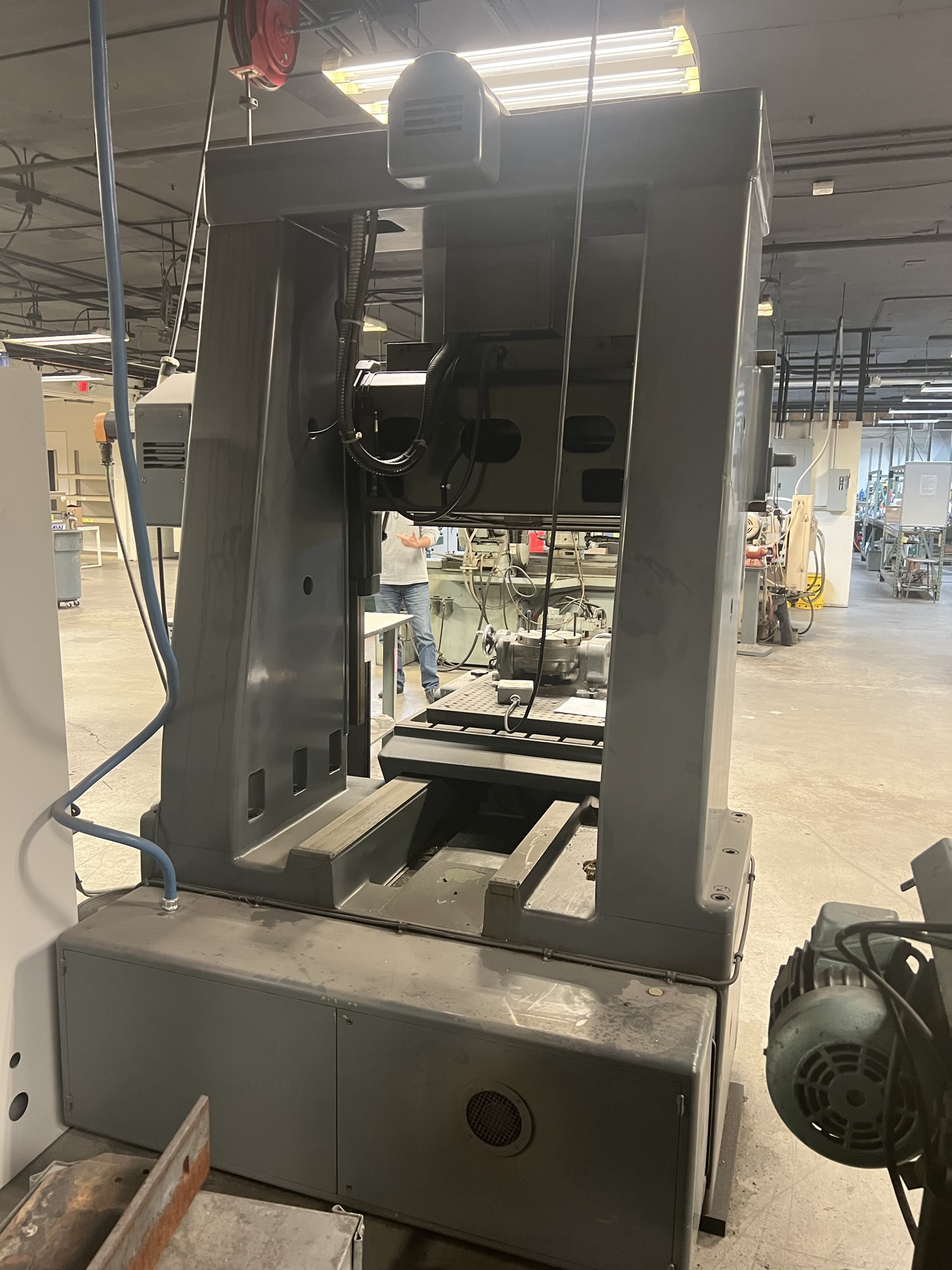

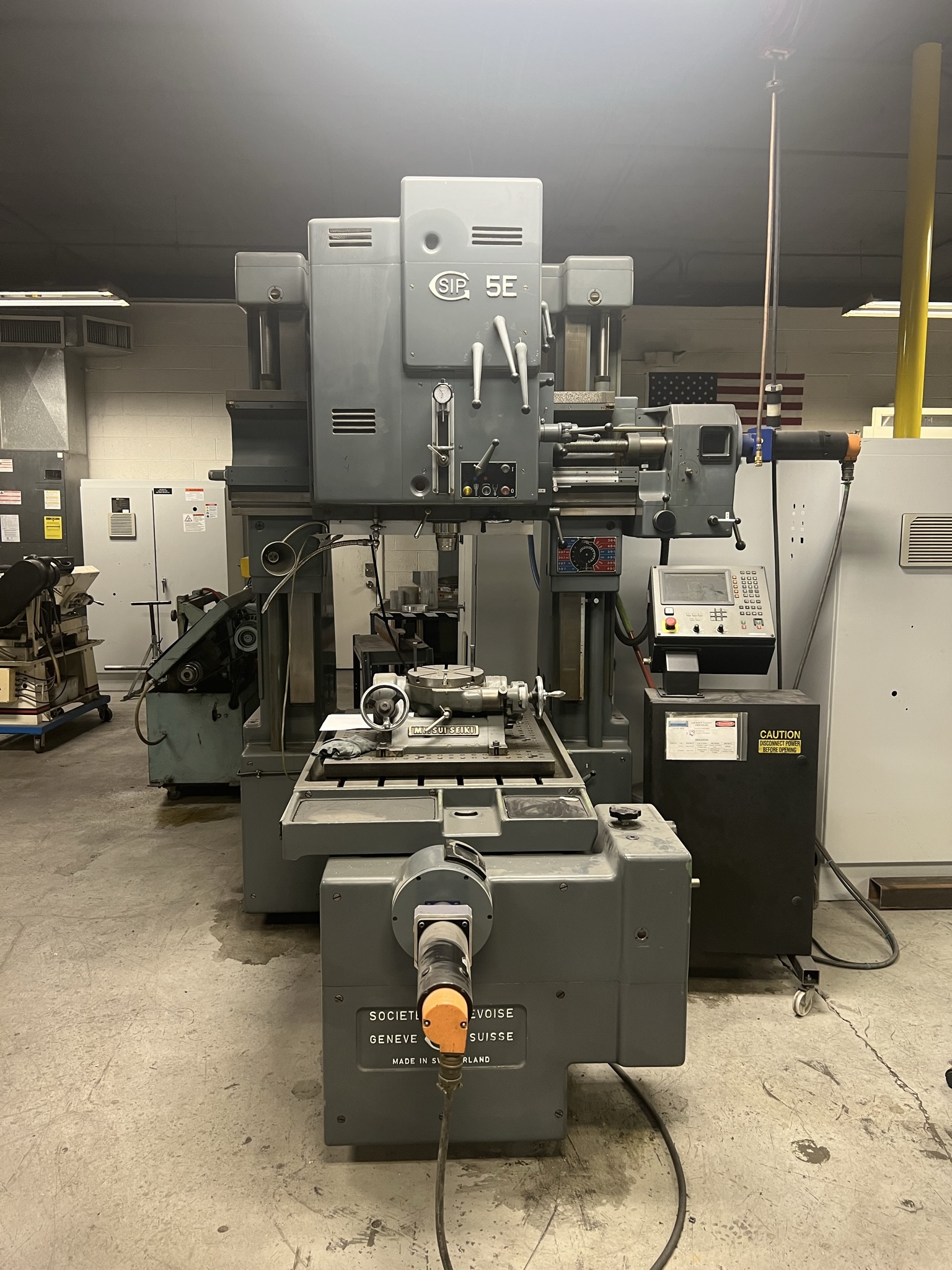

SIP MP-5E
Specifications
| X-Axis Travel |
34" |
|---|---|
| Y-Axis Travel |
28" |
| Z-Axis Travel |
29" |
| Spindle Speed |
2,250 RPM |

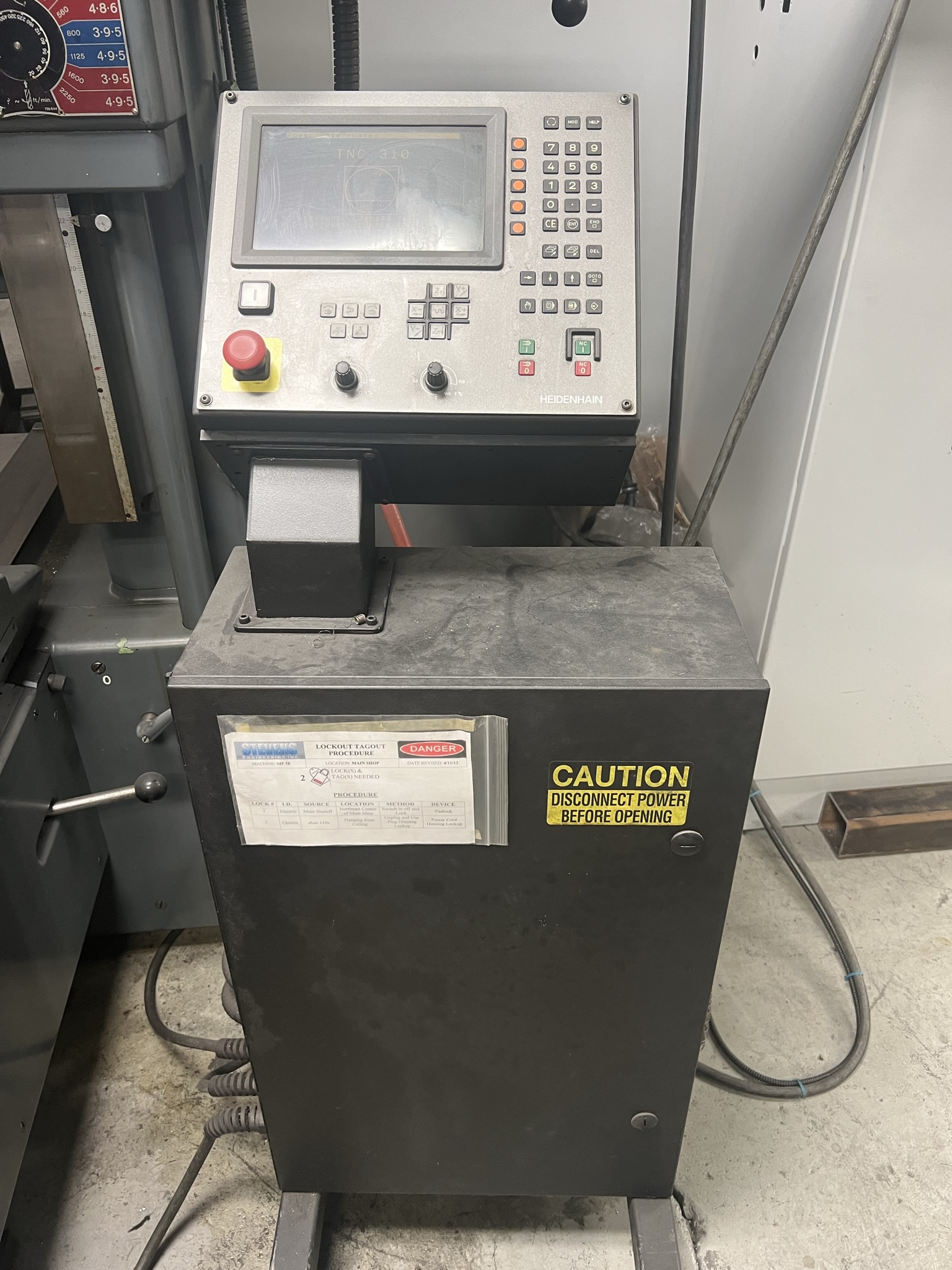

| Control |
Heidenhain |
| Spindle Motor |
5 HP |
| Additional Axis |
4th Axis Rotary Table |
| Power Requirement |
208V |
| Diameter Of Spindle |
3 47/64” |
| Table Size |
31.25" X 35" |
| Spindle Speeds |
12 Changes 55 To 2250 RPM |
| Drilling Feeds |
4 Changes .0015” .003” .005” .008” |
| Spindle Stroke |
7 3/32” |
| Vertical Travel Of Column |
29” |
| Longitudinal Table Travel Movement |
28” |
| Free Pass Between Machine Columns |
34 29/64” |
| Maximum Pass Between Table & Spindle |
37 ½” |
| Minimum Pass Between Table & Spindle |
7 7/8” |
| Max Table Load |
1,325 Lbs. |
| Approx Dimensions (LxWxH) |
96" x 72" x 94" |
| Approx Machine Weight |
11,400 LBS |
| Note |
Manual 5th Axis Mitsui Seiki Table Included, Tooling Package Included (7k of New Tooling), High Precision Jig Bore, |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
