| Year | 2013 |
|---|---|
| Make | Scotchman |
| Model | 95-140-24M |
Description |
95 Ton Ironworker |
| Reference # | 8073834 |

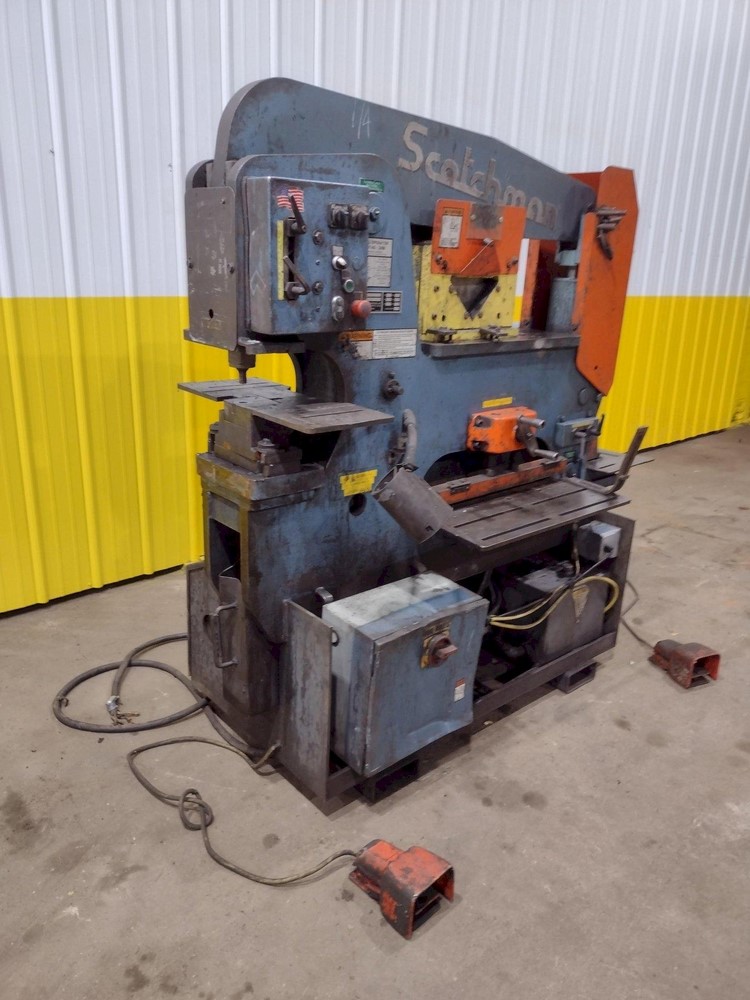

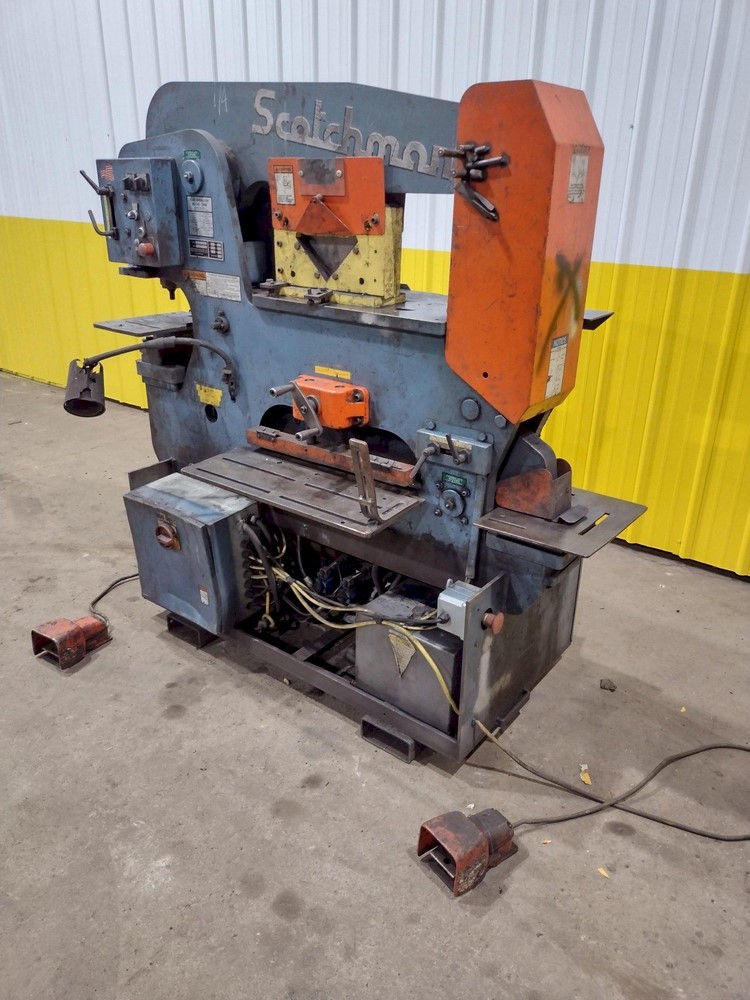

Used Scotchman 95-140-24M (2013) Ironworker for Sale. This pre-owned Scotchman ironworker is located in Ohio. If you have any questions regarding this Scotchman Ironworker, please feel free to contact us. You may Activate Pricing to view the price of this Fabrication Machine, or request a quote by clicking on the Inquire Now button.

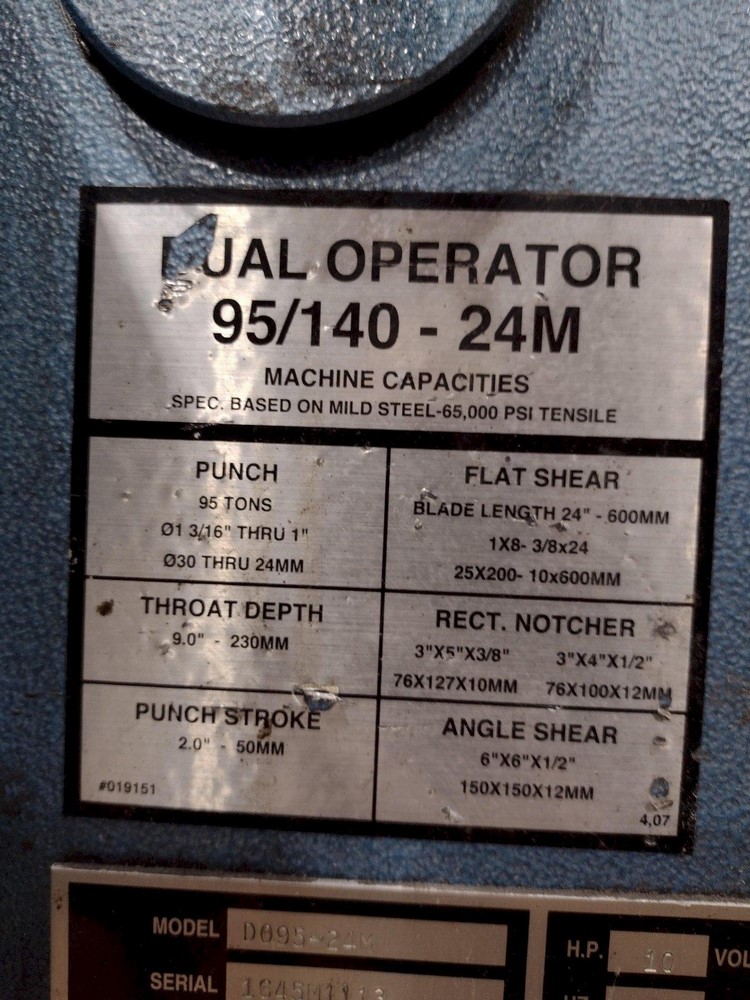

Specifications
| Punching Capacity |
95 Ton 1-3/16" in 1" |
|---|---|
| Throat Depth |
9" |

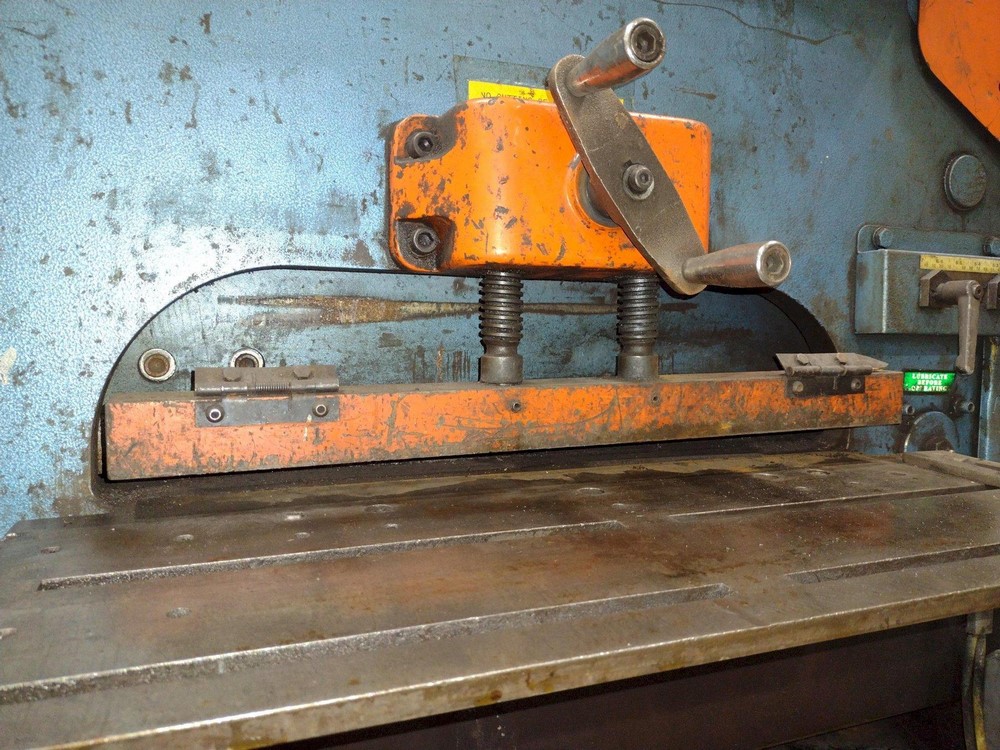

| Flat Bar Shear Length |
24" |

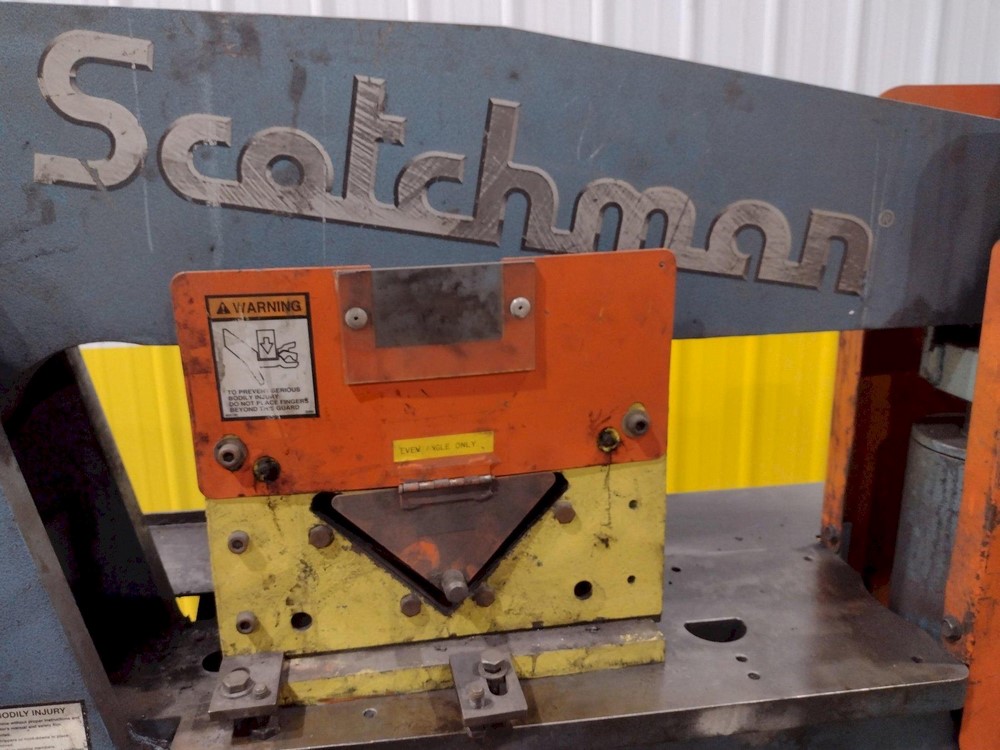

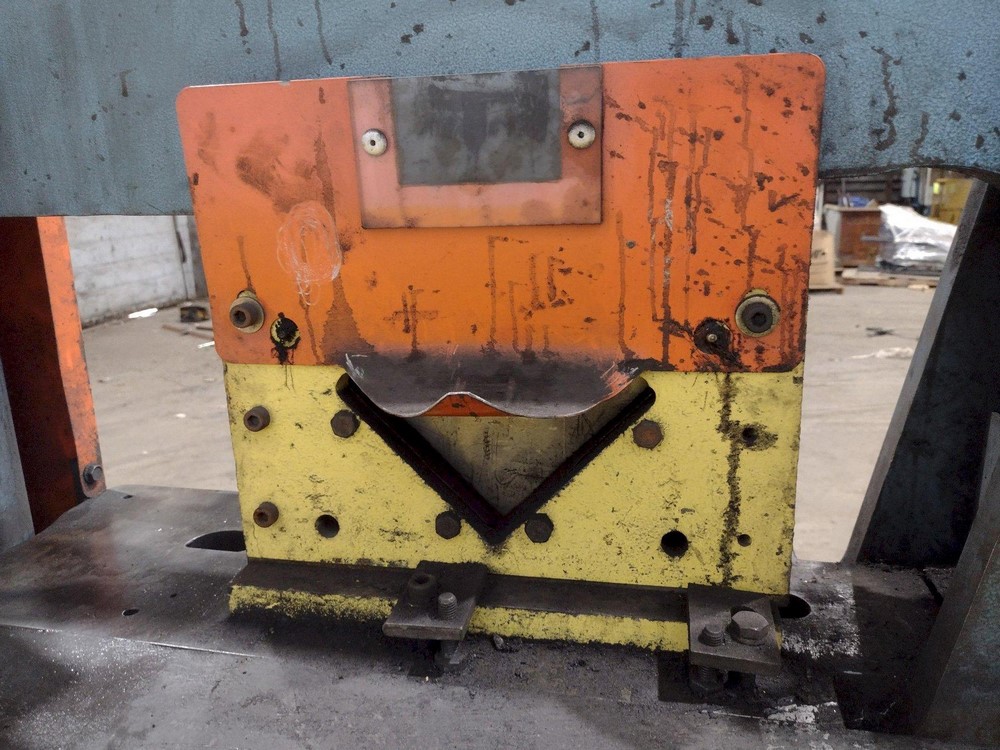

| Angle Shear 90 Degree |
6" x 6" x 1/2" |
| Angle Shear 45 Degree (with Tool) |
3" x 3" x 3/8" |
| Angle Shear 45 Degree (with Bar Shear) |
4" x 4" x 1/2" |
| 12" Brake Capacity |
80 Ton |
| 24" Brake Capacity |
55 Ton |
| Open-End Brake |
1/4" x 5" (Flat or Angle Iron) Max |
| Pipe Notcher Schedule 40 |
3/4", 1", 1-1/4", 1-1/2", 2" |

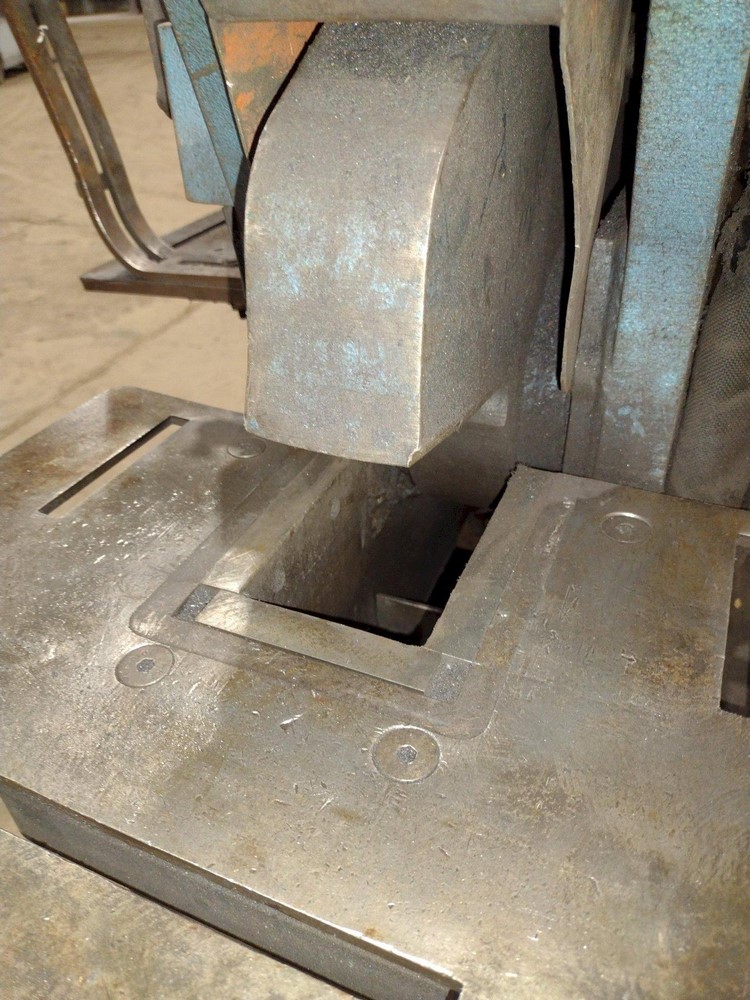

| Rectangle Notcher |
3" x 5" x 3/8" ; 3" x 4" x 1/2" |
| 90 Degree V-Notcher |
6" x 6" x 5/16" ; 3" x 3" x 3/8" |
| Notching in Leg of Channel |
6" to 10" |
| Channel Shear |
2" to 6" Adj. |
| Rod Shear Round (Max.) |
9 Cavity - 1/4" to 1-1/4" |
| Rod Shear Square (Max.) |
1 Cavity - 1/4" to 1" |
| Square Tube Shear |
1/2" to 2" - 12 GA |
| Picket Tool |
1/2" , 3/4" , 1" - 16 GA |
| Weld Coupon Bender (Max) |
2" Wide x 3/8" |
| Offset Die Holder |
40 Ton Max |
| Light Material Production |
38 SPM (Punch Station) 1/4" Stroke |
| Heavy Material Production |
15 SPM (Punch Station) 3/4" Stroke |
| Hydraulics |
3,500 PSI |

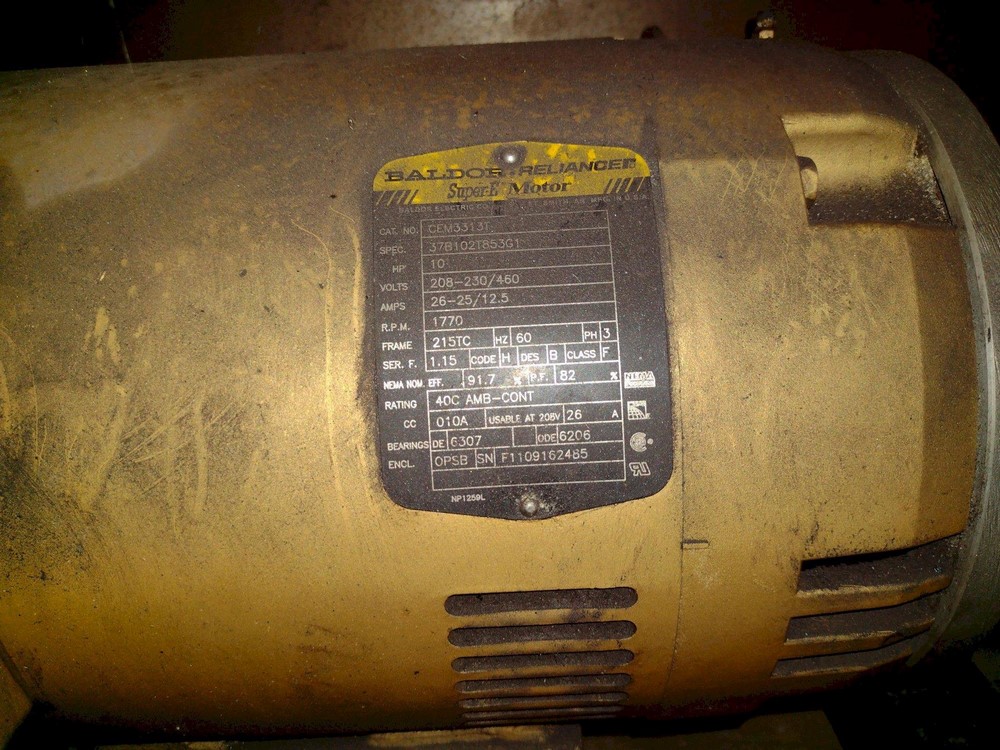

| Motor |
10 HP |
| Dimensions |
69" x 37-1/2" x 71" |
| Weight |
3,800 Lbs |
