| Year | |
|---|---|
| Make | Proma |
| Model | 2/2PU-14 |
Description |

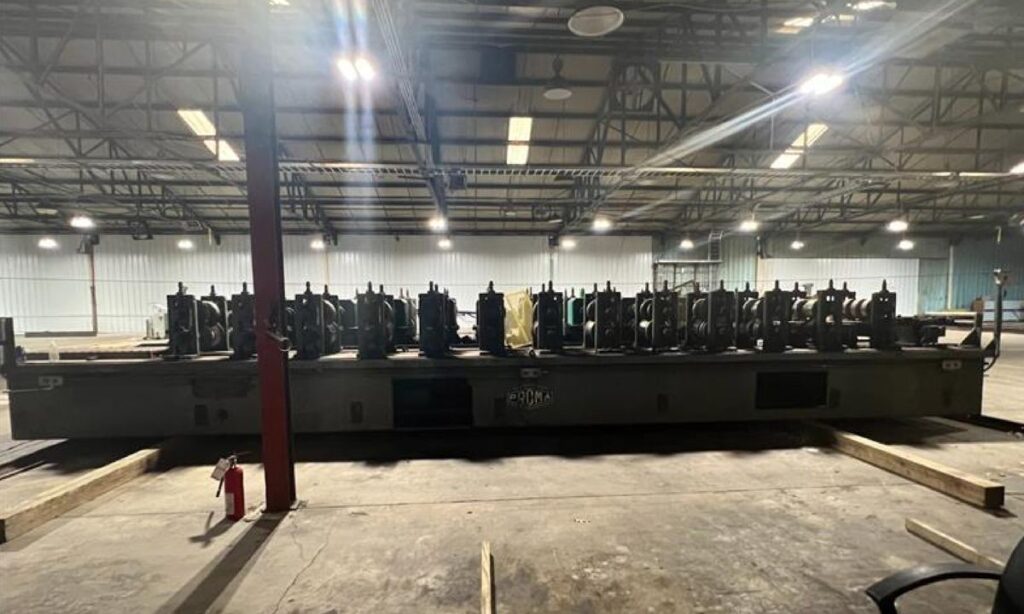

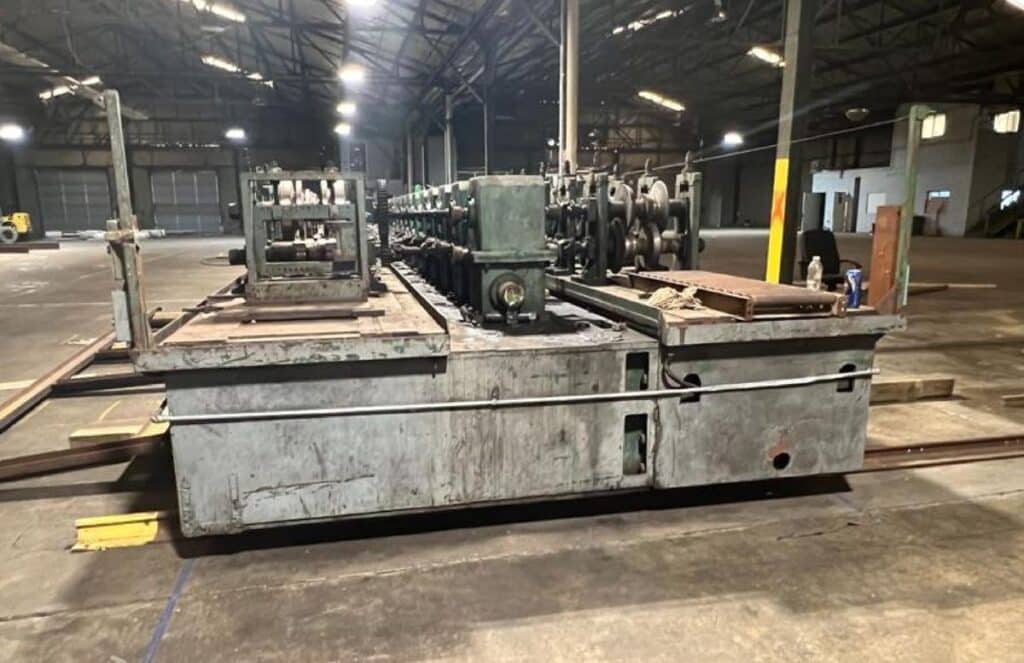

C & Z Purlin Roll Former |
| Reference # | 8073620 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Proma 2/2PU-14
Specifications
| Flanges |
4″-12″ Web x 2 1/2″ with 3/8" Return |
|---|---|
| Hydraulic Pinch Roll with Straightener |
24" Strip Width |
| Hydraulic Punch with Movable Tooling Exit Shear |
24" Strip Width |

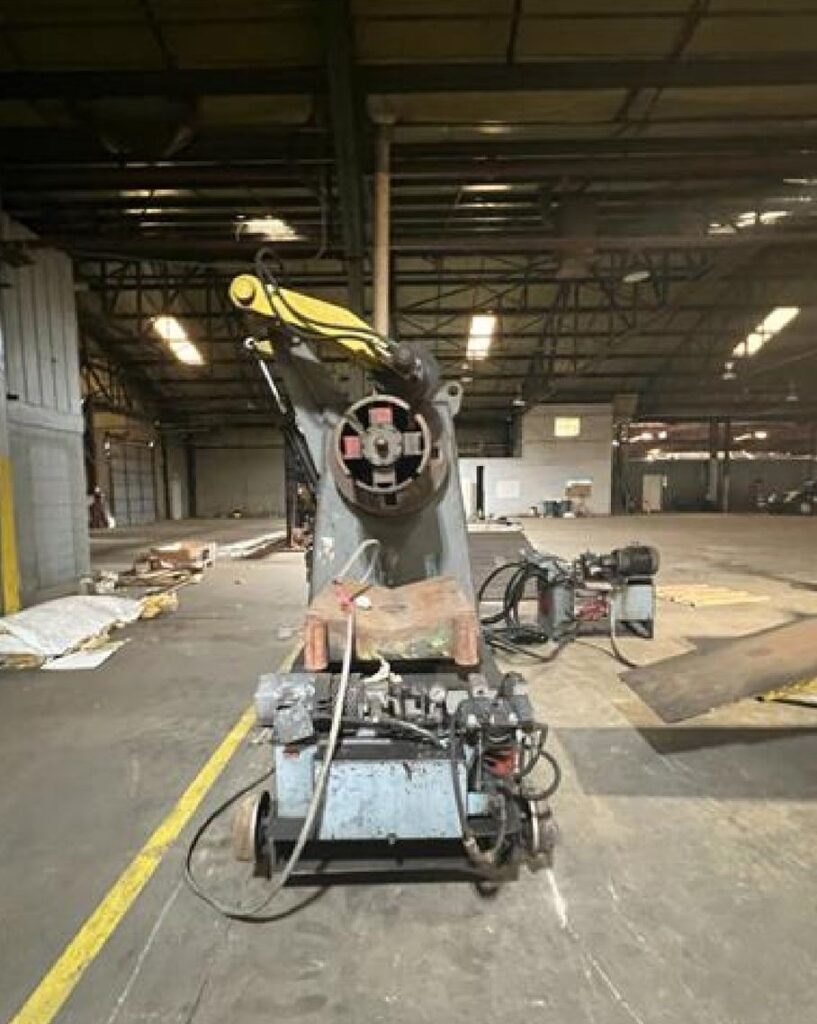

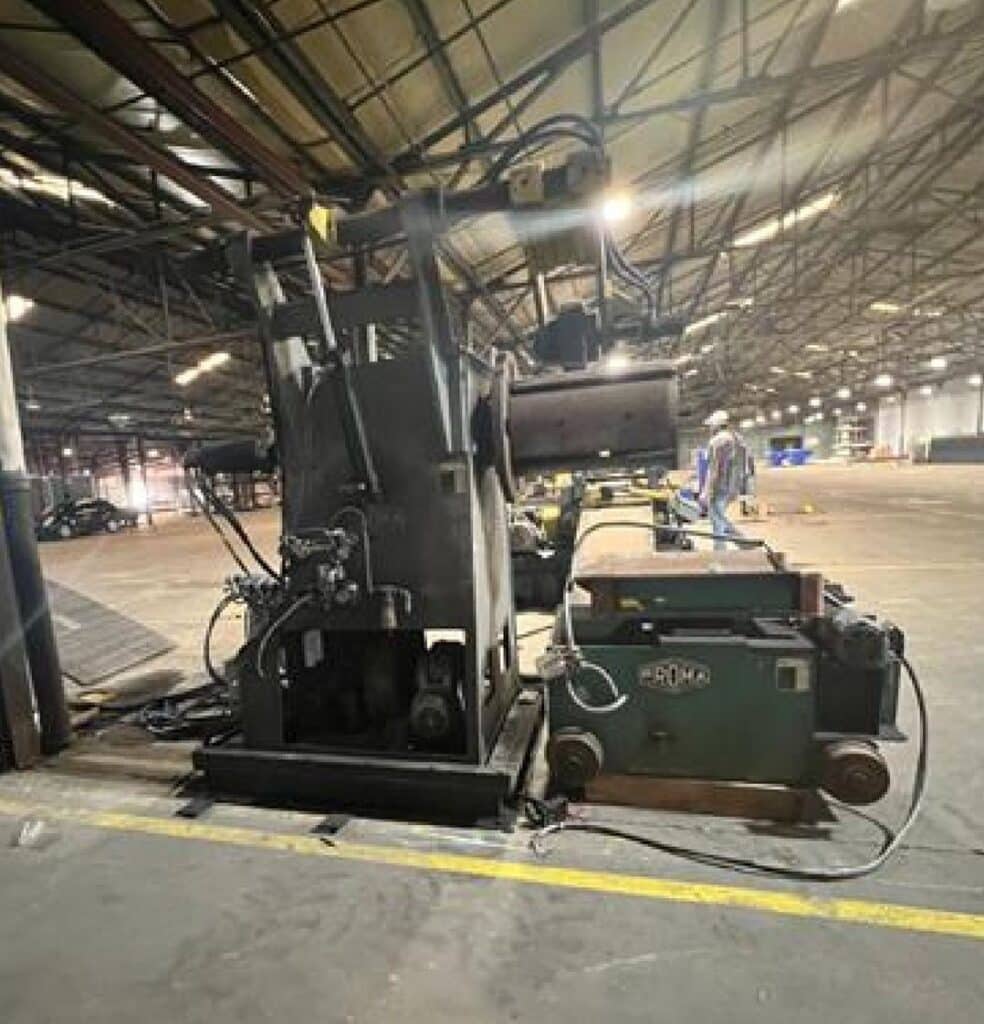

| Uncoiler |
Powered 10.000 Lbs x 26″ with Loop Control |

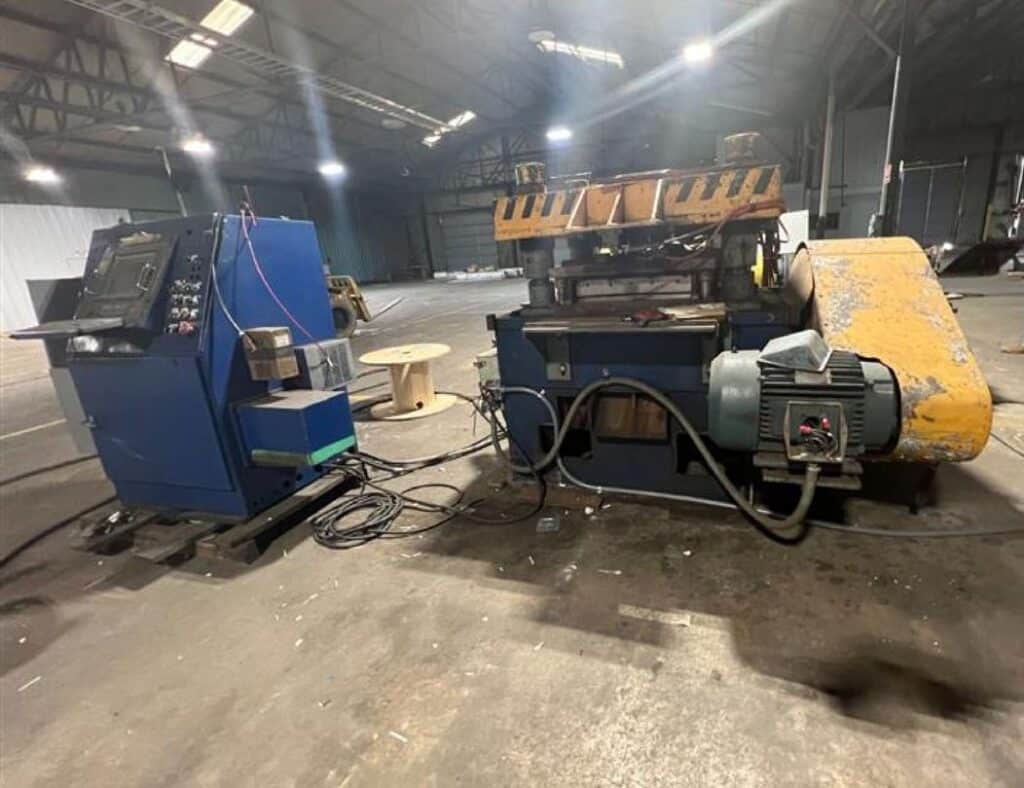

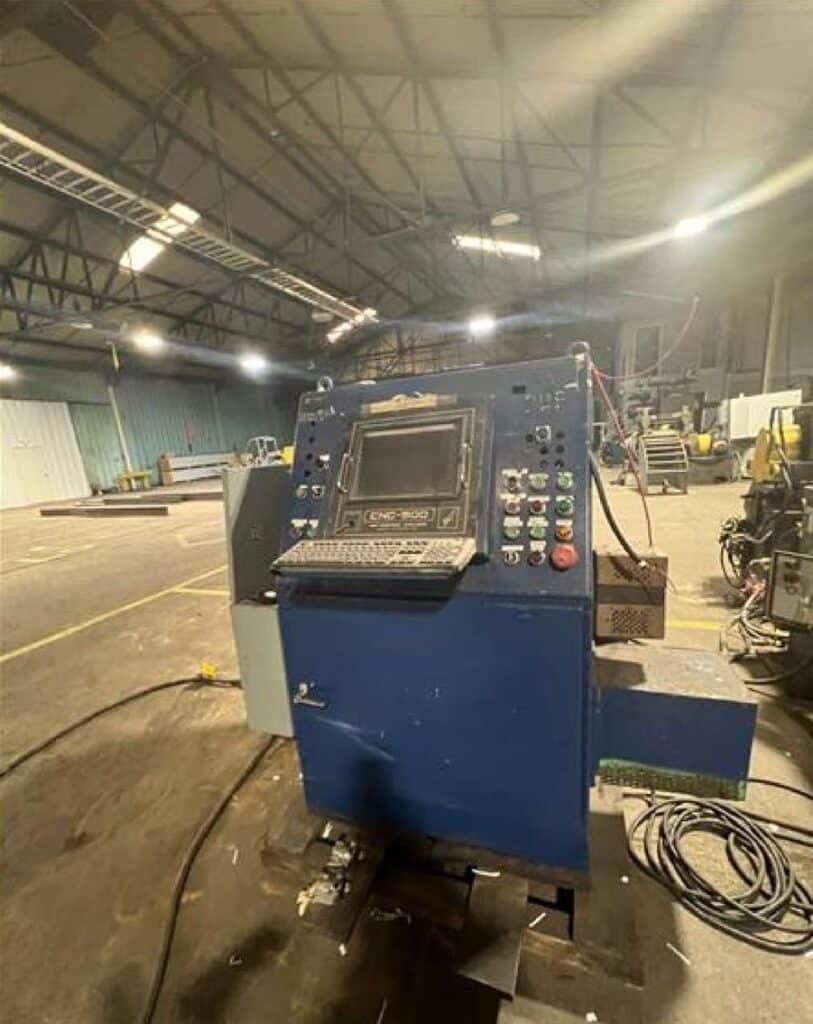

| Controller |
ASC Touchscreen (New 2012) |
| C-Tooling |
6″, 8″, 10″, 12″ |

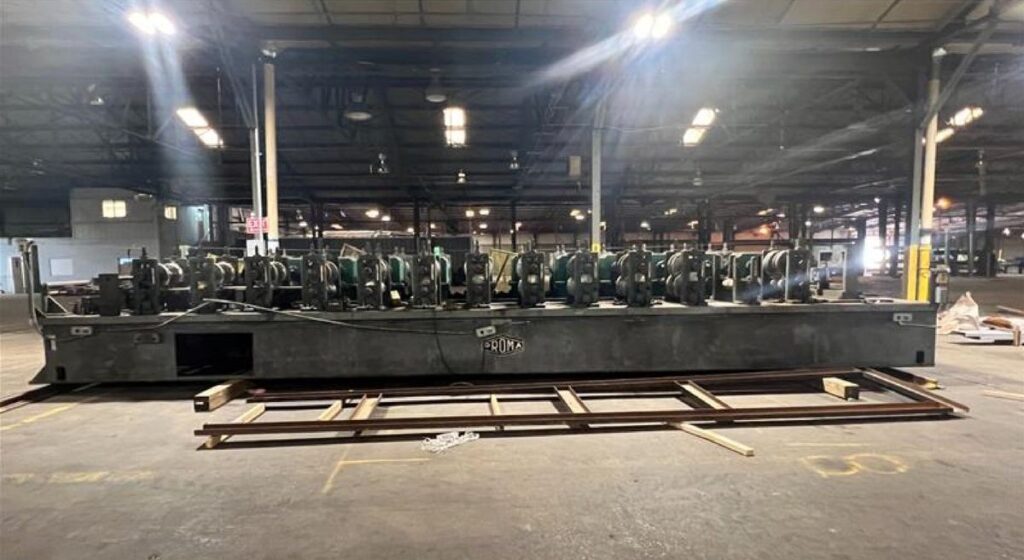

| Shaft Side |
Proma 13 Pass x 3″ |
| Power Requirement |
460V - 3Ph |
| Additional Info |
Uncoiler to end of punch shear is 46ft long, with all the looping area, then a 24 ft conveyor to the roll former. The roll former is 29 ft long. 99 ft overall, The R.F. moves left – right for changing from “cee” to “zee” profiles. It is run all in a 22ft wide bay. |
Features
|
Straightener and Punch Rebuilt 2006 |
Tooled For C & Z Purlins |
|
Uncoiler / Car 2006 |
*
