| Year | |
|---|---|
| Make | Polytruder |
| Model | 4.5-34-250 |
Description |
Extruder |
| Reference # | 8075252 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

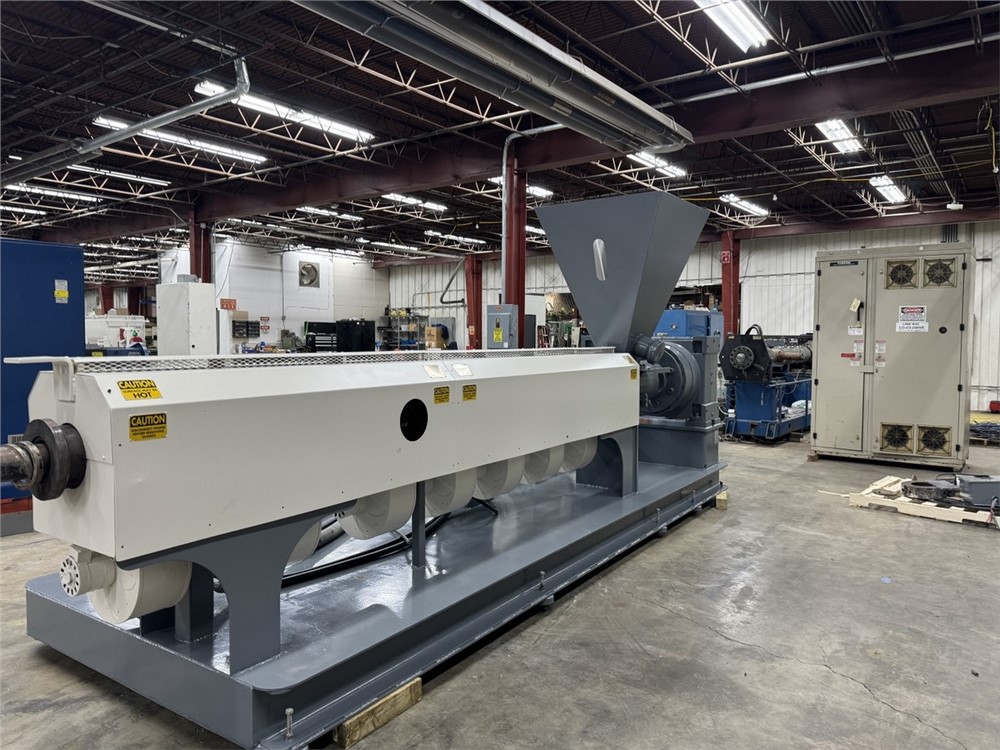

Used Polytruder 4.5-34-250 Extruder for Sale. This pre-owned Polytruder plastic extruder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Polytruder Extruder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Screw Size |
4.5" |
|---|---|
| L/D Ratio |
34:1 |
| Air Cooled |
Yes, 250 HP AC |
| Vented |
Vented Barrel |
| Vent Located Approx. |
110" From Center Of Feed Throat |
| Gearbox Ratio |
17.74:1 |
| Belt Driven |
.79:1 Ratio |
| Approx. Max Screw Speed |
127 RPM |
| Barrel Zones |
7 |
| Approx Dimensions (LxWxH) |
135" x 72" x 94" (With Hopper) |
Features
|
136 Heater Amps |

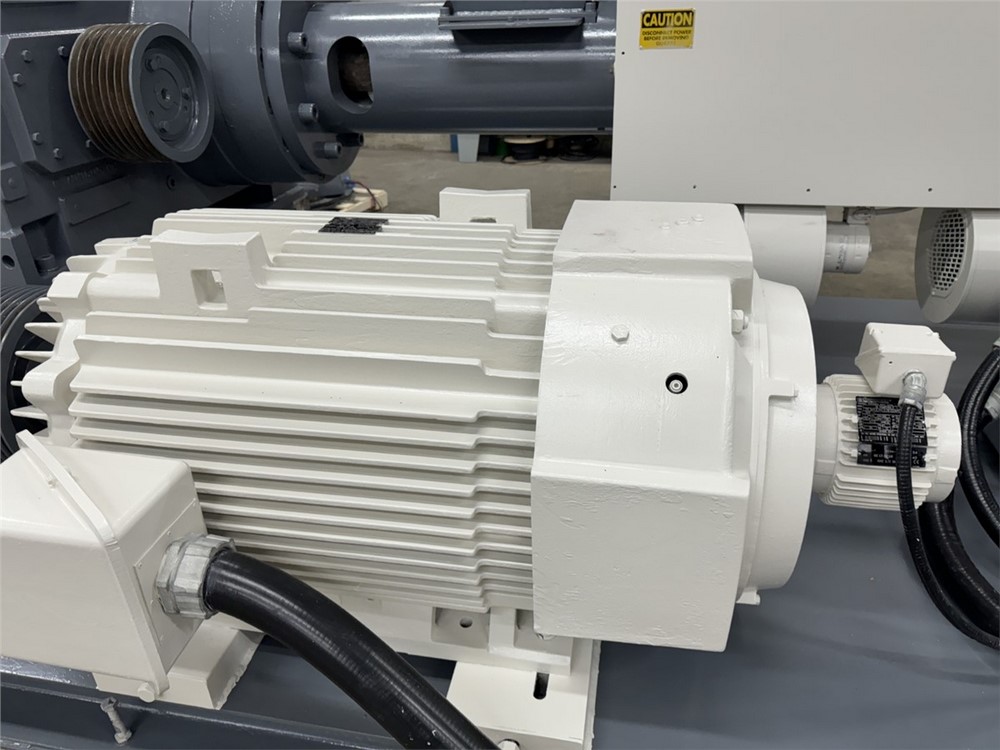

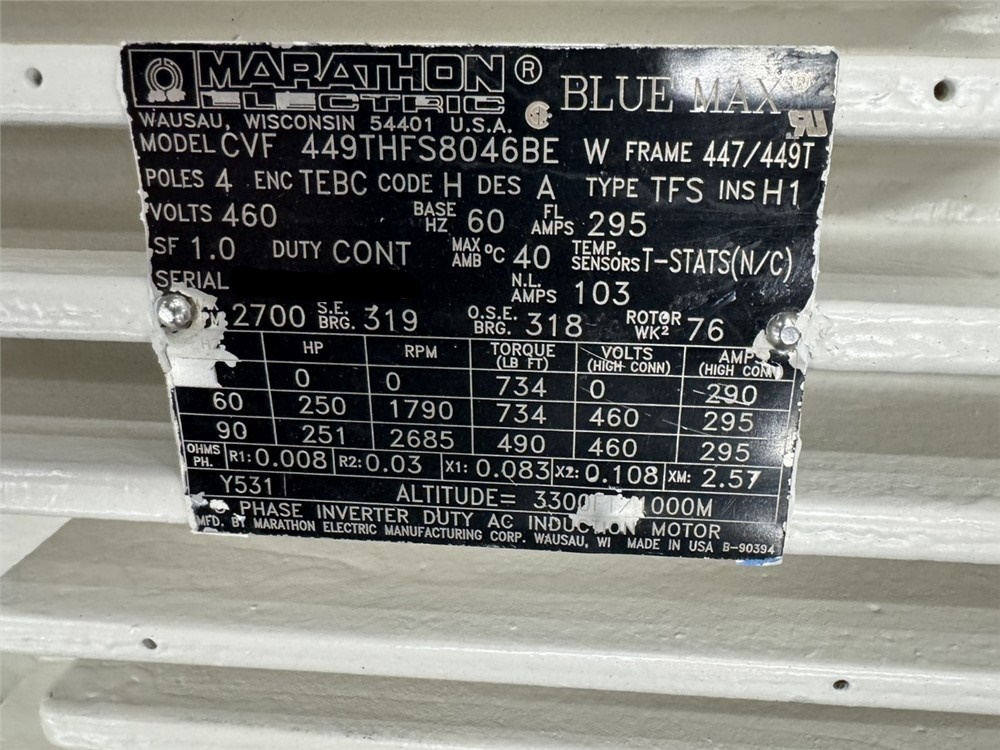

250 HP Marathon Blue Max Motor (295 Amp@460) |
|
295 Motor Amps |
431 Total Amps |
|
Amp Meters For Each Zones |
Flender Gearbox Rated To 250 HP |
|
Includes Screw And Clamp |
Solid State Relays |
|
Temperature Control Panel With RKC Temperature Controllers |
WEG 250 HP CFW11 Drive |
