| Year | |
|---|---|

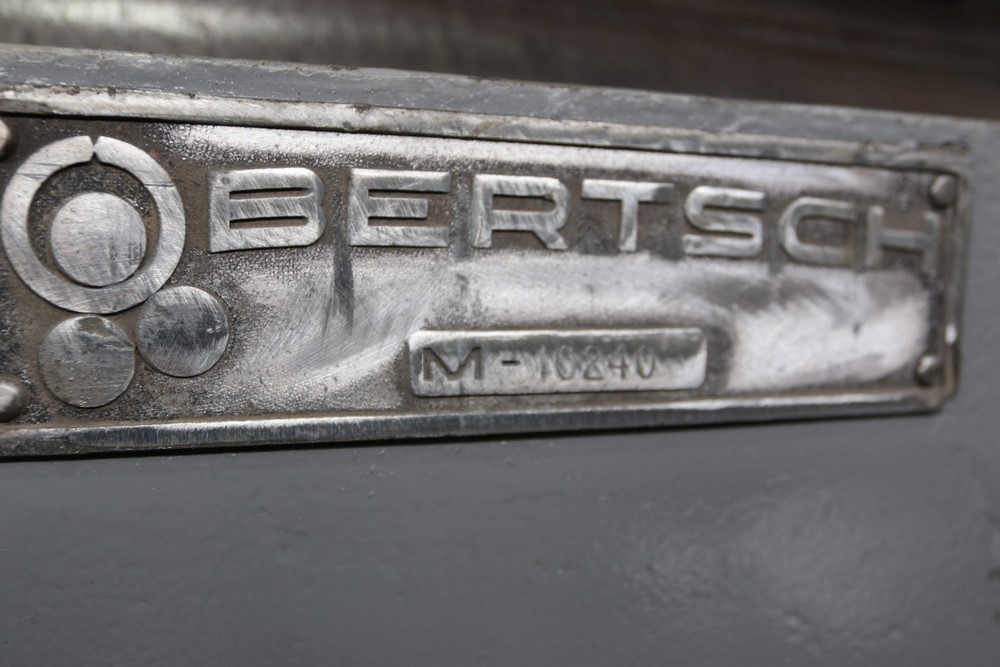

| Make | Bertsch |
| Model | M-10240 |
Description |
3 Roll Plate Roll |
| Reference # | 8073656 |

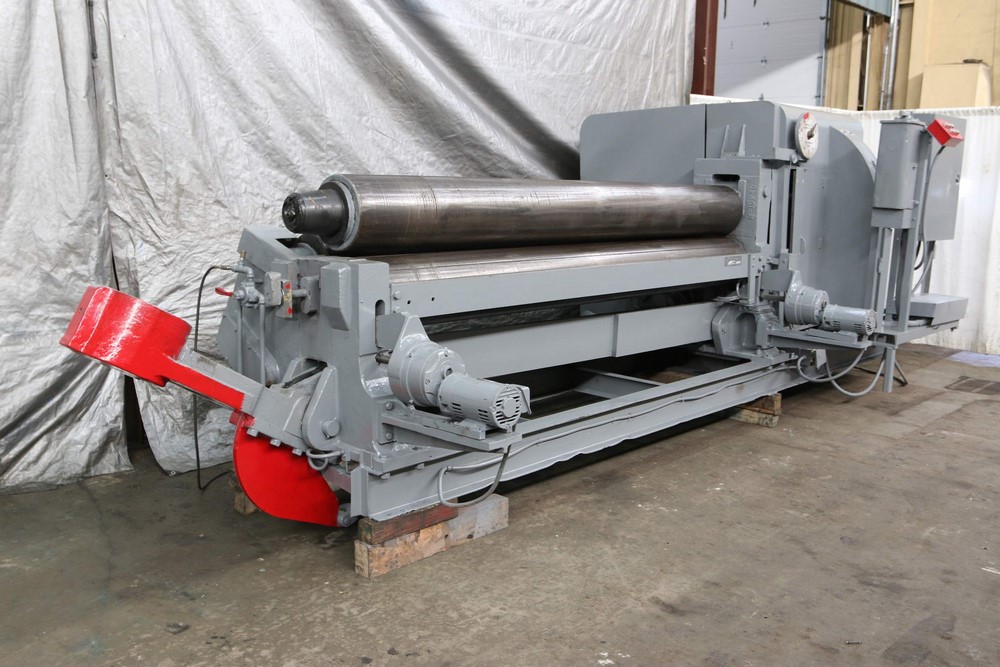

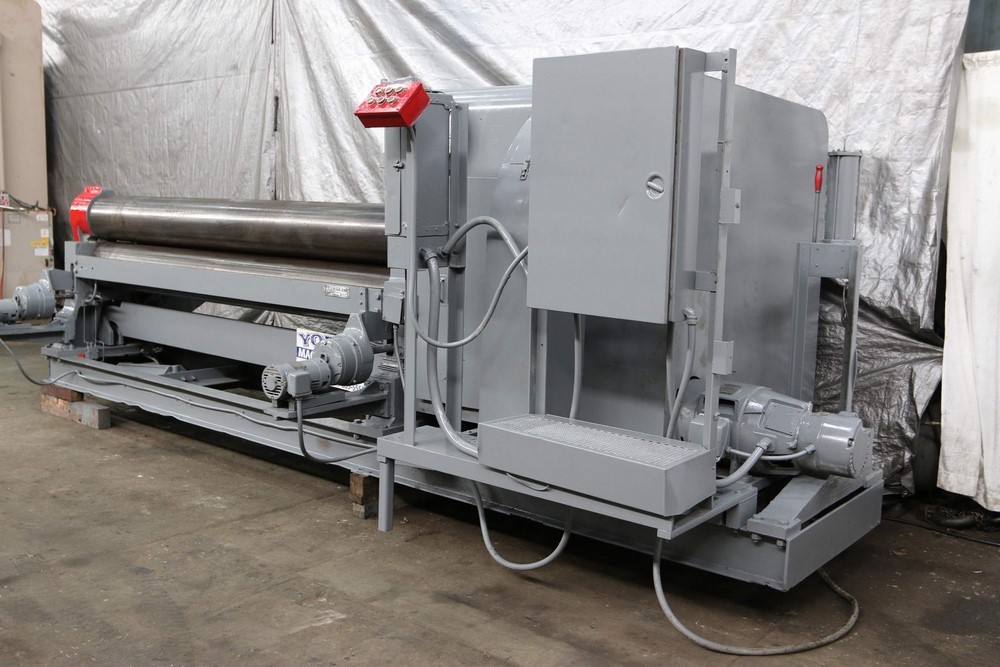

Used Bertsch M-10240
Specifications

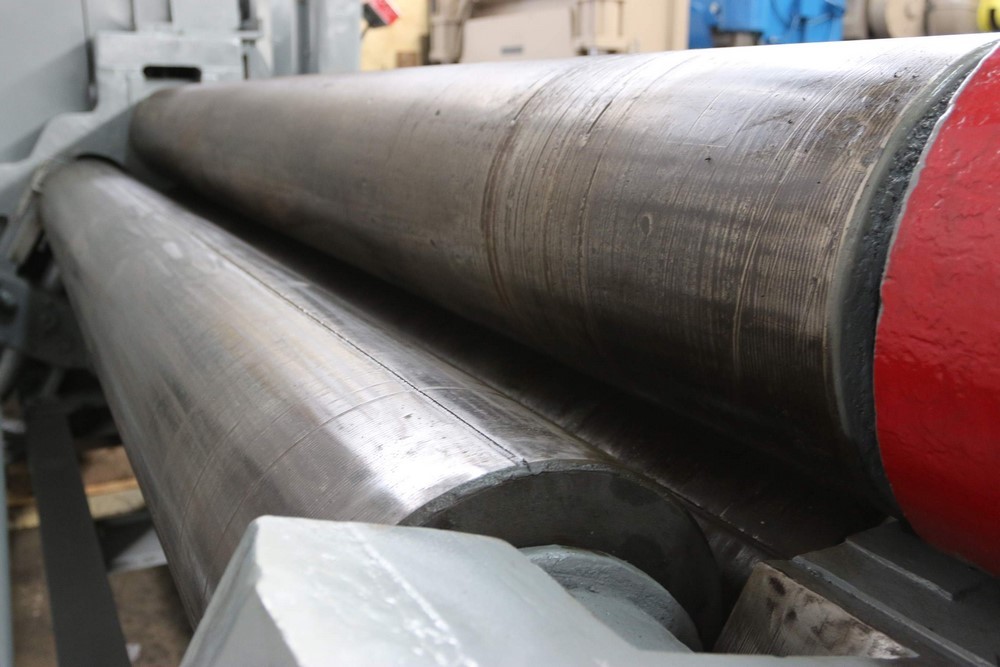

| Top Roll Dia |
13" |
|---|---|
| Bottom Roll Dia |
13" |
| Length |
120" (10') |

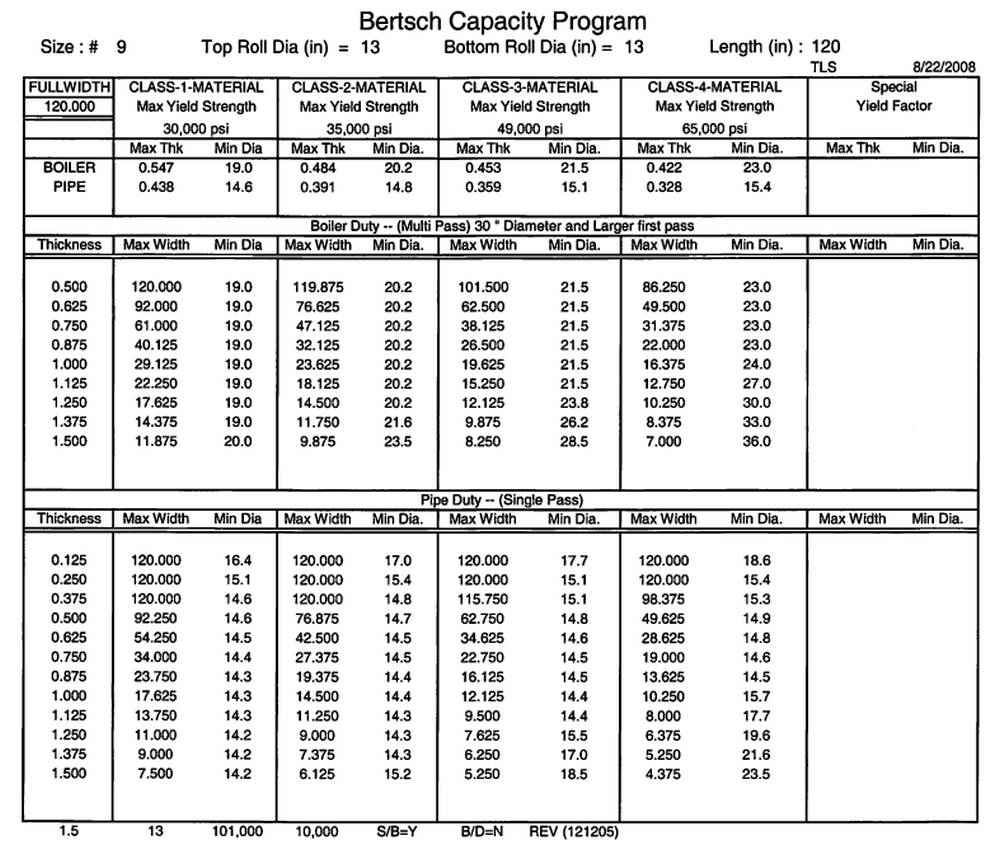

| Max Yield Strength (Class 1) |
30,000 psi |
| Boiler Duty 1 |
Max Thickness = 0.547 Max Dia = 19.0 |
| Pipe Duty 1 |
Max Thickness = 0.438 Max Dia = 14.6 |
| Max Yield Strength (Class 2) |
35,000 psi |
| Boiler Duty 2 |
Max Thickness = 0.484 Max Dia = 20.2 |
| Pipe Duty 2 |
Max Thickness = 0.391 Max Dia = 14.8 |
| Max Yield Strength (Class 3) |
49,000 psi |
| Boiler Duty 3 |
Max Thickness = 0.453 Max Dia = 21.5 |
| Pipe Duty 3 |
Max Thickness = 0.359 Max Dia = 15.1 |
| Max Yield Strength (Class 4) |
65,000 psi |
| Boiler Duty 4 |
Max Thickness = 0.422 Max Dia = 23.0 |
| Pipe Duty 4 |
Max Thickness = 0.328 Max Dia = 15.4 |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
