| Year | |
|---|---|
| Make | Bertsch |
| Model | 11 |
Description |
12' x 19/32" Plate Bending Roll |
| Reference # | 8076346 |

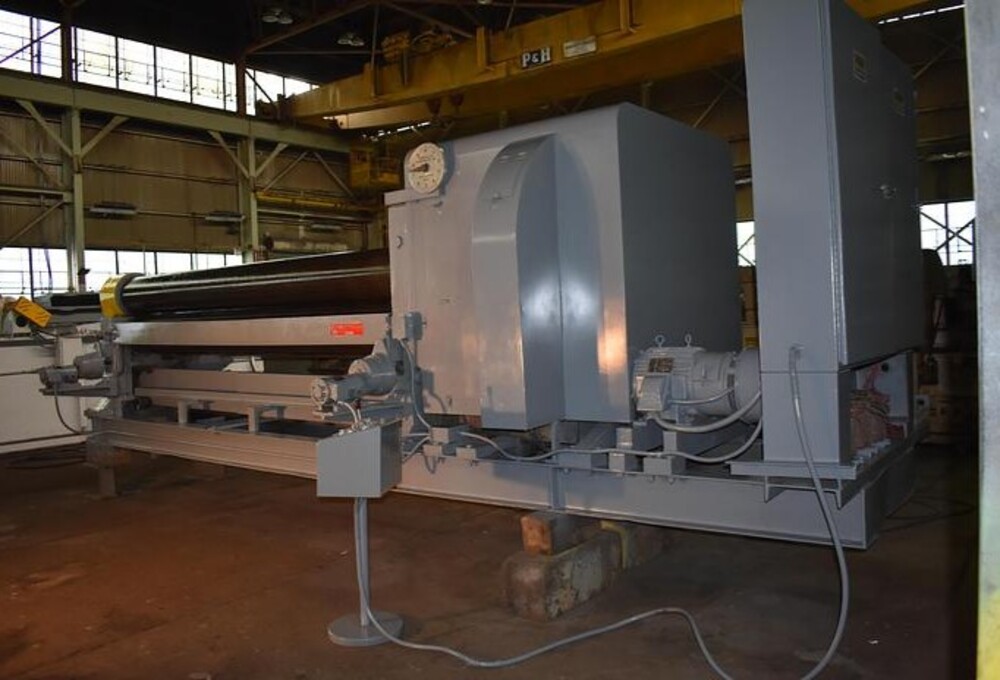

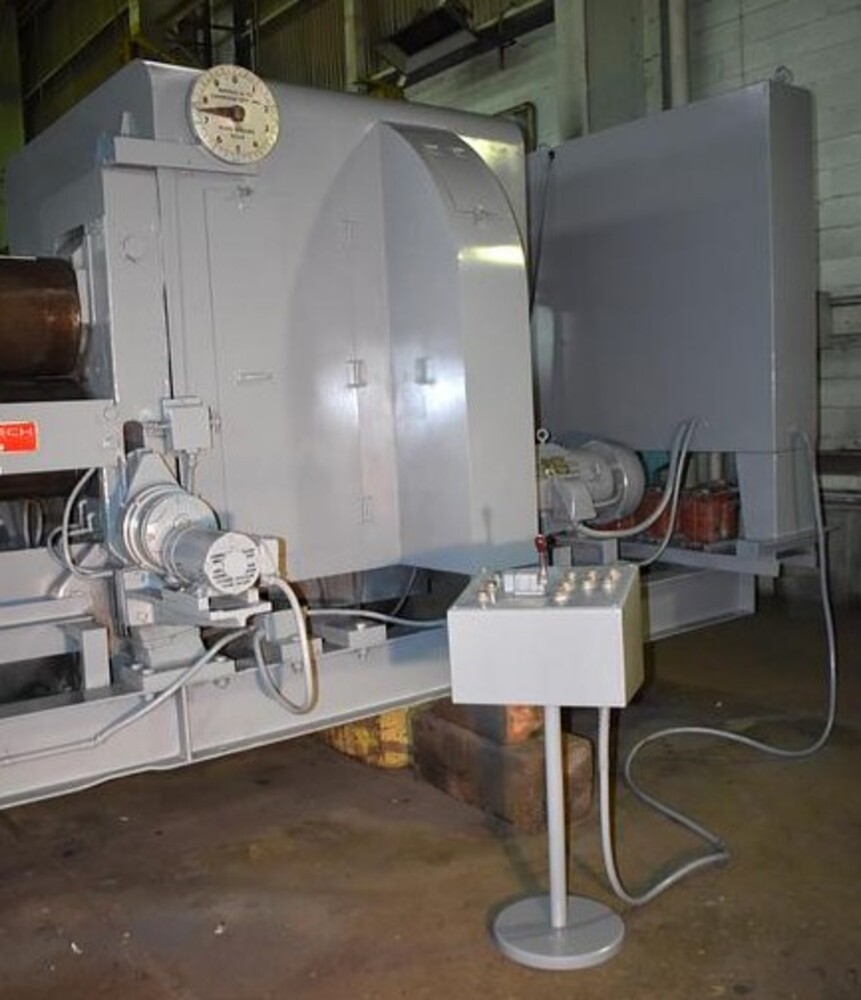

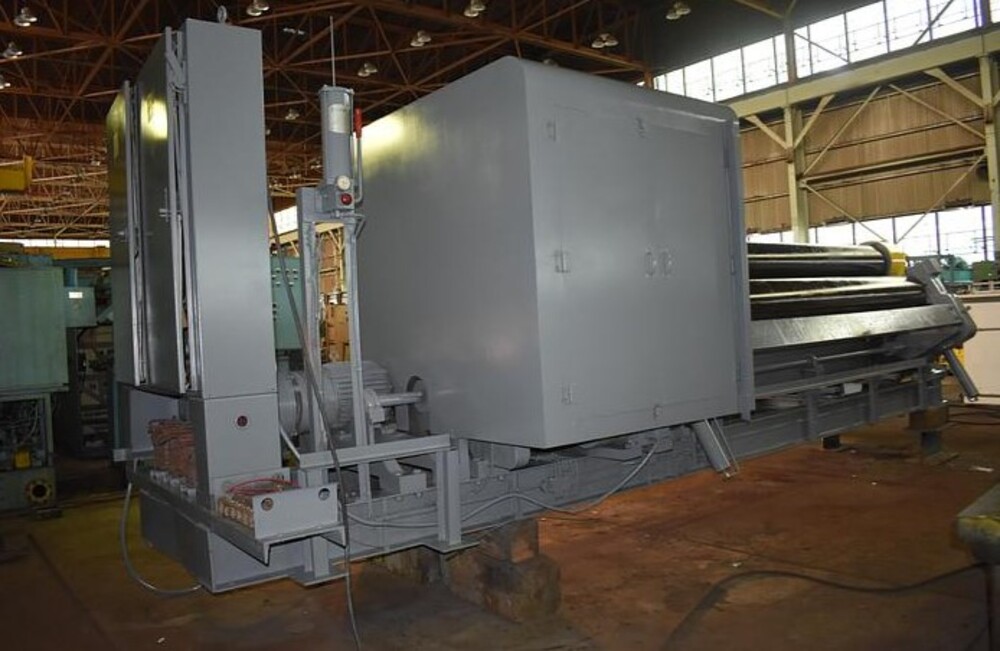

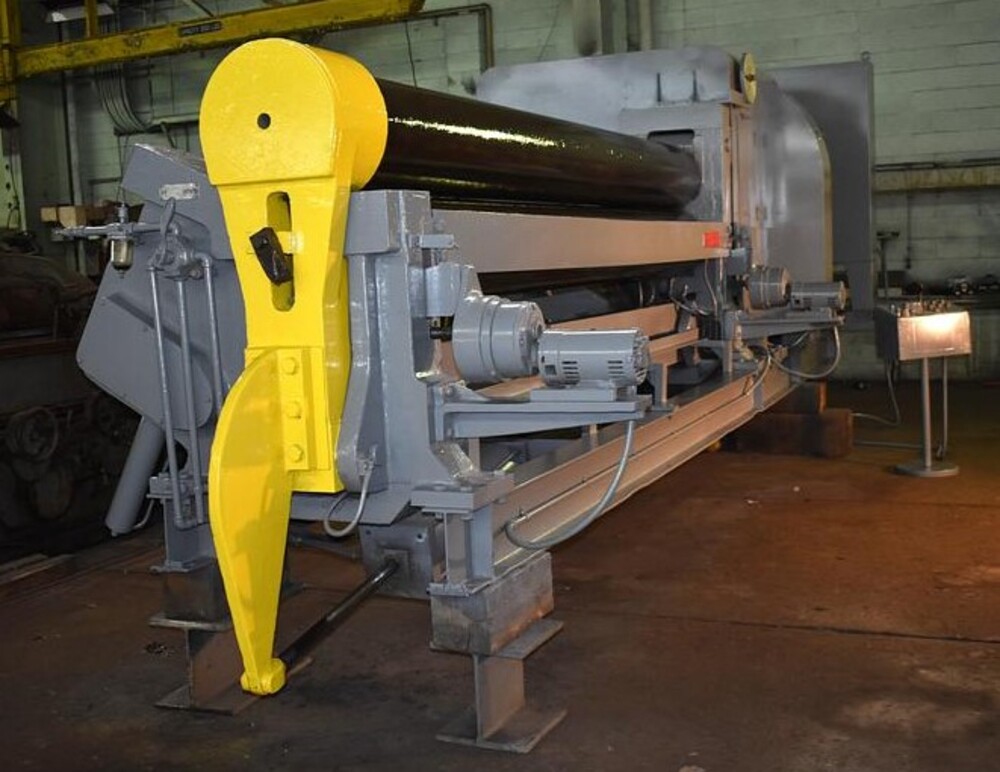

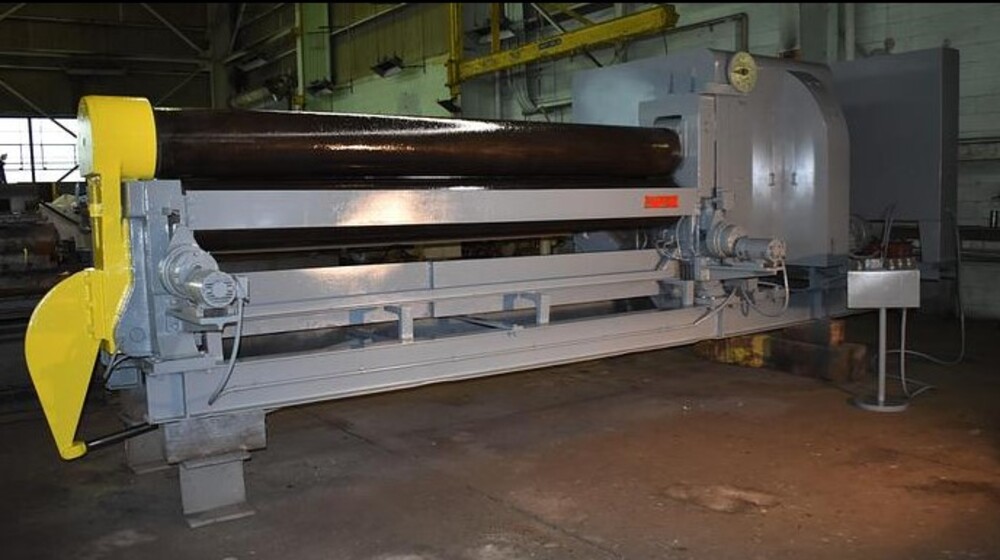

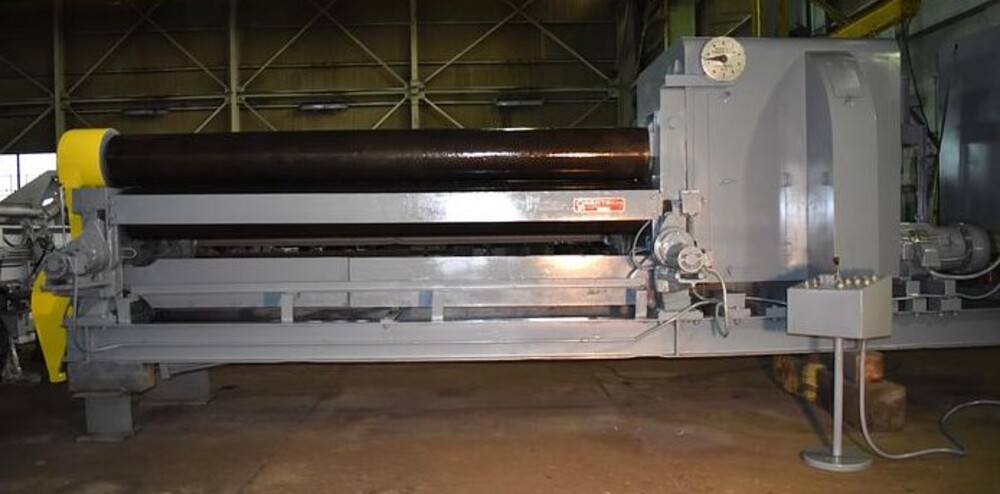

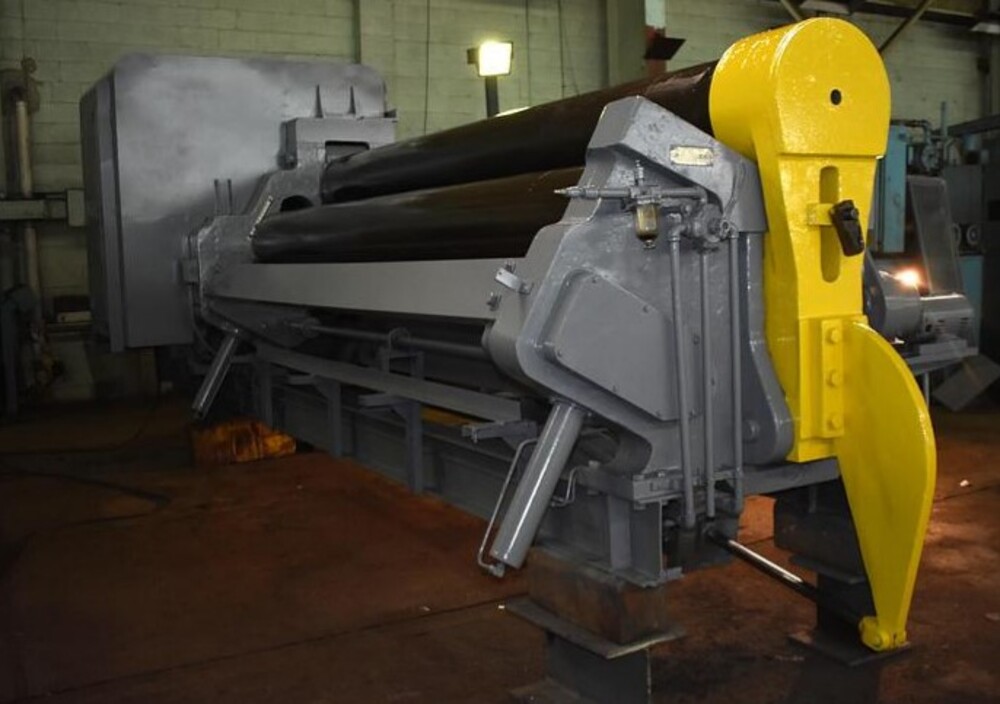

Used Bertsch 11
Specifications
| Capacity |
12' |
|---|---|
| Rolling Thickness Boiler Duty |
19/32" |
| Rolling Thickness Pipe Duty |
29/64" |
| Top-Roll Diameter |
15" |
| Bottom-Roll Diameter |
15" |
| Main Drive Motor |
20 HP/1200 RPM |
| Rear Roll Adjust Motor |
10 HP/1200 RPM |
Features
|
(2) 3/4 HP Front Roll Adjusting Motors |
(2) Front Roll Adjust Motors |
|
10 HP Rear Roll Adjusting Motor |
Farval Central Lubrication System |
|

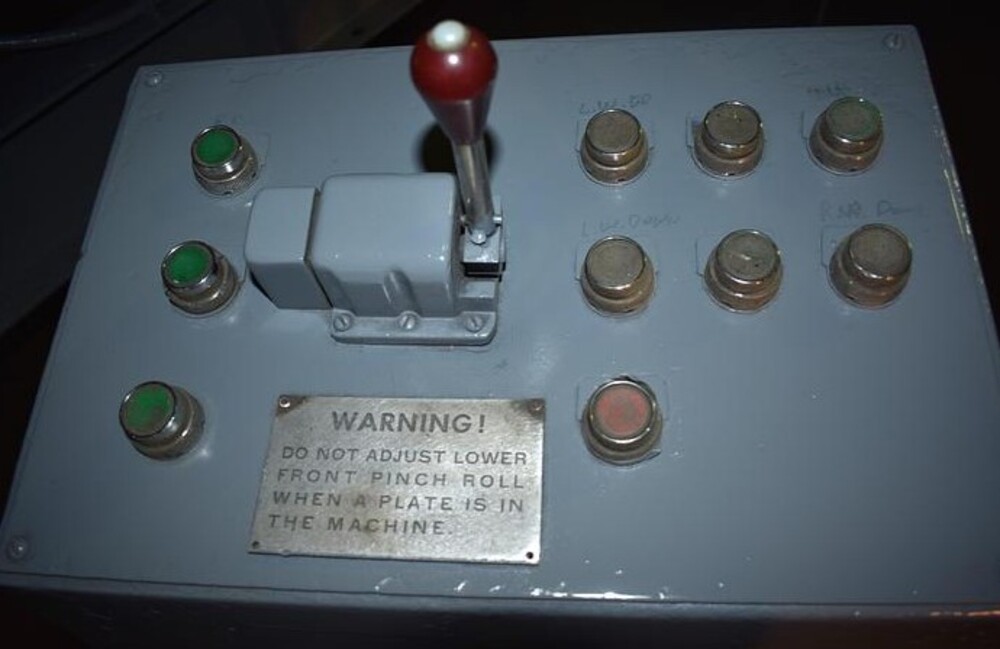

Power Adjustment To Lower Front Pinch Roll |
Rear Roll Dial Indicator |
|
SCR Control System w/ Vari-Speed Drive |
Air Drop End |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
