| Year | 2025 |
|---|---|
| Make | HSG |
| Model | X-Series |
Description |
5' x 10' 3, 6, 12kW CNC Compact Laser |
| Reference # | 8076777 |

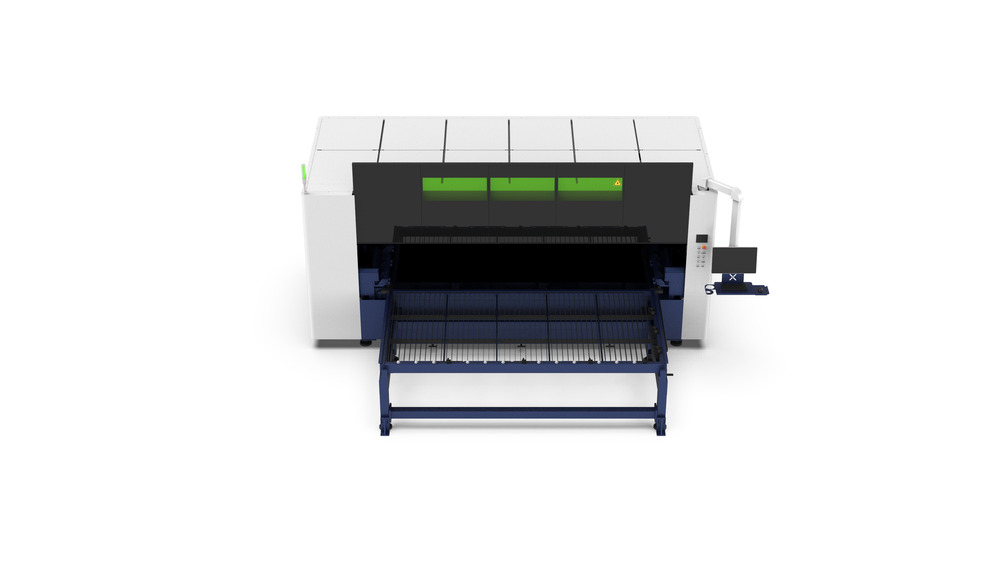

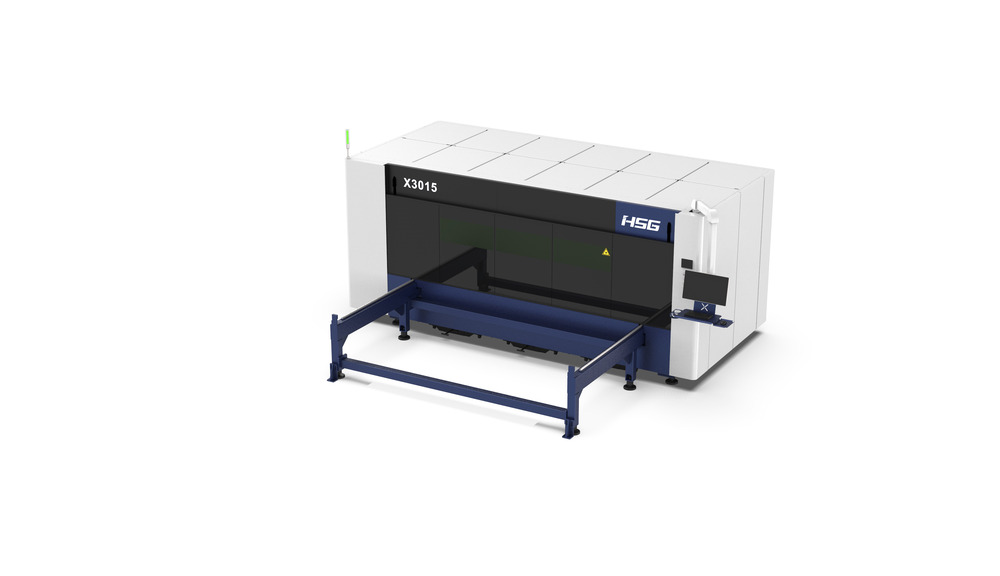

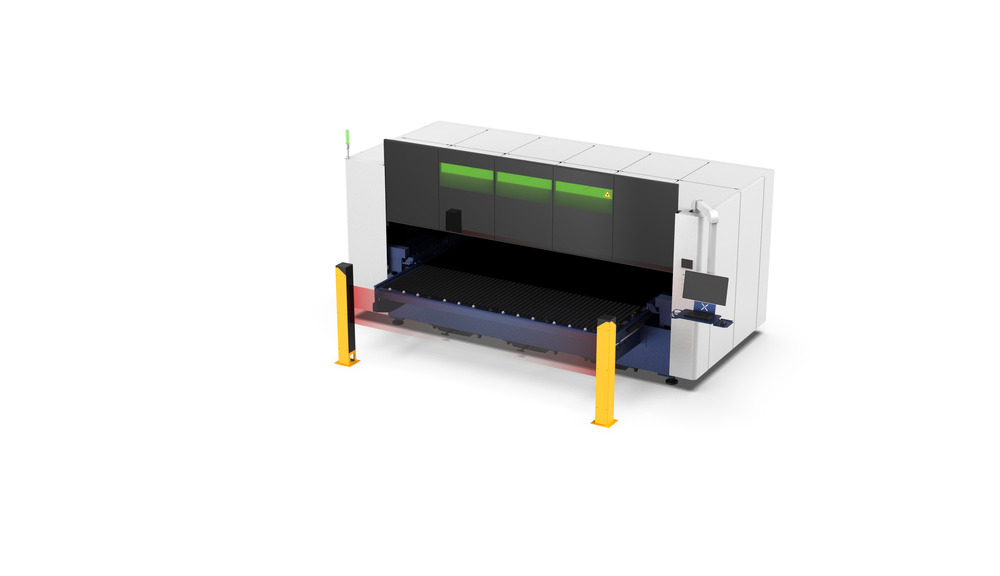

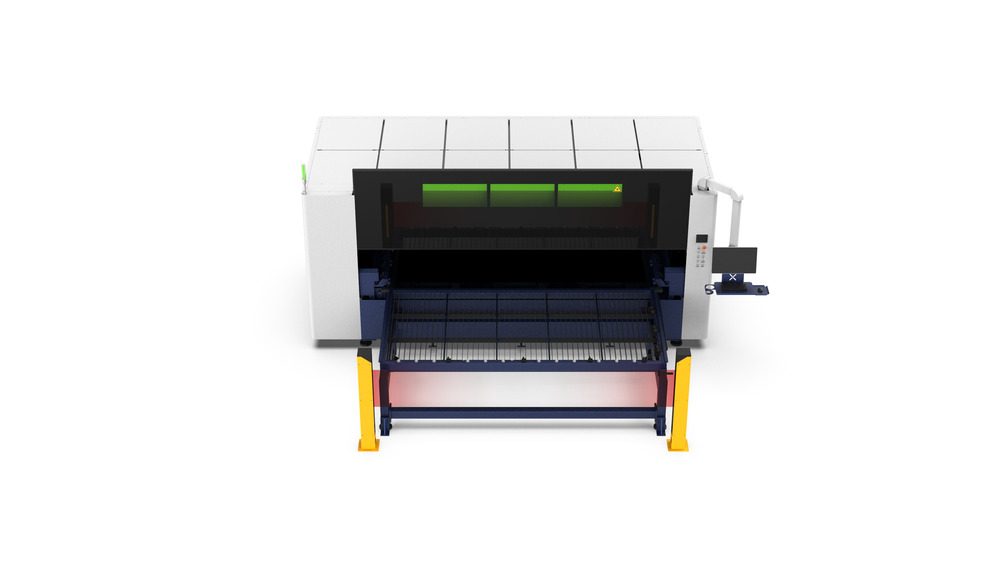

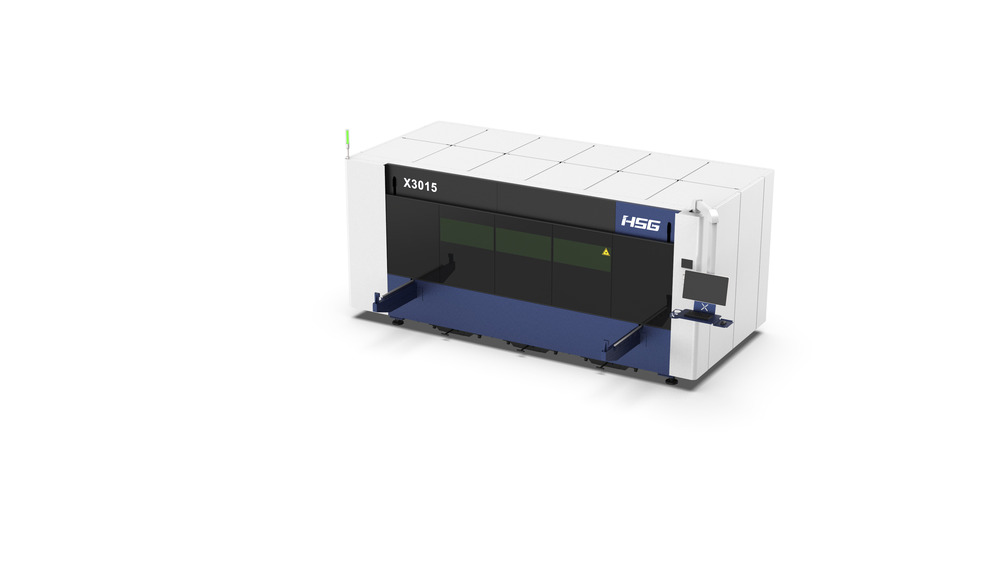

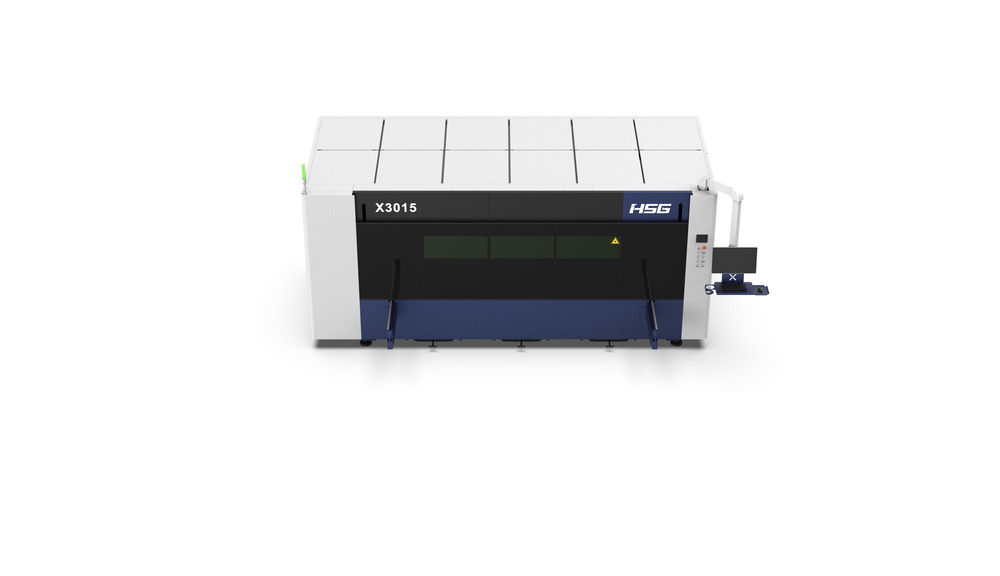

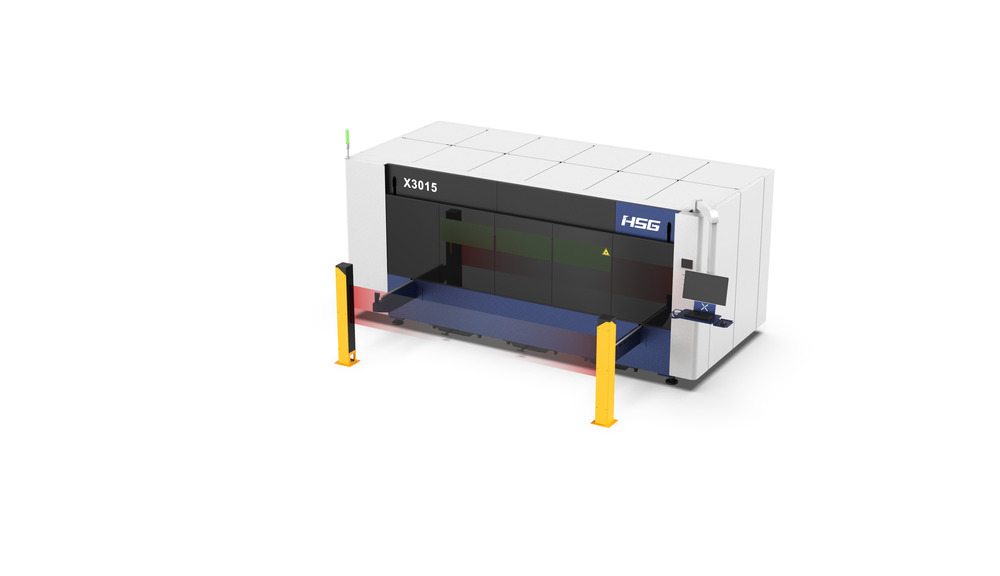

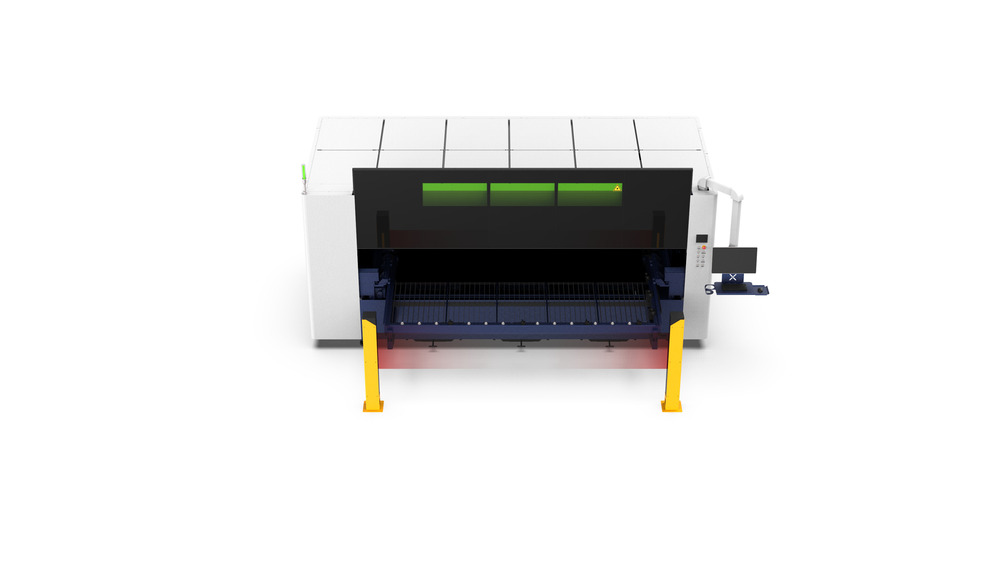

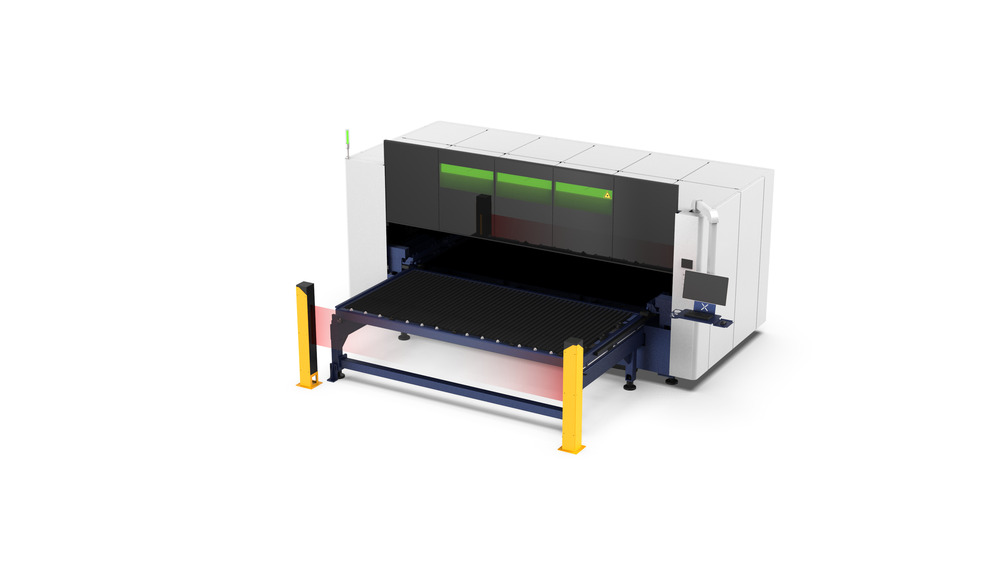

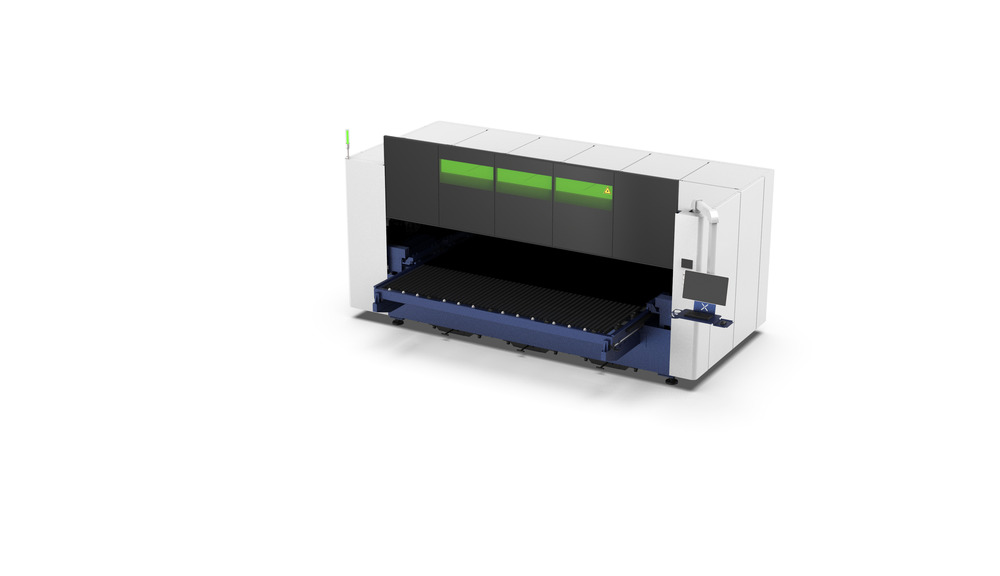

New HSG X-Series (2025) CNC Laser for Sale. This HSG CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this HSG Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
3,000, 6,000, & 12,000 |
| Control |
AlphaT2.0/Plus |
| X/Y-Axis Positioning Accuracy |
±0.03 Mm/M |
| X/Y-Axis Repositioning Accuracy |
±0.02 Mm |
| Max Linkage Speed |
100 M/Min |
| Max Linkage Acceleration |
1.5G |
| Machine Structure |
Fully Enclosed Design With OD Glass To Prevent Laser Radiation; Grilles, Fences, Monitoring For Enhanced Safety |
| Beam Material |
Fifth-Generation 6-Series Aluminum, 20% Lighter and 15% More Torsional Resistance |
| Applicable Materials |
Carbon Steel, Stainless Steel, Aluminum Alloy, Brass, Red Copper Sheets |
| Cutting Capacity |
Supports Sheet Thickness Up To 30mm; Consult HSG For Specific Capabilities |
| Note |
Processing Format (L × W) Varies By Model; Consult For Specific Dimensions |
Features
|
Bed Covered With Manganese Steel Anti-Burn Plates To Prevent Thermal Deformation |
High-Precision Racks/Guide Rails/Professional Speed Reducers Transmission System |
|
HSG’s Self-Developed AlphaT2.0/Plus Bus System With Intelligent Path Optimization and Smart Vibration Control |
Chiller Unit |
|

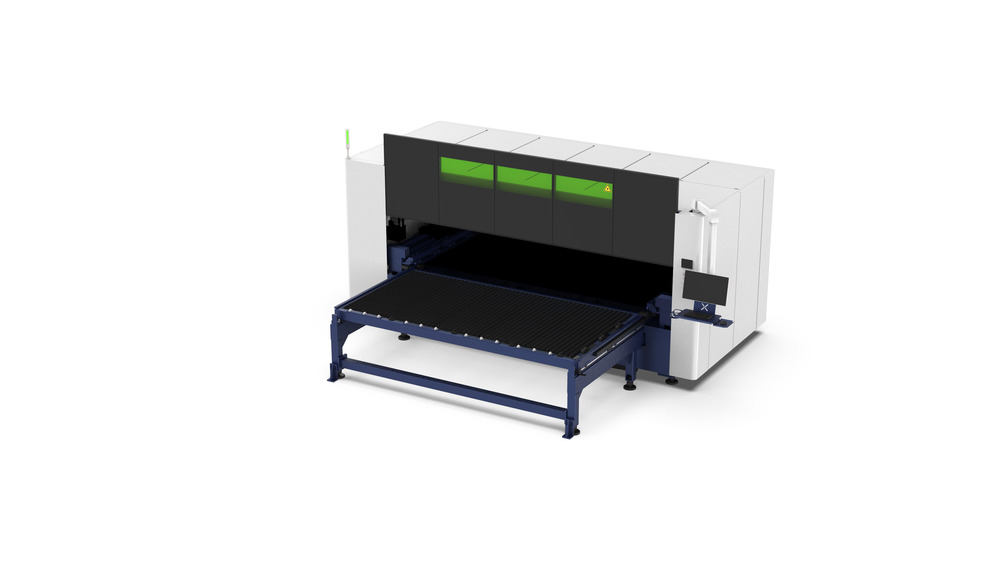

Dual Pallet Shuttle Tables |
Dust Collector |
