| Year | 2025 |
|---|---|
| Make | HSG |
| Model | GH-Series |
Description |
5' x 10', 6.6' x 13.3', or 8' x 20' and 3, 6, 12, 20, or 30 kW CNC Fiber Laser |
| Reference # | 8076784 |

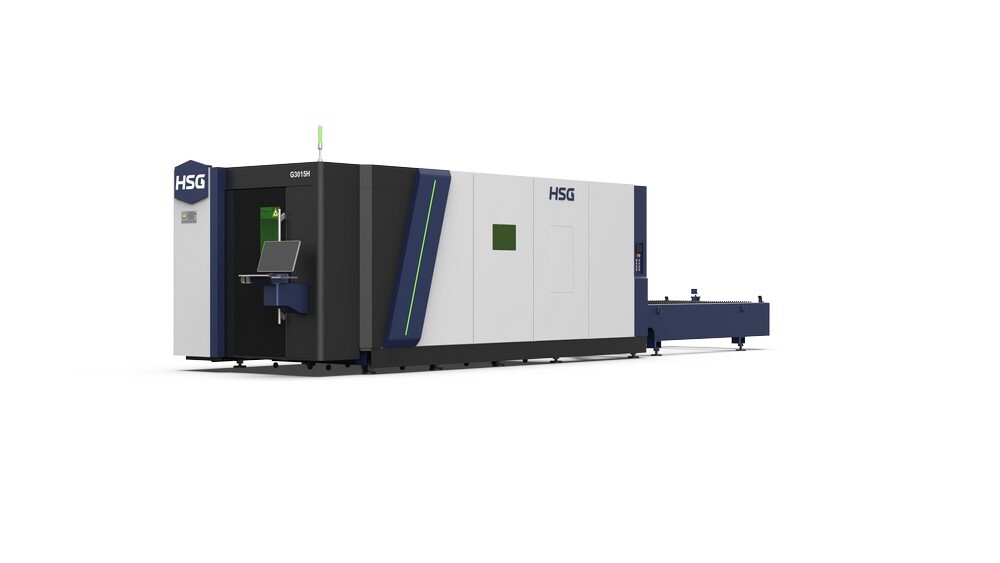

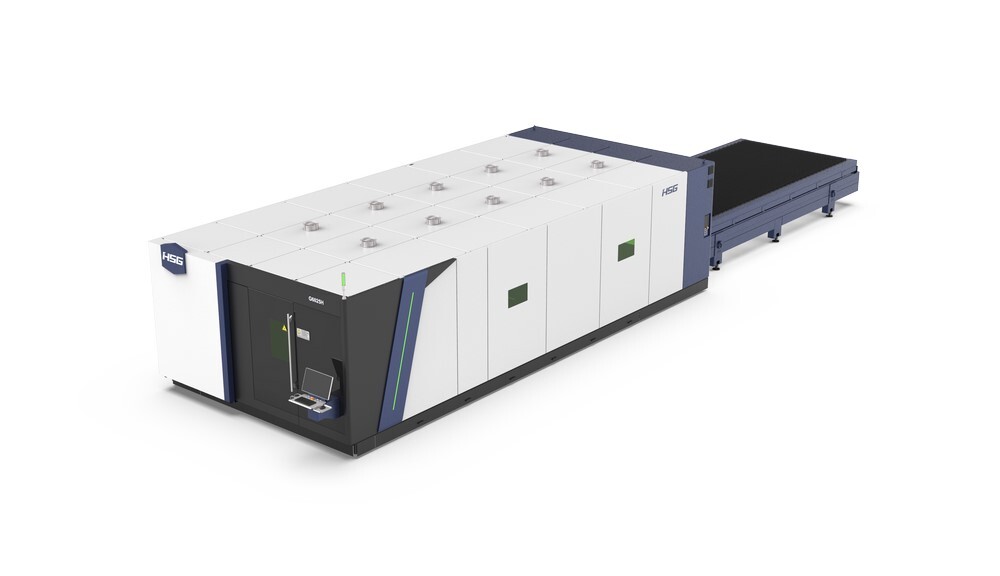

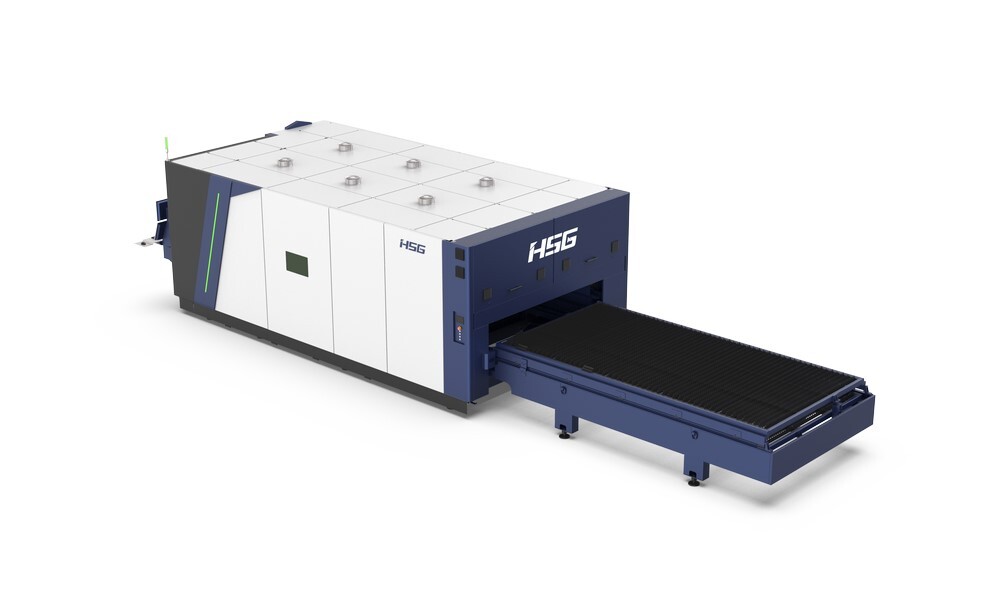

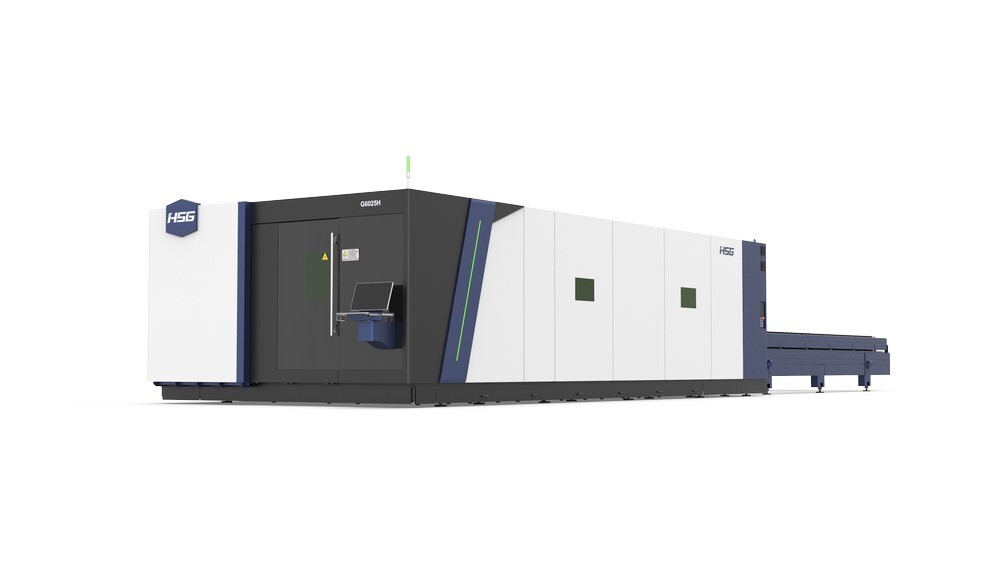

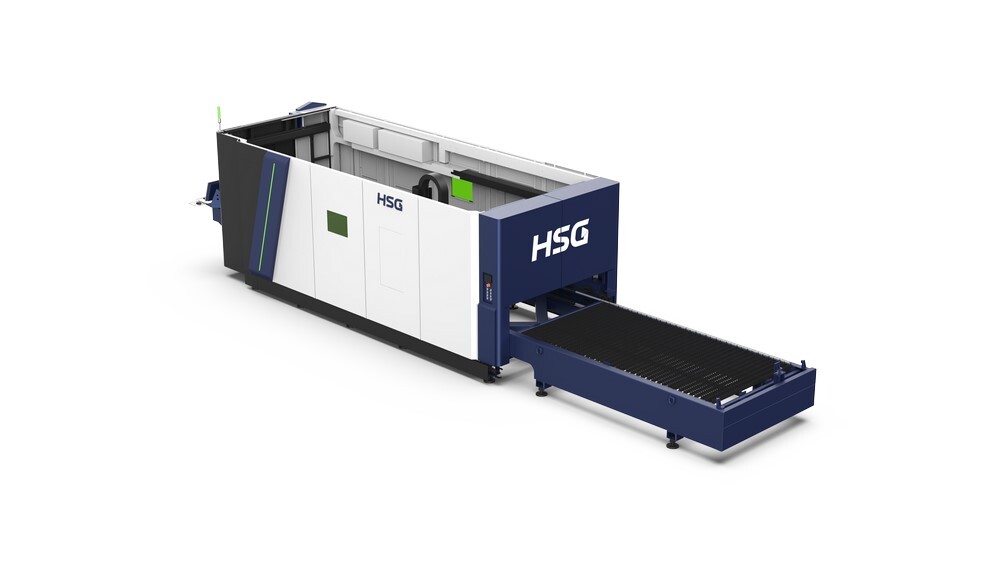

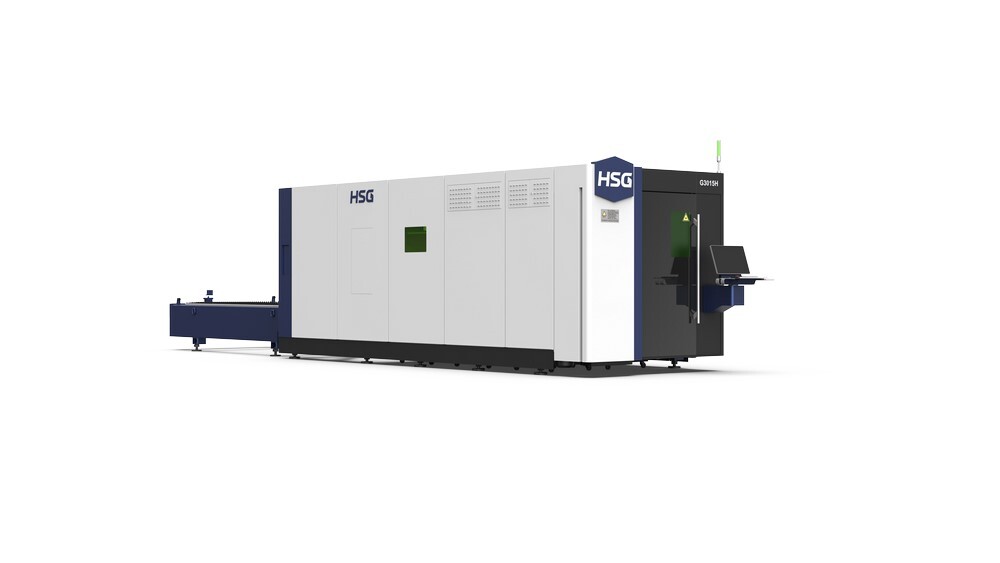

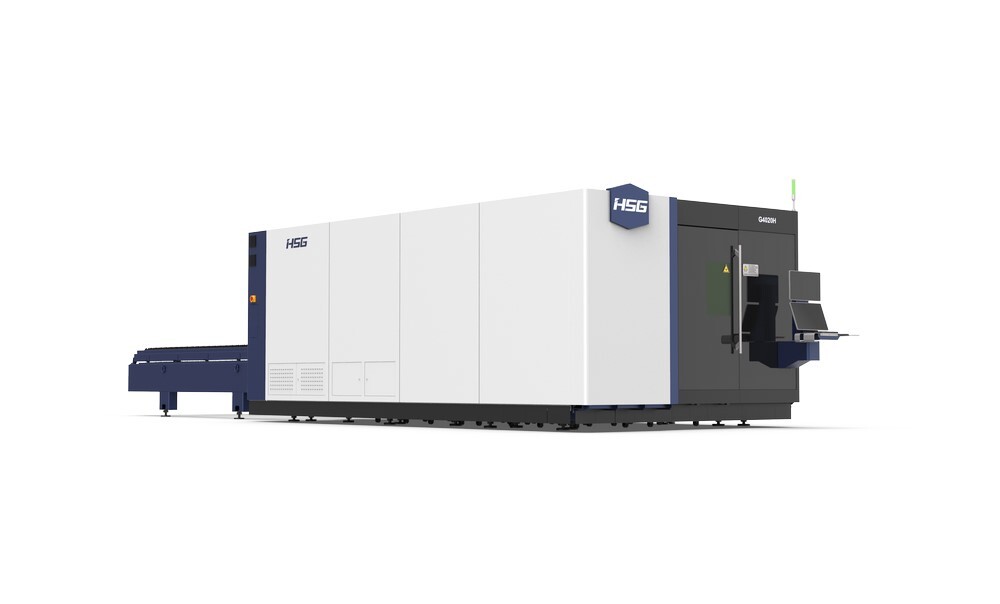

New HSG GH-Series (2025) CNC Laser for Sale. This new HSG CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this HSG Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Wattage |
30,000 |
|---|---|
| Processing Format (L × W) |
3015 - 5'x10', 4020 - 6.6' x 13.3' , 6025 - 8' x 20' |
| X/Y-Axis Positioning Accuracy |
±0.03 mm/m |
| X/Y-Axis Repositioning Accuracy |
±0.02 mm |
| Maximum Linkage Speed |
200 m/min |
| Maximum Linkage Acceleration |
4.0G |
| Machine Structure |
Bi-Symmetrical Gantry with Upgraded Matrix Machine Bed for Enhanced Rigidity |
| Beam Material |
Fifth-Generation 6-Series Aluminum, 20% Lighter, 15% More Torsional Resistance |
| Applicable Materials |
Carbon Steel, Stainless Steel, Aluminum Alloy, Brass, Red Copper Sheets |
| Cutting Capacity |
Varies By Material and Laser Power; Consult HSG For Specific Capabilities |
| Control |
Intelligent Path Optimization Smart Vibration Control |
Features
|
High-Precision Racks/Guide Rails and Professional Speed Reducers |
Material Waste Device Made Of High-Density Burn Prohibition Plates |
|
Upgraded Bus Control System |
Chiller Unit |
|
Dual Pallet Shuttle Tables |
Dust Collector |
