| Year | 2022 |
|---|---|
| Make | YEI Machinery |
| Model | YDN-2V-160-G-1 |
Description |
Extruder |
| Reference # | 8076240 |

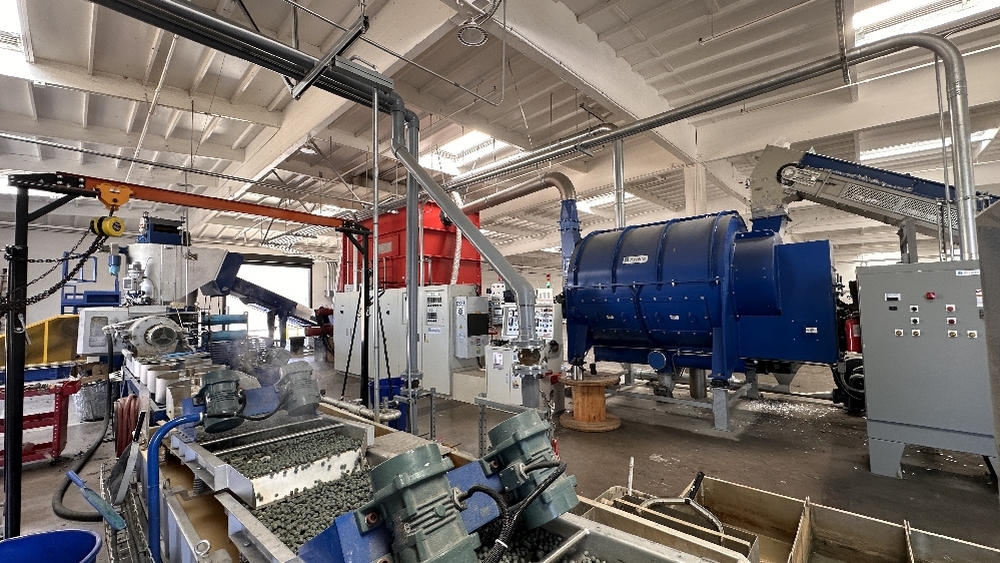

Used YEI Machinery YDN-2V-160-G-1 (2022) Extruder for Sale. This pre-owned YEI Machinery plastic extruder is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this YEI Machinery Extruder, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Extrusion Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Screw Size |
160 mm |
|---|---|
| L/D Ratio |
32:1 |
| Vented |
Dual Venting |
| Horsepower |
350 HP AC Motor w/ Inverter |
| Applicable Materials |
HDPE/LDPE/PP FILMS |
| Max. Output Per Hour |
900 -1000 kgs |
| Installed Power |
490kw + 88.5kw |
| Note |
Twin Cylinder Screen Changer Allows Changing Screen Without Machine Shut Down, Output Rate Depending On Working Conditions, Material Properties, Moisture, Printing And Contamination |
Features
|
Collecting Tank For Pellets |
Compact Design |
|

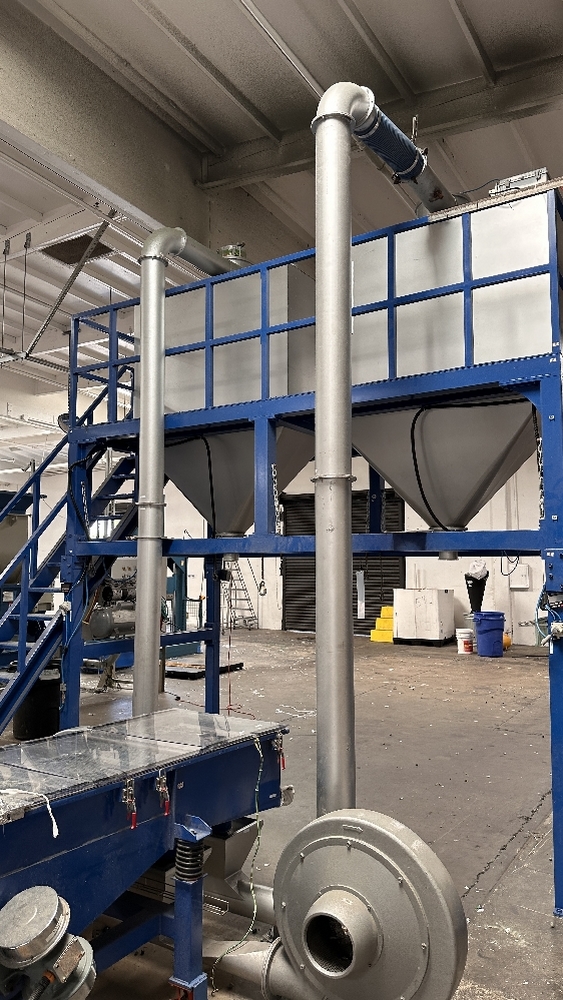

Cooling Blower (10 HP) |
Die-Face Pelletizer |
|
Direct Combination Of Shredder & Extruder |

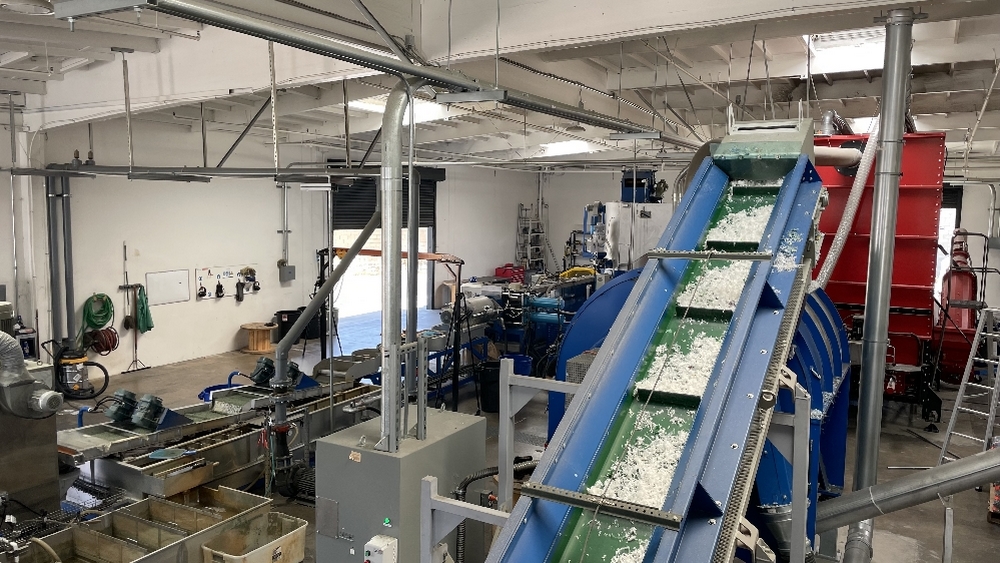

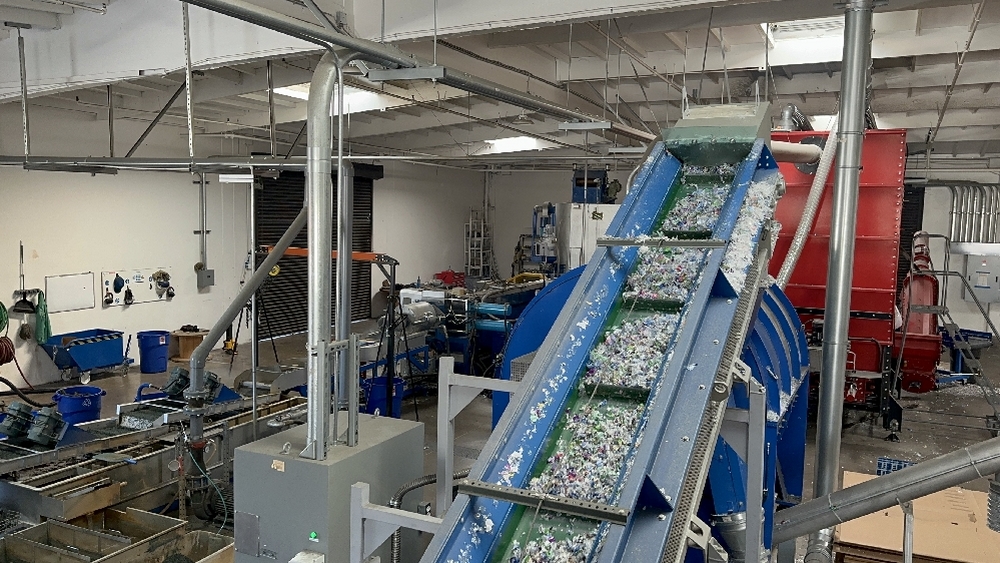

Feeding Conveyor (3 HP Motor) |
|
High Quality Moisture-Free End Products |

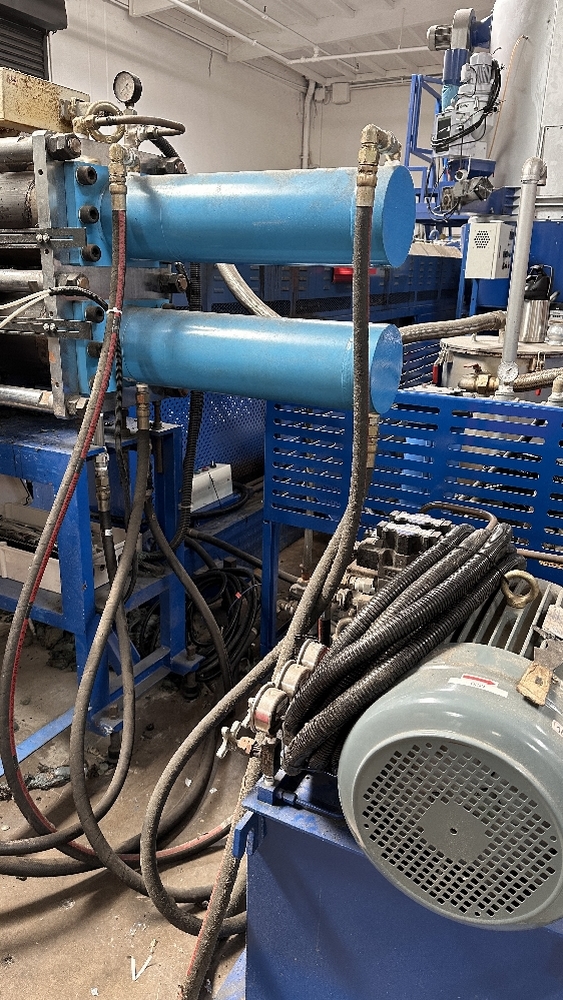

Hydraulic Screen Changer (15 HP) |
|
Pelletizer Motor (7.5 HP AC w/ Inverter) |

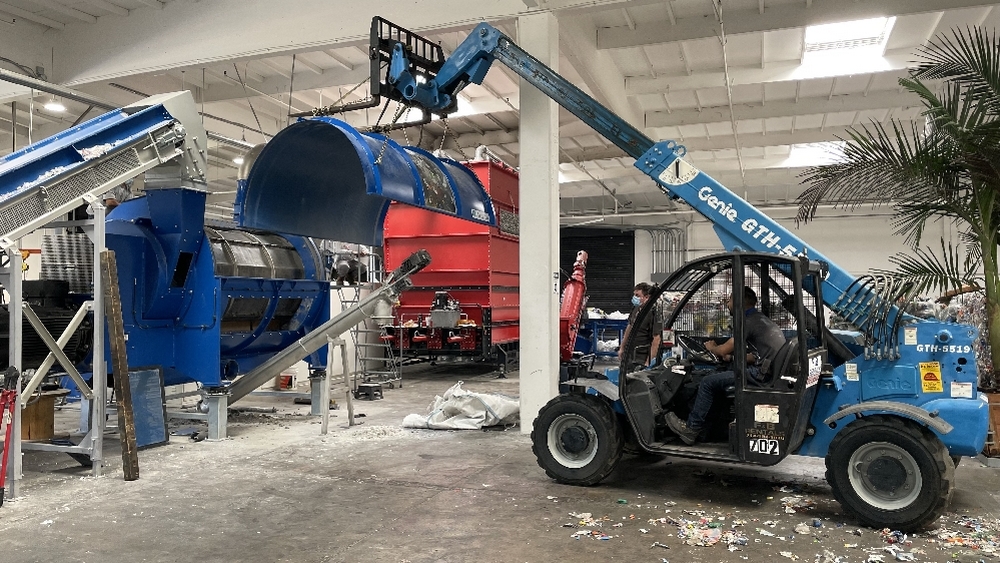

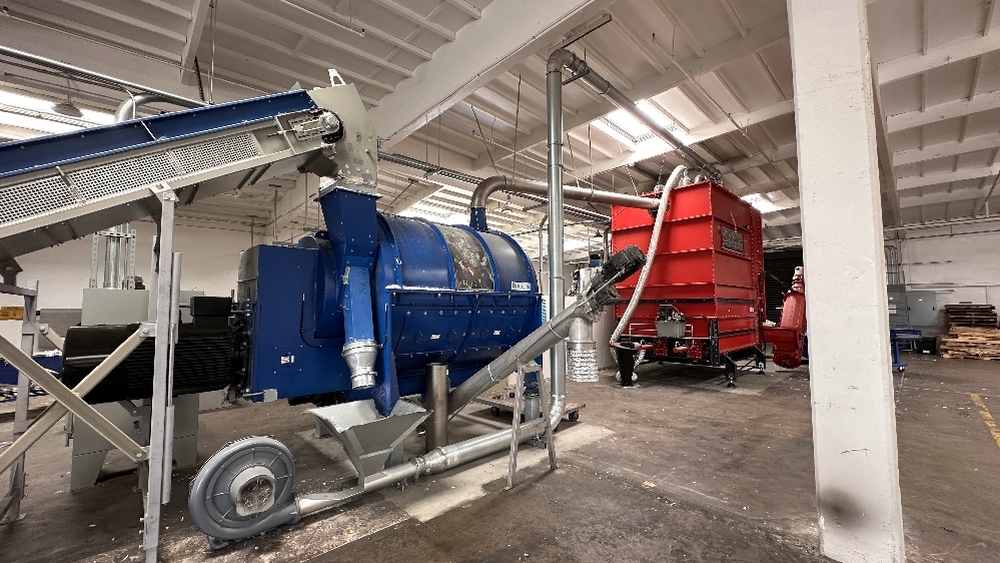

Shredding Drum w/ Shredder (200 Hp AC Motor w/ Inverter) |
|
Vibrating Dryer (7.5 HP Water Pump & 0.25 HP Vibrating Motor) |
Spare Parts |
|

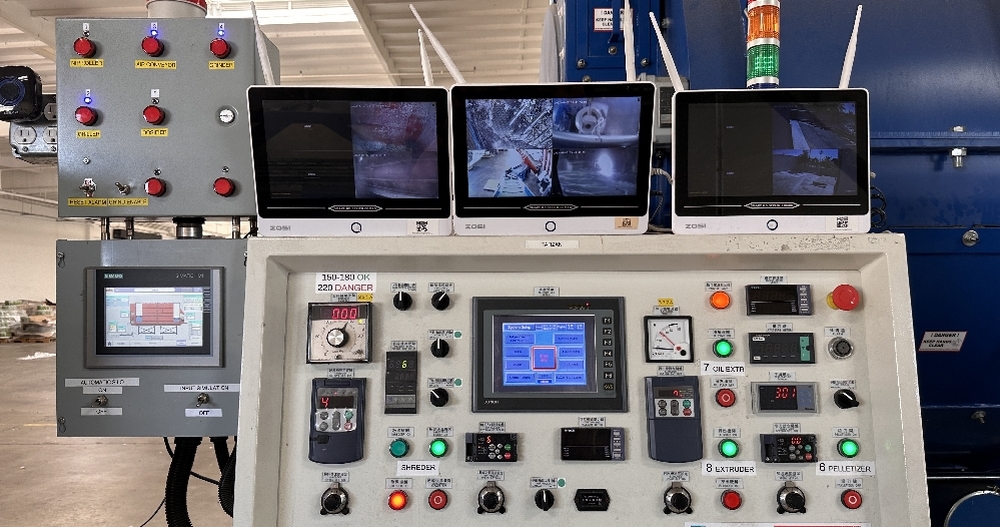

Stand Alone Control Panel |
