| Year | 2022 |
|---|---|
| Make | Mitsubishi |
| Model | ML3015SR-F40 |
Description |
5' x 10' 4kW CNC Fiber Laser |
| Reference # | 8074792 |

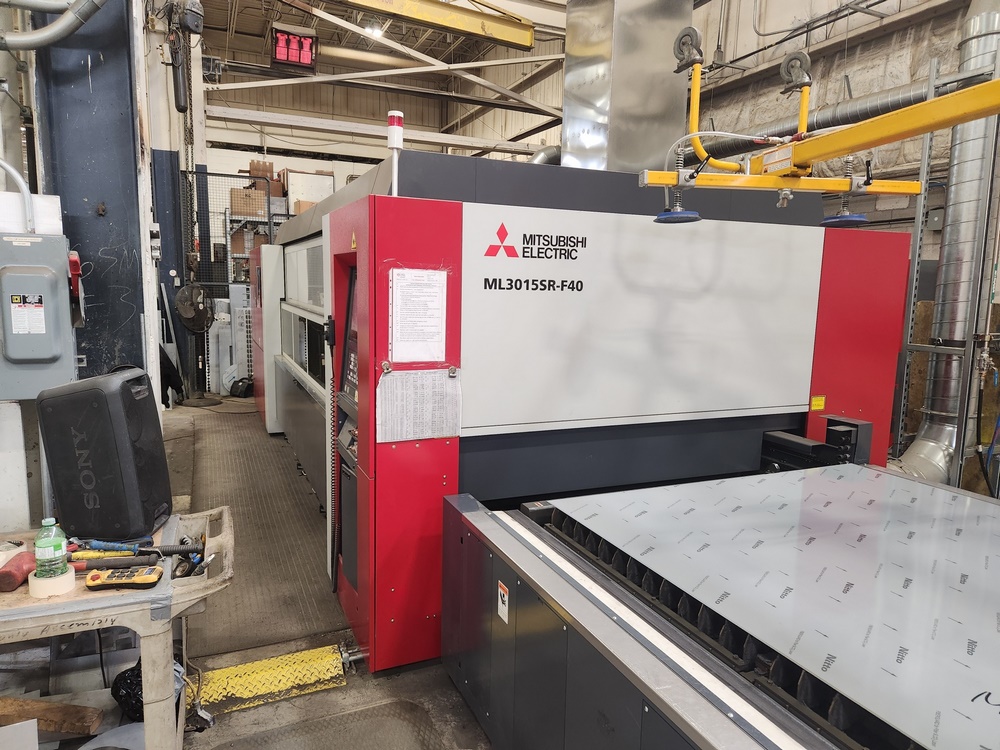

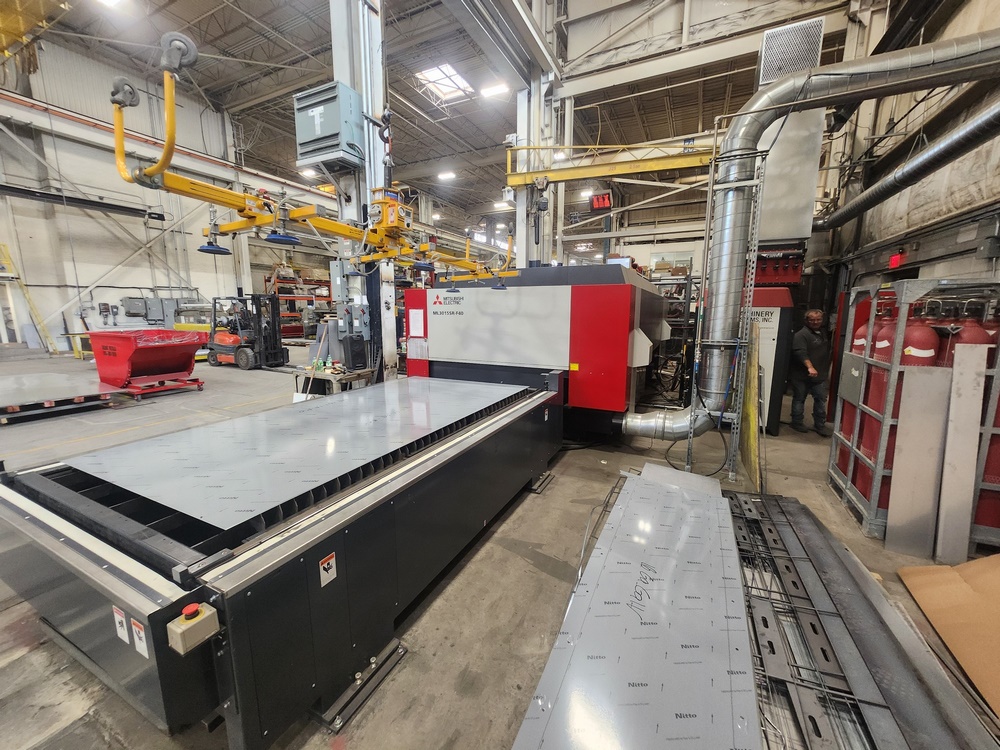

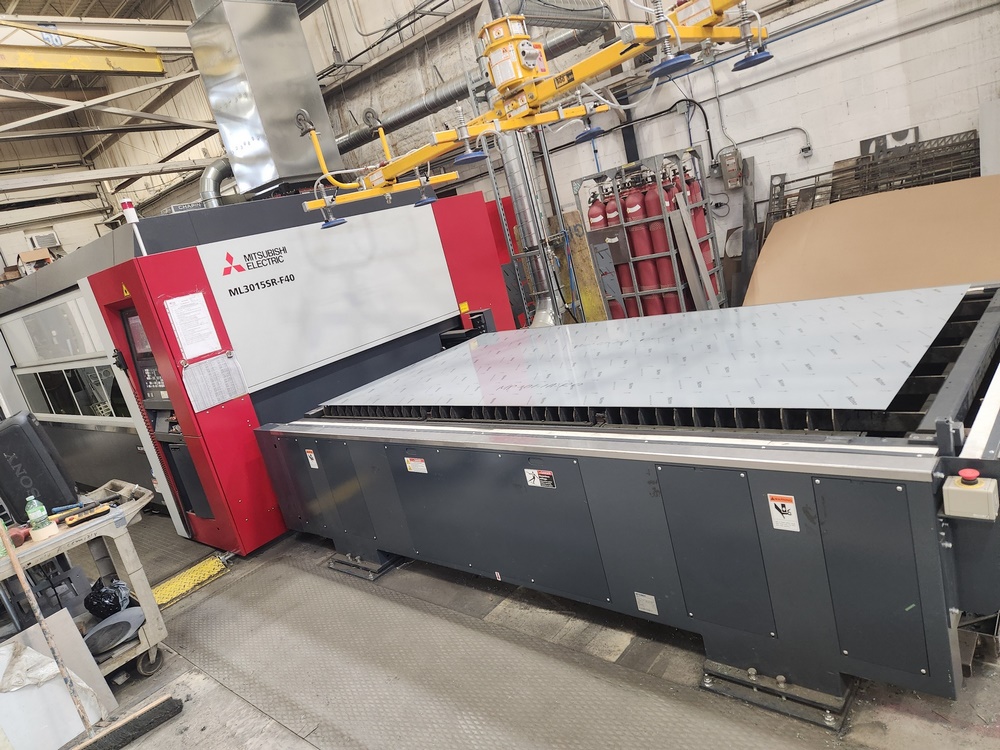

Used Mitsubishi ML3015SR-F40 (2022) CNC Laser for Sale. This pre-owned Mitsubishi CNC laser cutter is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
4,000 |
| X-Axis Travel |
122.05" |
| Y-Axis Travel |
61.021" |
| Z-Axis Travel |
5.9" |
| Control |

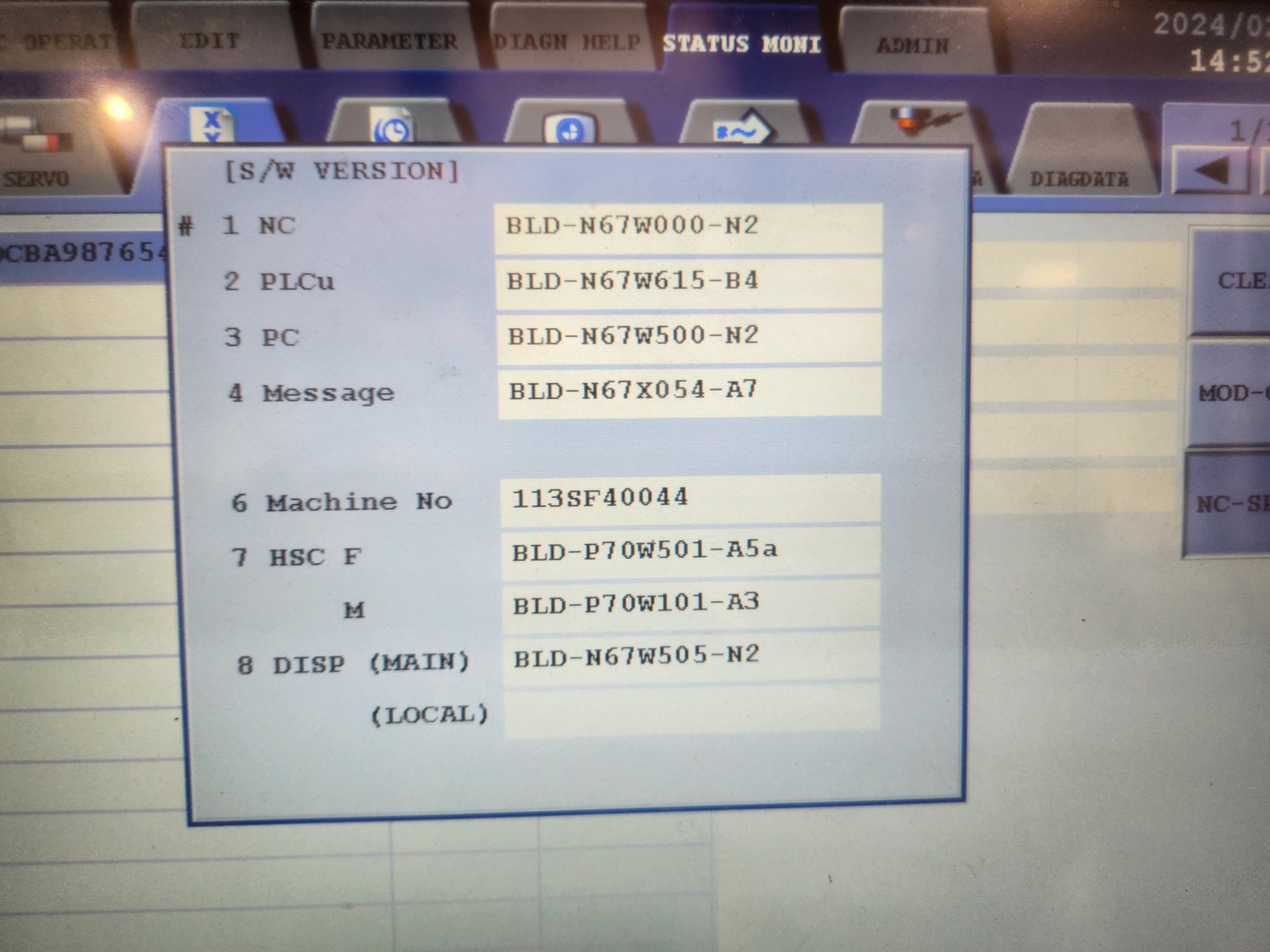

Mitsubishi 700 Series |
| Max Workpiece Size |
120.080" x 60.040" |
| Max Workpiece Weight |
1,550 Lbs |
| Hours |
371 Discharge Hours |
| Power Requirement |
208/3/60 |
| Table Pass Height |
33.5" |
| Machine Dimensions |
406" (L) x 123.2 (W) x 112" (H) |
Features
|
15" TFT Color LCD Touch Screen |
Eco Mode - Reduces Cost During Standby up to 70% |
|
Magnetic Break-Away Head |
Motion Cut |
|
Standard Processing Head (5" or 8" Focal Length) |
Welded Frame with Precision Helical Rack & Pinion Direct Drives |
|

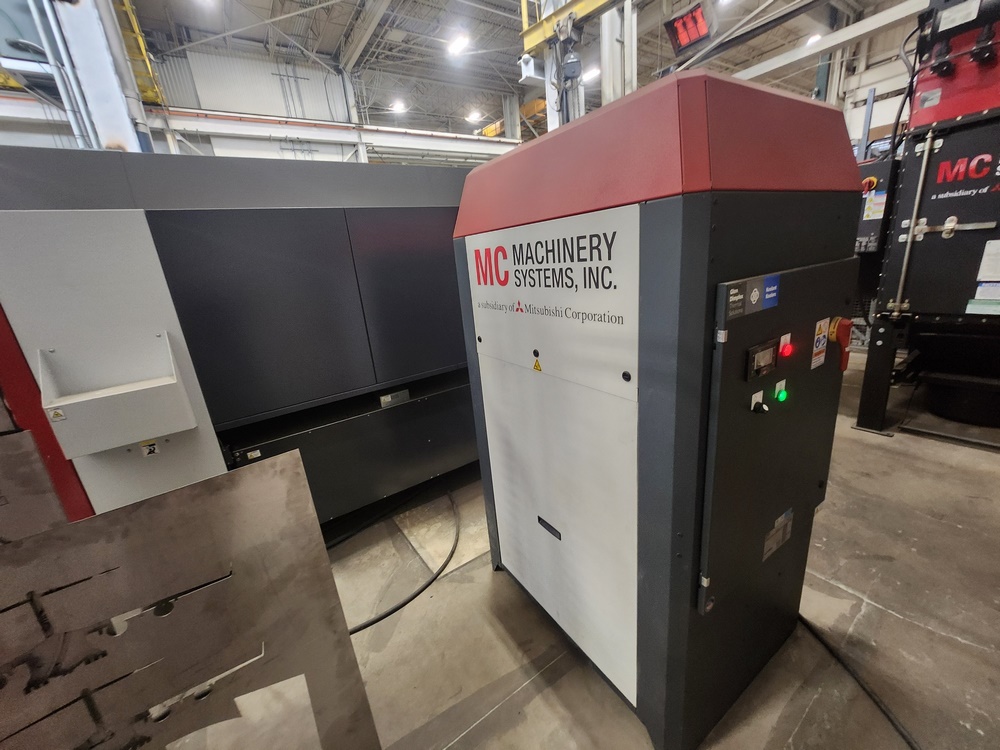

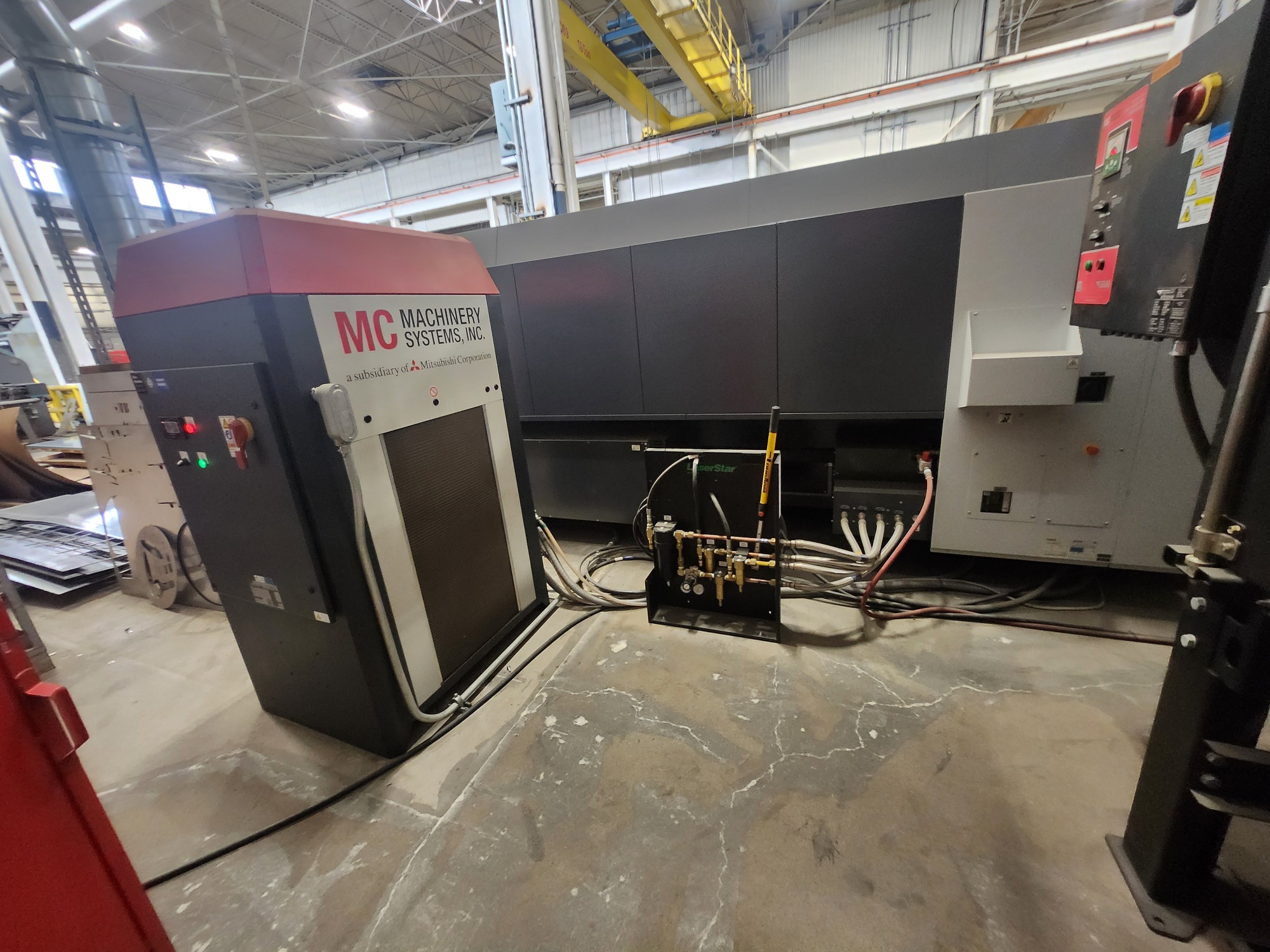

Chiller Unit |
Dual Pallet Shuttle Tables |
|

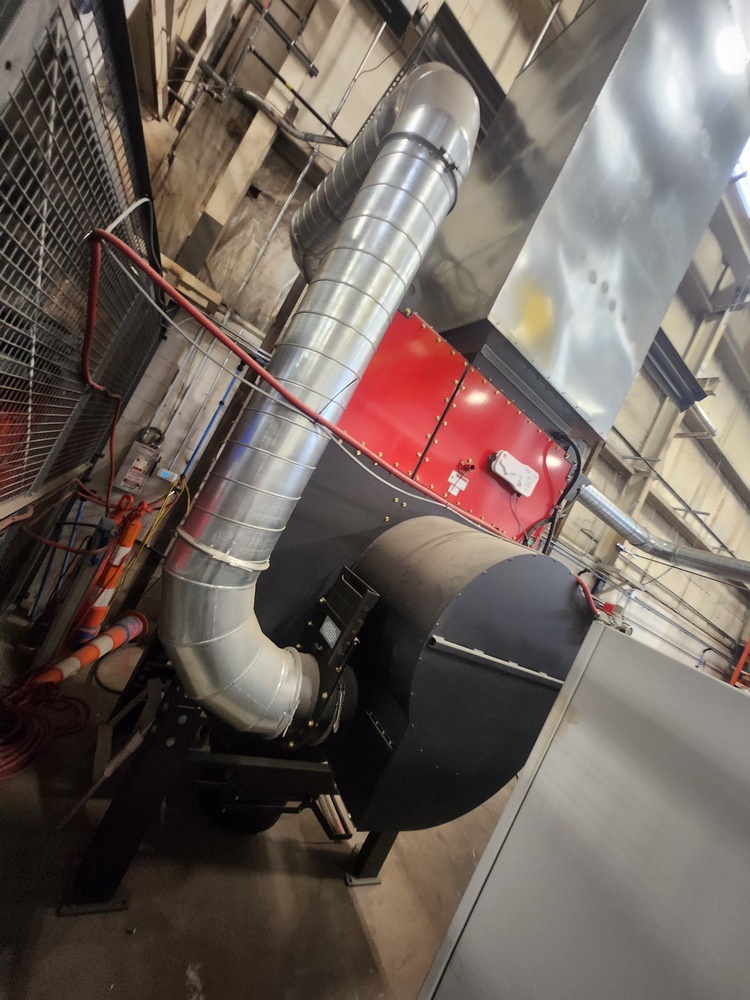

Dust Collector |
64 Bit CPU |
|
Auto Focus |
