| Year | 2022 |
|---|---|
| Make | Haffner |
| Model | MAC 440 |
Description |
4-Axis Profile Processing Center |
| Reference # | 8076505 |

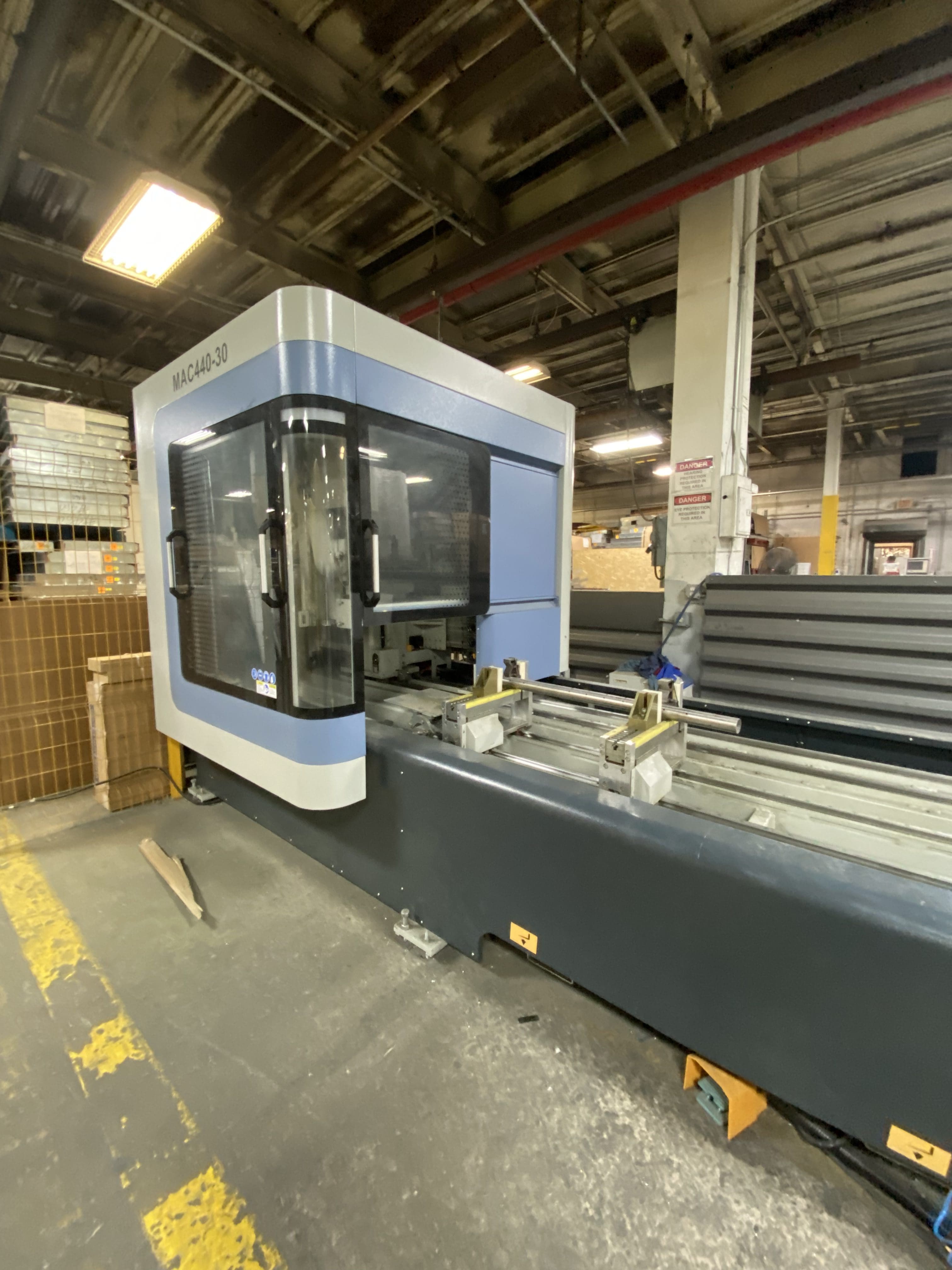

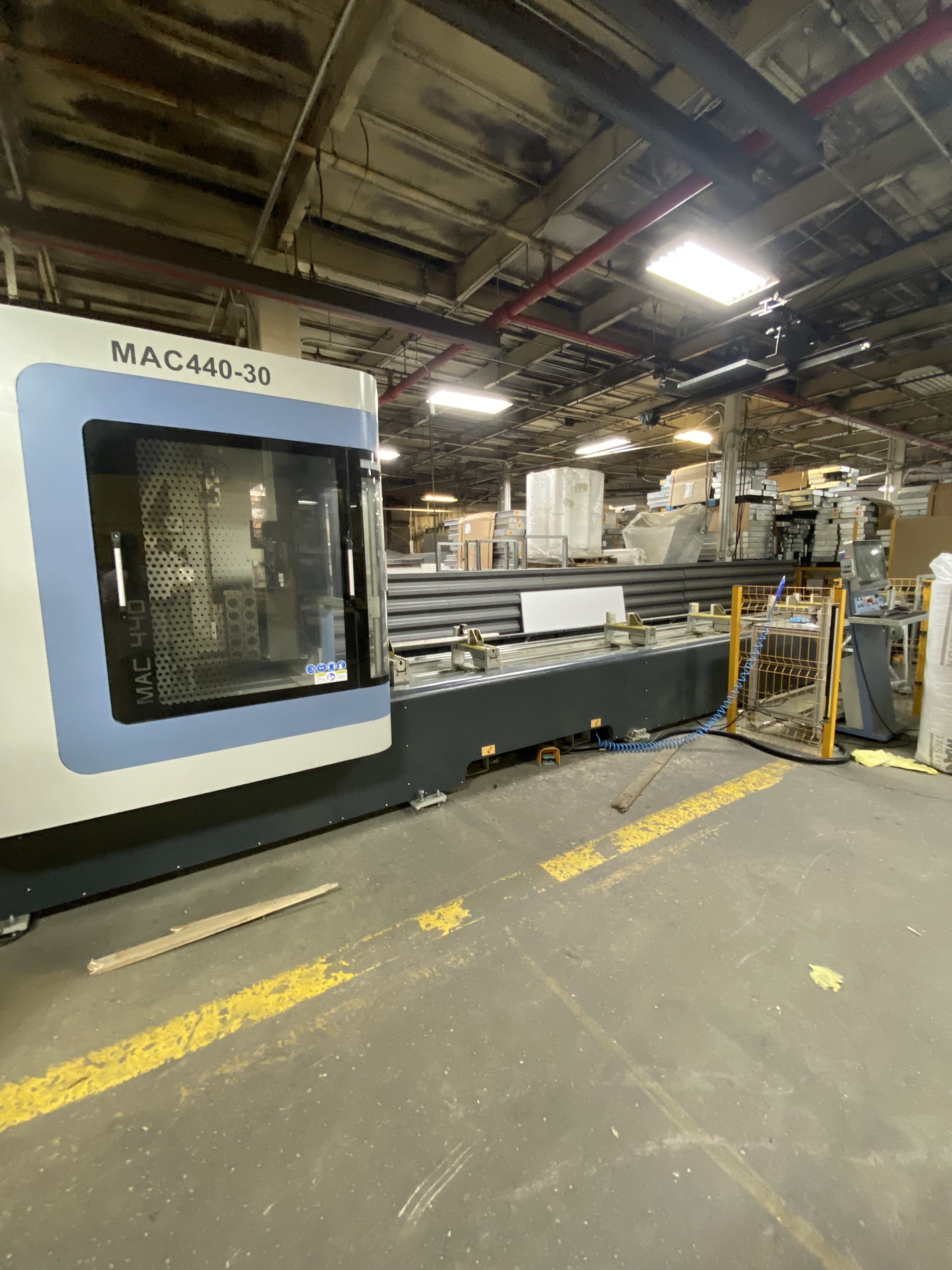

Haffner MAC 440
Specifications
| X-Axis Travel |
368.11" |
|---|---|
| Y-Axis Travel |
36.61" |
| Z-Axis Travel |
24.6" |
| Spindle Speed |
24,000 RPM |
| Max Machinable Length |
334.64" |
| Tool Magazine Capacity |
6 Position (10 Available) |
| Spindle Motor |
10.7 HP |
| Power Requirement |
208/60/3 |
| Dimensions |
437" x 70.86" x 90.55" H |
Features
|
(1 ea.) 140 mm/5.51" Disk Cutter with Holder |
(2 ea.) Chuck HSK-F63 for Chuck Capacity 1-10 mm |
|
(5 ea.) Collet Holder ER32 for Collets 3-20 mm HSK-F63 |
(8 ea.) Horizontal Pneumatic Clamps (4 per Workstation) |
|

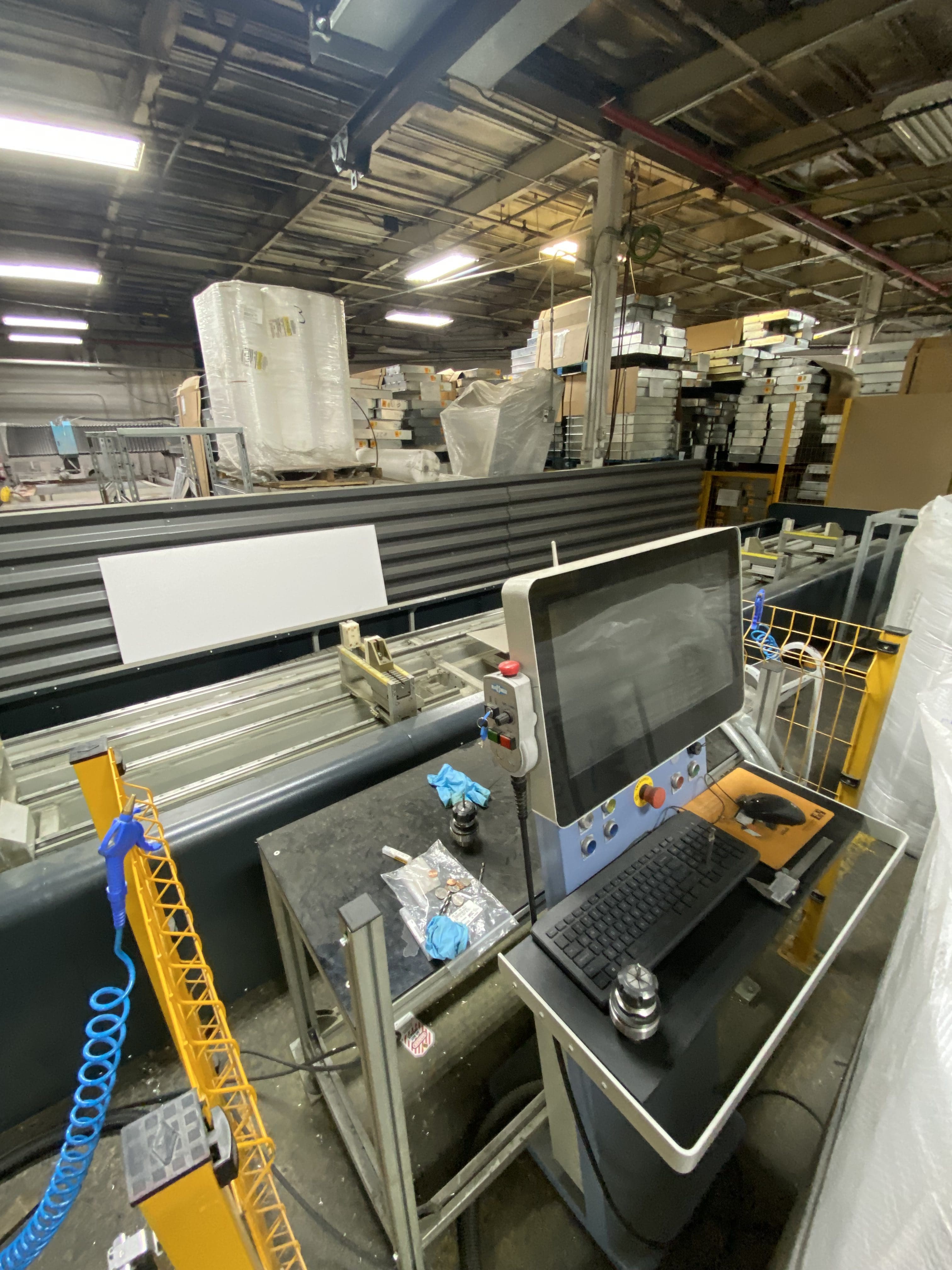

21" Touch Screen Monitor |
Automatic Clamp Recognition and Clamp Positioning Cooling Unit for Electrical Cabinet |
|
Chip Collection Trays Protection Safety Cover |
Handheld Mobile Control with Start/Stop Switch and Speed Control |
|
Network Connection for Online Support |
Photo-Electric Barrier and Safety Fence |
|
Pulse Spray Mist Tool Lubricant System |
Traveling Tool Magazine (10 Tools) |
*
