| Year | 2022 |
|---|---|
| Make | DoAll |
| Model | DC-280NC |
Description |
Horizontal Production Band Saw |
| Reference # | 8076580 |

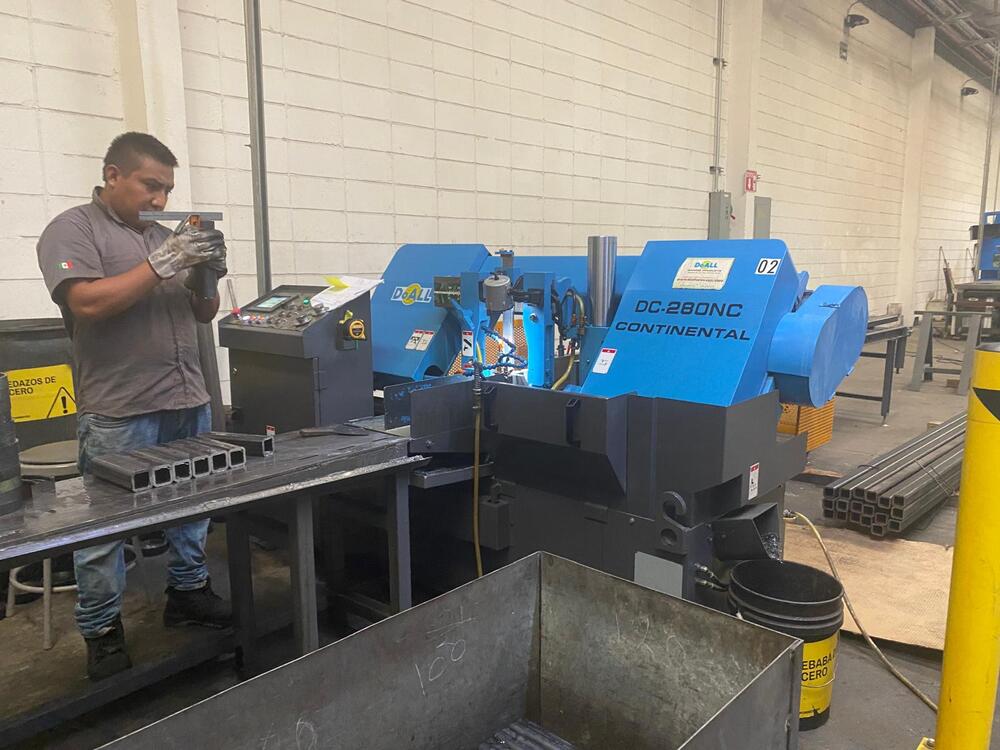

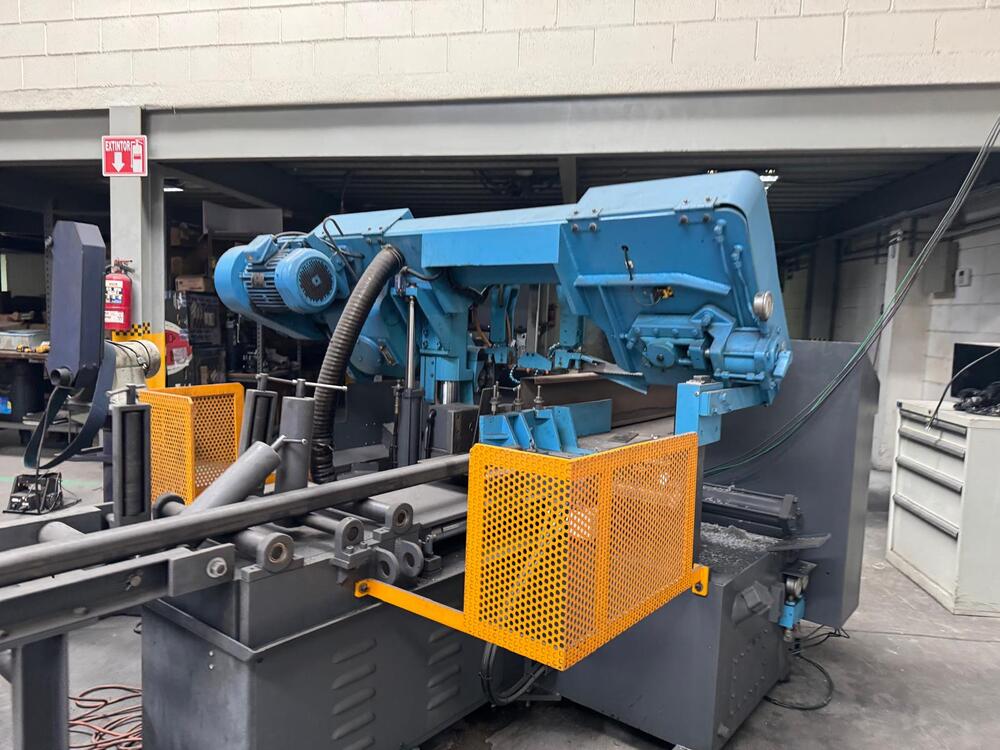

Used DoAll DC-280NC (2022) SNC Saw for Sale. This pre-owned DoAll horizontal production bandsaw is located in The United States. If you have any questions regarding this DoAll Saw, please feel free to contact us. You may Activate Pricing to view the price of this Saw, or request a quote by clicking on the Inquire Now button.
Specifications
| Machine Capacity |
11.75” W x 11" H (300mm x 280mm) |
|---|---|
| Machine Capacity (Round) |
11" (280mm) |
| Saw Blade Width & Length |
1.25" x 150" |
| Band Drive Motor |
5 HP |
| Band Speed |
52-430 fpm |
| Band Tension |
Hydraulic |
| Hydraulic System Motor |
1 HP |
| Reservoir Size |
21 Gallon |
| Coolant |
Flood Coolant |
| Coolant HP |
1/6 HP |
| Coolant Reservoir Size |
21 Gallon |
| Indexer Length per Stroke |
15.75" |
| Maximum Index Strokes Length - |
141" |
| Remnant Length |
3.75" (Non-Bundle) |
| Max Nesting Capacity at 90 Degrees |
9.88" x 5.75” |
| Floor Space Dimensions |
83" W x 79" L x 51” H |
| Material Pass Height |
27.5" |
| Machine Weight |
3,858 Lbs. |
Features
|
Back-up Bearing/Inserts |
Band Wheels (40 Degree Lay Back Head Design) |
|
Coolant Thru Carbide Faced Saw Guide Inserts |
Efficiently Designed Hydraulic System |
|
High Efficiency Transmission |
Hydraulic Chip Conveyor |
|
Magnetic Scale for Indexer |
Multi-step Full Stroke Vises with Split Front Vise and Variable Vise Pressure |
|
Retractable Shuttle Type Index Vise |

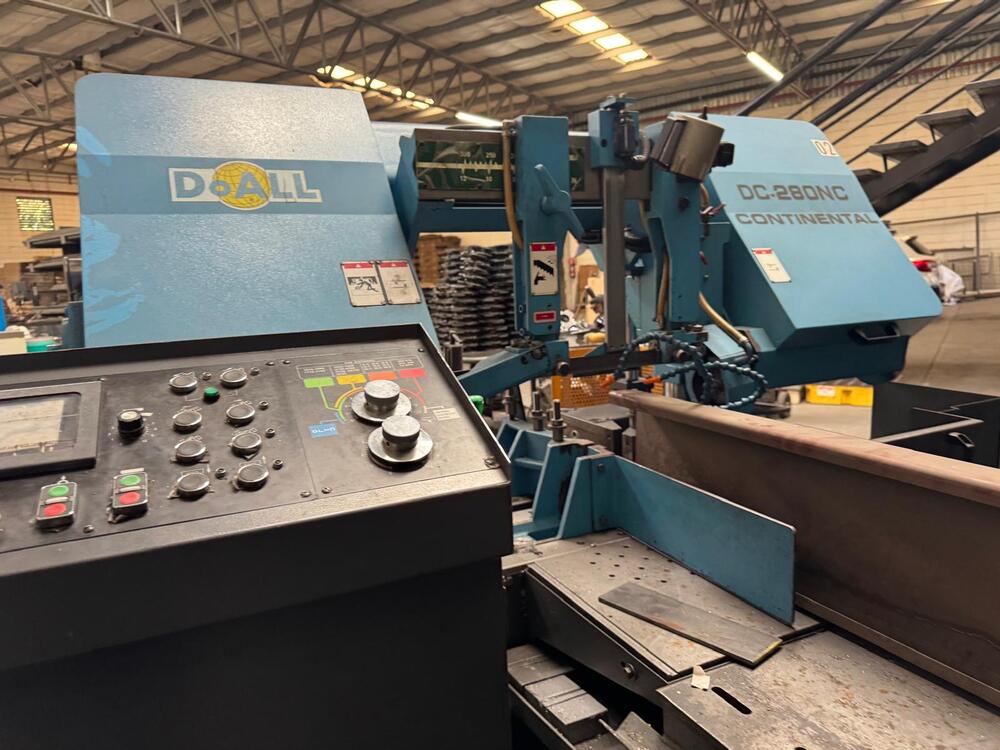

Touch Screen Controller |
|
Hydraulic Blade Tension |
Nesting Fixtures |
