| Year | 2022 |
|---|---|
| Make | CMS |
| Model | ARES-4818-PX5-Z1200 |
Description |
CNC Router |
| Reference # | 8076009 |

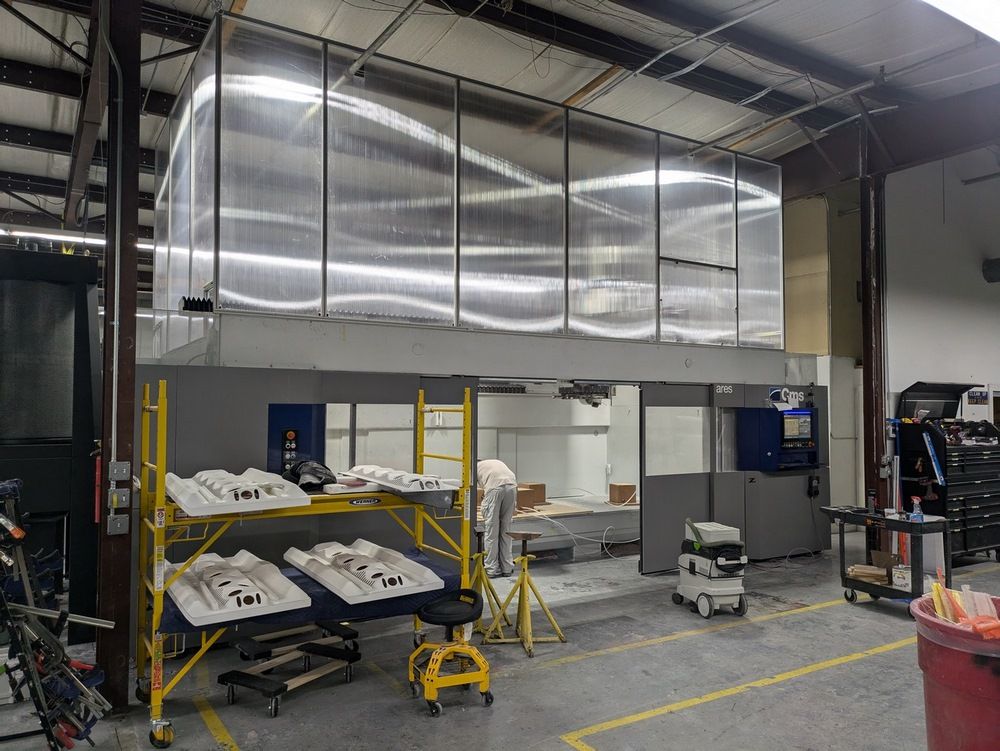

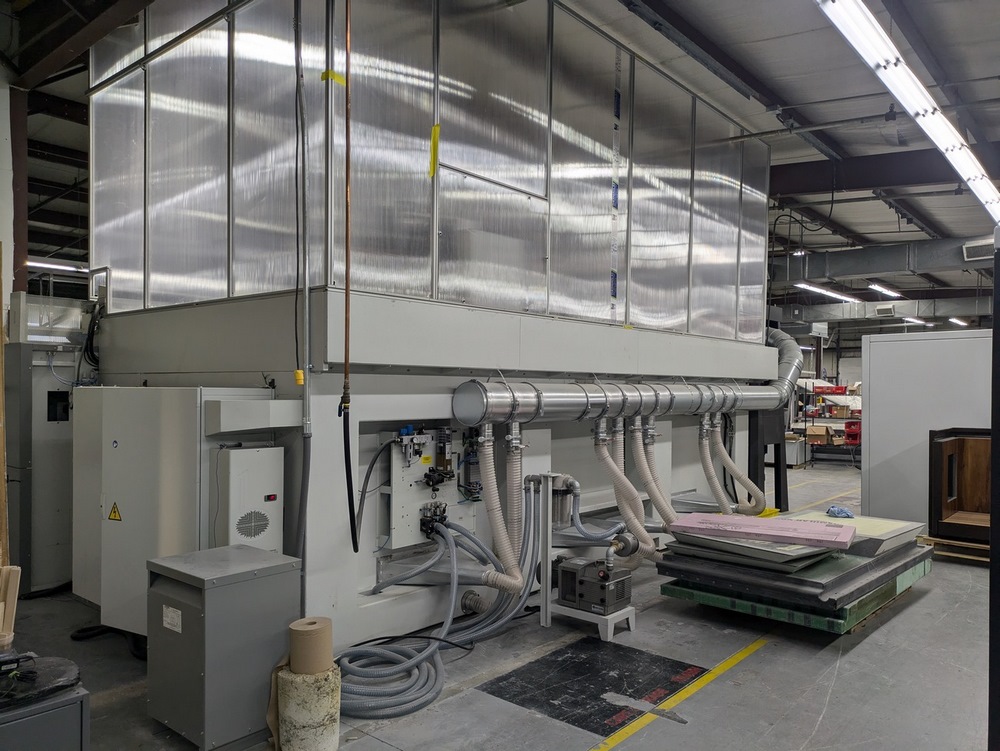

Used CMS ARES-4818-PX5-Z1200 (2022) CNC Router for Sale. This pre-owned CMS cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this CMS CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Number of Axis |
5 Axis |
|---|---|
| Number of Spindles |
1 |
| Table Width |
53.35" |
| Table Length |
191.34" |
| Spindle Motor |
29.9 HP |
| Spindle Speed |
24,000 RPM |
| Z-Axis Travel |
47.24" |
| Tool Changer |
(12) Station Rack Tool Magazine (HSK 63/A) |
| Control |
NC Fanuc 31i-B5 |
| Power Requirement |
480v - 3ph - 60hz |
Features
|
8020 and Polycarbonate Enclosure |
Additonal Protection Against Carbon Fiber Dust |
|
Aluminum Vacuum Table |
Direct Encoders on Rotary Axes |
|
Dust Collection |
Laguna Dust Extraction System (Tflux10 Dust Collector) |
|
Liquid Cooled Closed Loop Spindle |
Machine 3D File - 3D Machine Parasolid |
|

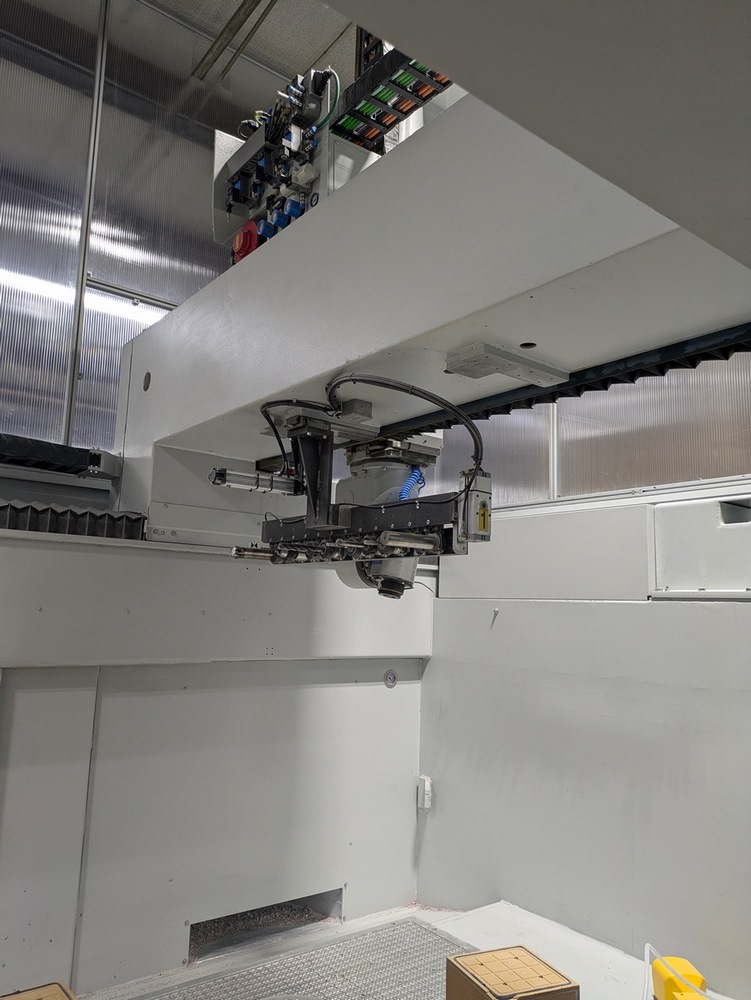

PX5 Spindle |
Removable Central Shield |
|
Renishaw TS27R |
Scales on Linear Axes |
|
Becker Vacuum Pump |
Handheld Controller |
