| Year | |
|---|---|
| Make | American Rotary |
| Model | ADX Micro Smart |
Description |
50 HP Digital Rotary Phase Converter |
| Reference # | 8072253 |

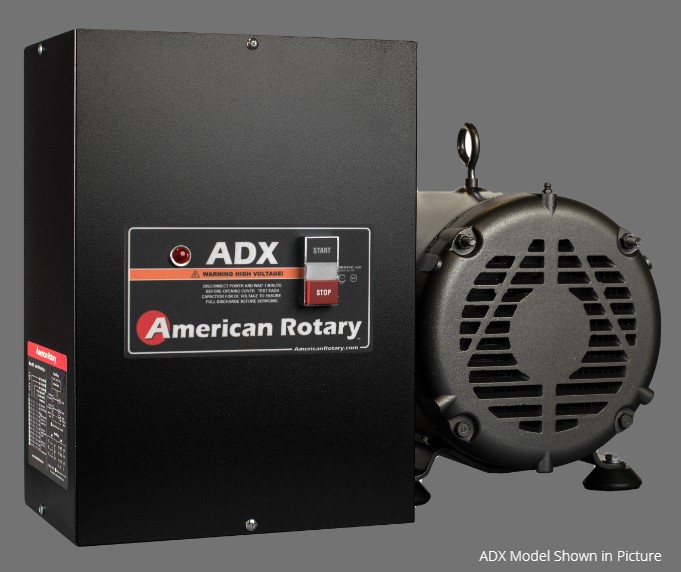

Used American Rotary ADX Micro Smart

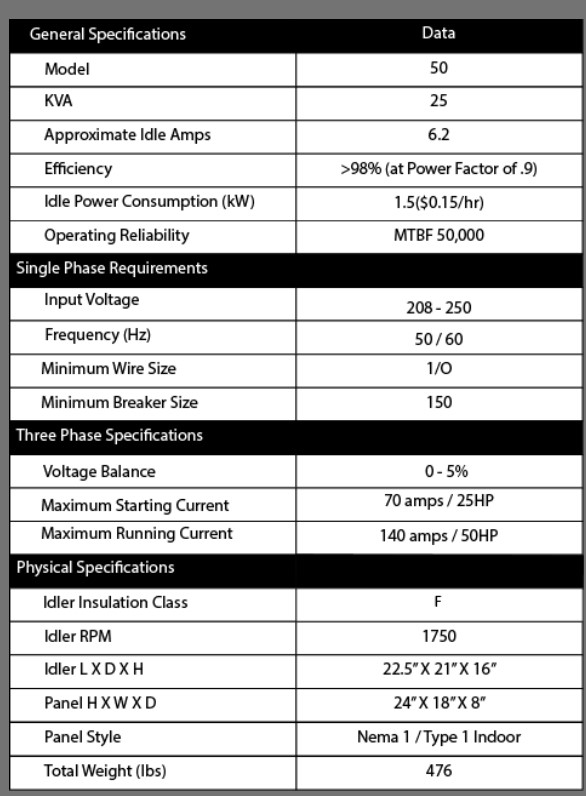

Specifications
| Approximate Idle Amps |
6.2 |
|---|---|
| Efficiency |
>98% (@ Power Factor .9) |
| Operating Reliability |
MTBF 50,000 |
| Power Requirement |
25 KVA |
| Idler Insulation Class |
F |
| Idler Speed |
750 RPM |
| Idler Dimensions |
22.5" x 21" x 16" (LxDxH) |
| Panel Dimensions |
24" x 18" x 8" (HxWxD) |
| Total Weight |
476 Lbs |
| Note |
(2) Machines Available, Price for Both |
Features
|
80-104 Amp Enclosed Contactor (per Machine) |
Smart Controlled Extreme Duty |
|
ADX Micro |
Nema 1 / Type 1 Indoor Panel Styler |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
