| Year | 2021 |
|---|---|
| Make | Shopsabre |
| Model | PRO408 |
Description |
CNC Router |
| Reference # | 8076432 |

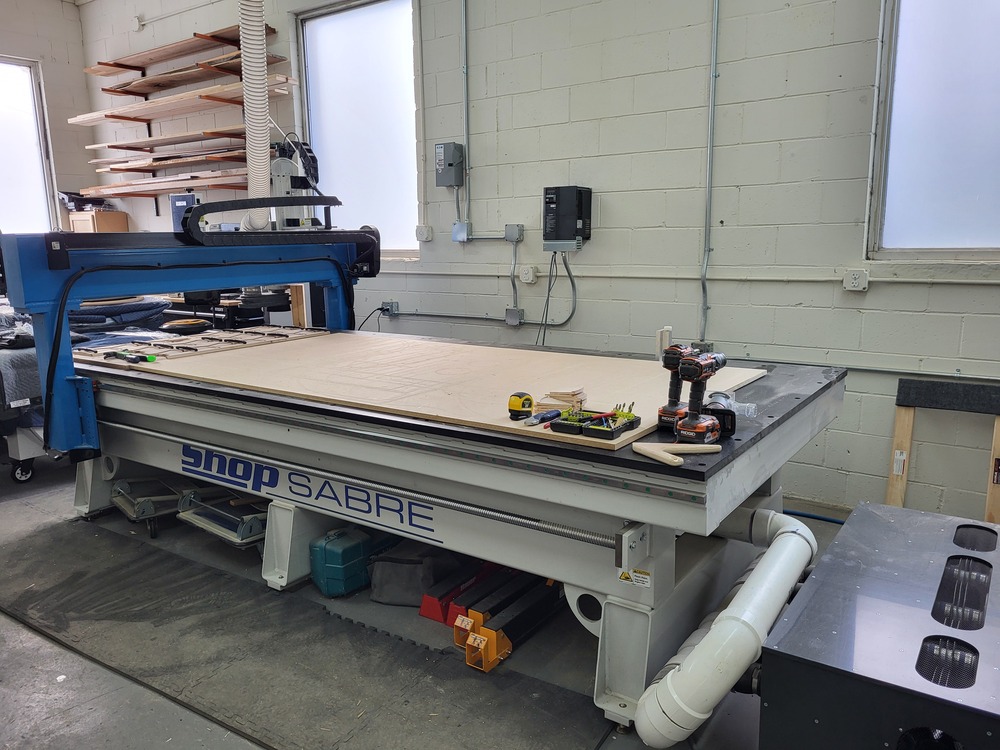

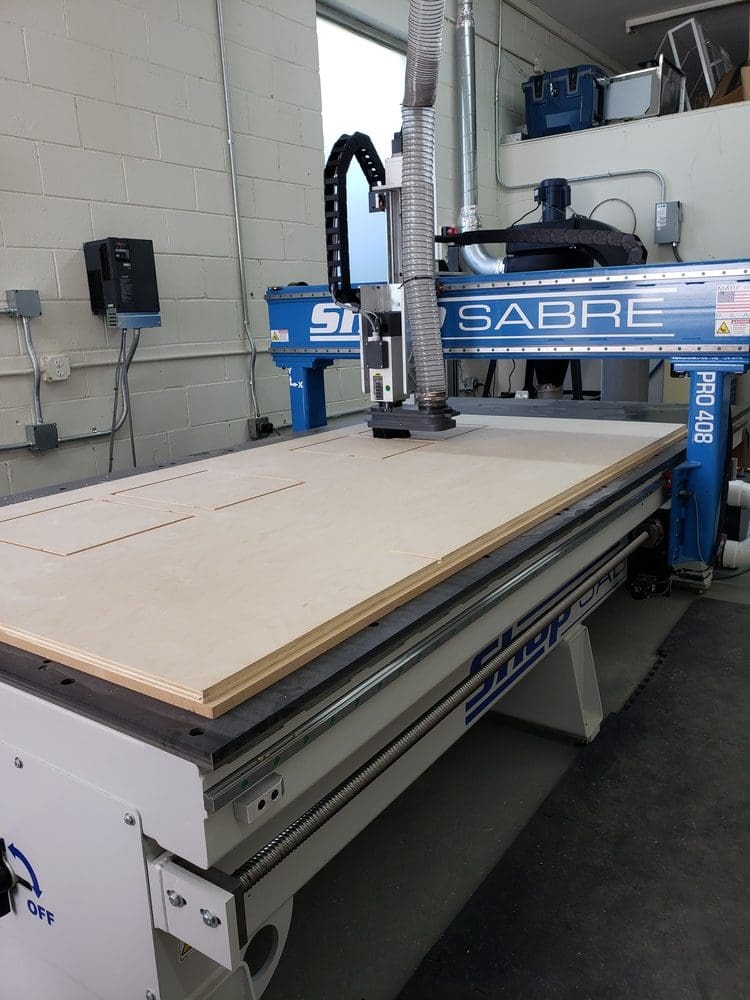

Used Shopsabre PRO408 (2021) CNC Router for Sale. This pre-owned Shopsabre cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Shopsabre CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Number of Axis |
3 |
|---|---|
| Table Width |
60" |
| Table Length |
96" |
| Table Hold Down |
Vacuum Hold Down |

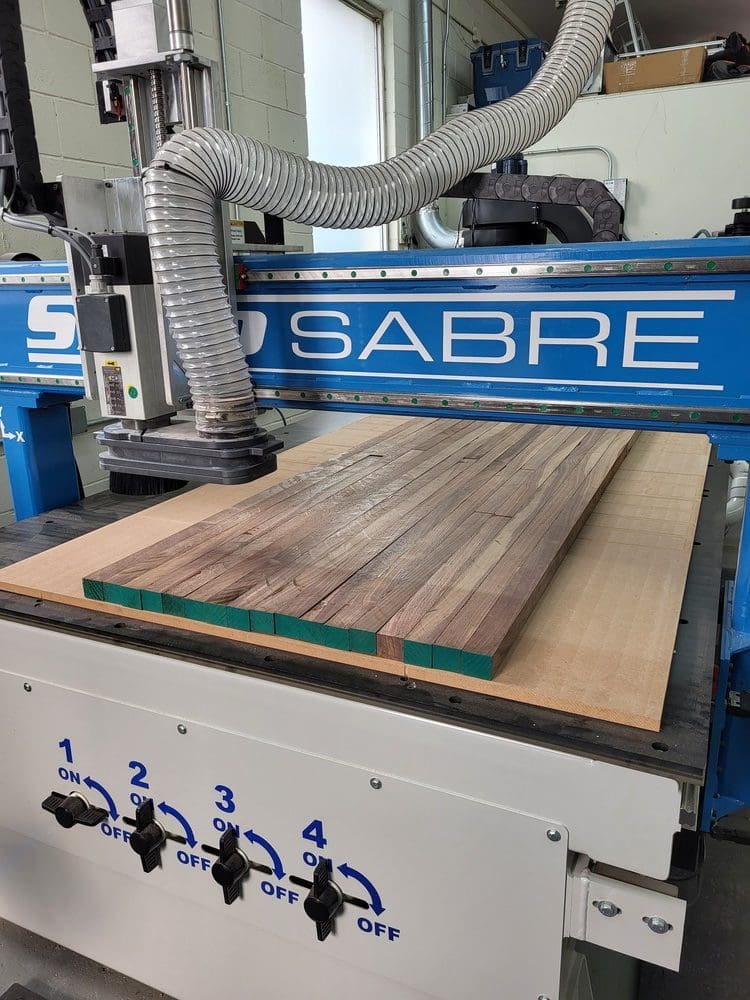

| Number of Vacuum Zones |
4-Zones |

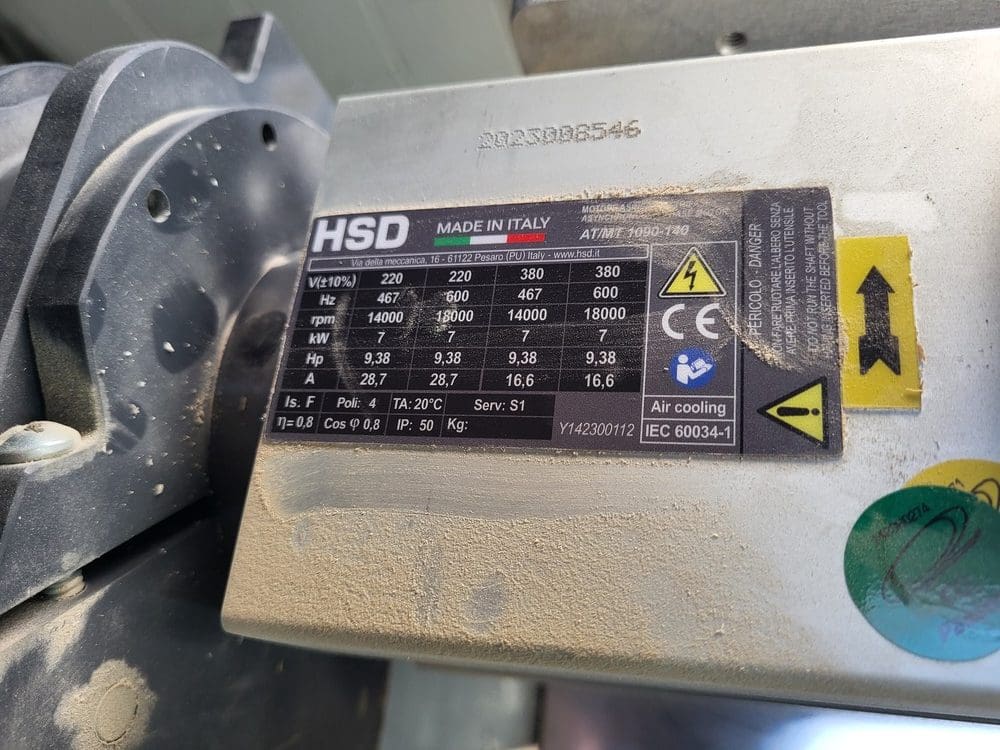

| Spindle Mfg |
HSD Auto |
| Spindle Speed |
18,000 RPM |
| Spindle Motor |
9.3 HP |
| Anti-Backlash |
X / Dual Drive Y and Z Axis Driven with Industrial Precision Anti-Backlash Ball Screw Drives |
| Control |
Shopsabre Comp. System / WINCNC Hardware & Software |
| Power Requirement |
208v / 3 ph / 72.5 amps / 50/60 hz |
Features
|
Deluxe Marker Pen Attachment - Includes Full Size Marker / Compact Marker / Pencil / Ball Point Pen/ and Fine Tip Marker |
Digital Brushless A/C Digital Servo Motors with Amplifiers ( X/Y1/Y2 and Z Axis) |
|

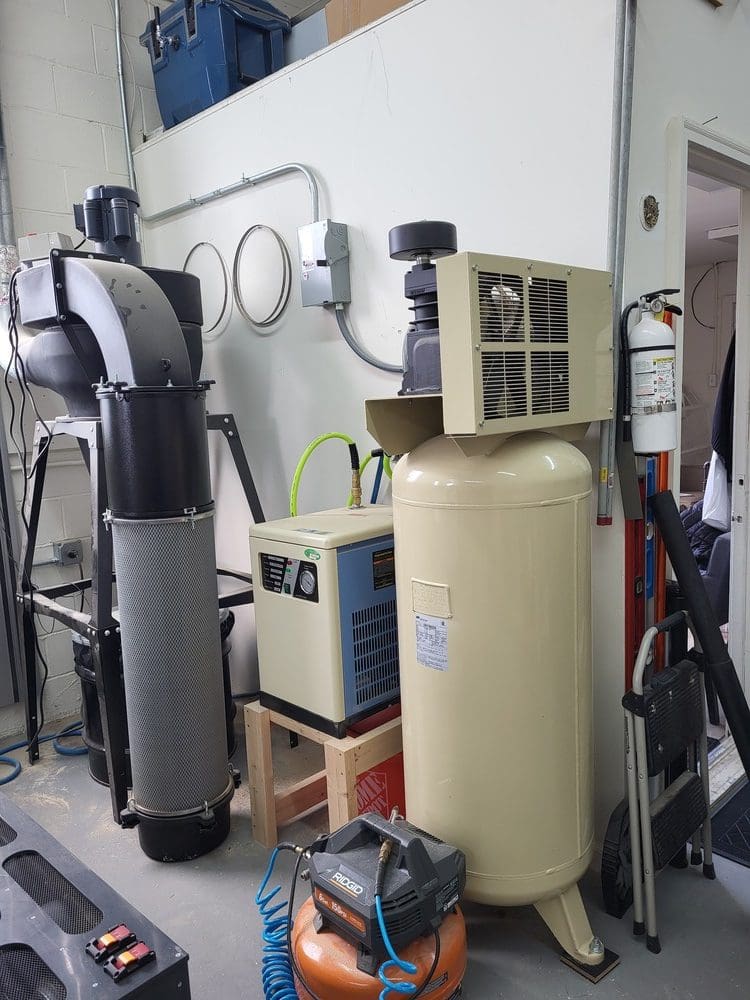

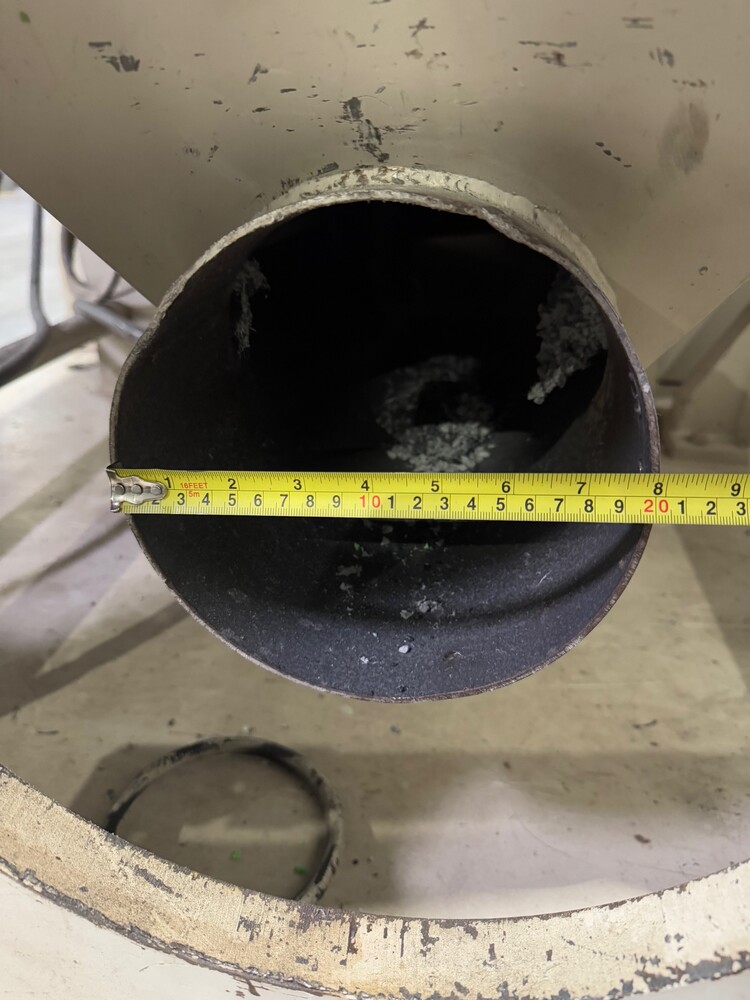

Oneida 3HP V-System 3000 35 Gal. Freestanding HEPA Cyclone Dust Collector |

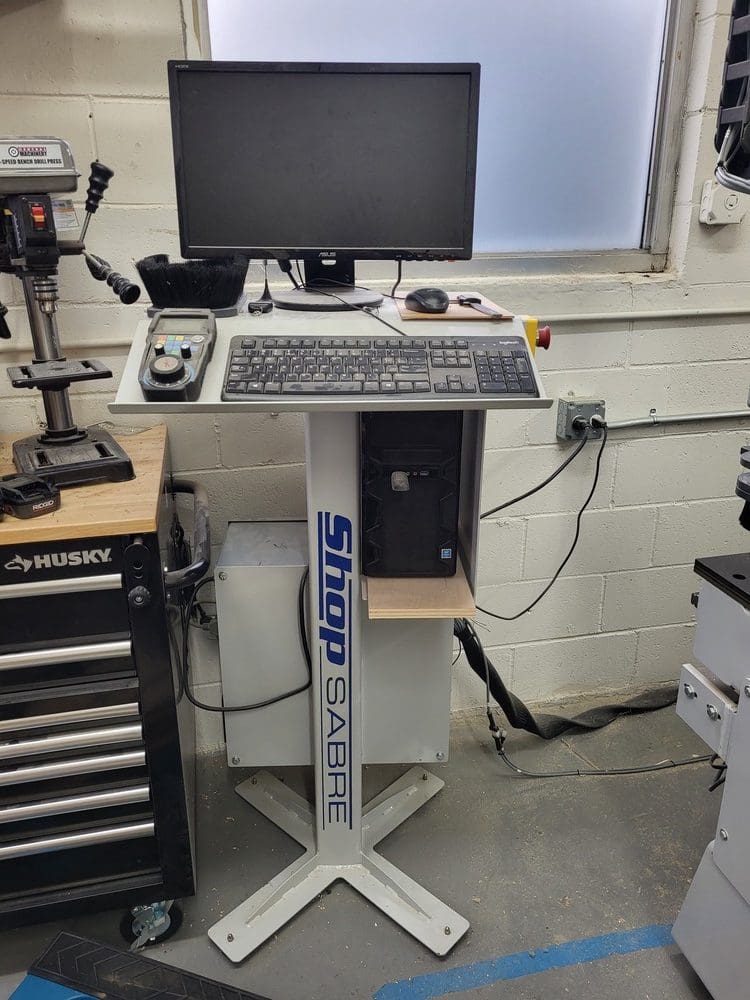

ShopSabre Auto Stabilization Steel Machine Operator Control Stand |
|

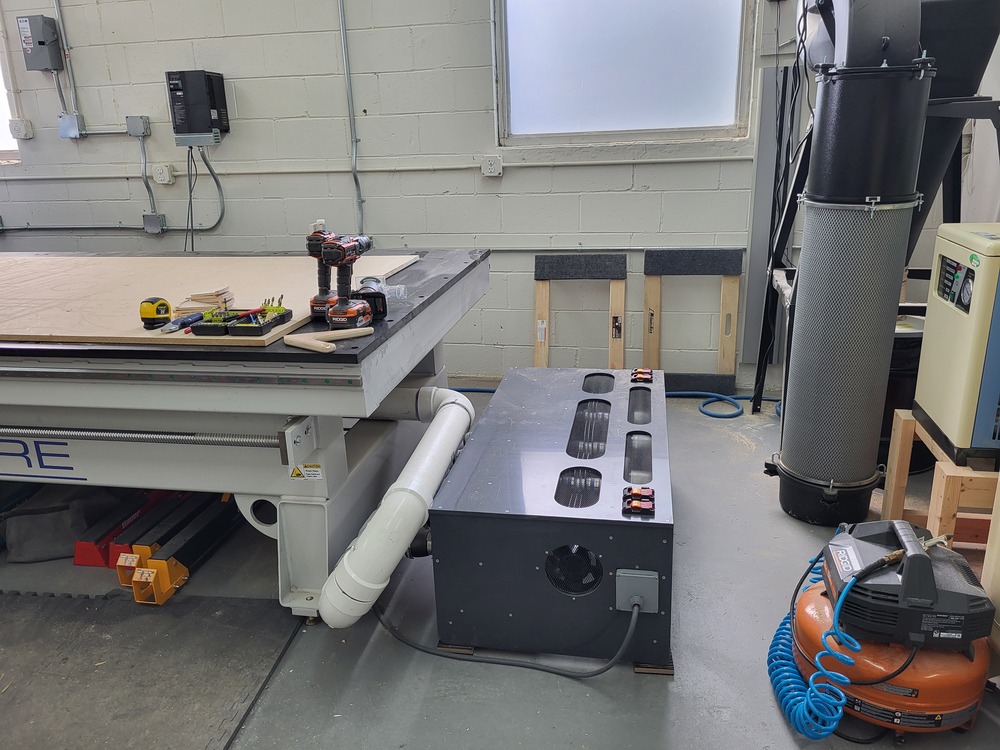

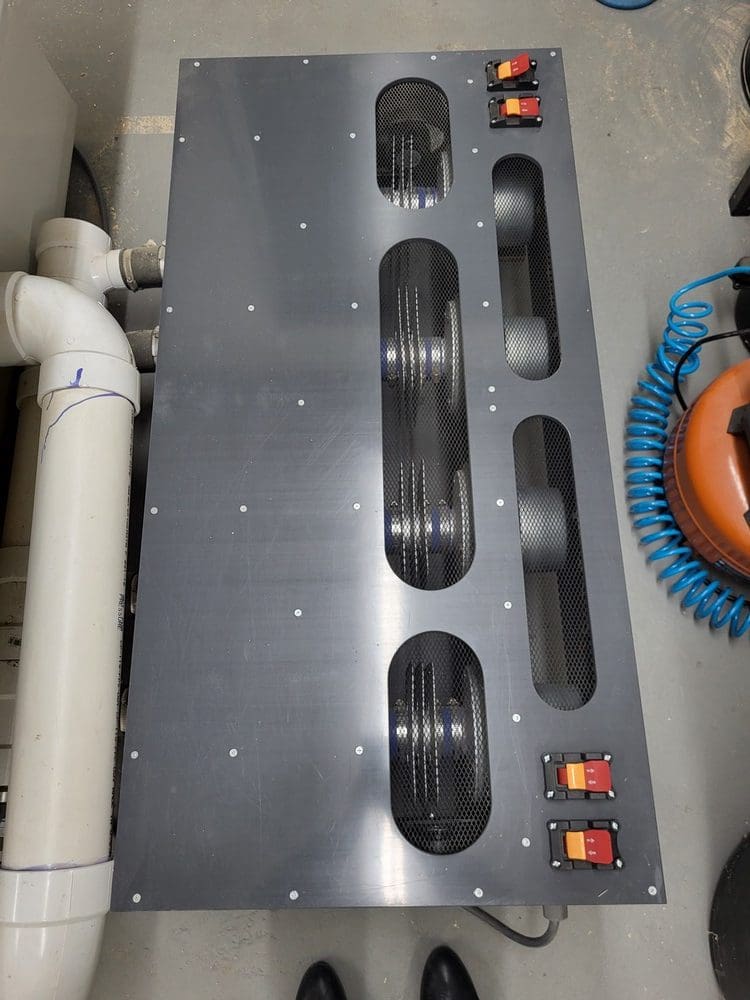

ShopSabre Single Phase F4 Vacuum System with 4 Zone Manifold (220V/Single Phase) |
Very Low Usage |
|
Compressor |

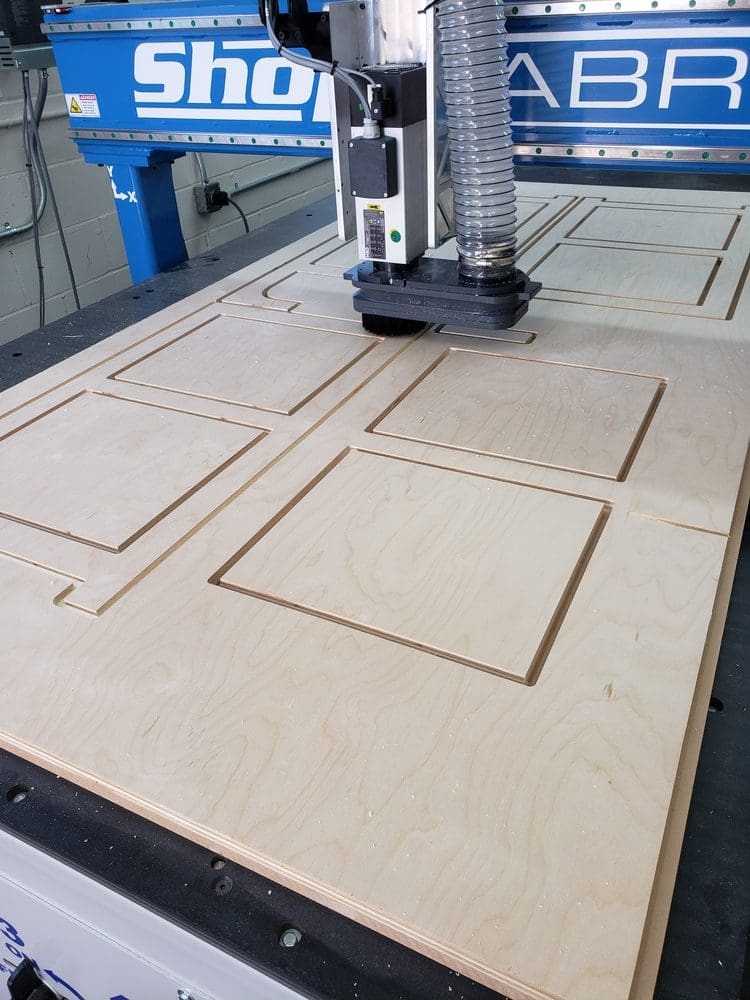

Quick Release Dust Skirt - 4" Outlet for Connecting to Dust Collector |
|
4th Axis Port for Future Installation of 4th Axis System |
Industrial Pop-Up Table Reference Pins (3 on Left Side 2 Along Front) |
|
Material Height Touch Pad - Electronic Z Setter |
