| Year | 2020 |
|---|---|
| Make | DynaTorch |
| Model | Dyna-Tube XL2 |
Description |
21' Plasma Cutter |
| Reference # | 8069657 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

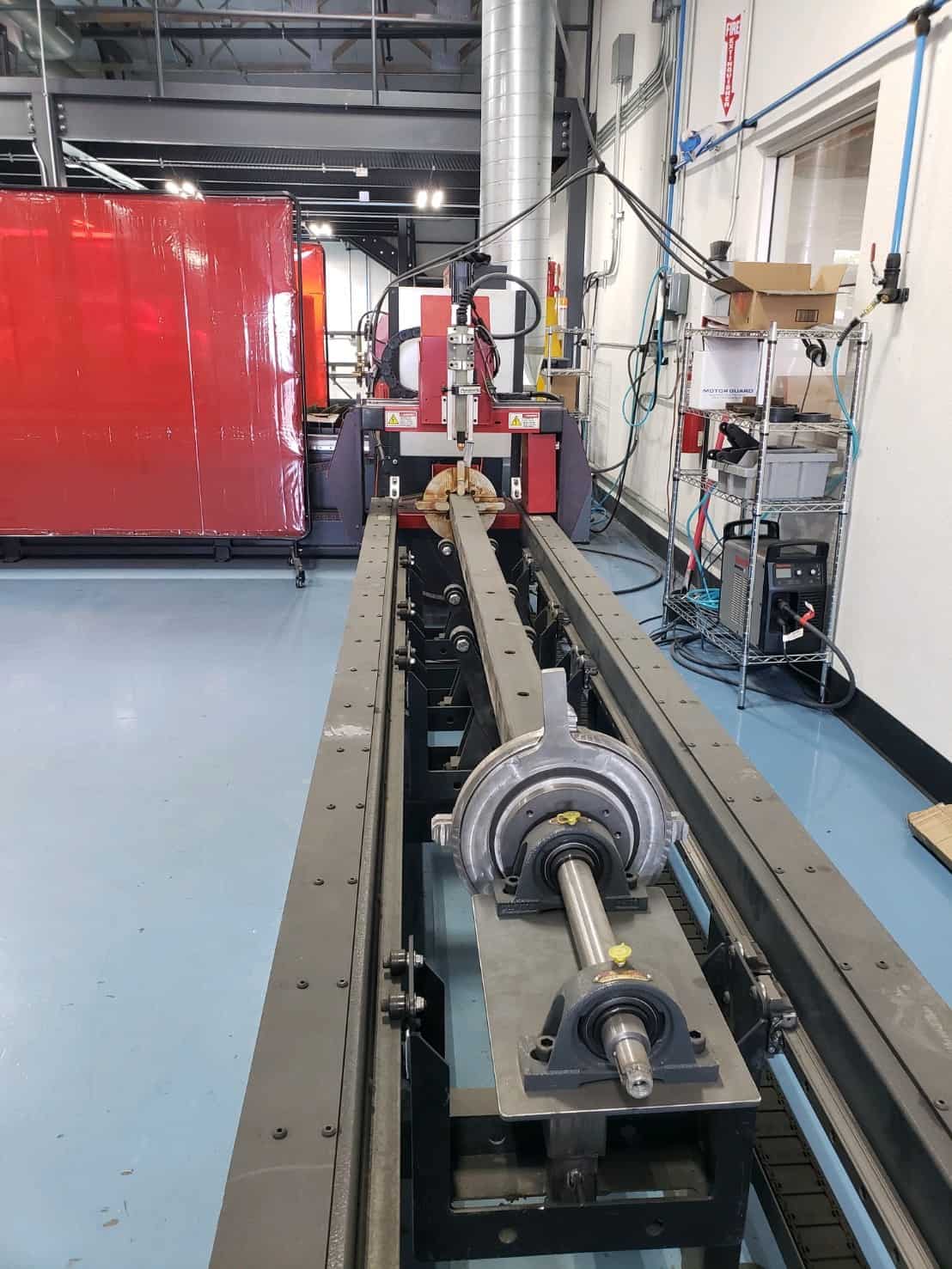

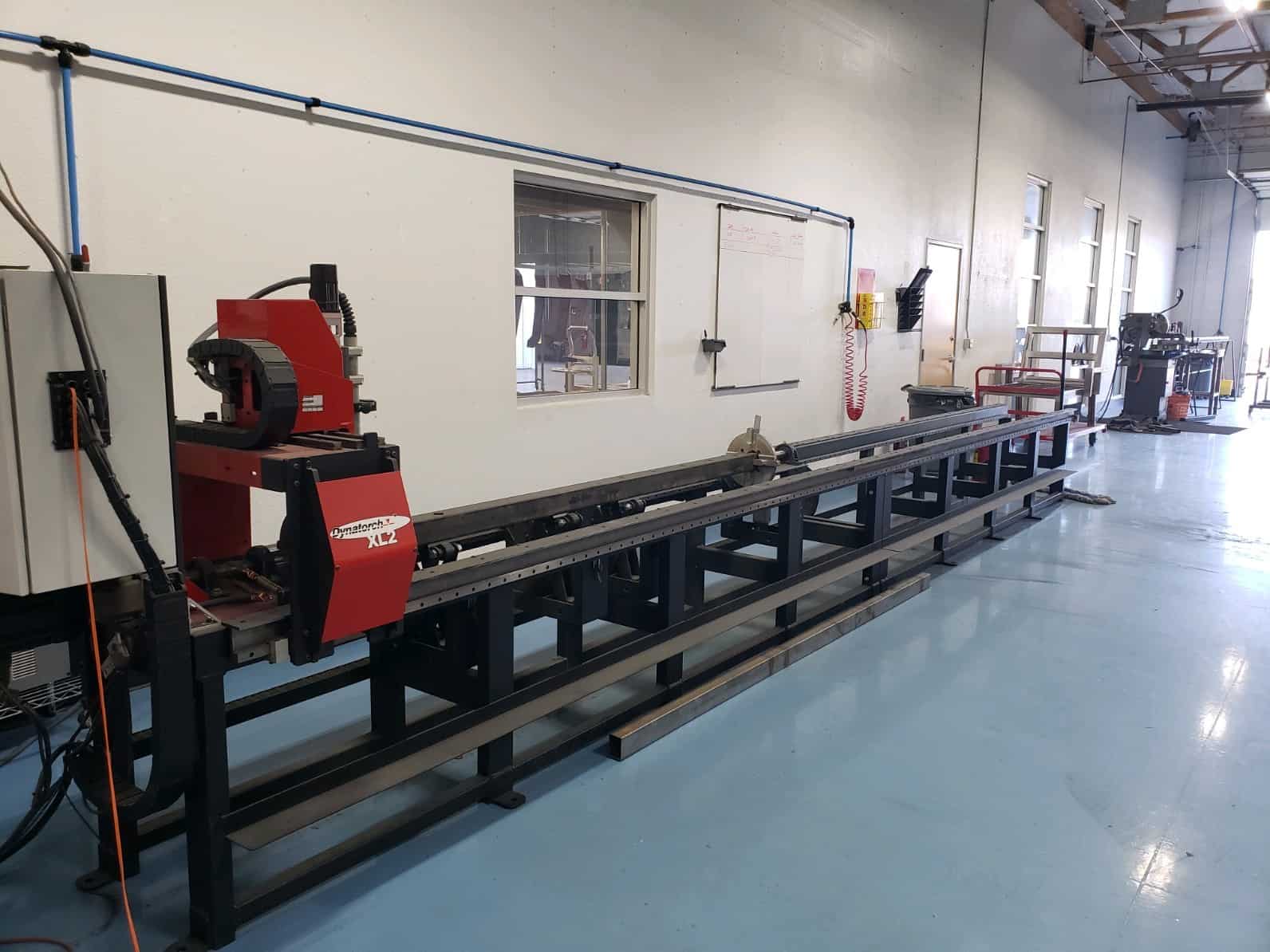

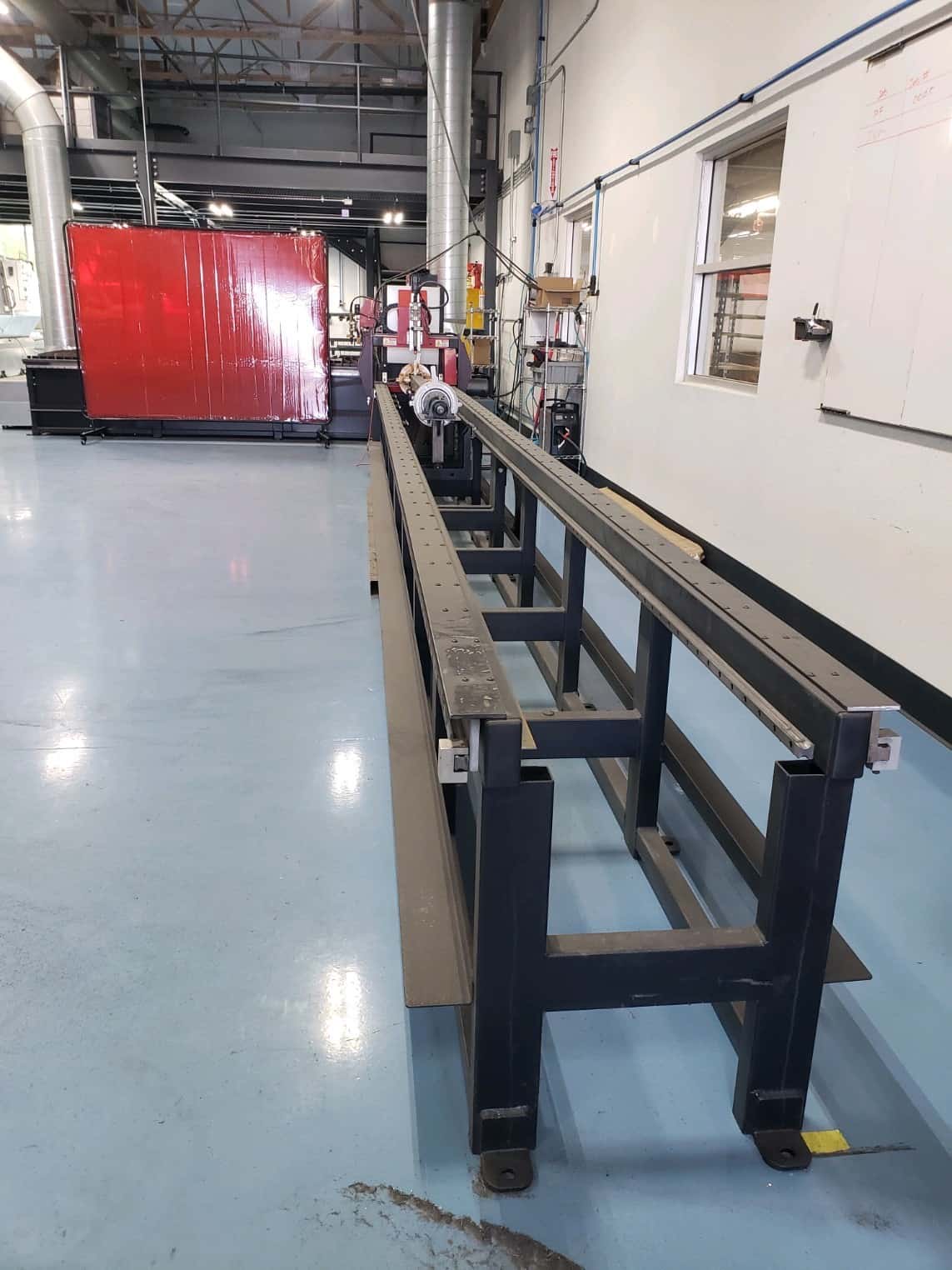

Used Dynatorch Dyna-Tube XL2 (2020) CNC Plasma Cutter for Sale. This pre-owned Dynatorch CNC plasma cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Dynatorch Plasma Cutter, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
N/A |
|---|---|
| Table Length |
21' |
| Control |
PC Based Dynatorch Software |
| Power Source |

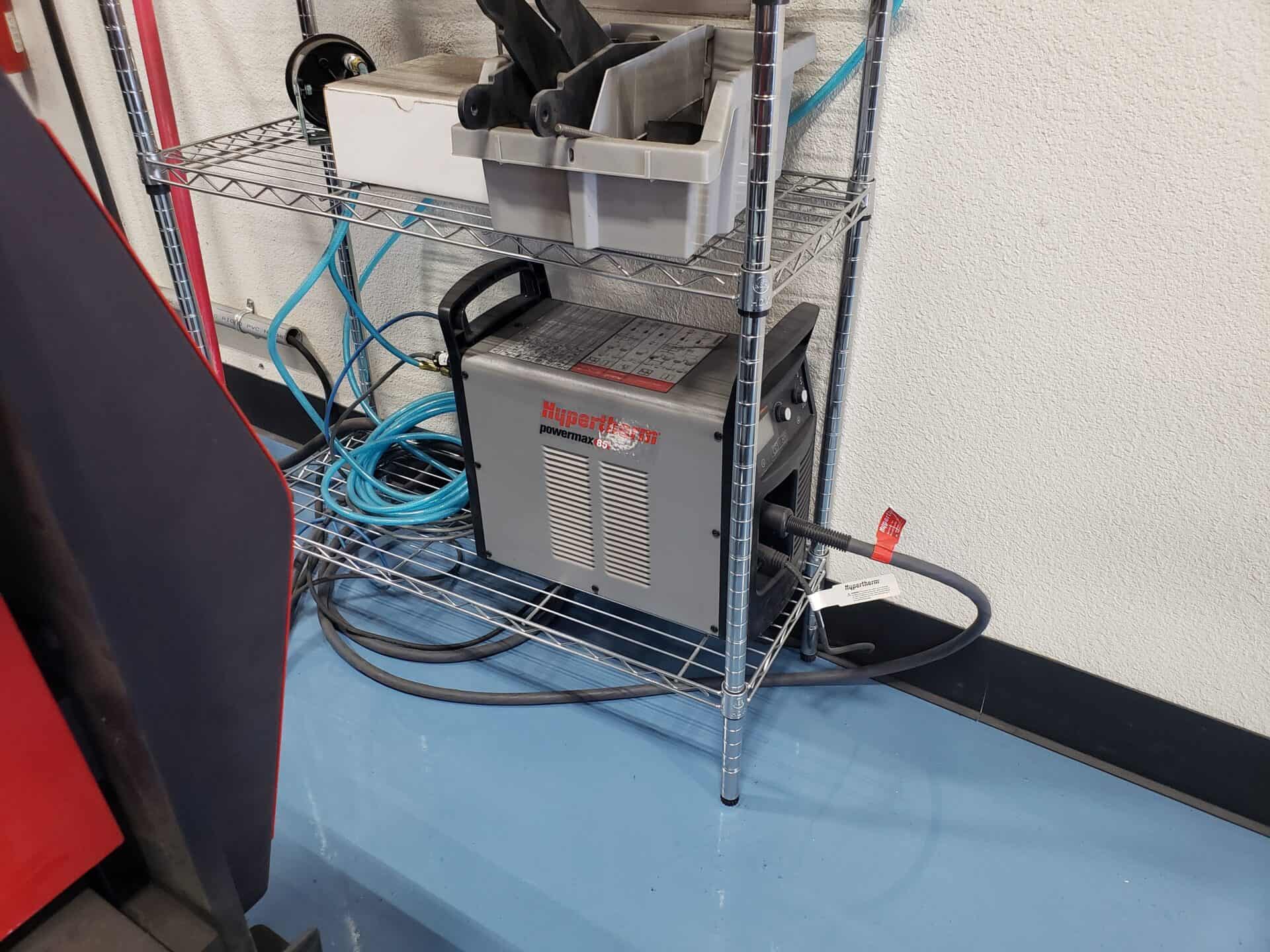

Hypertherm Powermax 85 |
Features
|
Pneumatically Engaged X-Y Drives |
Powder Coated Finish |
|
Precision Ground Linear Rails and Bearings |
10 to 1 Helical Planetary Gearbox X-Y |
|
3 Jaw Chuck 600 Pound Capacity |
Standard Z Axis Has 8 Inches of Travel |
|
400 Watt DC Servo Drive Motors X-Y |
Steel Gantry and Frame |
|
50 to 1 Dual Stage Helical Planetary Gearbox Rotating Axis |
750 Watt DC Servo Drive Motor Rotating Axis |
|
Automated Integrated Arc Volate Torch Height Control |

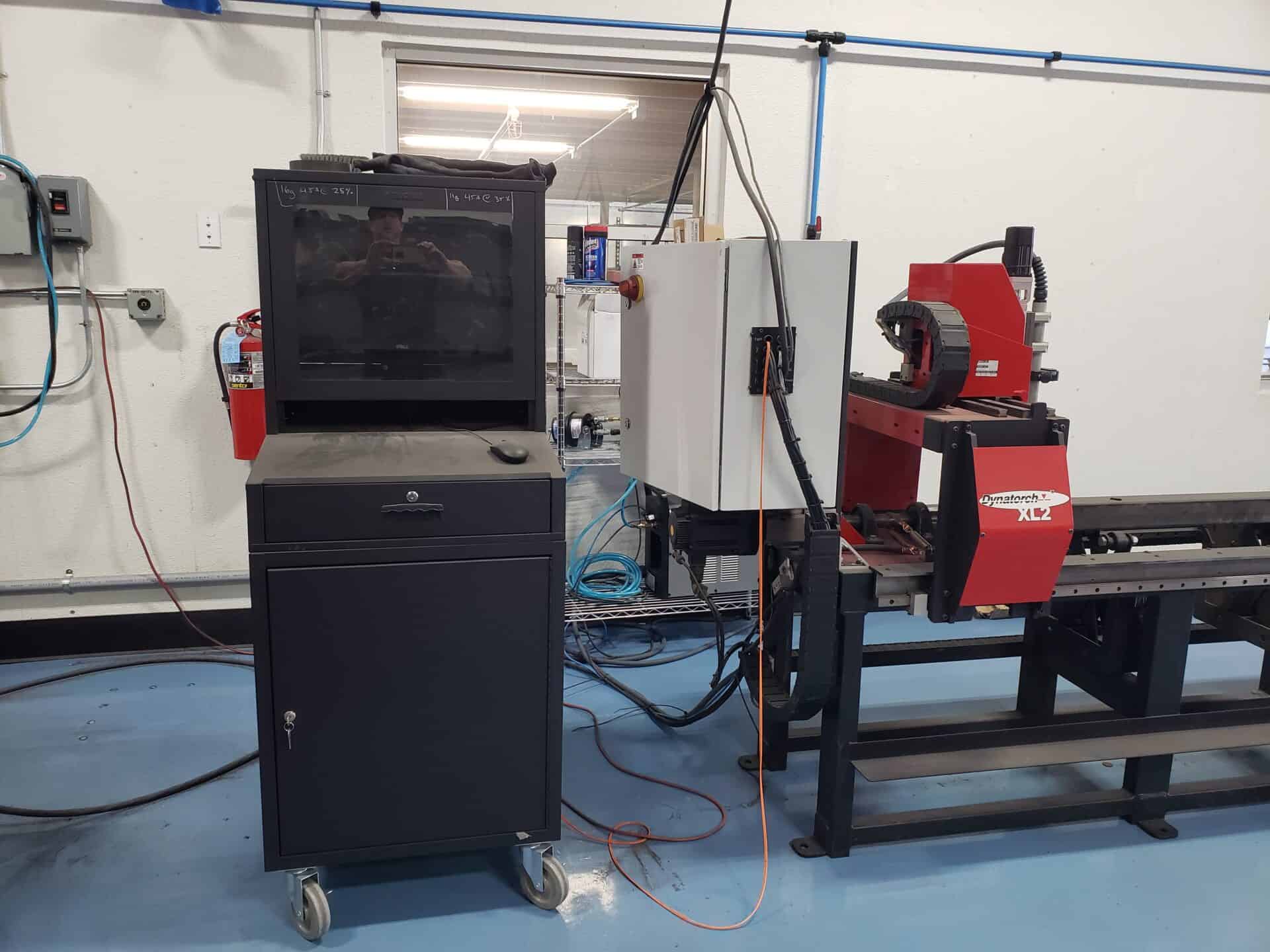

Computer Workstation with 64 BT Intel 17 Processor SSD Drive |
|
Handles from 1 Inch to 14 Inch Tube or Pipe |
Laser Locator for Torch Positioning |
|
Magnetic Collision Protection for Torch |
Ohmix Sensing Circuit Standard |
