| Year | 2020 |
|---|---|
| Make | Doosan |
| Model | Puma 2600LY II |
Description |
CNC Lathe |
| Reference # | 8075916 |

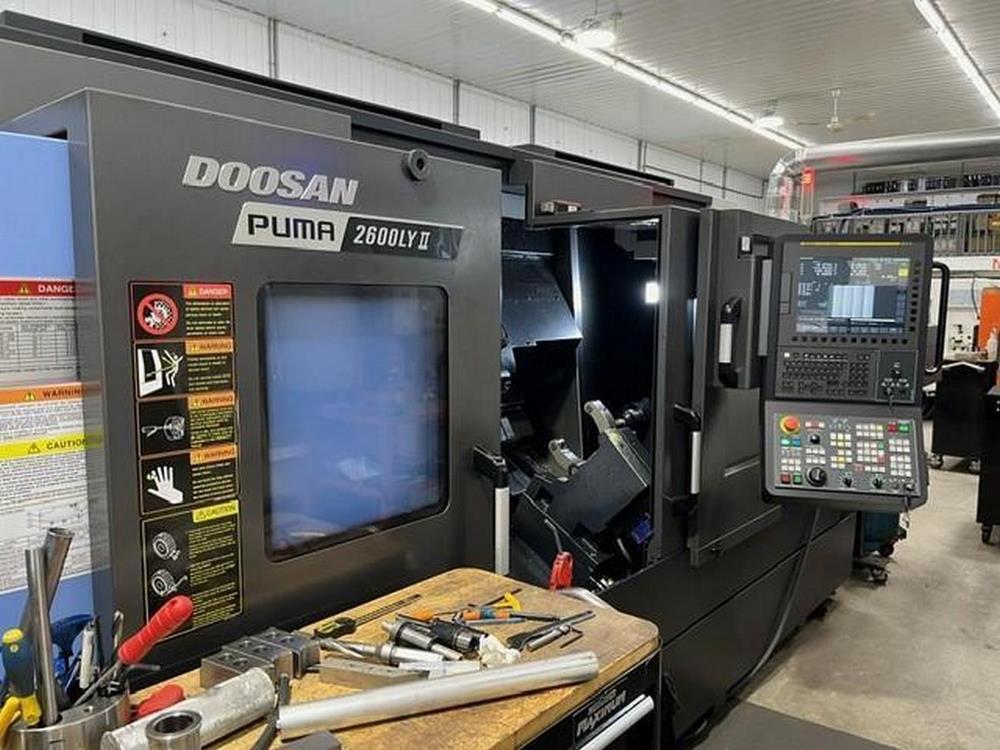

Used Doosan Puma 2600LY II (2020) CNC Lathe for Sale. This pre-owned Doosan CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Doosan Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications

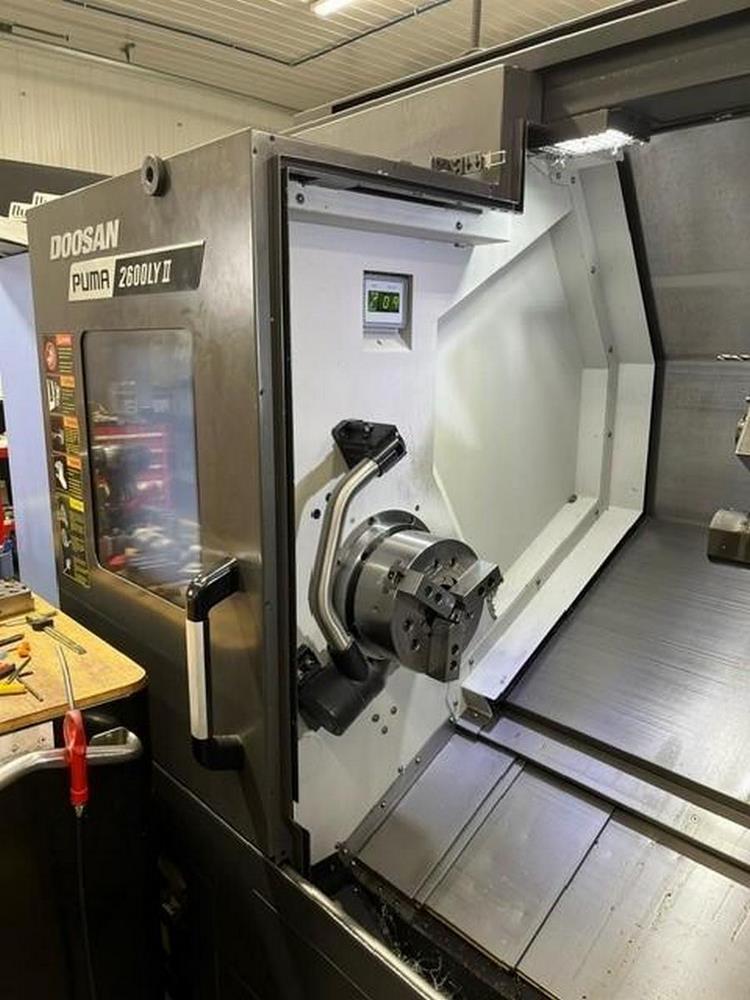

| Chuck Size |
10" |
|---|---|
| Bar Capacity |
3.0" |
| Swing |
30.7" |
| Turning Diameter |
14.8" |
| Spindle Speed |
4,000 RPM |

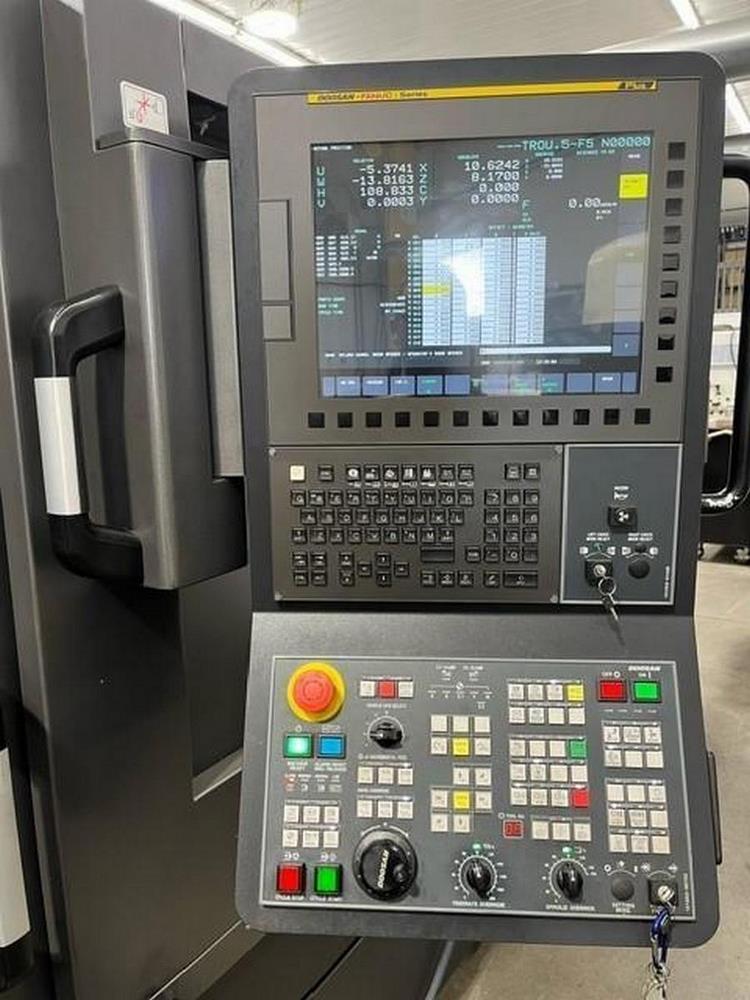

| Control |
Fanuc i Series |
| Distance Between Centers |
50.4" |

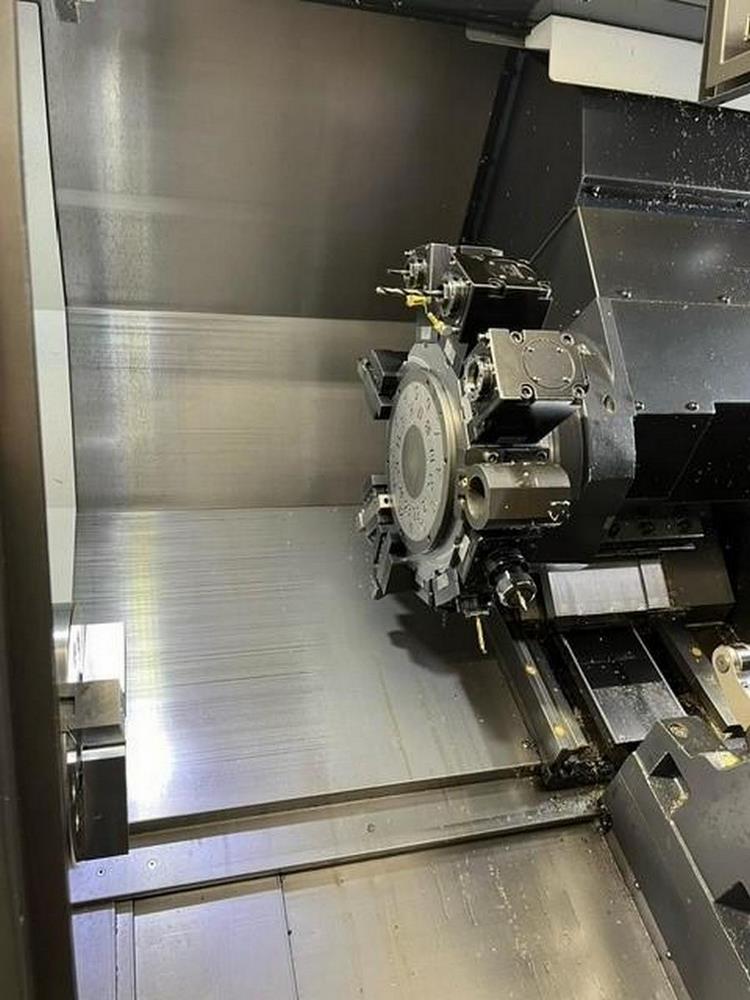

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Chip Removal |
Chip Conveyor |
| Y-Axis Travel |
4.1" |
| Z-Axis Travel |
53.1" |
| C Axis Index |
0.001° |
| Rapid Traverse (X/Y/Z) |
1181/394/1181 IPM |
| Main Motor |
30 HP |
| Live Tooling Speed |
5,000 RPM |
| Machine Dimensions |
175" x 81" x 86" |
| Machine Weight |
16,500 Lbs |
Features
|
6 Live Tools (2 with Coolant Thru) |
Coolant Tank & Pump (144 PSI) |
|
Extra Coolant Filtration to Protect Live Tools with Coolant Thru |
Samchully Self Centering Steady Rest (Drag and Drop) |
|
Very Low Hours (Under 1000) |
Auto Tool Presetter |
|
Tailstock |
