| Year | 2020 |
|---|---|
| Make | DMG Mori |
| Model | NTX 2000ST/1500 |
Description |
CNC Lathe |
| Reference # | 8073009 |

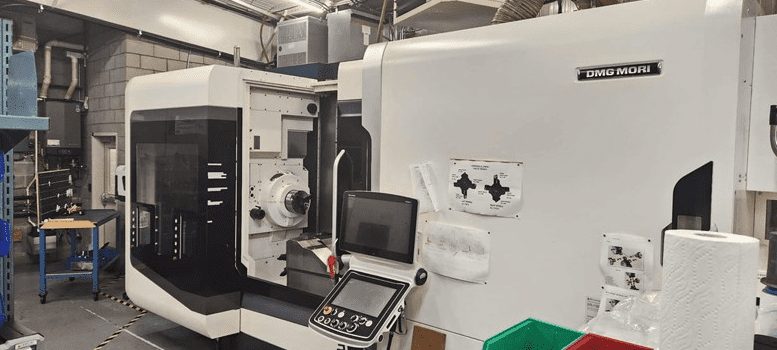

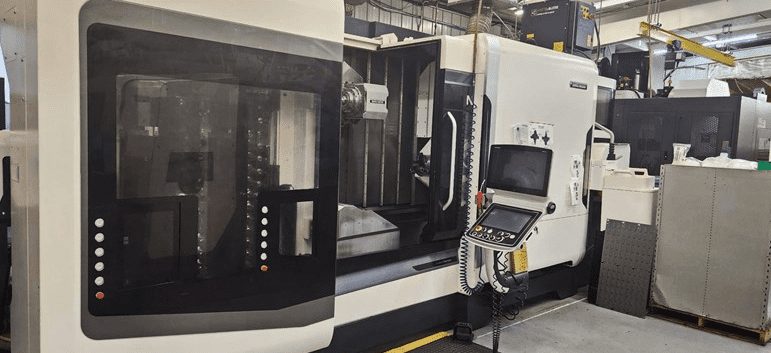

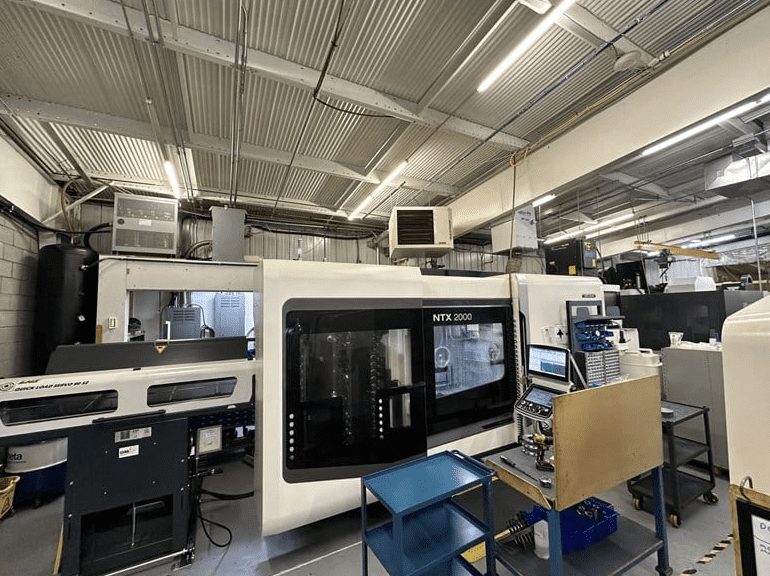

Used DMG Mori NTX 2000ST/1500 (2020) CNC Lathe for Sale. This pre-owned DMG Mori CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this DMG Mori Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications

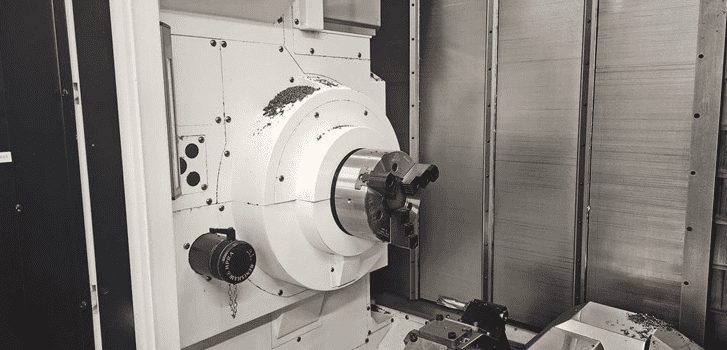

| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2" |
| Swing |
25.9" |
| Turning Diameter |
24" |
| Spindle Speed |
5,000 RPM |

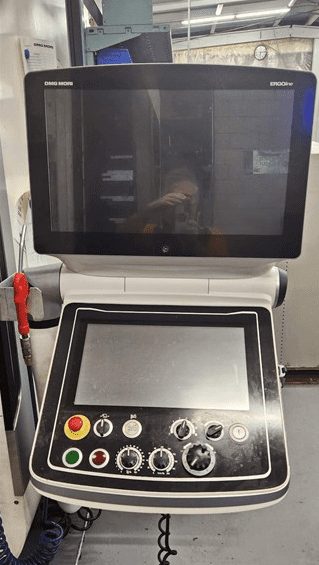

| Control |
CELOS Ergoline Touch Screen |
| Distance Between Centers |
61" |
| Spindle Bore Diameter |
2.87" |
| Turret |
76 Position |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |

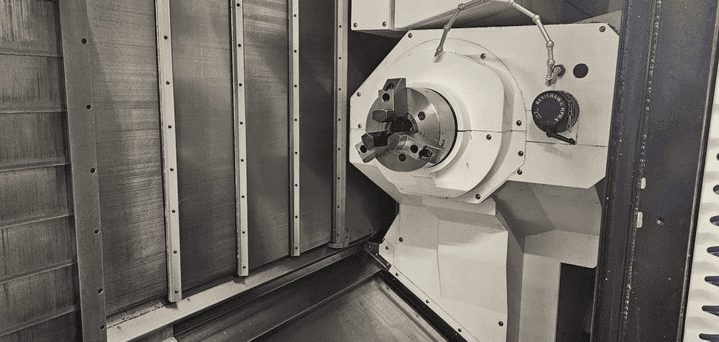

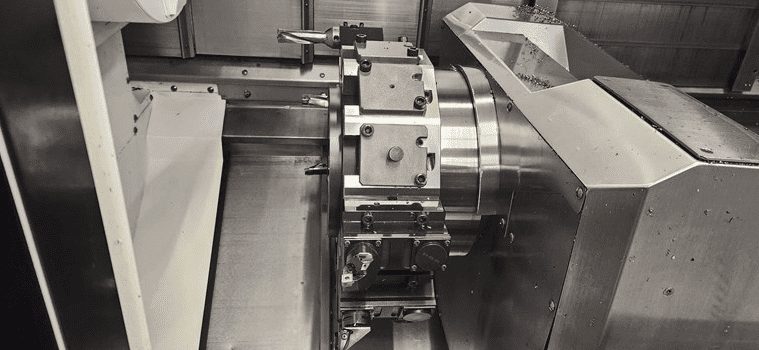

| Sub-Spindle |
8" Chuck |
| Chip Removal |
Chip Conveyor |
Features
|

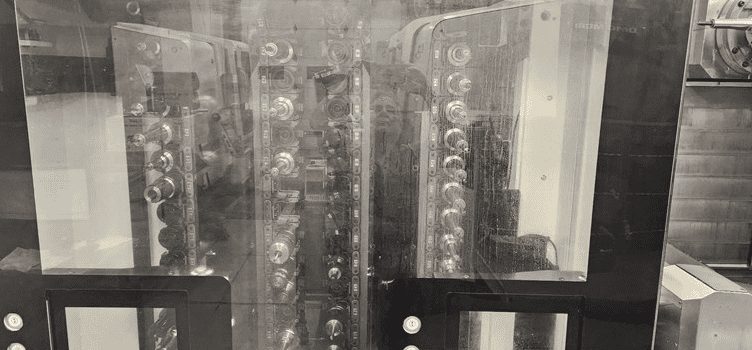

76 Tool Magazine (CAPTO C6) |
Auto Tool Presetter |
|
Automatic Loading & Unloading of Parts |
Gear Hobbing |
|

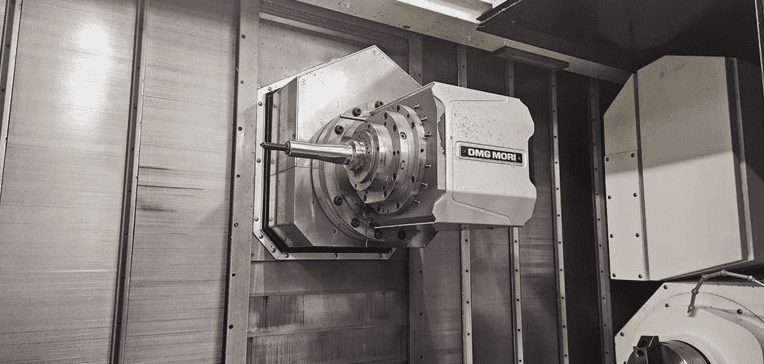

High Speed Milling Spindle (12k RPM) |

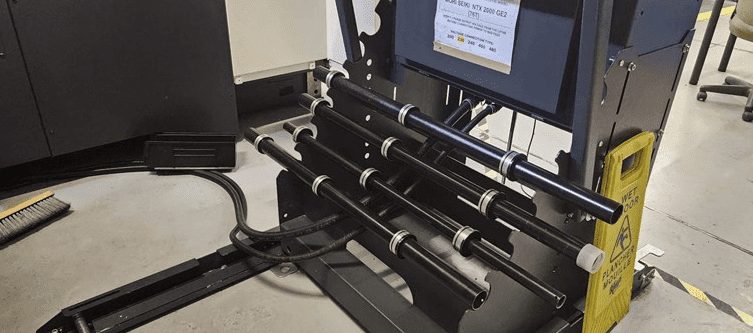

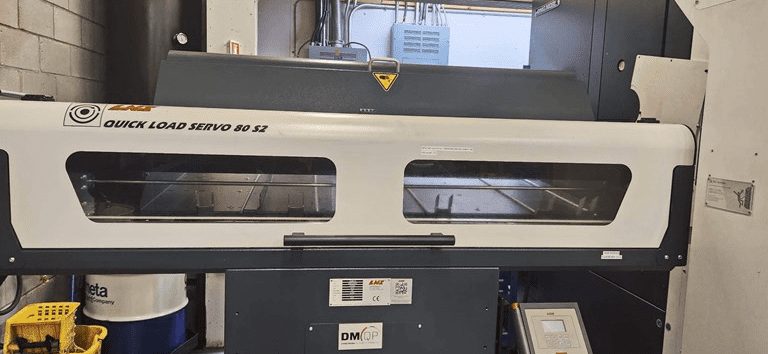

LNS Quick Load Barfeed |
|
Multi-Threading |
Parts Catcher |
|
Renishaw Probing |
Through Spindle Coolant |
|
Workpiece Ejector |
