| Year | 2020 |
|---|---|
| Make | Bystronic |
| Model | Bystar 3015 |
Description |
5' x 10' 10kW CNC Fiber Laser |
| Reference # | 8076746 |

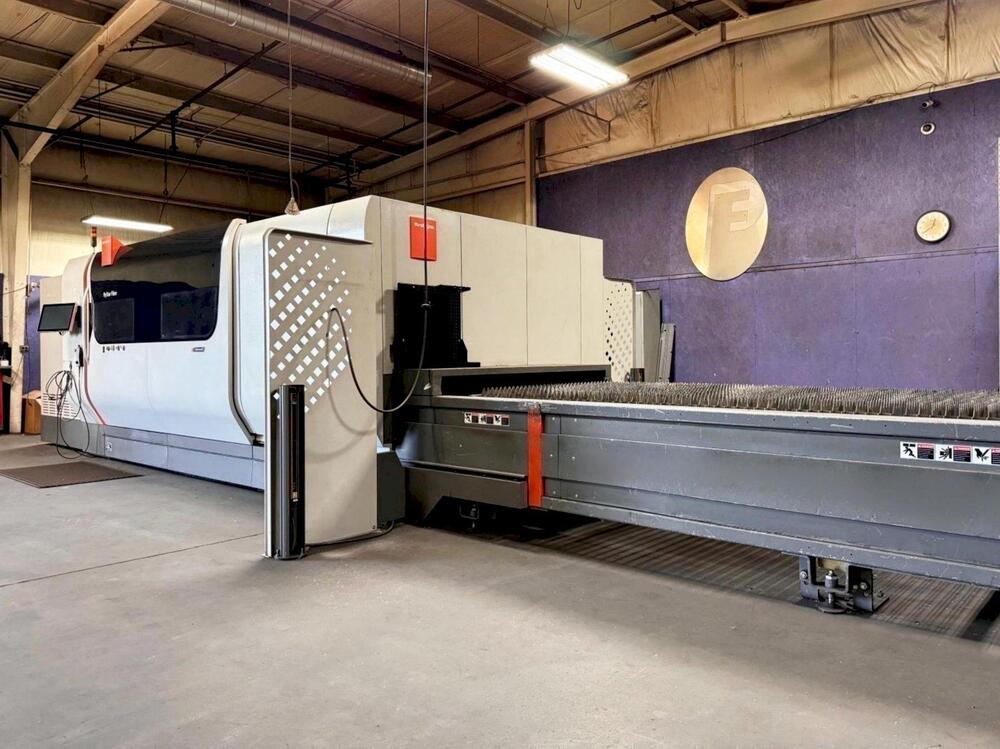

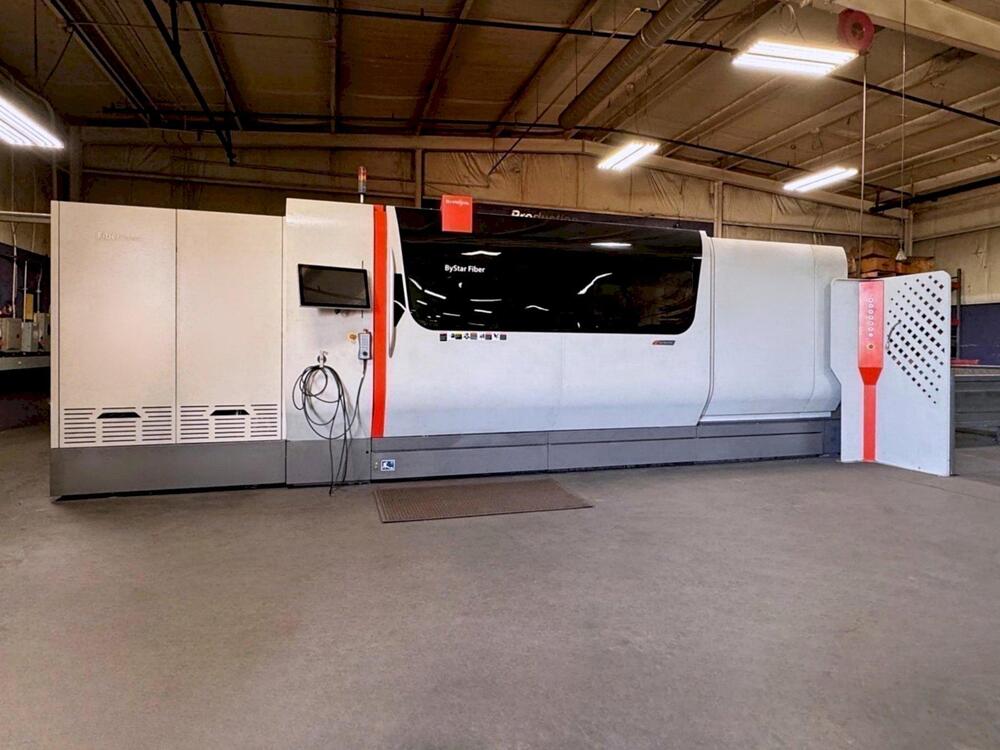

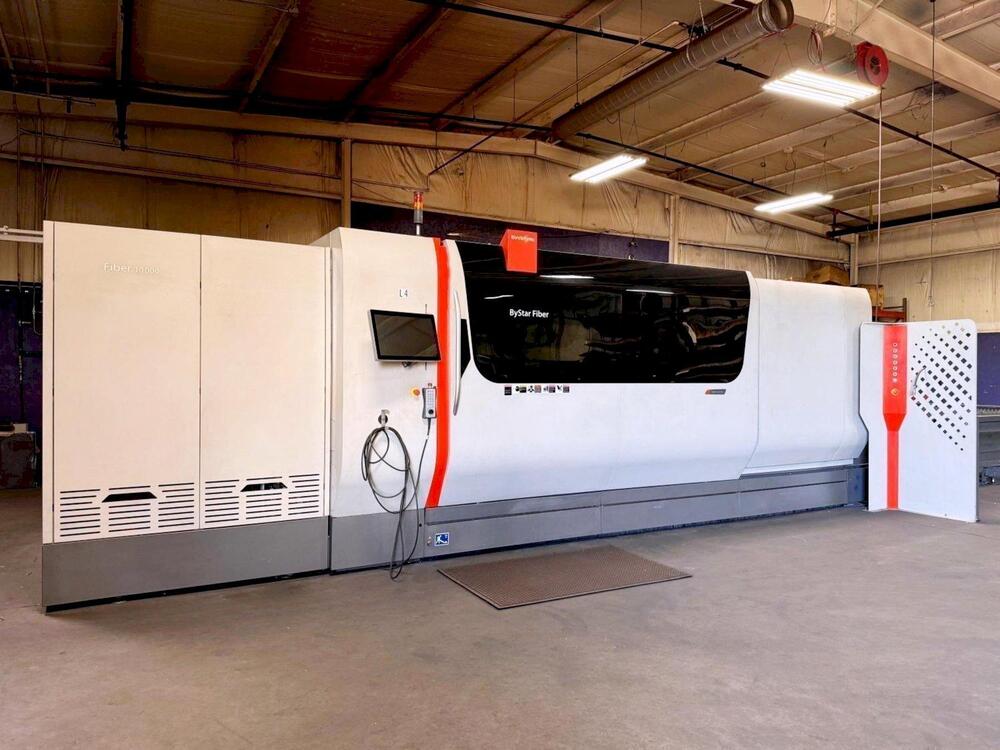

Used Bystronic Bystar 3015 (2020) CNC Laser for Sale. This pre-owned Bystronic CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Bystronic Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
10,000 |
| Control |
Byvision Touchscreen CNC |
| Cutting Area (X) |
122.04” |
| Cutting Area (Y) |
62.20” |
| Cutting Area (Z) |
3.93" |
| Max. Pos. Speed Parallel Axis X/Y |
4,724 IPM |
| Max. Simultaneous Pos. Speed |
6,692 IPM |
| Edge Detection Accuracy |
(±) .01968” |
| Max. Workpiece Weight |
1,985 Lbs. |
| Range of Adjustment |
1,000 W to 10,000 W |
| Max. Cut Mild Steel |
.98”/1.18" |
| Max. Cut Stainless Steel |
1.18” |
| Max. Cut Aluminum |
1.18” |
| Max. Cut Brass |
.59” |
| Max. Cut Copper |
.47” |
| Dimensions |
L 468” x W 224” x H 126” |
| Machine Weight |
24,250 Lbs. |
Features
|
Auto Nozzle Cleaner |

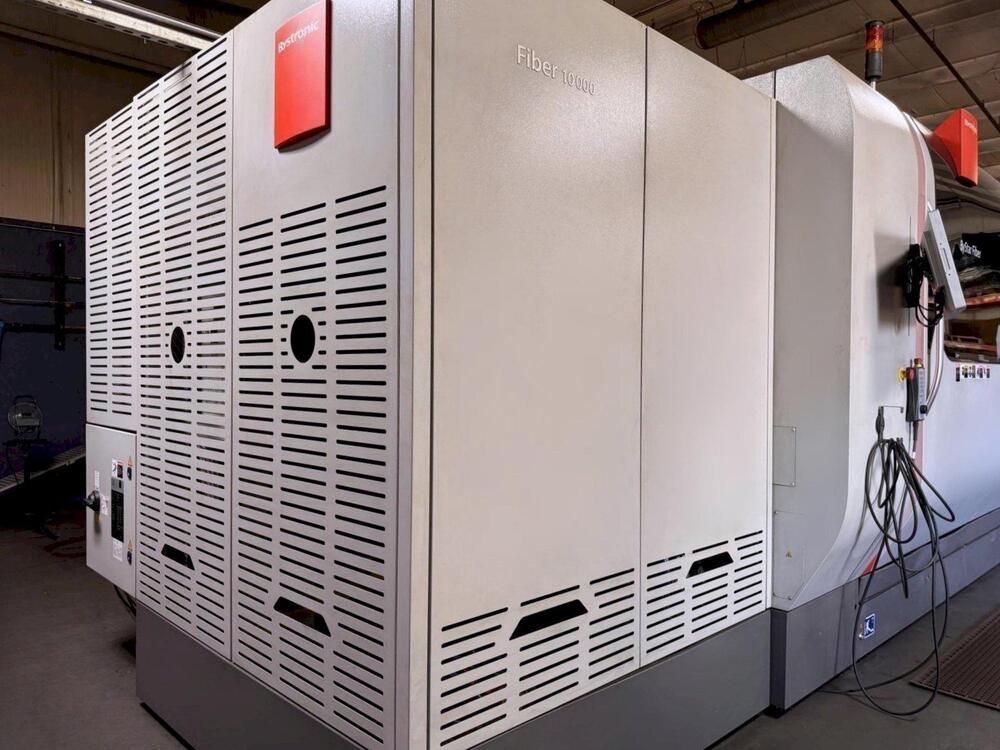

Bystronic IPG Fiber 10k Power Source |
|
Manual Control Unit |
Auto Nozzle Changer |
|
Chiller Unit |

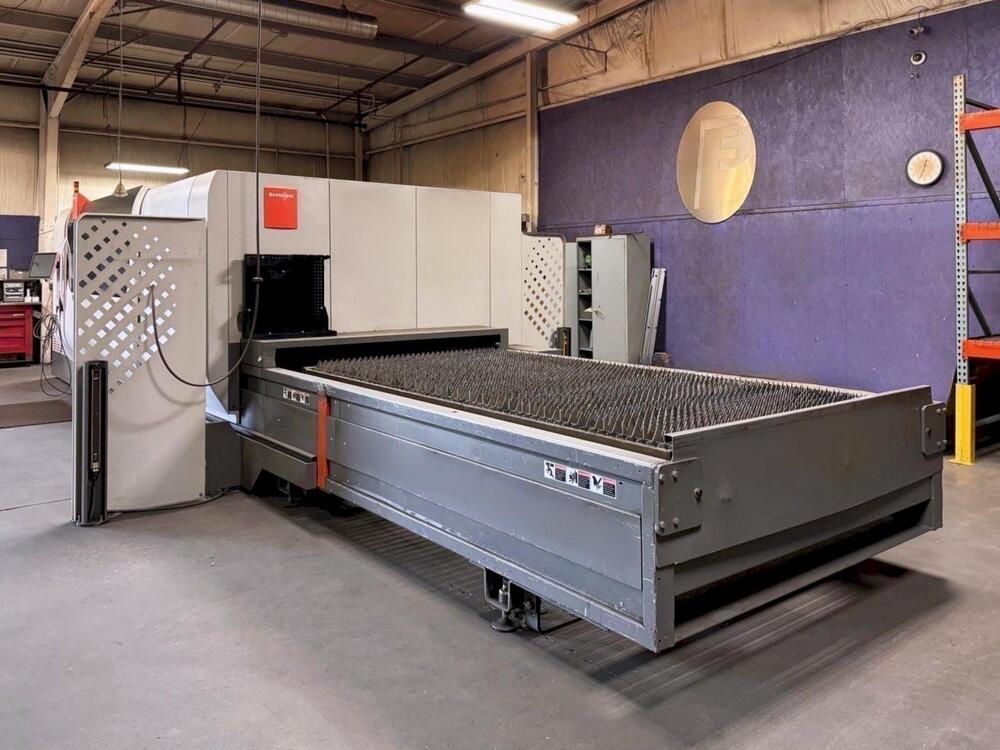

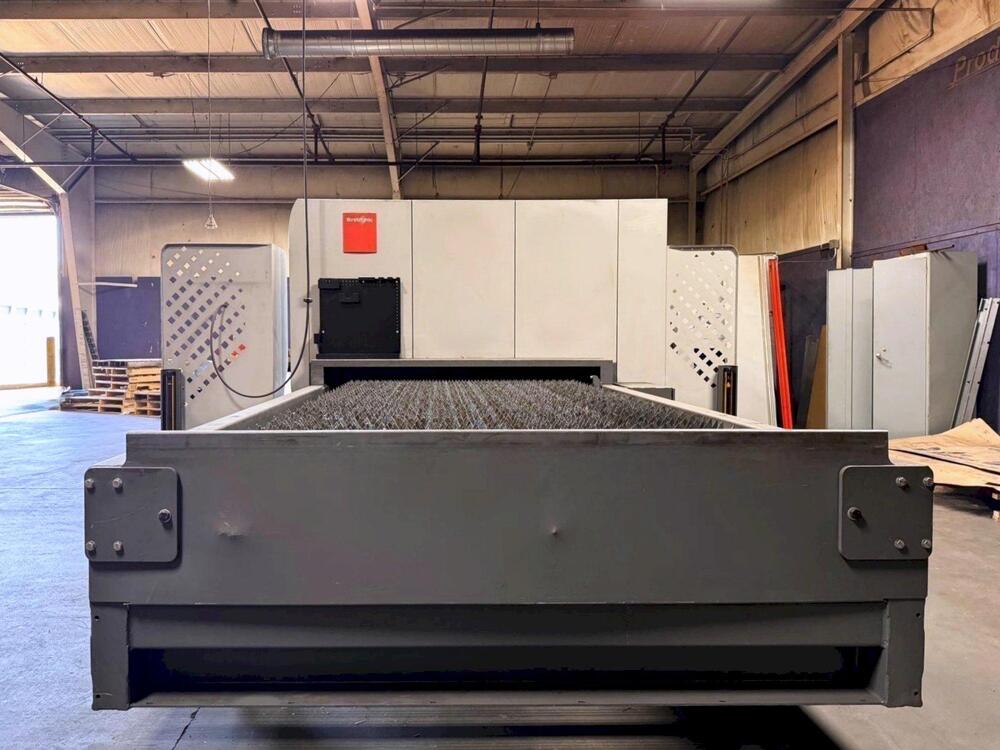

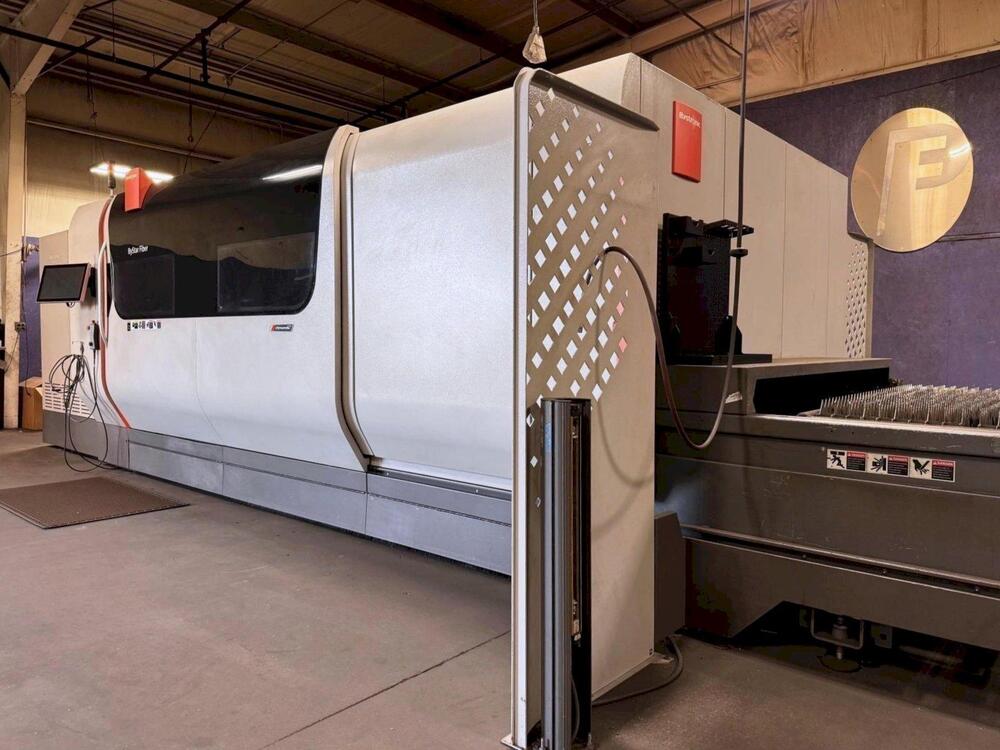

Dual Pallet Shuttle Tables |
|

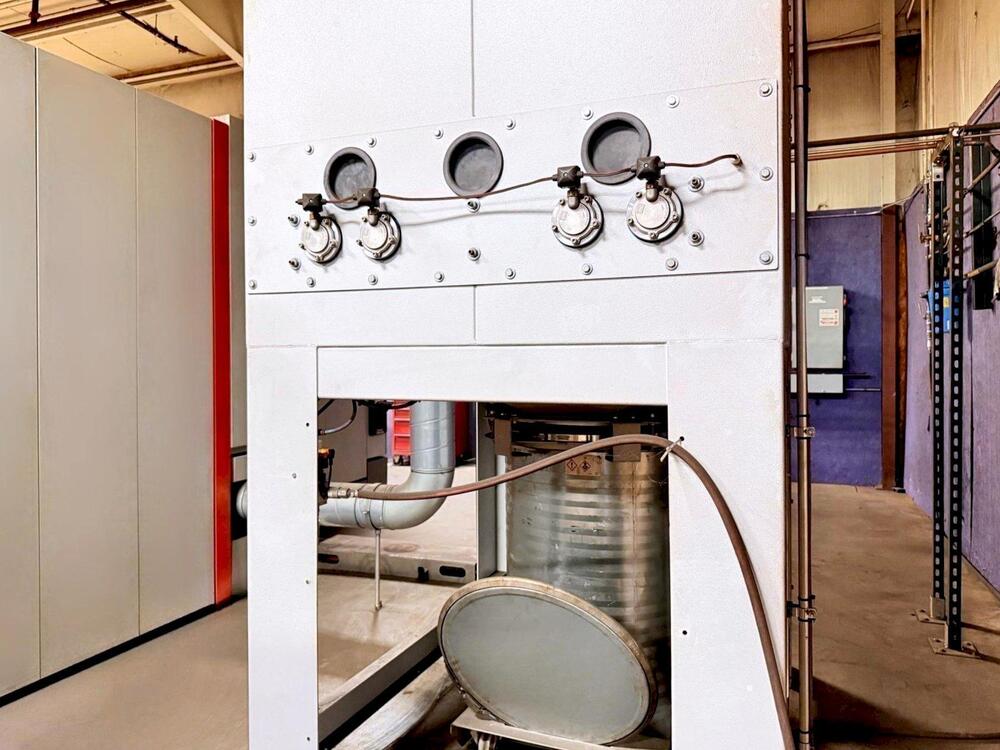

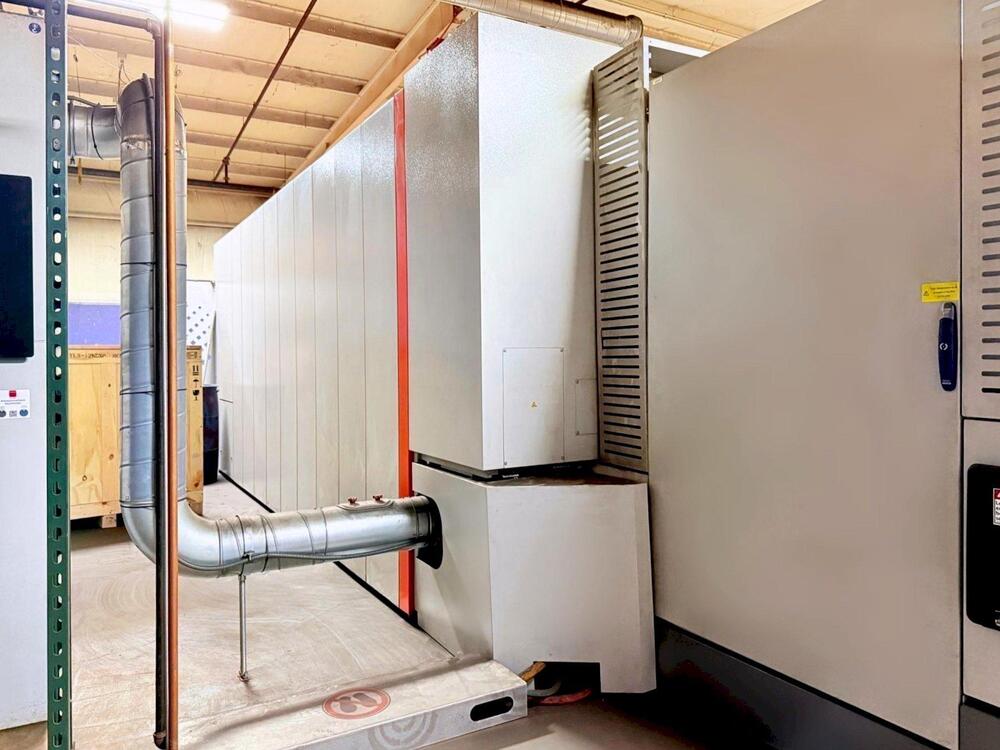

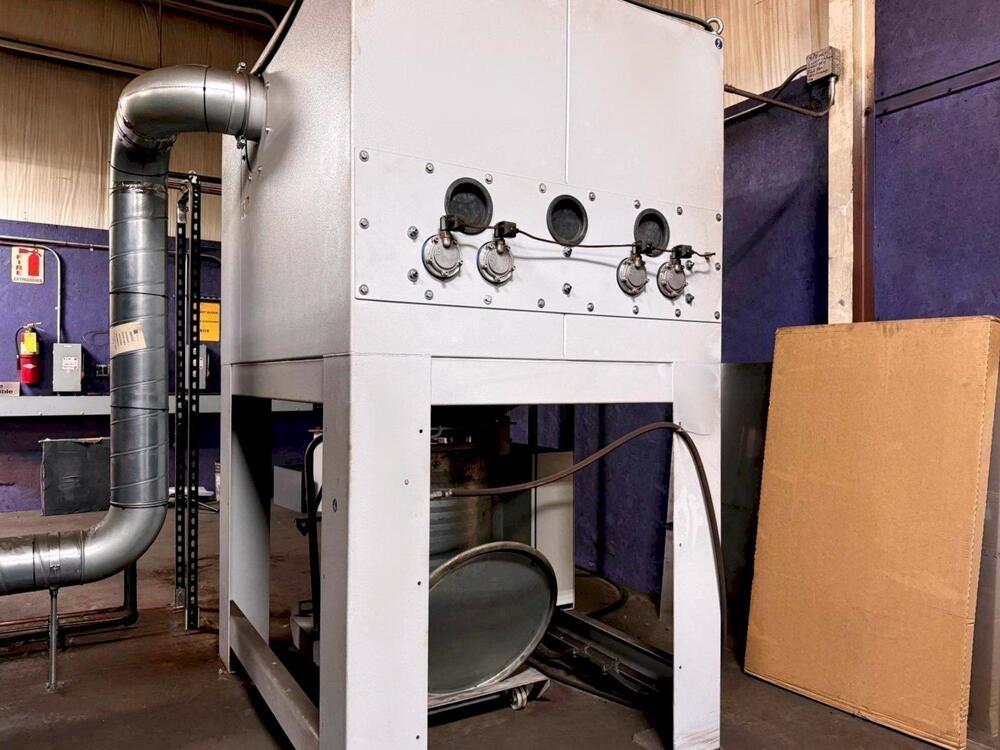

Dust Collector |

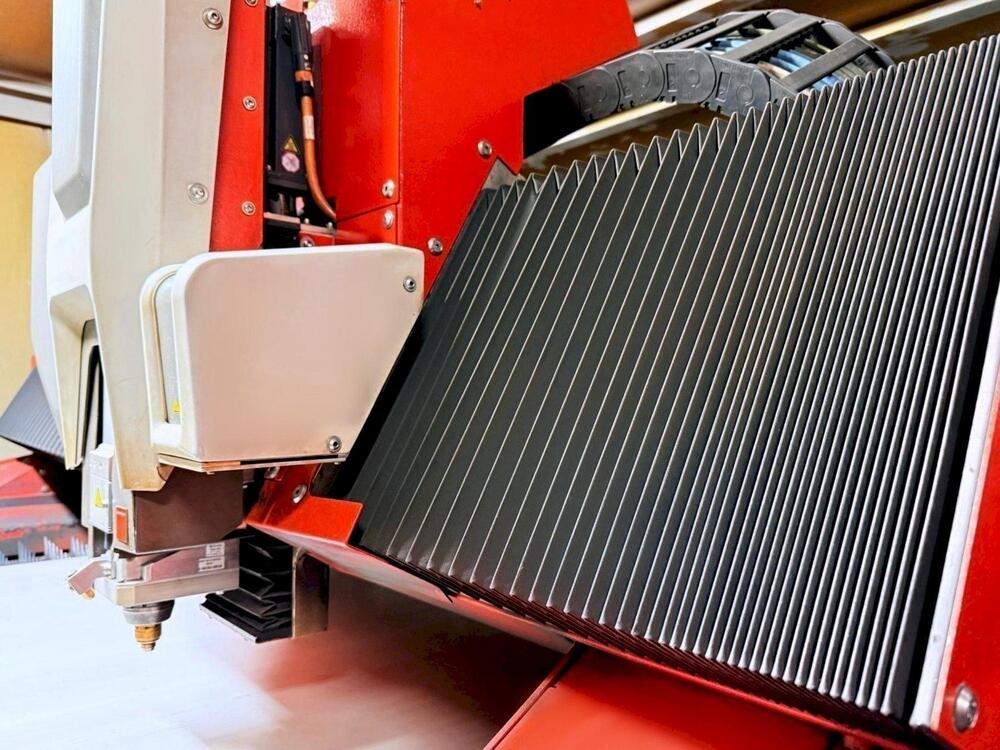

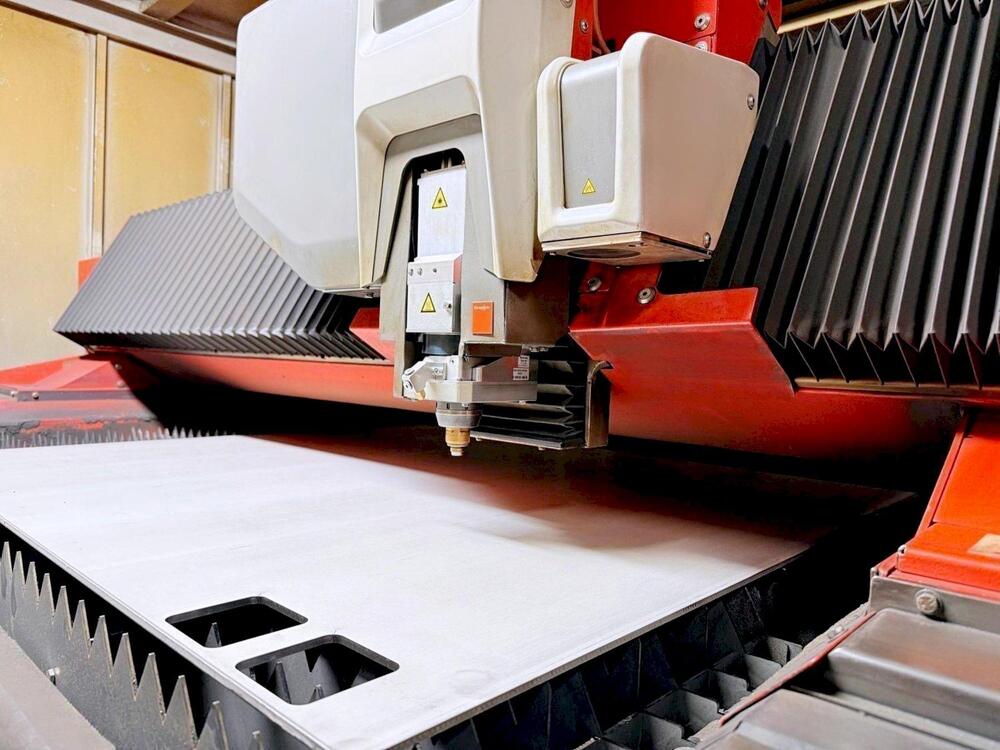

High Speed Cutting Head |
*
