| Year | 2019 |
|---|---|
| Make | Homag |
| Model | Centateq N500/480C |
Description |
CNC Router |
| Reference # | 8076239 |
Used Homag Centateq N500/480C (2019) CNC Router for Sale. This pre-owned Homag cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Homag CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
48" |
|---|---|
| Table Length |
96" |
| Number of Axis |
3 |

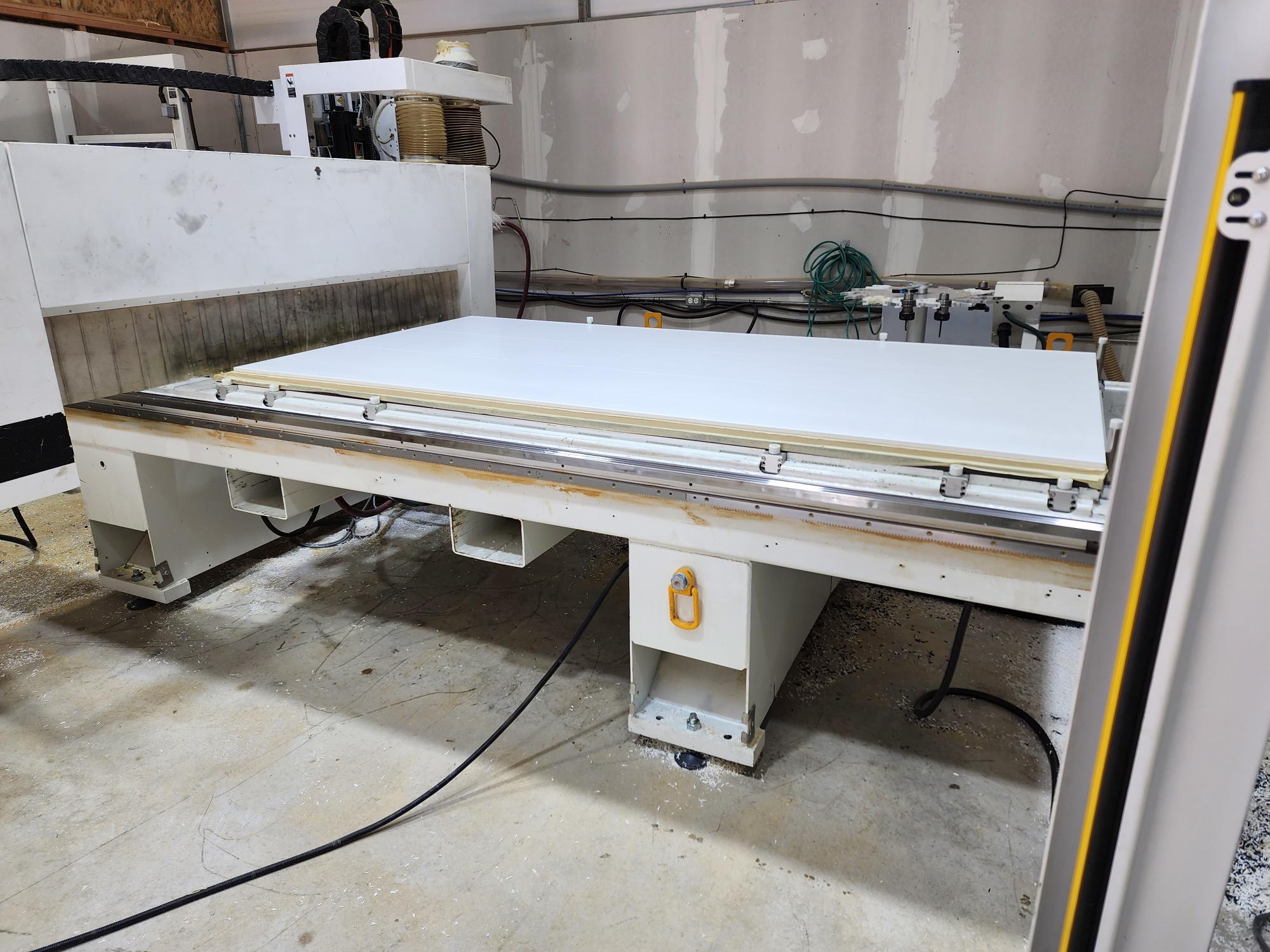

| Vacuum Table |
4 Zones |
| Z-Axis Travel |
13.7" |
| Spindle |
Benz/Zimmer Group HSK63 Spindle Motor |
| Spindle Speed |
24,000 RPM |
| Spindle Motor |
13.4 HP |
| Tool Holder |
HSK63 |

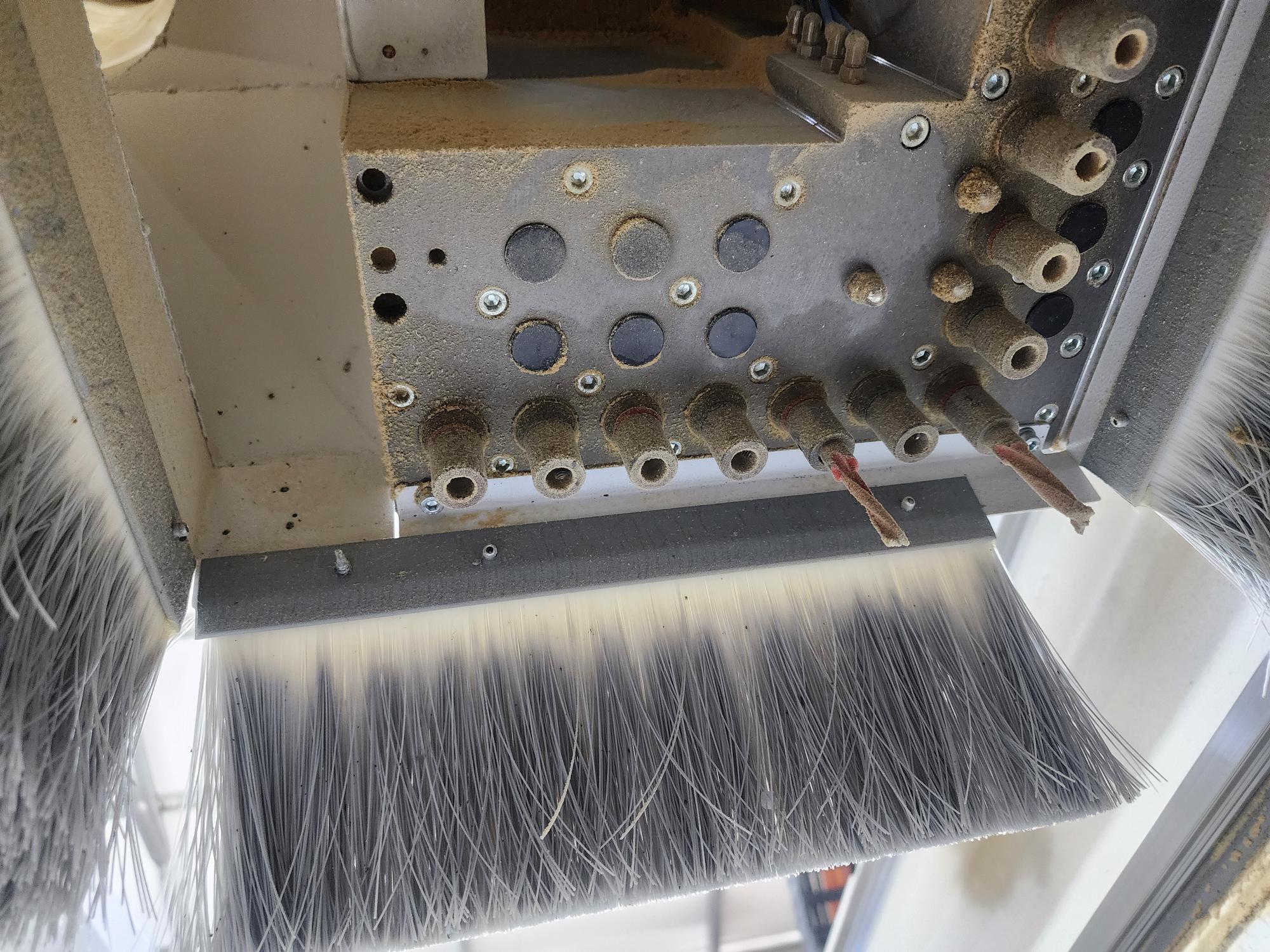

| Multispindle Boring Block |
12 Drills |

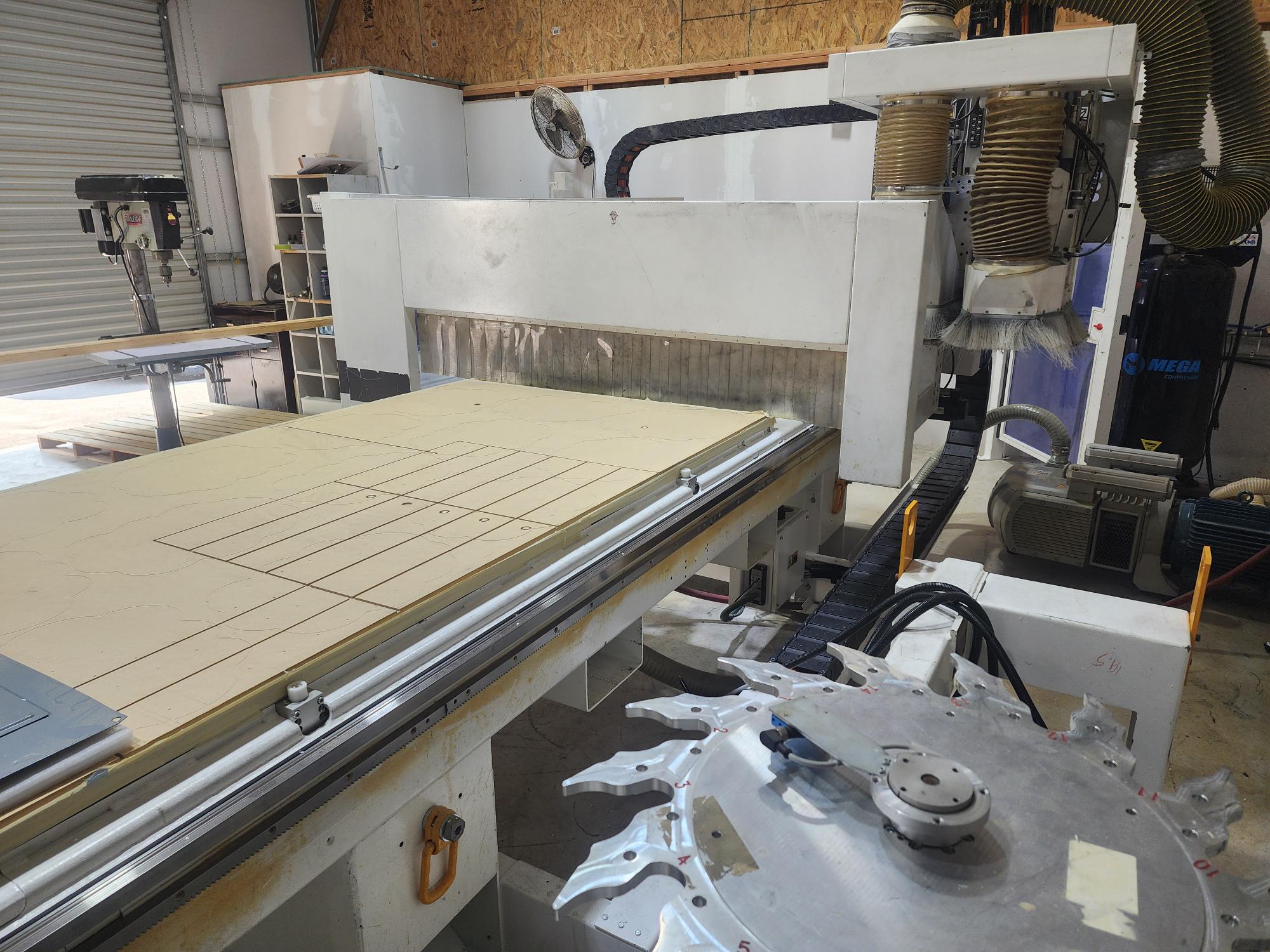

| Tool Changer |
14 Positions |
| Control |
PowerControl CNC-Core |
| Software |
WoodWOP7 |
| Operating System |
Windows 7 |
| Electrical Requirements |
480 Volts / 3 Phase / 60 Hz |
Features
|
Reference Pins |
Handheld Controller |
|
Under Power |
Tool Length Control |
|
Aggregate Interface Interpolating C-Axis |
Automatic Tool Loading Position |
*
