| Year | 2019 |
|---|---|
| Make | Citizen |
| Model | L20E-2M10 |
Description |
CNC Swiss Lathe |
| Reference # | 8073774 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

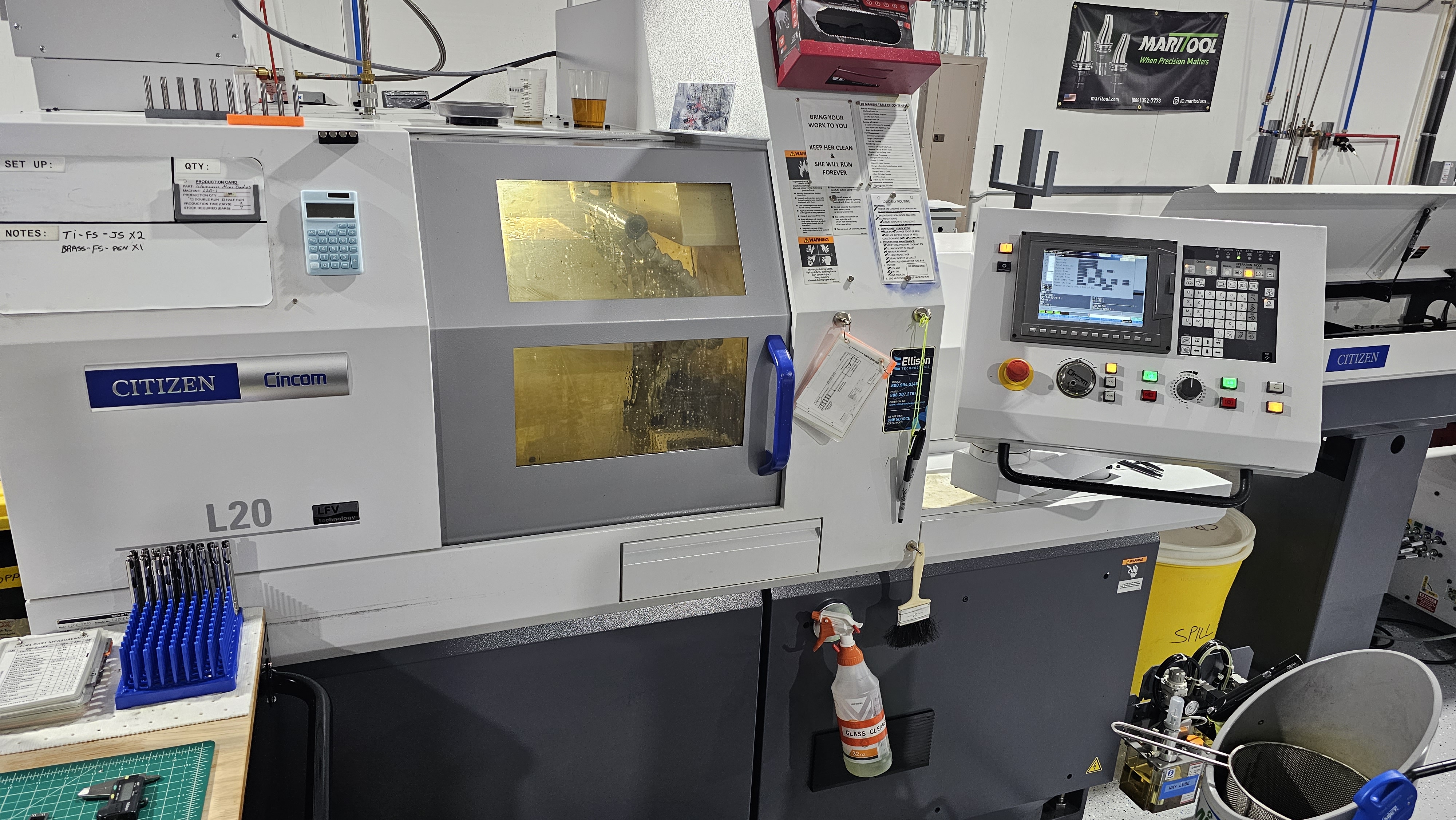

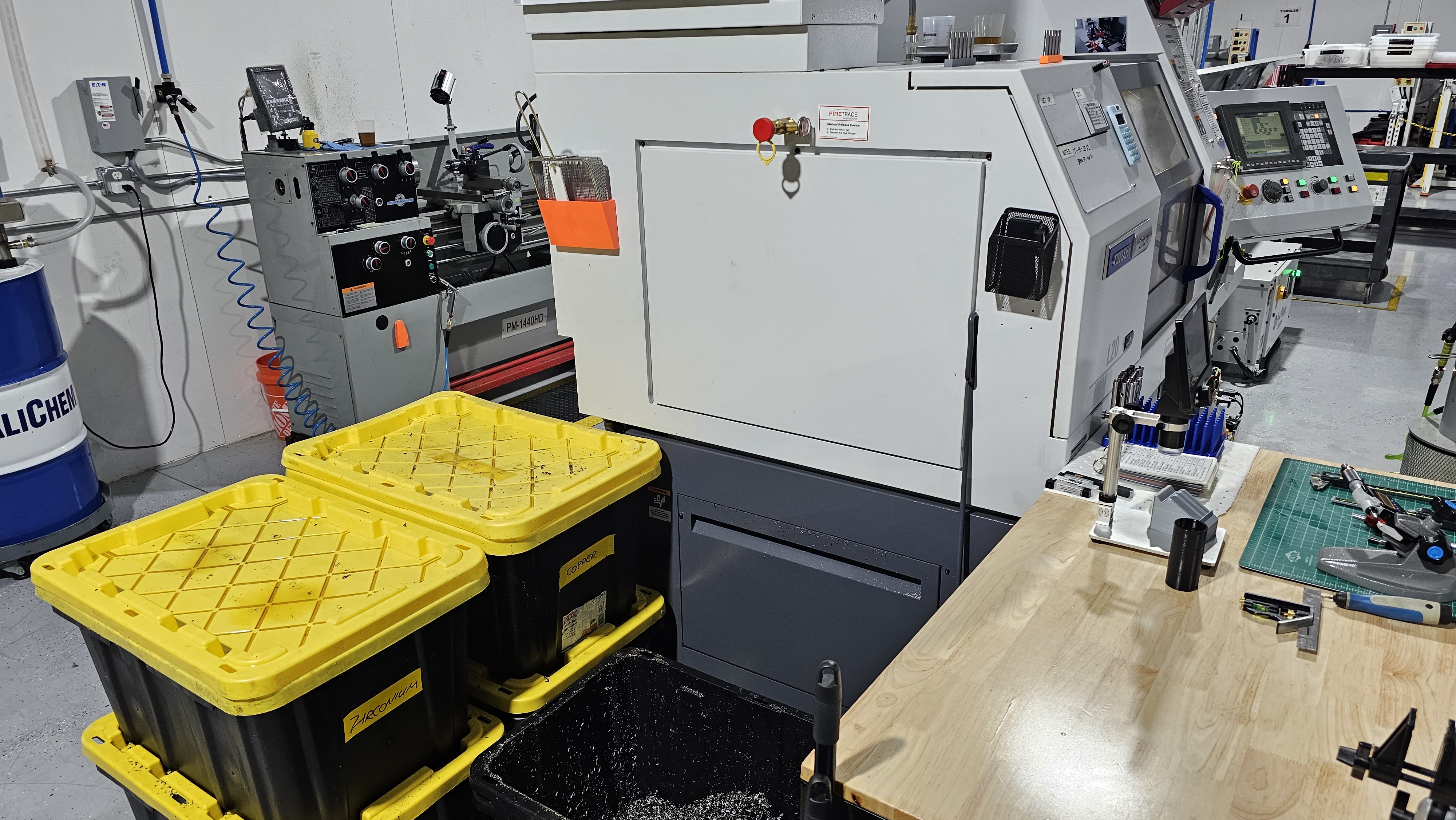

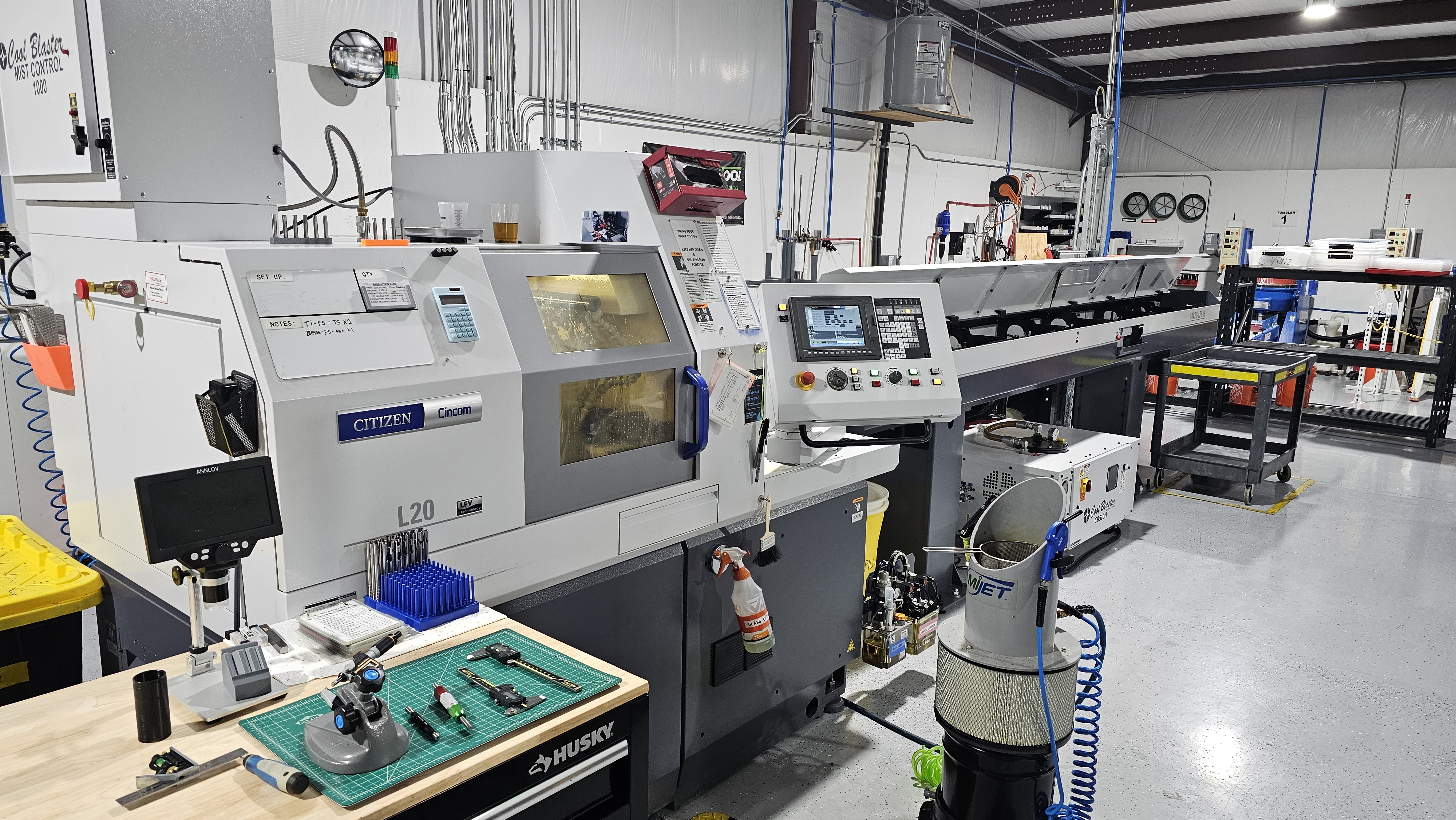

Used Citizen L20E-2M10 (2019) CNC Swiss Lathe for Sale. This pre-owned Citizen CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Citizen Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Bar Capacity |
0.78" |
|---|---|
| Turning Diameter |
0.78" |
| Max. Machining Diameter |
.79" |
| Max. Machining Length |
7.87" (per one chuck) |
| Max. Drilling Diameter |
up to .394" |
| Min. Spindle Input Increment |
0.01 Degree Full C-axis |
| Spindle Speed |
10,000 RPM |
| Tooling |
1/2" (T01 5/8") |
| Main Spindle Motor |
2.2/3.7 kW |
| Live Tooling |
C-Axis Live Tooling |
| Control |
Cincom System M70 |
| Pick-Off Spindle Speed |
200 - 8,000 RPM |
| Pick-Off Spindle Motor |
.75/1.5 kW |
| Rotary Spindle Speed |
200 - 5,000 RPM |
| Rotary Tool Motor |
1 kW |
| Number of Tools Mounted |
18-21 |
| Chip Removal |
Chip Conveyor |
| Power Requirement |
6 KVA |
| Approx. Dimensions |
83.5" x 48" x 81" |
| Approx. Weight |
5,000 Lbs |
Features
|
Citizen CAV20L2E Magazine Bar Loader |
CTZ-LFV-N Low Frequency Vibration Control Function |
|
L220E-U4212B Stock Pipe |
LNS MH 500 Filtering Cup |
|
CoolBlaster High Pressure Coolant |
