Year 2019
Make CAMaster
Model PT-510 ATC

Description

CNC Router
Reference # 8075834

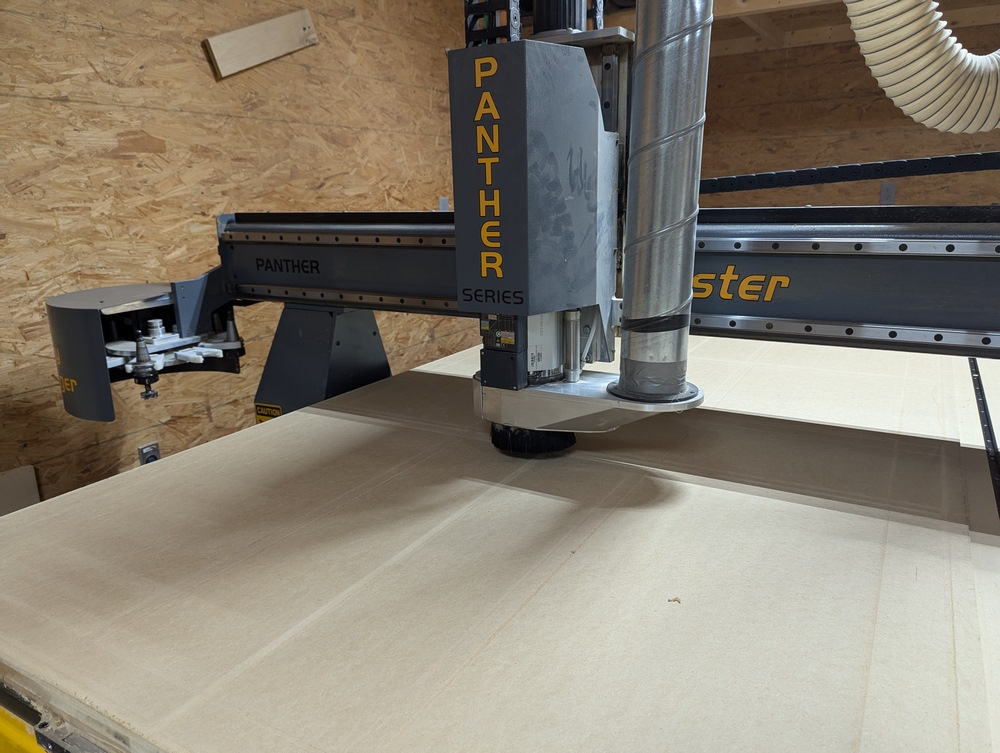

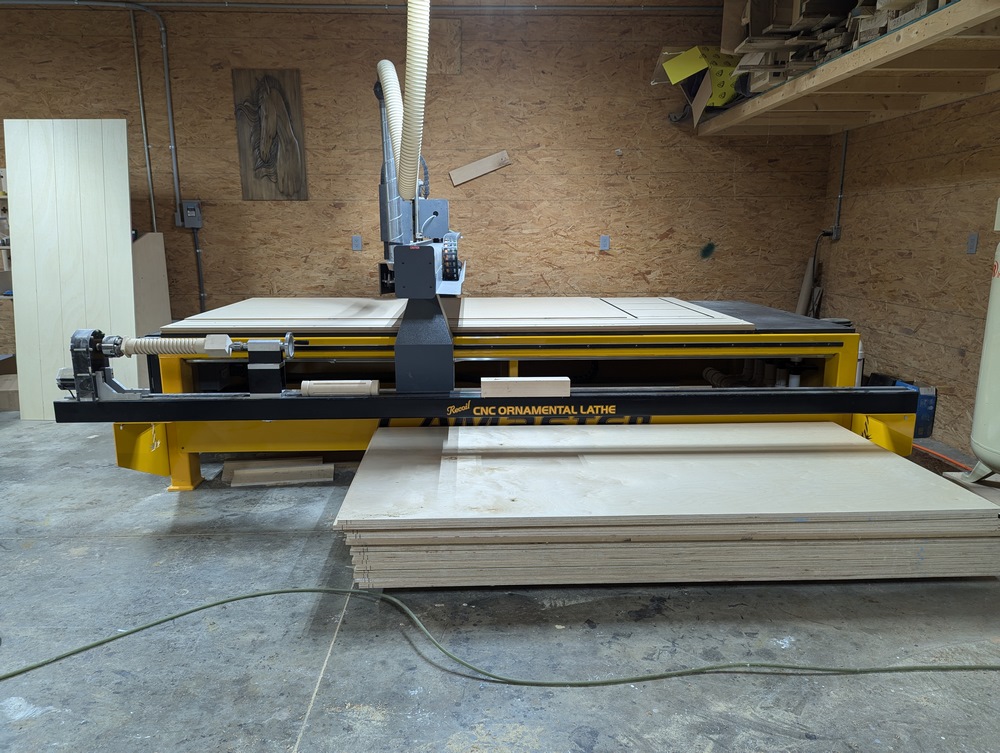

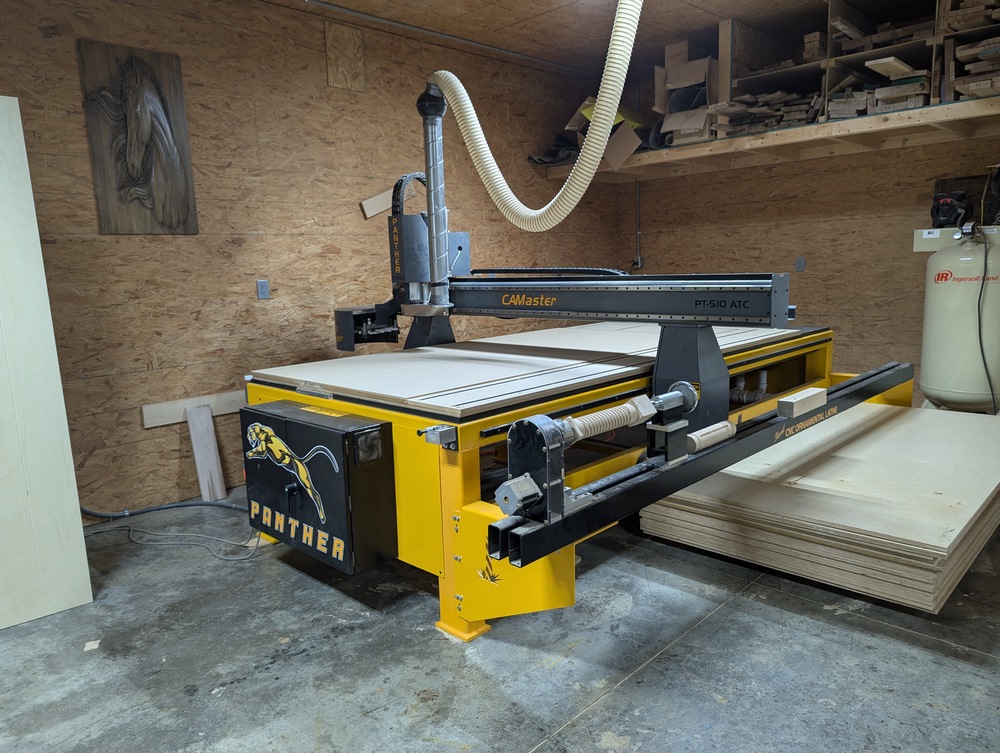

Used Camaster PT-510 ATC (2019) CNC Router for Sale.  This pre-owned Camaster cnc router is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Camaster CNC Router, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Table Width

61"

Table Length

121"

Number of Axis

3

Spindle Speed

24,000 RPM

Spindle Motor

5 HP

Tool Changer

8 Station

Software

WinCNC

Cutting Area

61" x 121" with 8" Z Clearance

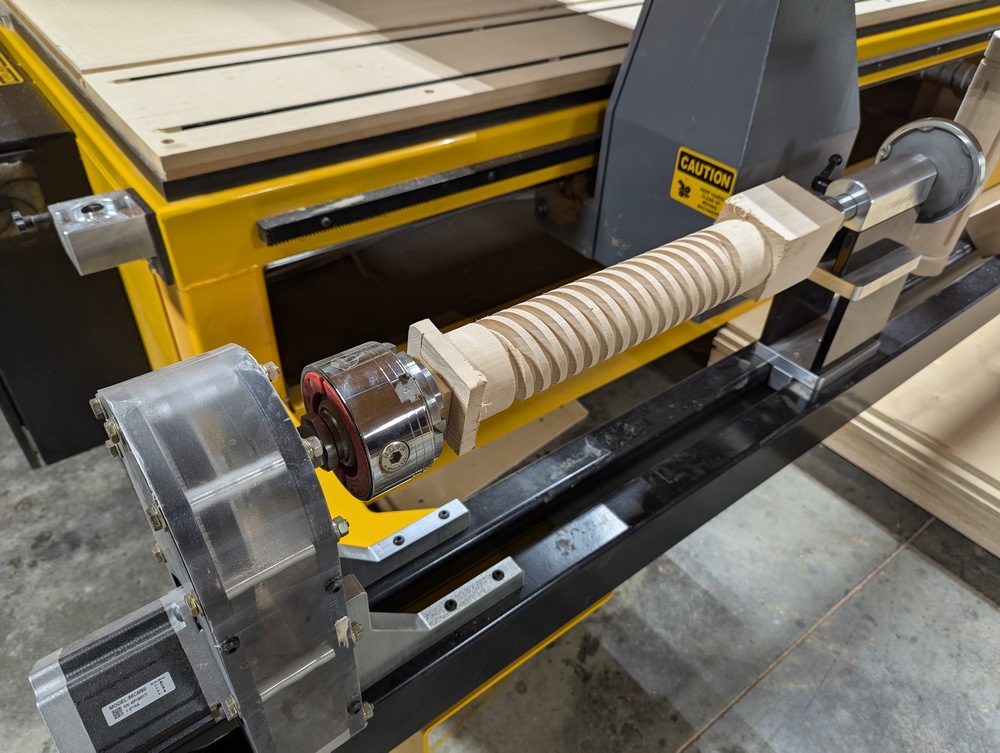

Indexing Lathe

120' x 12'

Electrics

208-230V Single Phase Power @ 30A. 382 CFM 9.5 In Hg

Features

25 MM Industrial Precision Bearings and Rails on All Axes

4 Industrial Vacuum Motors - 20900 RPM (2 additional vacuum motors included)

5 HP HSD Automatic Tool Changing Spindle

8 Tool Holders / 8 Cones / 8 Collets

AWFS Show Package

Brushless Servo Drive System

Hurricane Vac System

Inlet and Exhaust Filters

Pop Up Pins

Rotary Tool Changer

Spindle On/Off Via G Code and Control PC

Standard 3 Axis with Dual Drive on the Y Axis

Vacuum Gauge

Vacuum Table

Automatic Tool Measure Switch

* Important: All machinery specifications must be independently verified by buyer. All machinery sales are subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
