| Year | 2018 |
|---|---|
| Make | Sumitomo |
| Model | SE280HS-CI C250/C250 |
Description |
280 Ton 2.9/2.9 oz Shot Size 2 Color Injection Molding Machine |
| Reference # | 8074667 |

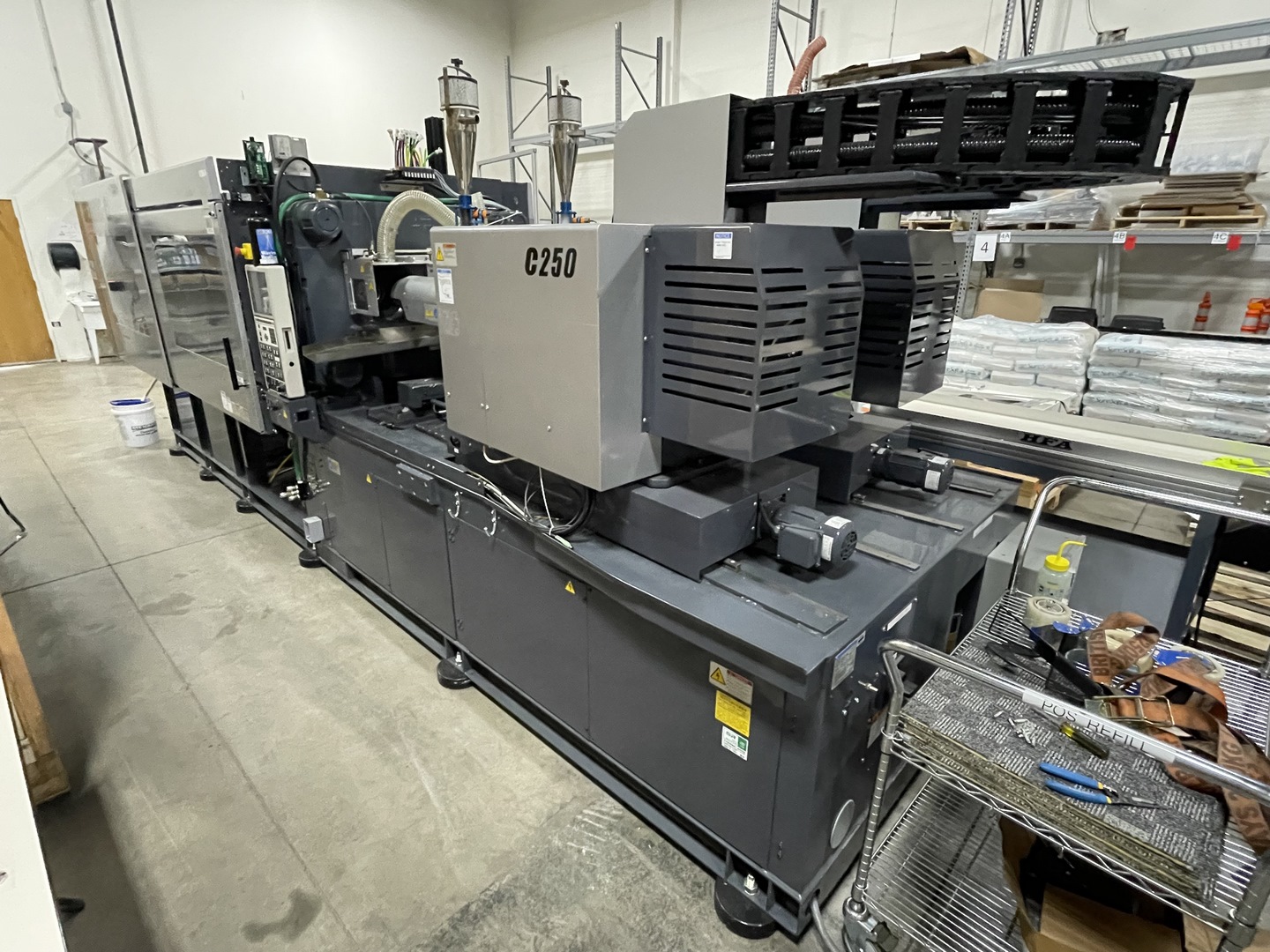

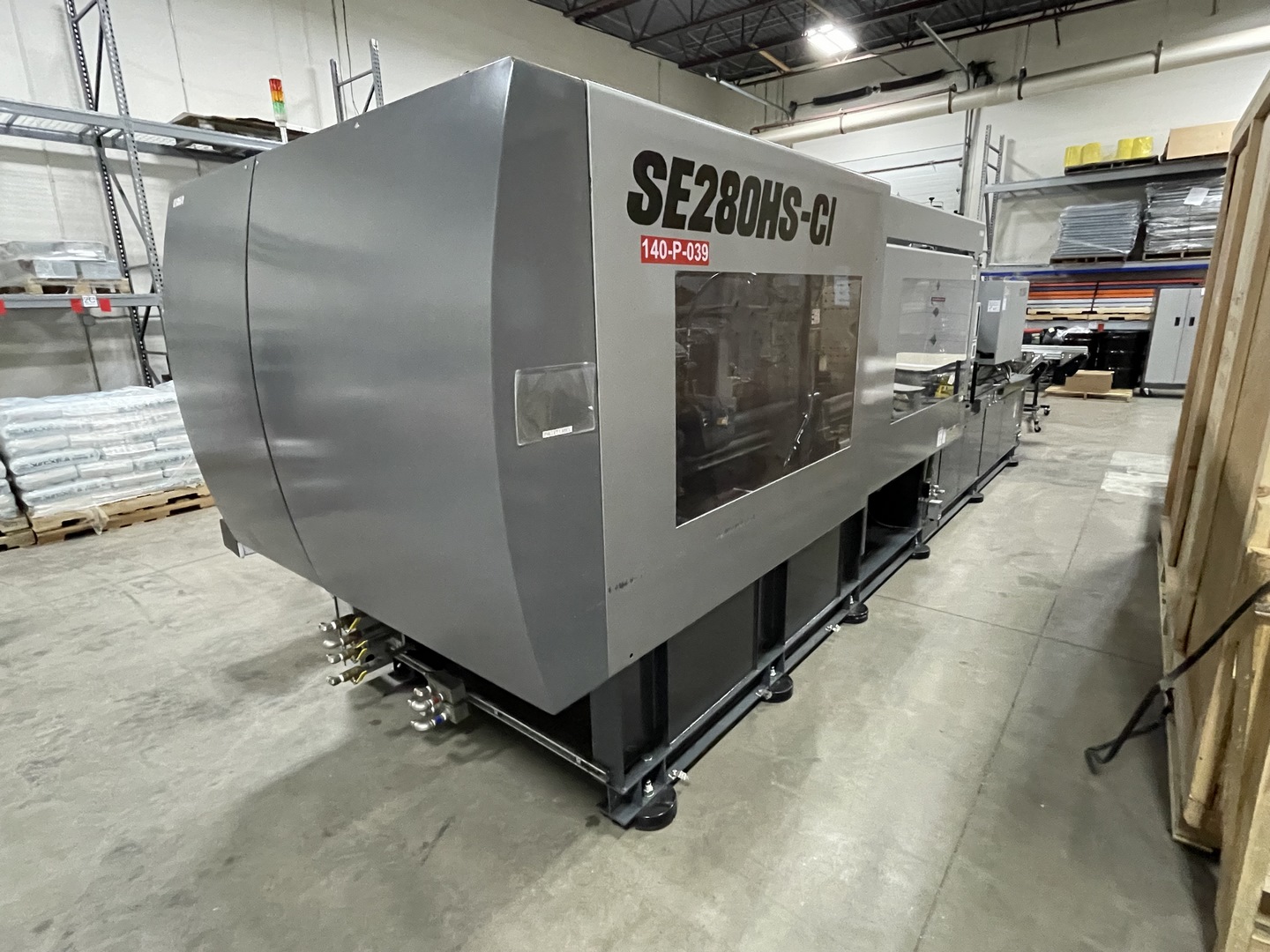

Used Sumitomo SE280HS-CI C250/C250 (2018) Injection Molding Machine for Sale. This pre-owned Sumitomo plastic injection molding machine is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Sumitomo Injection Molding Machine, please feel free to contact us. You may Activate Pricing to view the price of this Plastic Molding Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
280 Ton |
|---|---|
| Shot Size |
2.9 oz |
| Second Shot Size |
2.9 oz |
| Tie Bar Spacing |
36.22" x 22.05" |
| Platen Size |
33.375" x 47.75" |
| Movable Platen |
24.25" x 36.25" |
| Max Daylight |
42.13" |
| Min /Max Mold Height |
8.27" / 22.05" |
| Ejector Stroke |
5.91" |
| Open Stroke |
20.08" |
| Control |
NC-9 |
| Note |
Medical Facility Machine |
Features
|

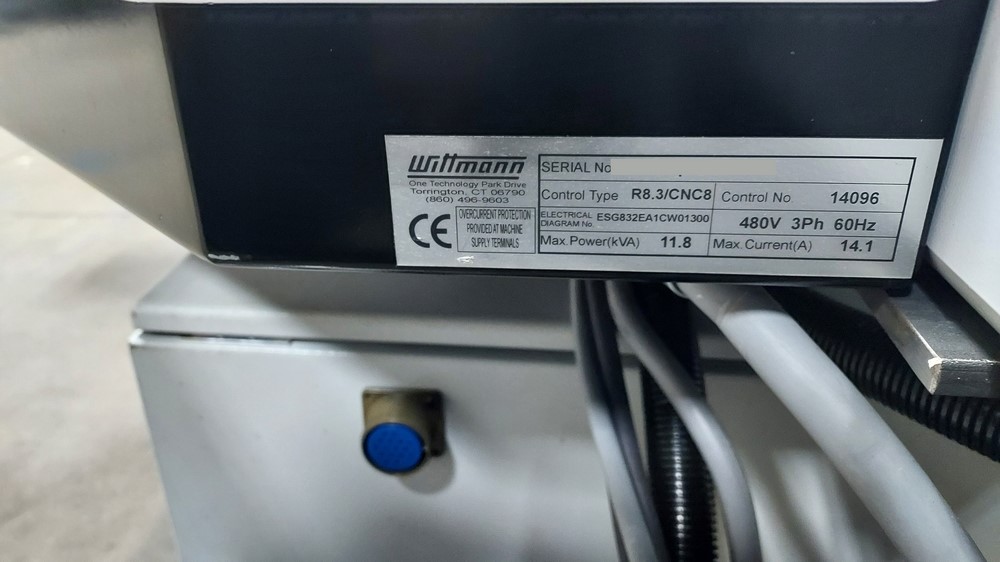

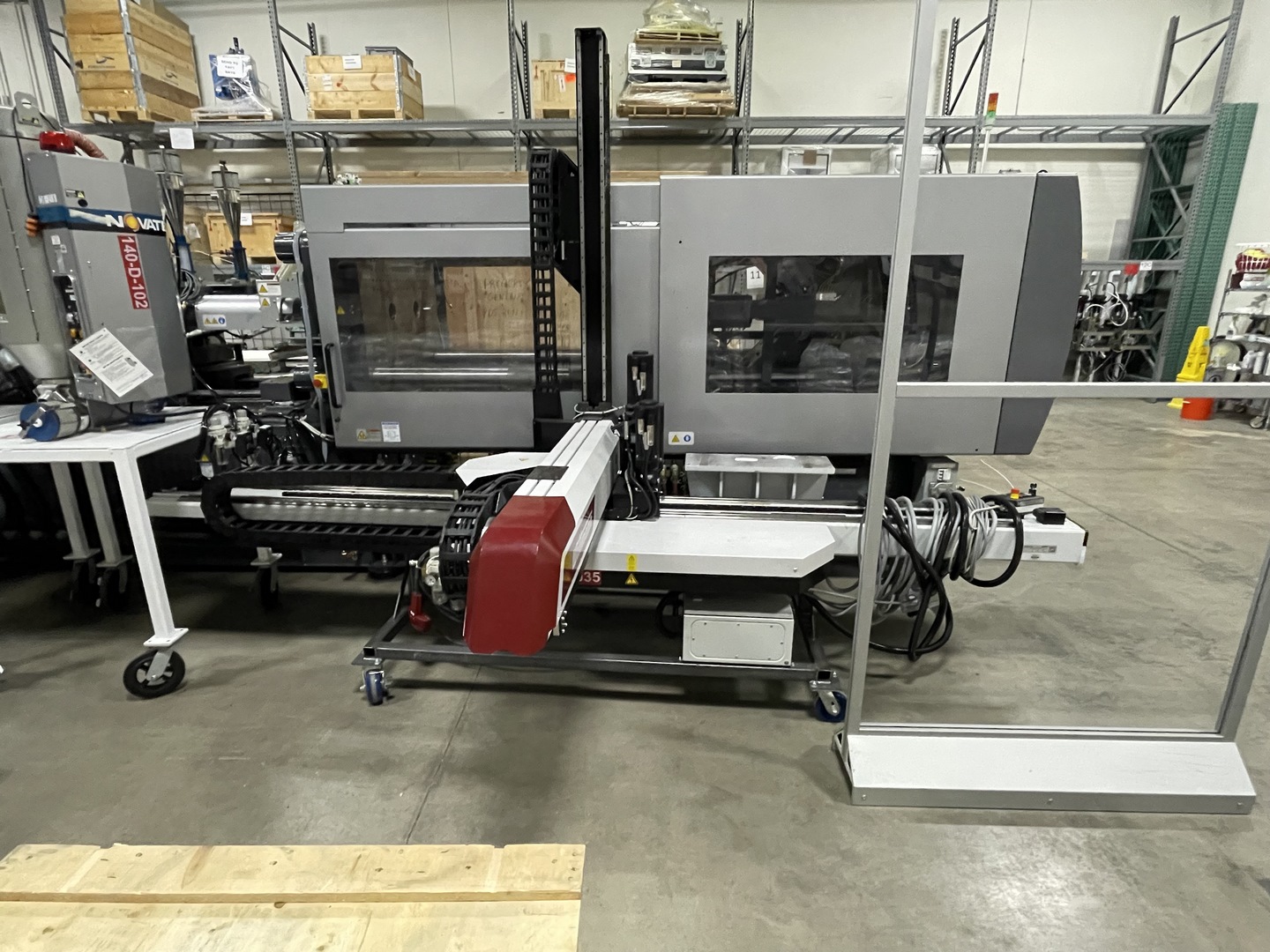

2018 Wittman Robot W832 Pro with R8 3/CNC 8 |
Rotary Platen |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
