Year | 2018 |
---|---|
Make | Amada |
Model | EML 2515 AJ |
Description |
33 Ton Fiber Laser/ Punch Combo |
Reference # | 8070870 |
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |

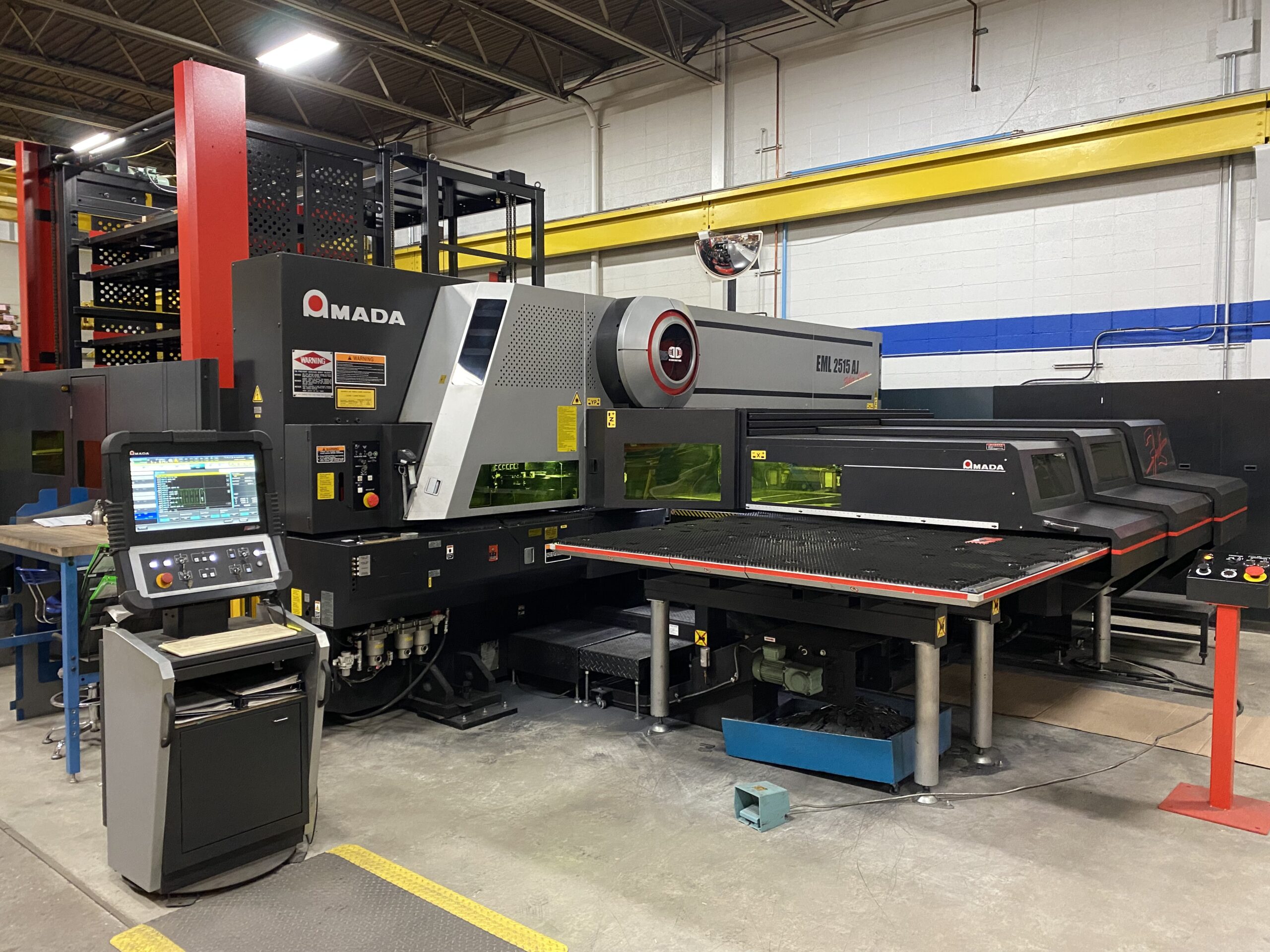

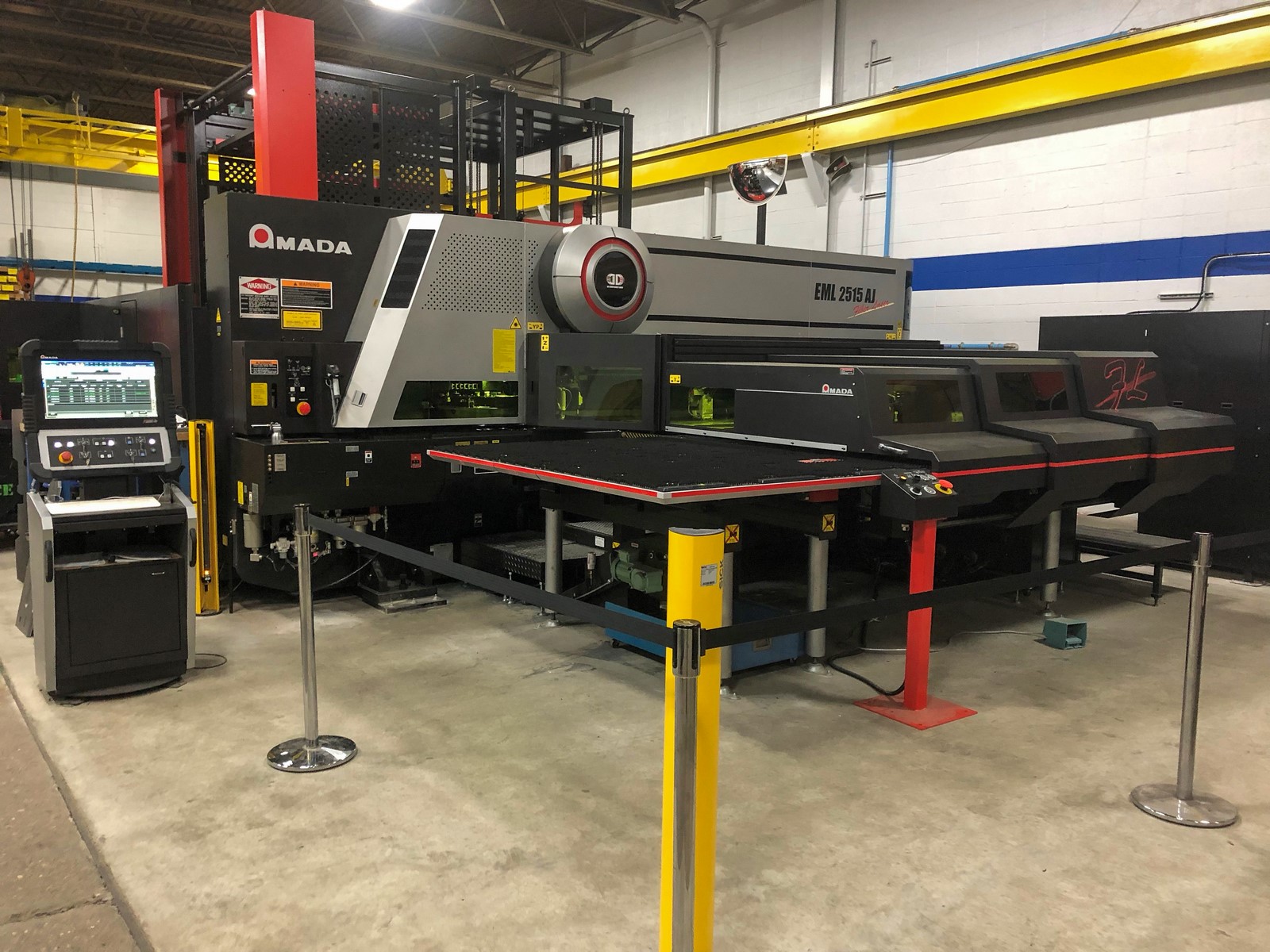

Amada EML 2515 AJ
Specifications
Capacity |
33 Ton |
---|---|

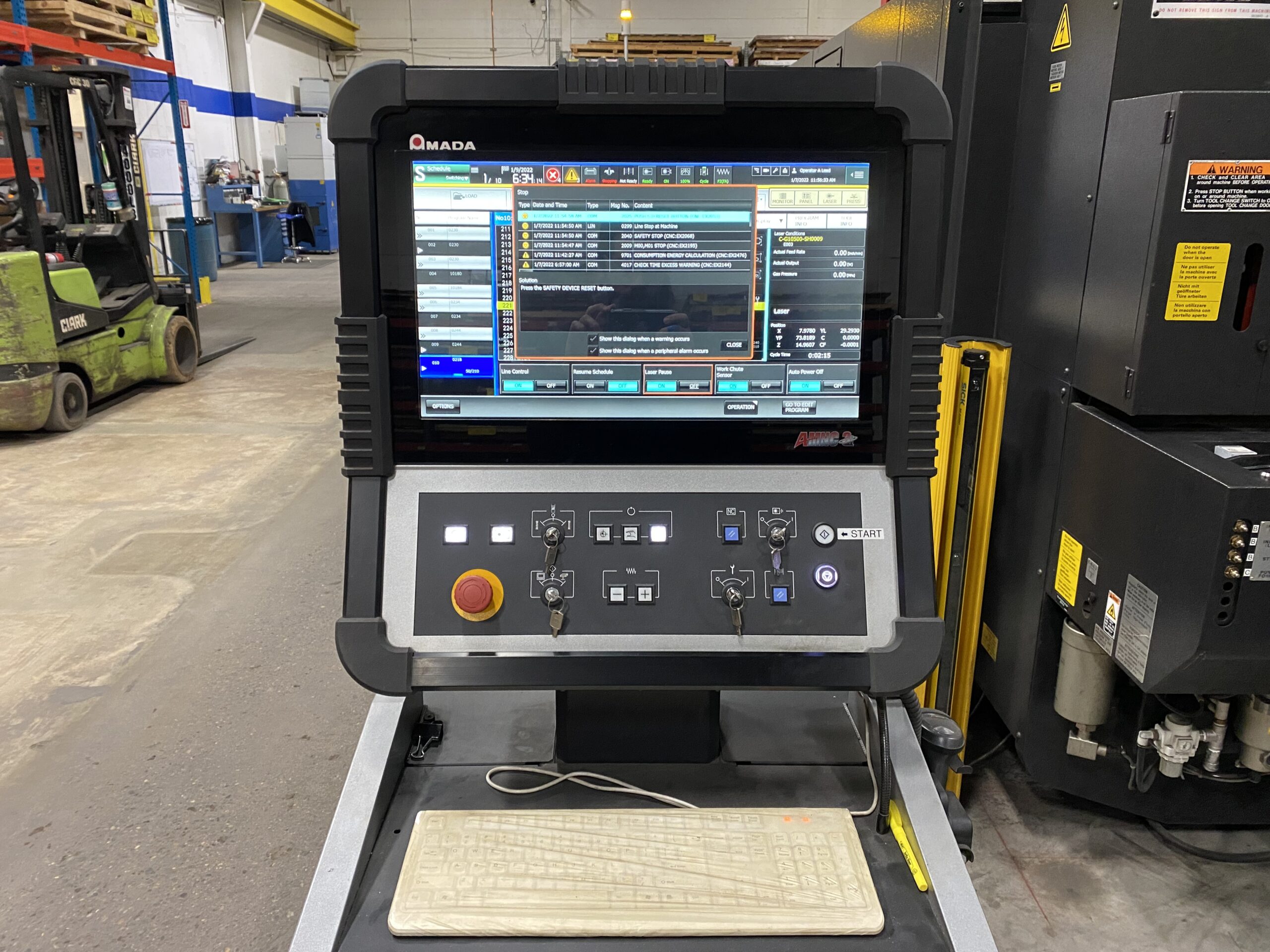

Control |
Amada AMNC 3i CNC |
Max Sheet Size |
5' x 10' |

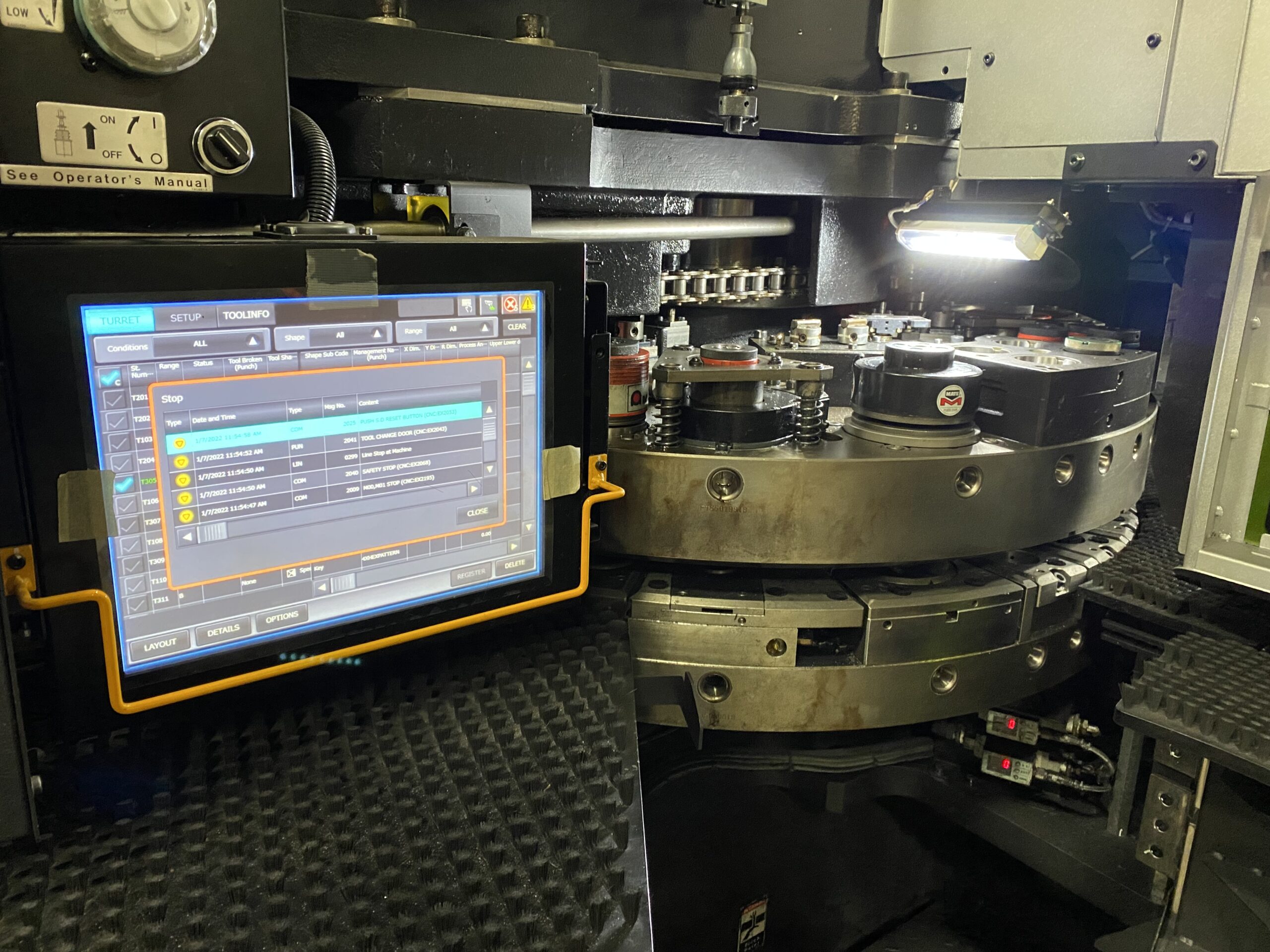

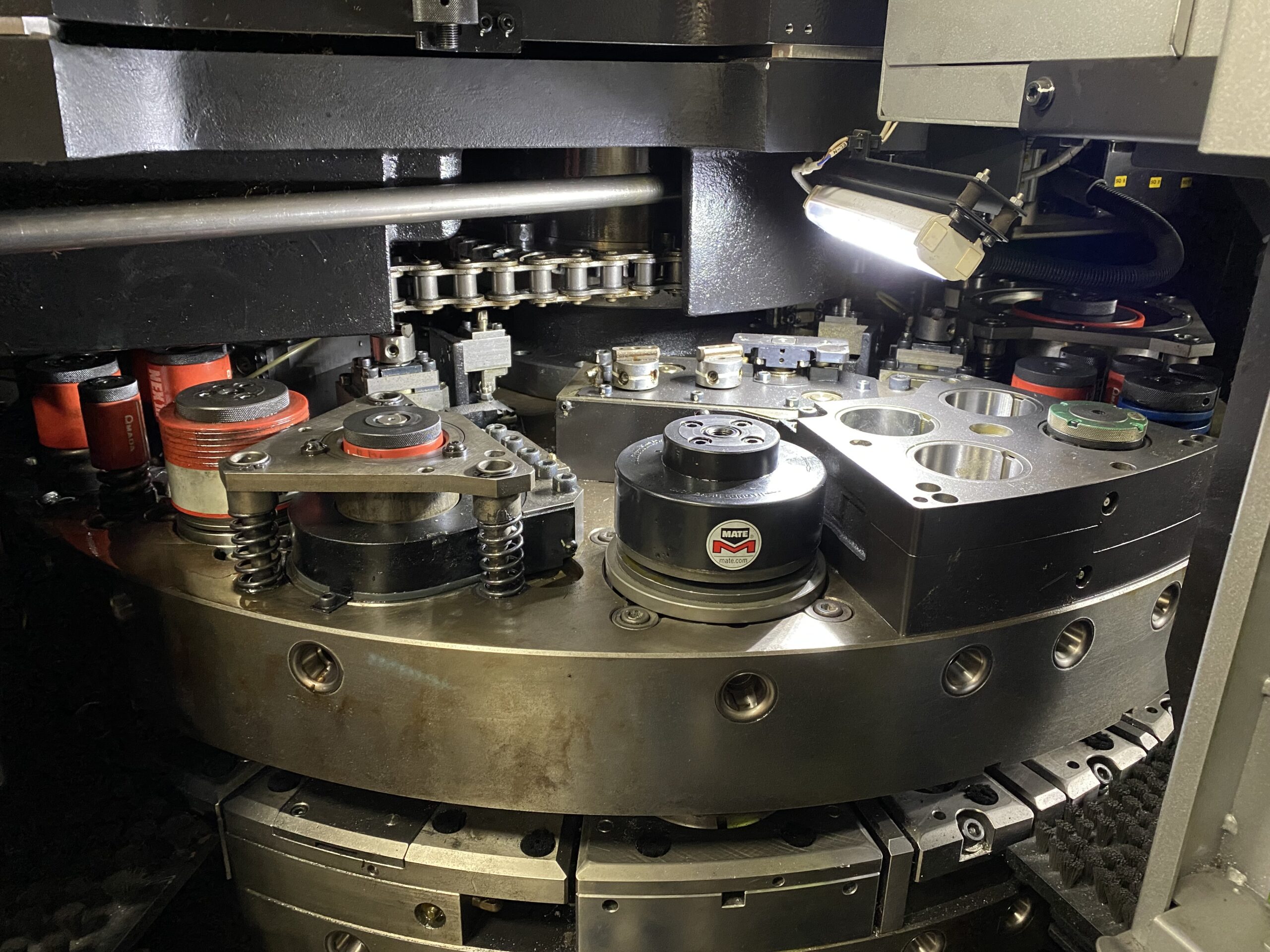

Turret Stations |
55 Station w/ 4 A/I |
X-Axis & Y-Axis Travels |
60" x 120" |
Throat Depth |
60" |
Punching Operation (X/Y) |
120'' x 60'' |
Laser Operation (X/Y) |
100" x 60" |
Combined Work Area w/ Repositioning |
120" x 60" |
Z-Axis Laser |
14.9'' |
Max Material Thickness |
0.250" |
Table Loading Weight |
480lbs |
Traverse Speed (X/YP) |
3,937/3,149 IPM |
Laser Axis (YL) |
3,149 IPM |
Axis Simultaneously |
5,039 IPM |
Z-Axis Simultaneously |
2,362 IPM |
Punching Accuracy (Amada's Punching Pattern) |
+/- 0.0027" |
Assist Gas Change |
Automatic |
Included Rotation Stations |
4 |

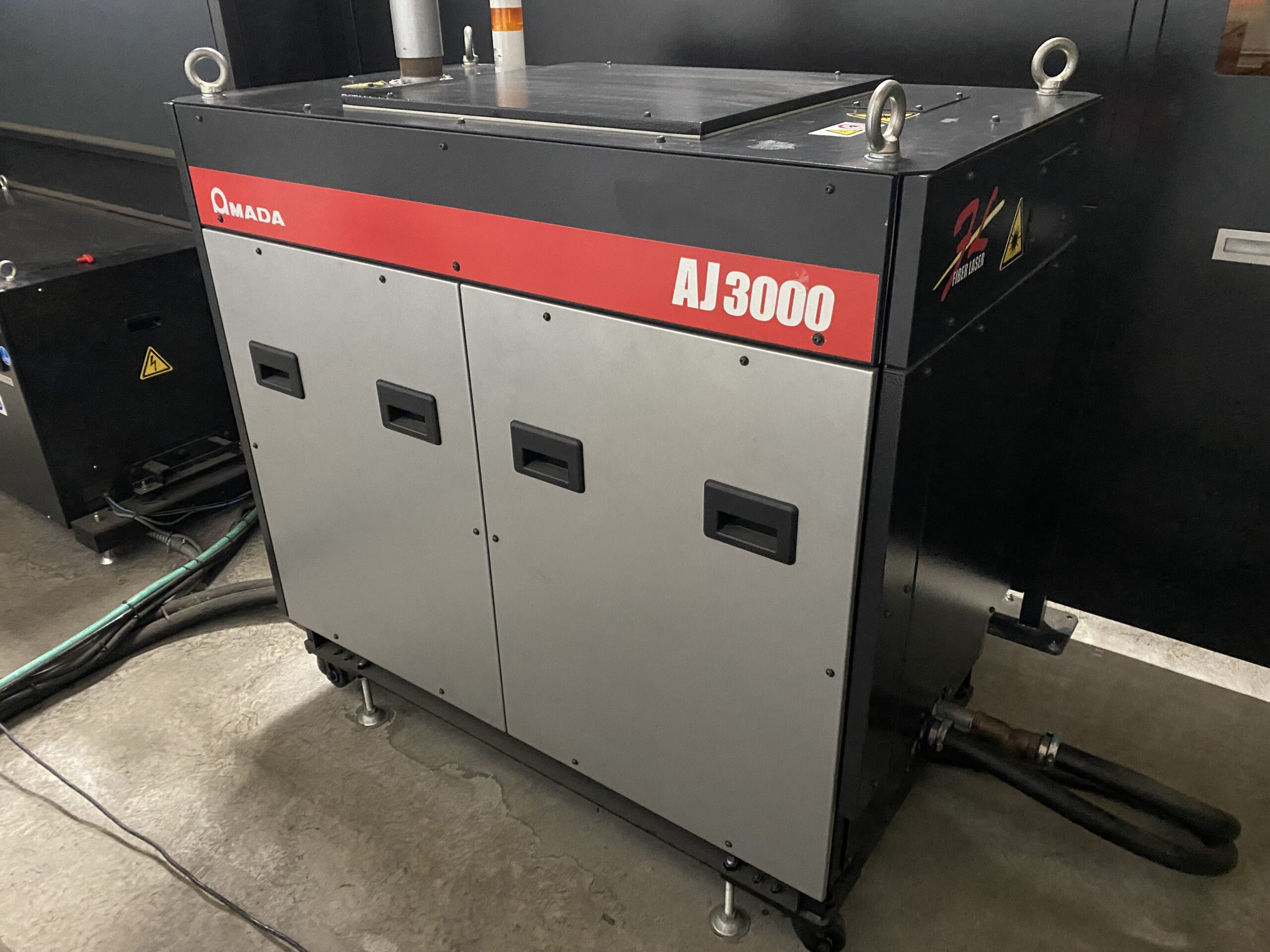

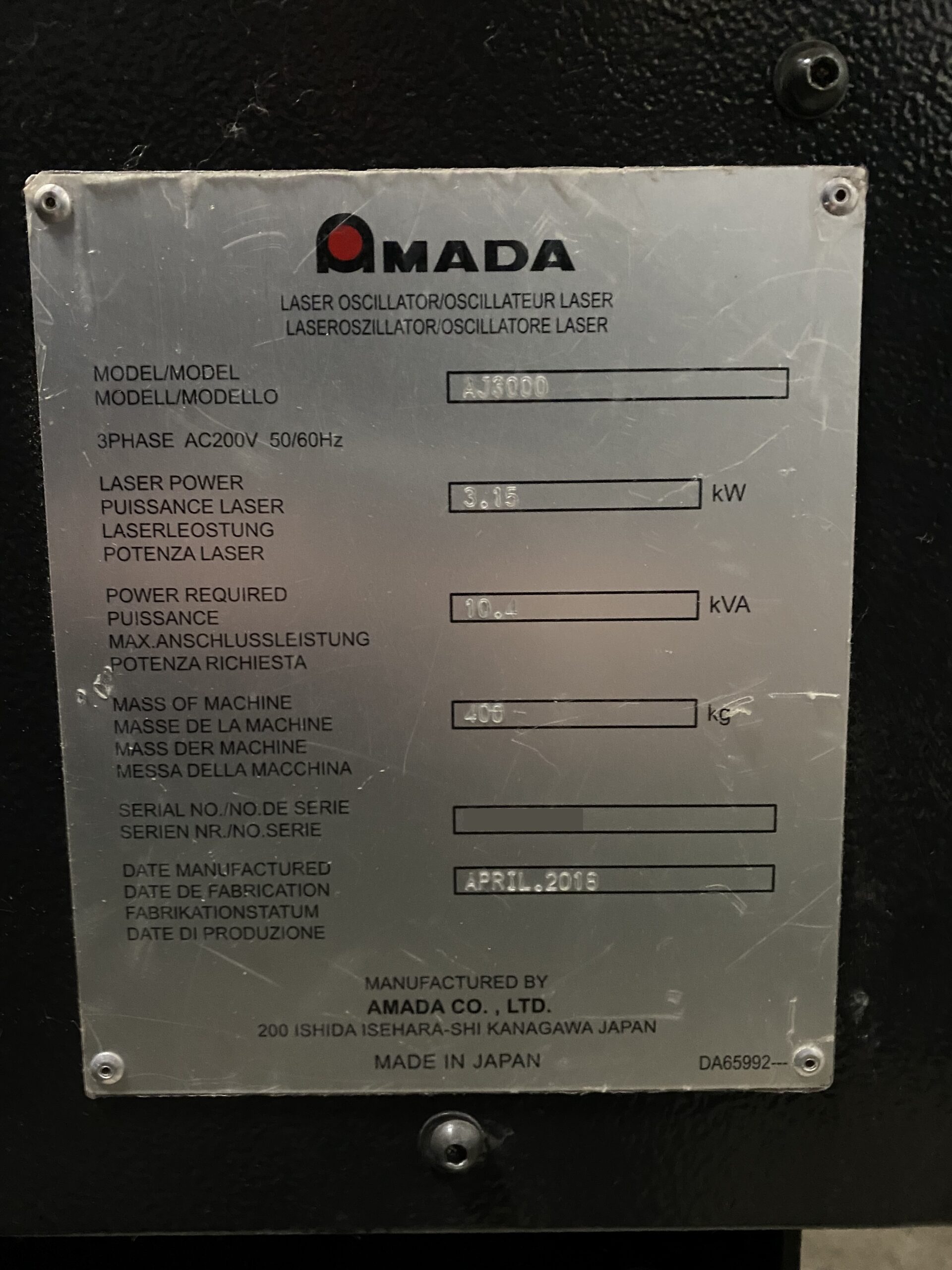

Laser Engine |
Amada AJ3000 Fiber Laser Engine |
Punching System Stroke |
1.5" |
Punch Rate |
500/min |
In Marking Mode |
1850/min |
Table Design |
Brush Table |
Parts Chute |
15.75" x 60" |
Machine Frame |
Bridge Frame |
Press Drive |
Servo Electric Drive |
Turret/Table Drive |
AC Servo Motors |
Machine Weight |
33 tons |
Storage Capacity |
440kB |
Number of Controlled Axes |
6 |
Features

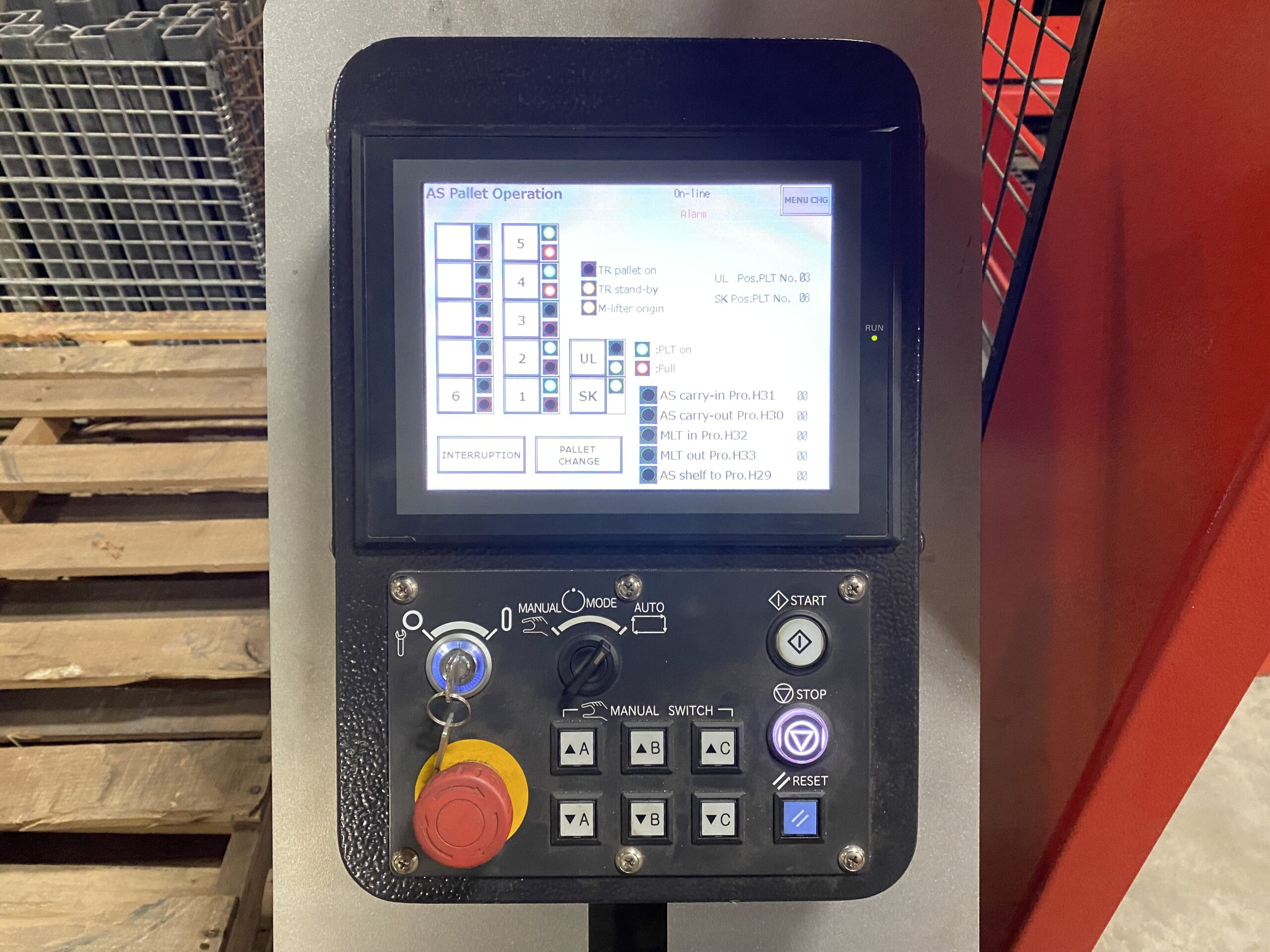

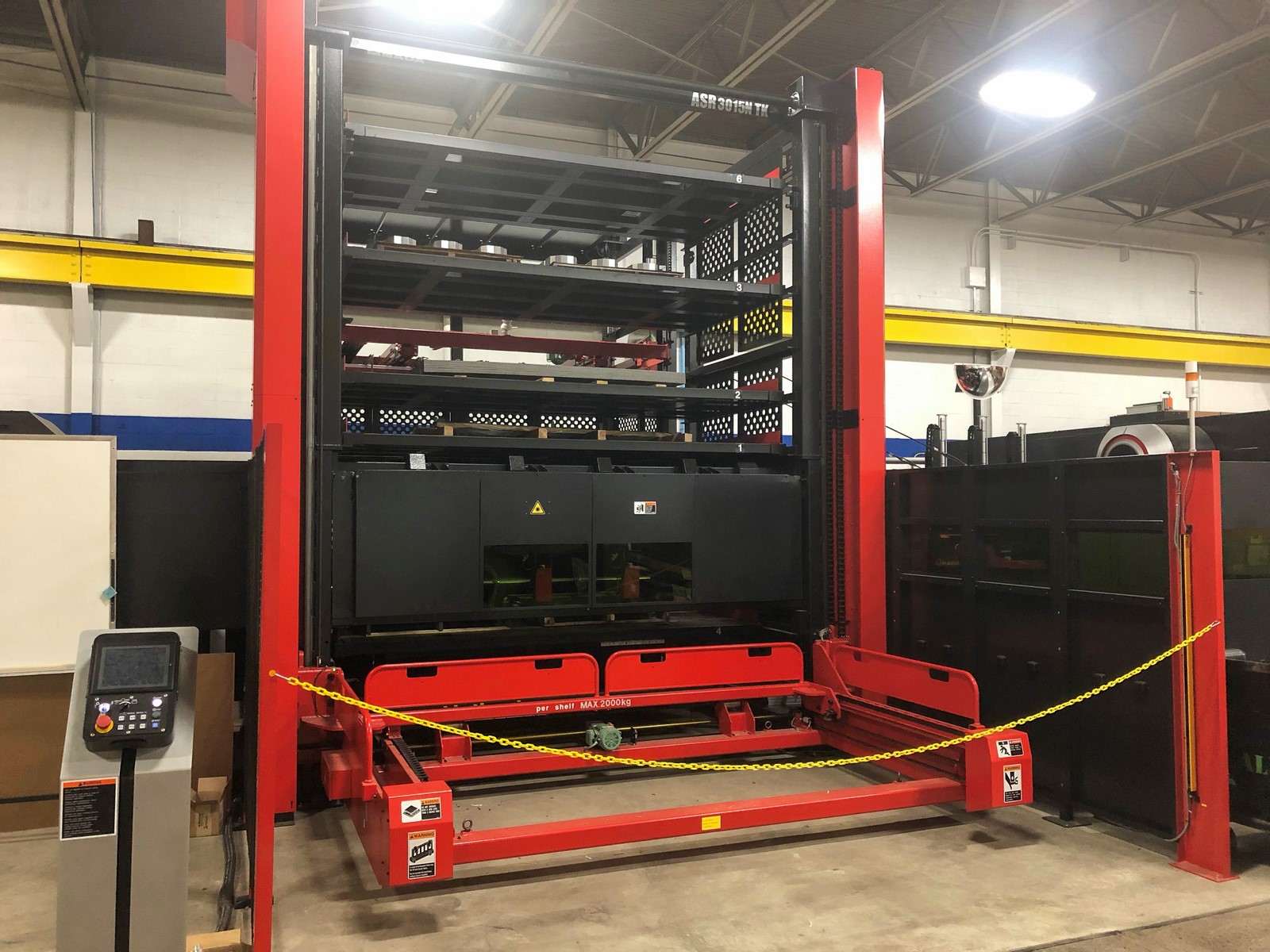

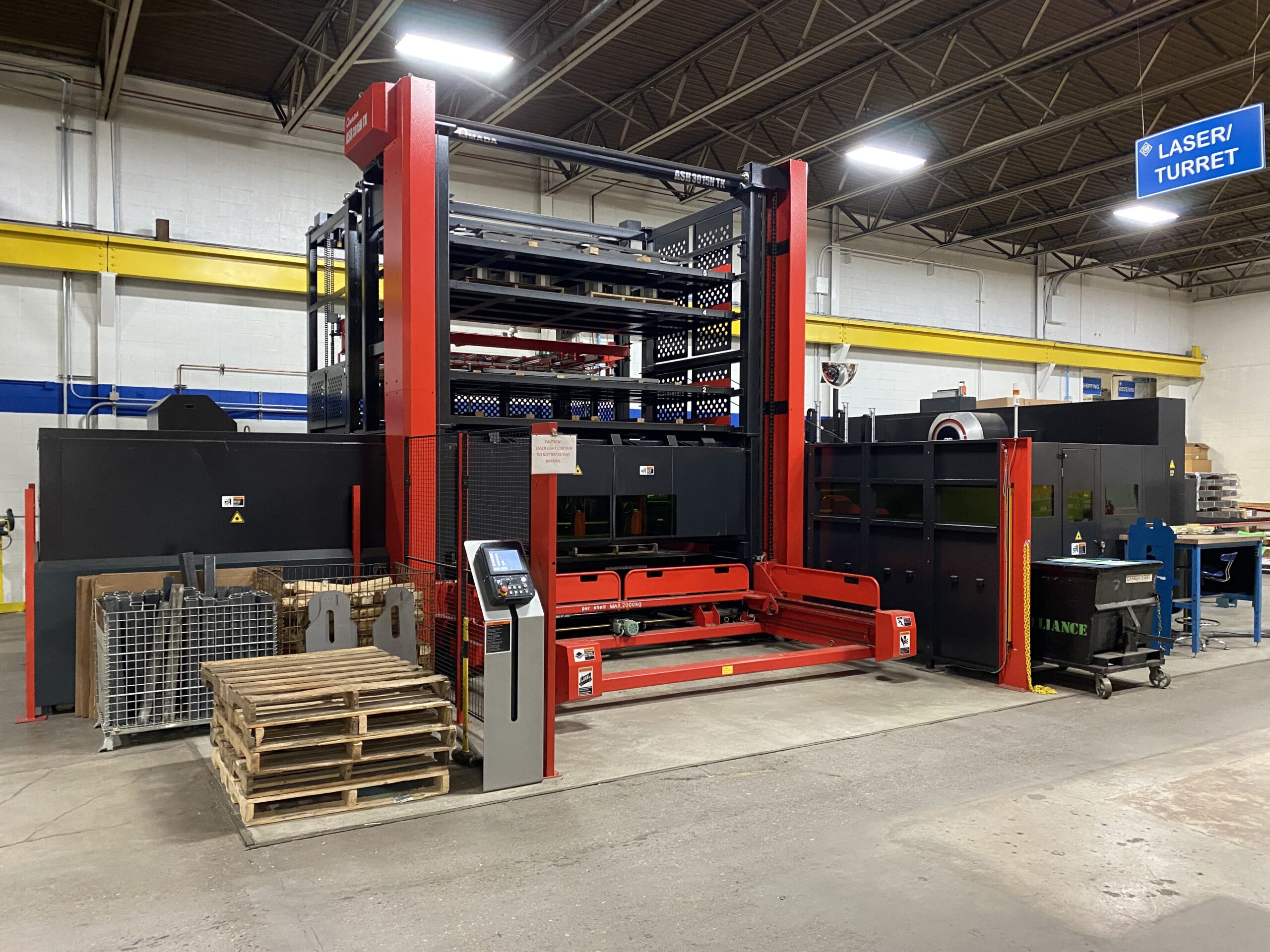

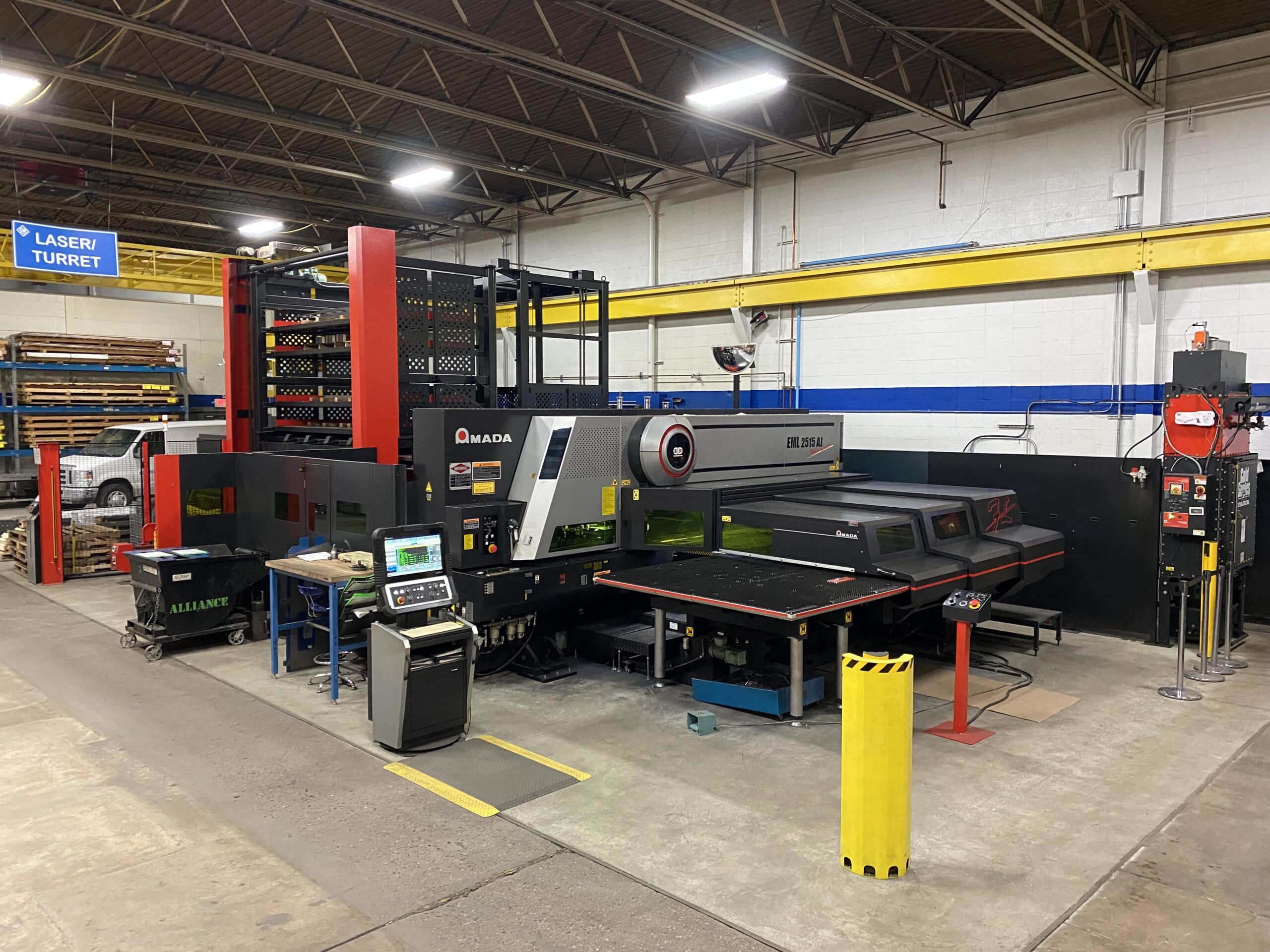

ASR 3015 NTK 6 Shelf Automation W/ Part Sorting |
Multimedia CNC Control |
