| Year | 2017 |
|---|---|
| Make | Trumpf |
| Model | TruMatic 1000 Fiber |
Description |
4' x 8' 3kW CNC Fiber Laser/Punch Combo |
| Reference # | 8075409 |
Price |
Activate PricingInquire Now |
Used Trumpf TruMatic 1000 (2017) CNC Laser for Sale. This pre-owned Trumpf CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Trumpf Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
4.2' |
|---|---|
| Table Length |
8.3' |
| Max Wattage |
3,000 |
| Control |
Touchpoint HMI |

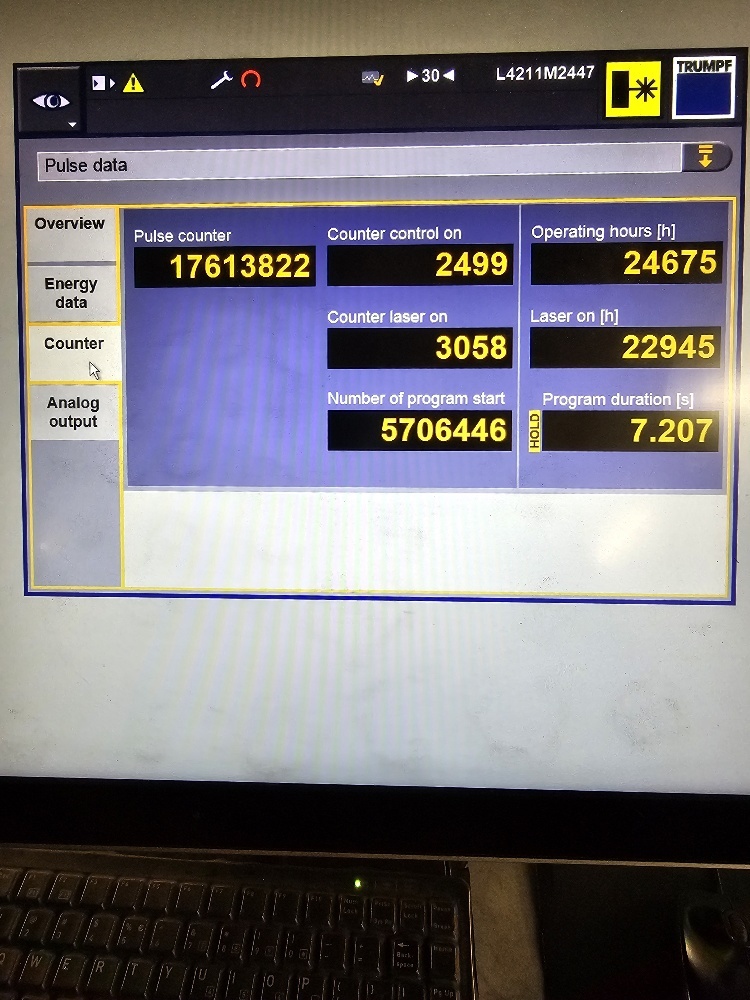

| Hours |
Operating 24,675, Laseer 22,945 |
| Power Requirement |
460V/60Hz |
| Y-Axis |
49.21" |
| X-Axis |
98.43" |
| Sheet Thickness |
6.4mm Max |
| Punching Force |
165kN (18 Tons) |
| Simultaneous (X and Y) |
100 m/min |
| Max. Stroke Rate (Punching) |
600 1/min |
| Max. Stroke Rate (Marking) |
1,000 1/min |
| Max. Axis Acceleration (Punching) X/Y |
10/8m/s |
| Max. Part Size/Chute |
180mm x 180mm |
| Flap Size (X x Y) |
400 x 1,250mm |
| Turret Stations |
17 |
| Multitool Tool Changing Time |
2.4 Seconds |
| Number of Tools/Clamps |
17/3 |
| Approx Dimensions (LxWxH) |
247" x 273" x H 86" |
Features
|
Reliable Ejection of Parts Measuring Max. 400mm x 600mm |
Servo Electric Punch Drive |
|
Trudisk 3001 3KW Fiber Source |
Universal Cutting Unit |
|
Chiller Unit |
Dust Collector |
