Year | 2017 |
---|---|
Make | SCM |
Model | Pratix S15B |
Description |
CNC Router |
Reference # | 8074575 |

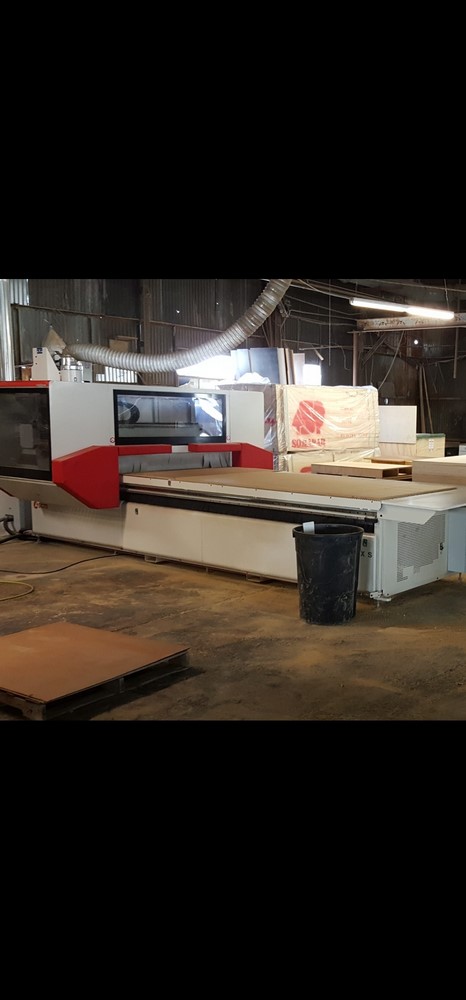

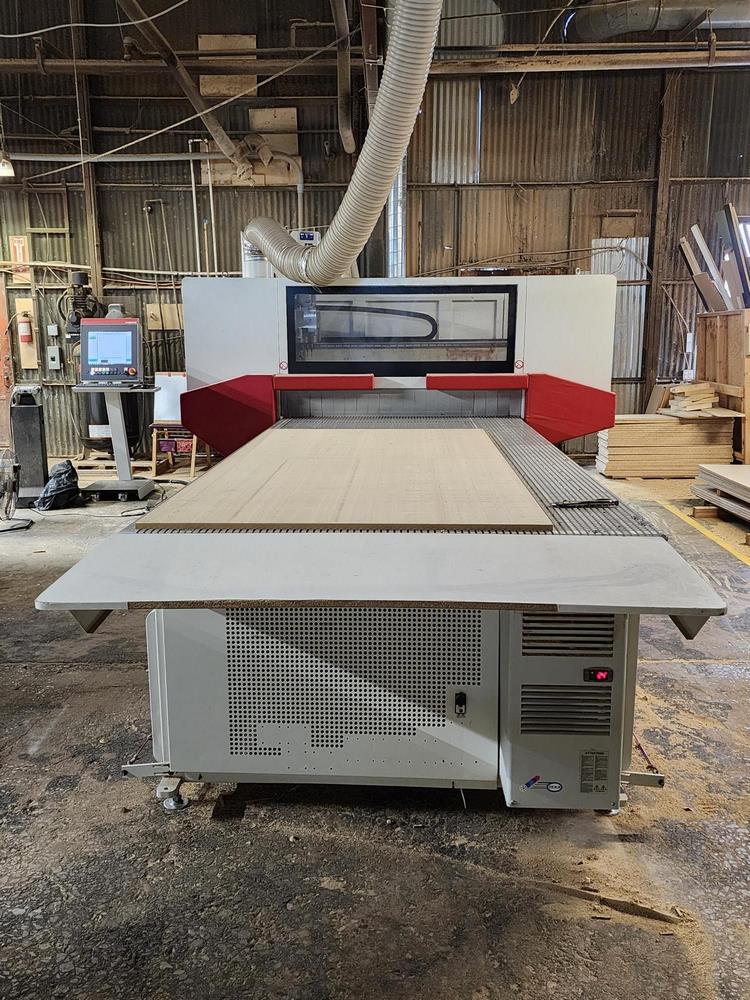

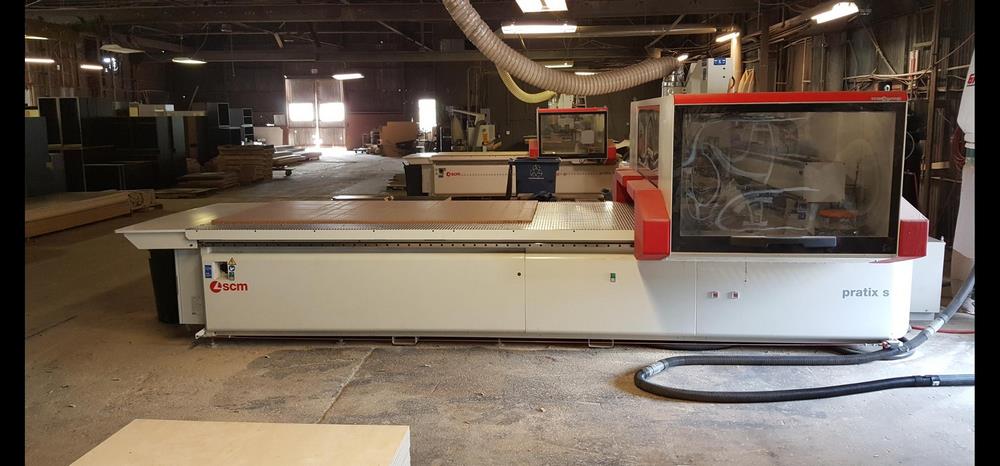

Used SCM Pratix S15B (2017) CNC Router for Sale. This pre-owned SCM cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this SCM CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
Number of Axis |
3 |
---|---|
Table Width |
60" |
Table Length |
144" |
Table Hold Down |
Vacuum Hold Down |
Table Configuration |
Grid Pattern to Allow Vacuum Pods & Use of Spoil Boards For Nested Machining |
Part Location Pop-Up Pins |
(8) Mounted on The Table Perimeter |
Spindle |
9 Horsepower, Air Cooled Electrospindle On 32mm Centers, 24,000 Rpm |
Z-Axis Travel |
9.8" |
Tool Changer |
(14) Position ATC Tool Rack Mounted on Machine Base |

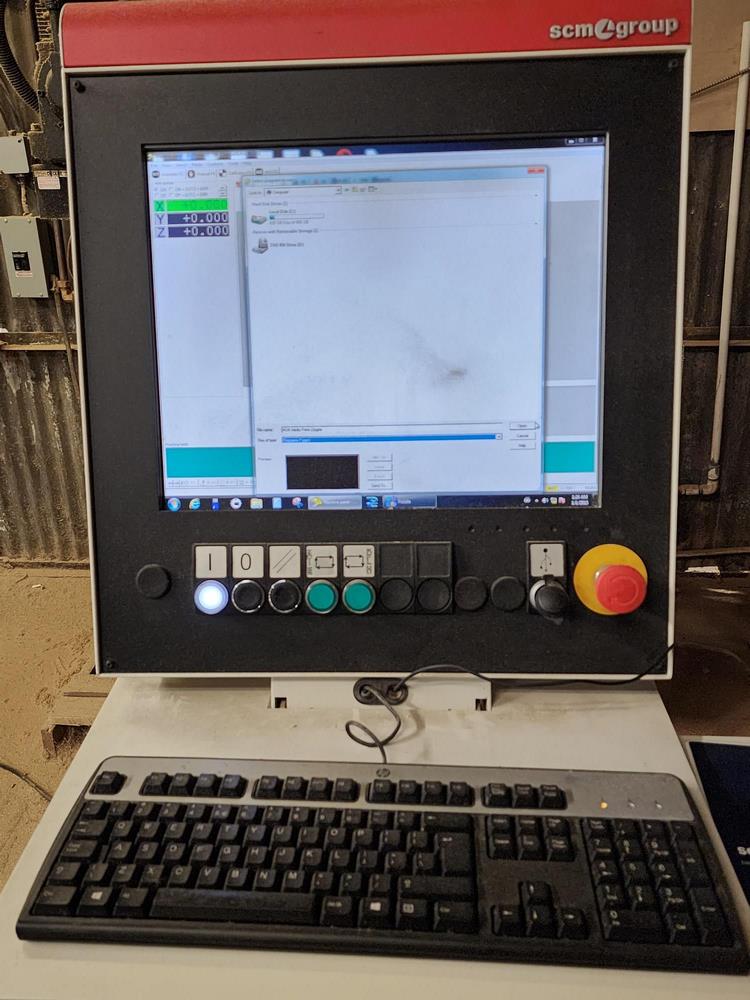

Control |
PC Front End W/Xilog Plus, Windows XP Pro Operating System |

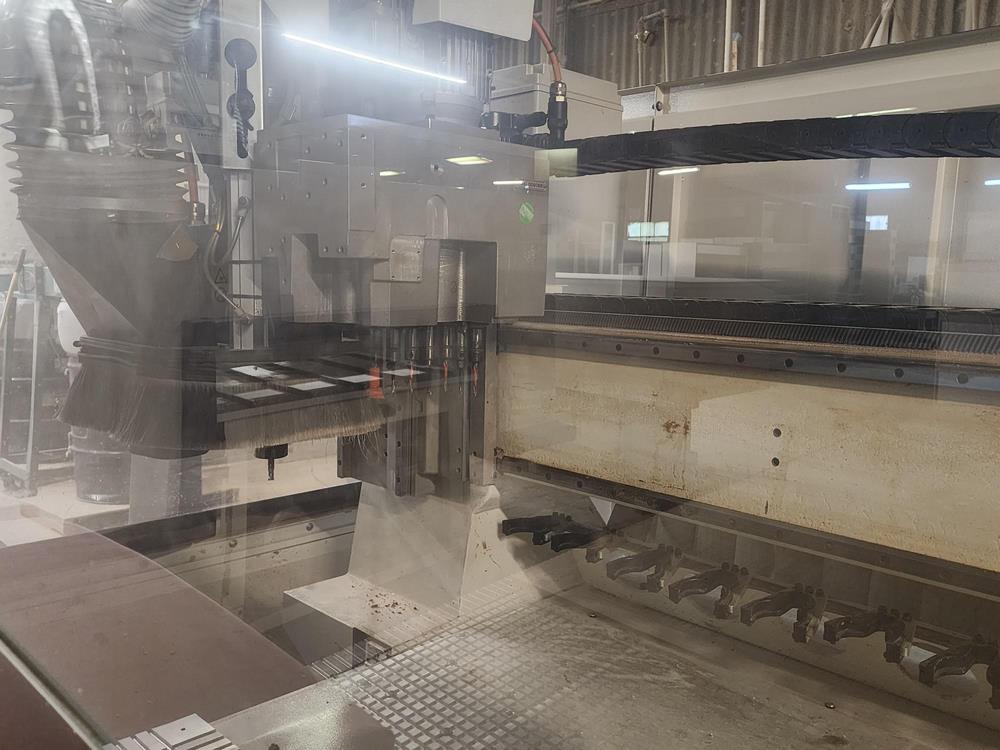

Boring Block |
3-Horsepower, 7-Vert., 5 "X" Axis, 2 "Y" Axis |
Drive System |
AC Servo Drive |

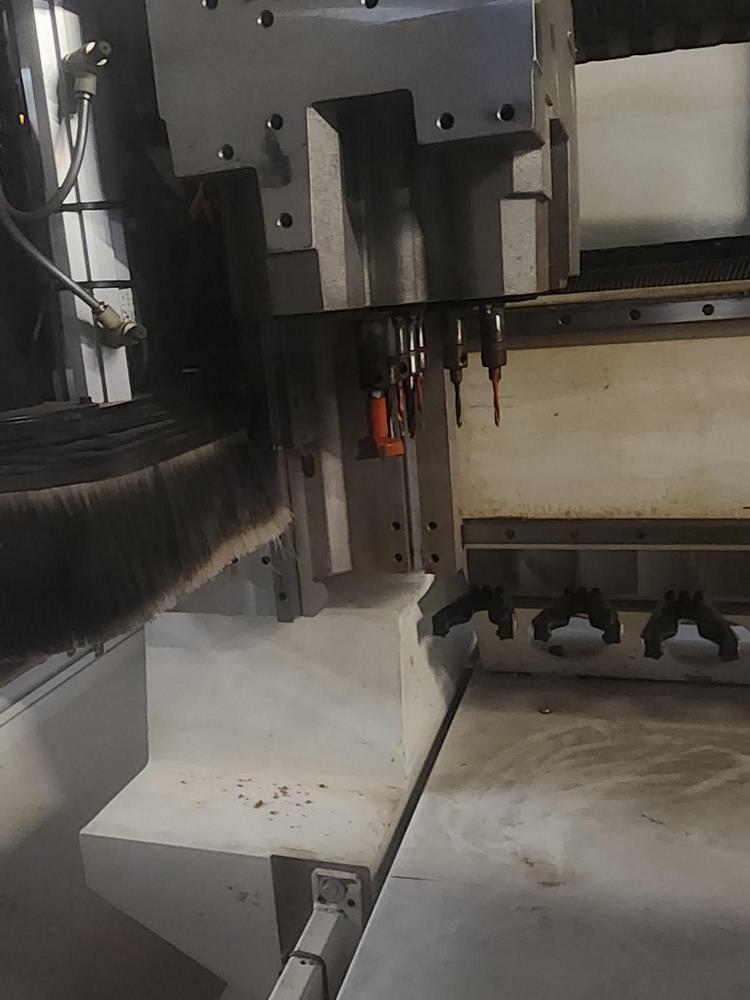

Multi-spindle Drill Block |
(9) Spindle Boring Block |
Electrical Requirements |
400v - 3 Ph - 50/60 Hz (41.3 Amps) |
Features
Stand Alone Controller |
Under Power for Inspections |
Probes |
Becker Vacuum Pump |

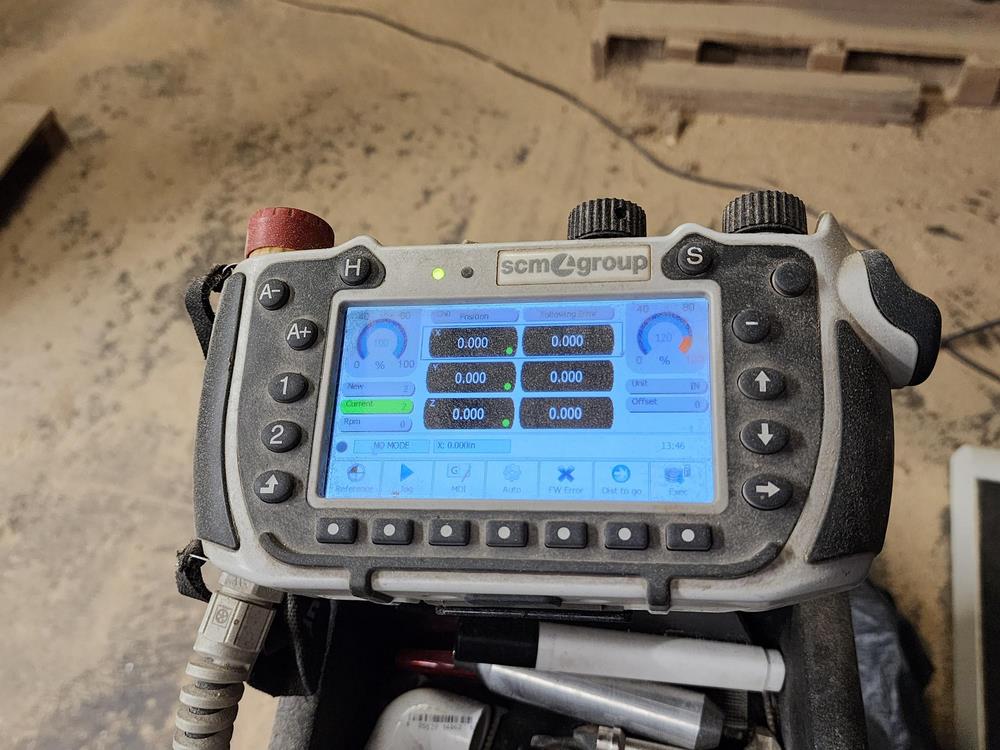

Handheld Controller |
Transformer |
Aluminum Tables |
Auto Lube |
