| Year | 2017 |
|---|---|
| Make | Limtech |
| Model | Centaurus C510D |
Description |
CNC Router |
| Reference # | 8075299 |
Price |
Activate PricingInquire Now |

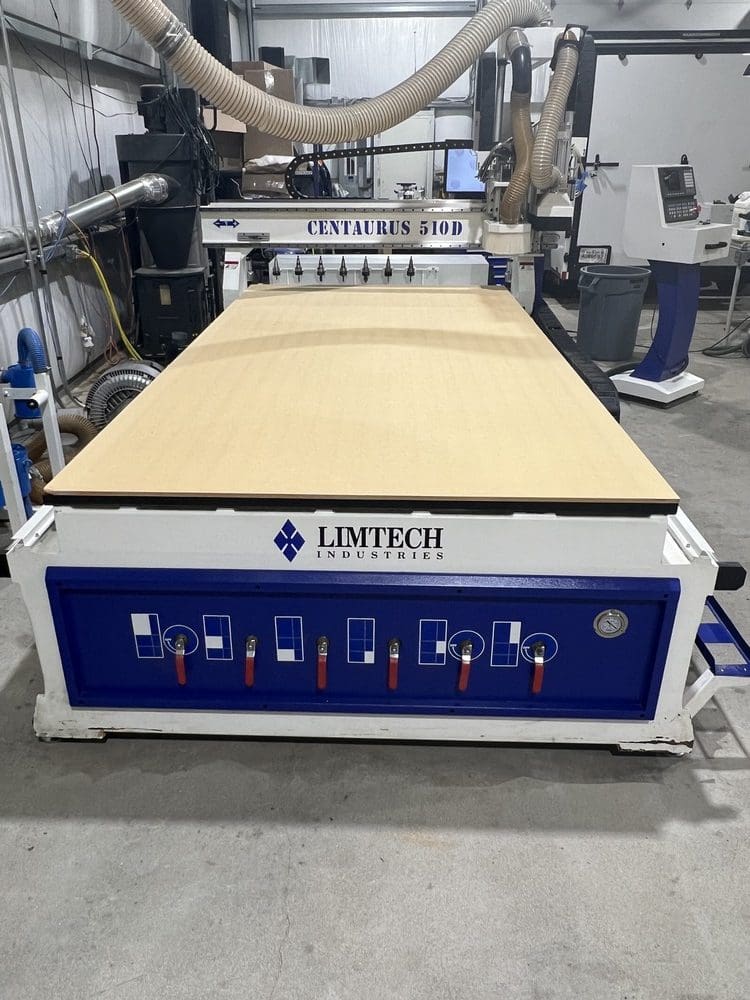

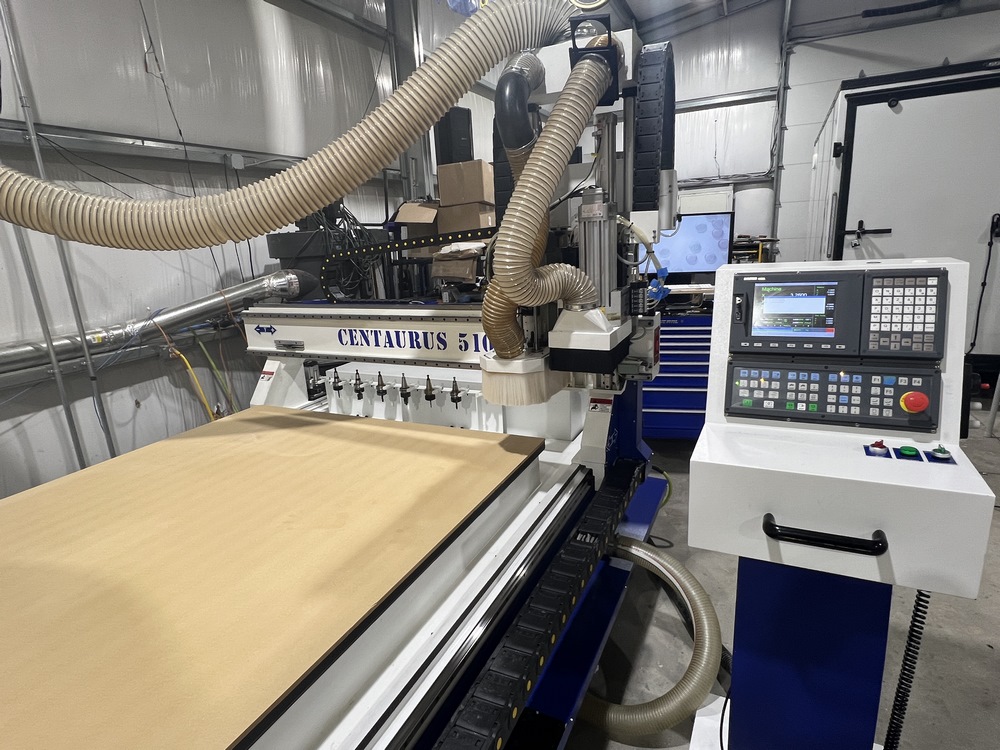

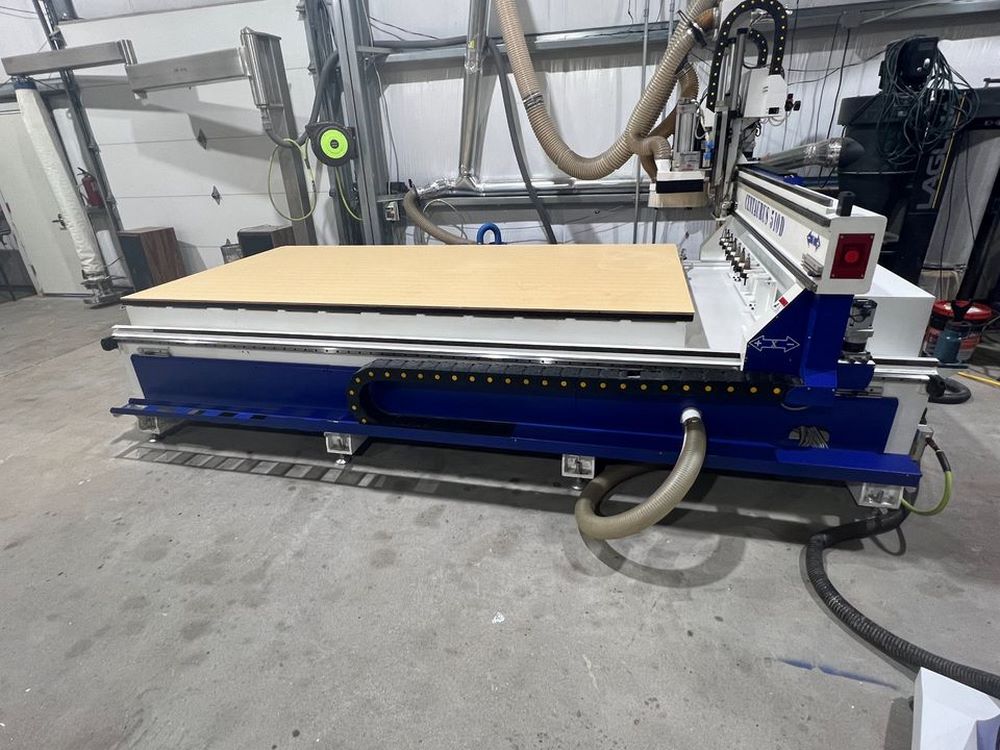

Used Limtech Centaurus C510D (2017) CNC Router for Sale. This pre-owned Limtech cnc router is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Limtech CNC Router, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
60" |
|---|---|
| Table Length |
120" |
| Number of Axis |
3 |
| X-Axis Travel |
61" |
| Y-Axis Travel |
121" |
| Z-Axis Travel |
9.8" |
| Spindle Speed |
24,000 RPM |
| Spindle Motor |
12 HP |
| Tool Changer |
8 Station |

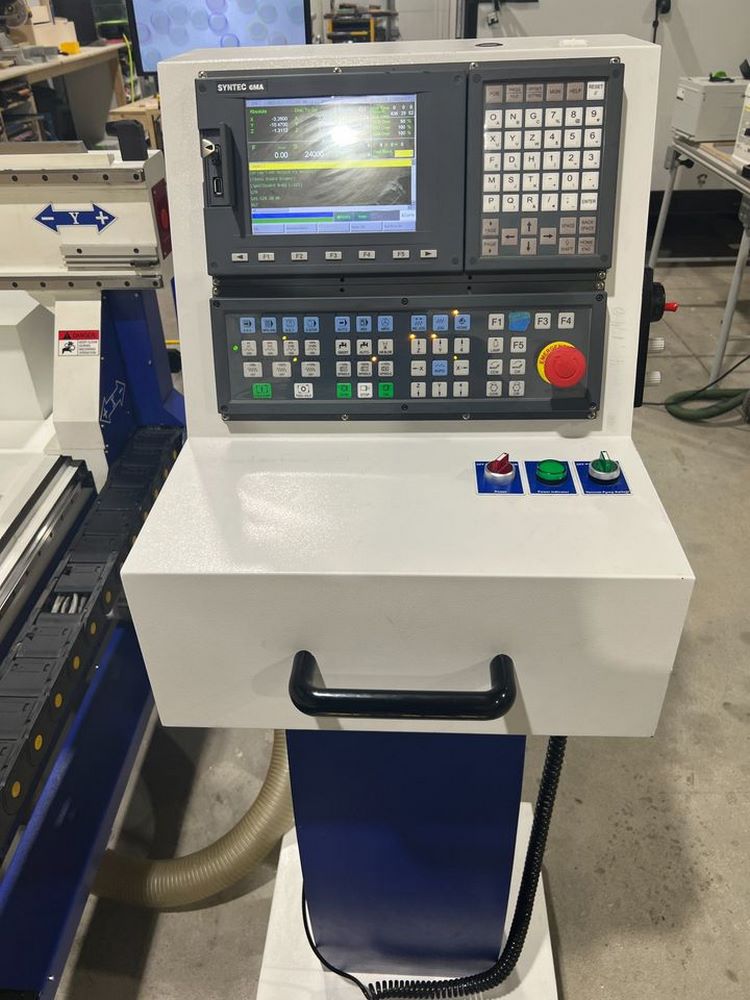

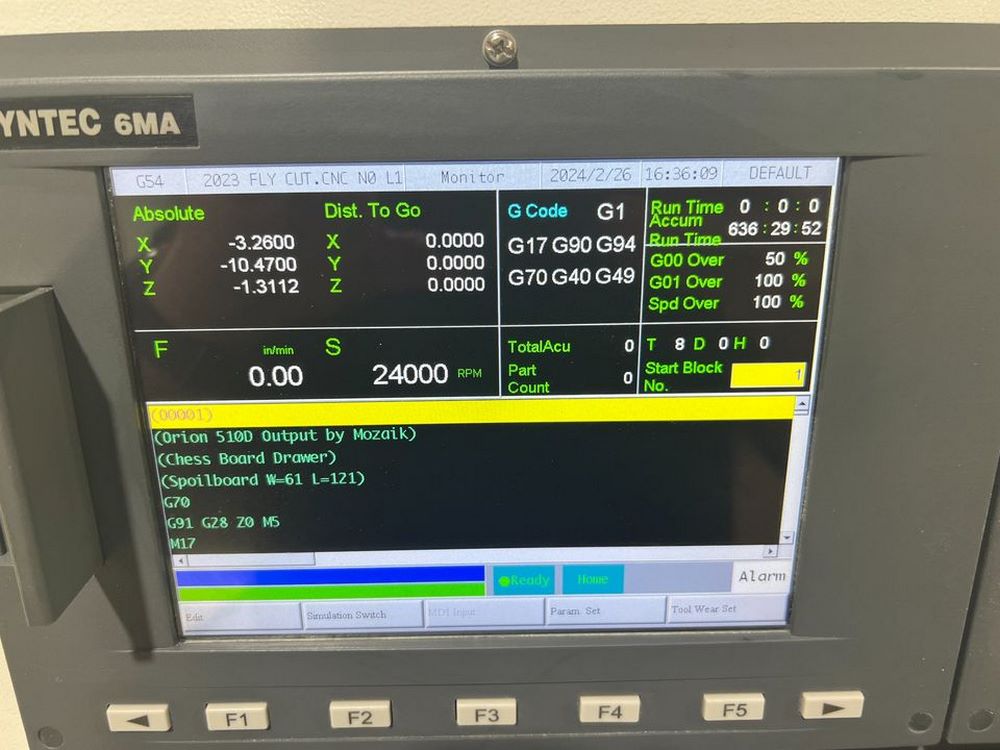

| Control |
Syntec 6MA |
| X- & Y-Axis Speeds |
1,575 IPM |
Features
|
12 HP Air Cooled HSD Router Spindle with ISO 30 Tool Holders |
15 CFM air consumption at 90 PSI |
|
235 CFM Dry Vacuum Pump (15 HP) |

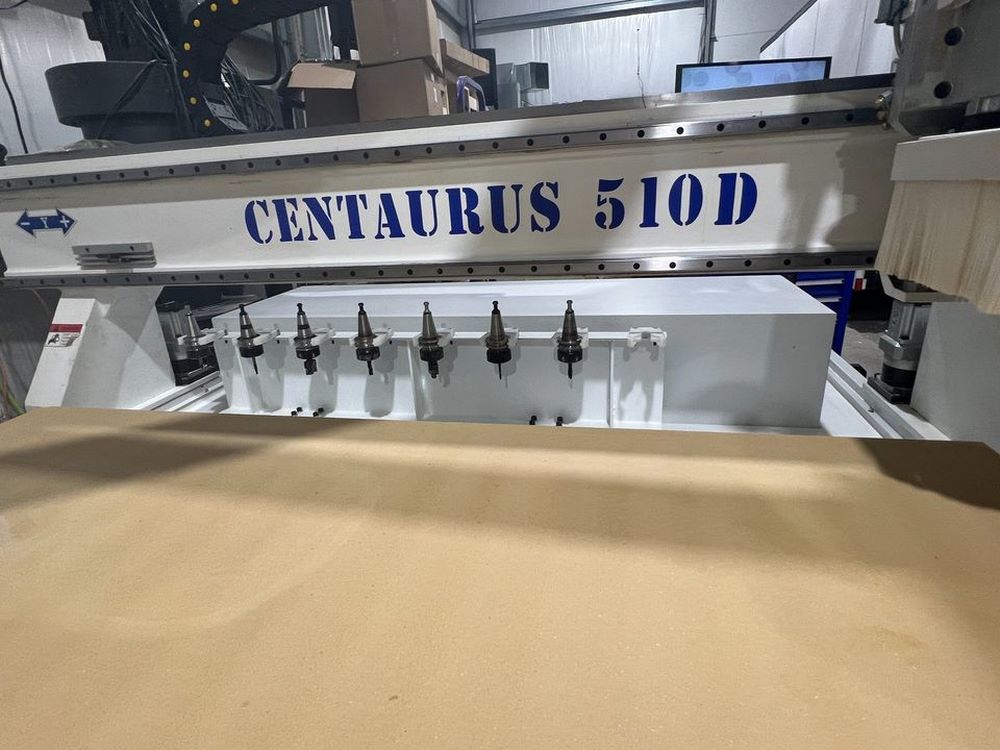

8-Position Rack Style Tool Station |
|
Assorted ISO 30 Tool Holders |
Canned Cycle |
|
Central Lubrication System and Automatic Homing Operation |
Compatible with Virtually All CAD/CAM Programming Software on the Market |
|
DNC or Drip-feed Operation |
Dust Hood with 6" Manifold Connection |
|
Includes (3) Pop-up Stops and a Manual Valve-Controlled 6-Zone High Flow Vacuum Table System |
Machine Uses ER-32 Tool Collets |
|
MPG Hand-held Wheel Remote |
Only 675 Hours |
|
Spindle Feed Rate Overrides |
Tool Length Setting Gauge |
|
Tool Length-Diameter Compensation |
Unlimited Offset Registrations |
|
Variable Programming Speeds |
Work Coordinates Offsets |
