| Year | 2017 |
|---|---|
| Make | CMS |
| Model | Aquatec 3400 |
Description |
13' x 22' 5-Axis CNC Waterjet |
| Reference # | 8071668 |

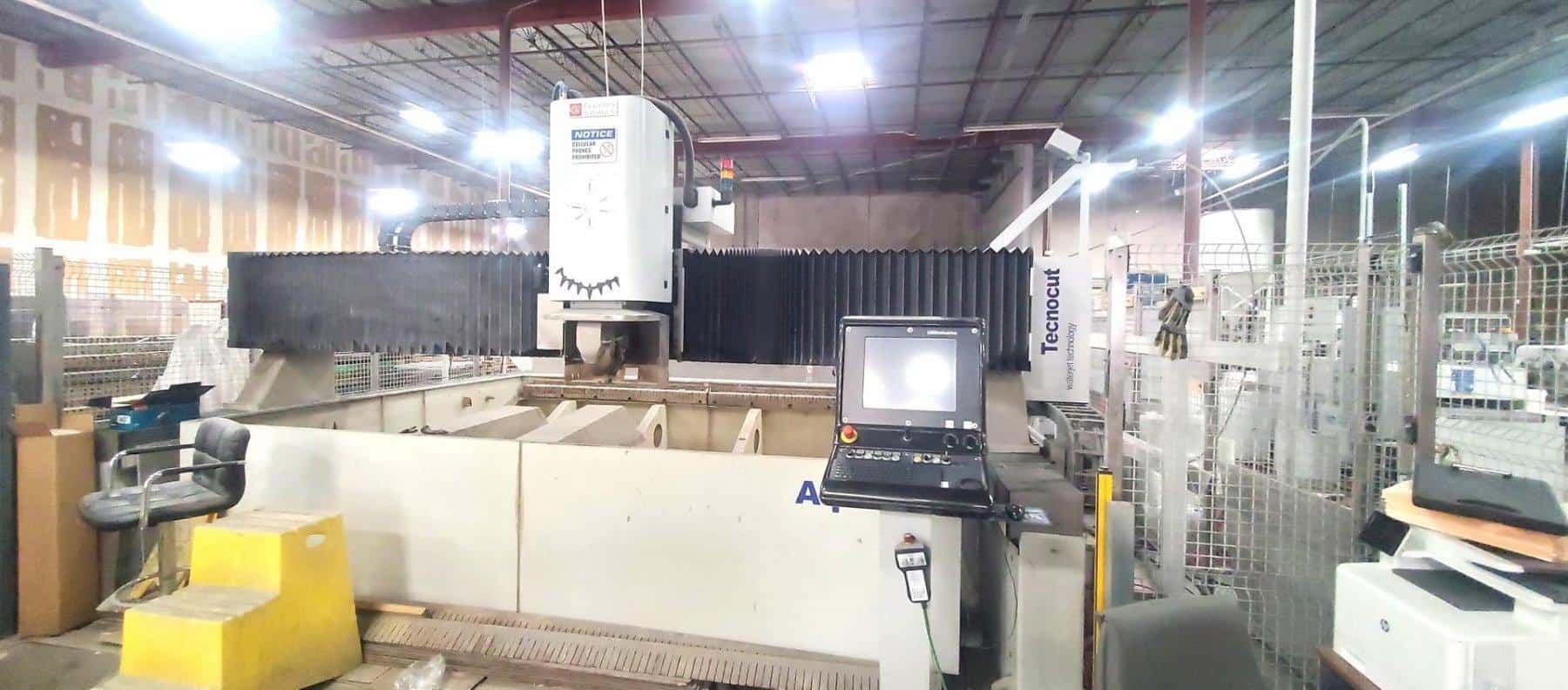

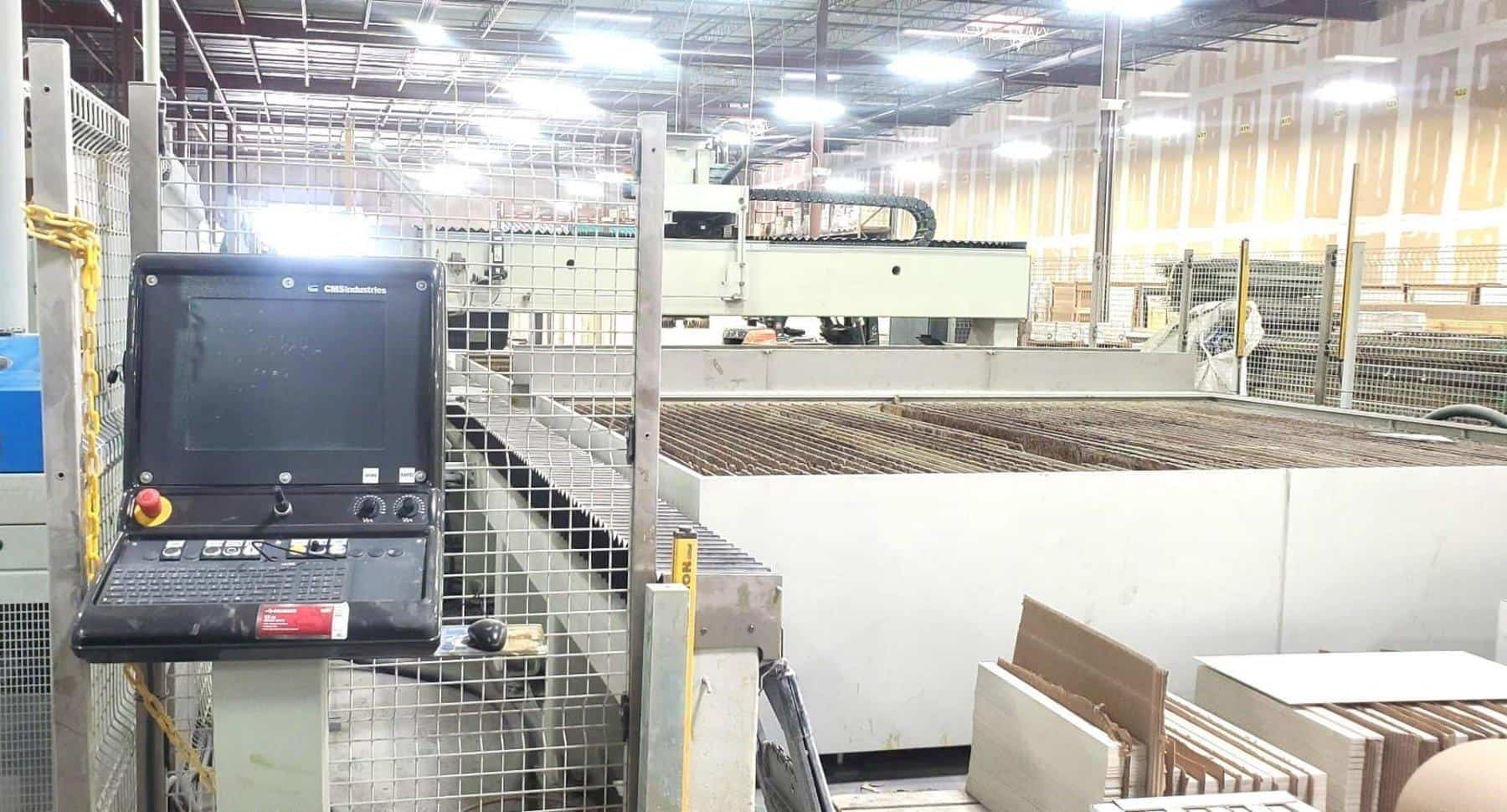

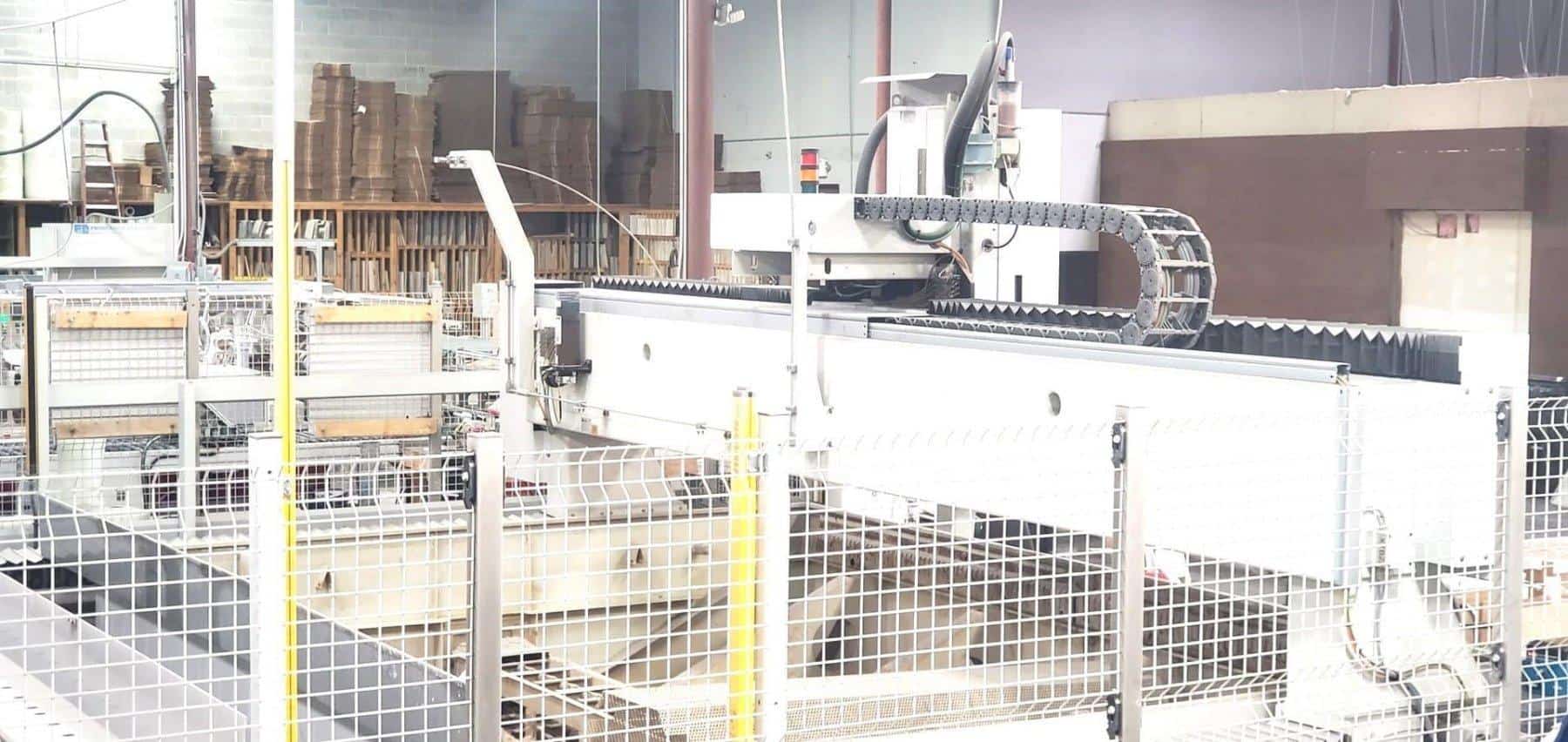

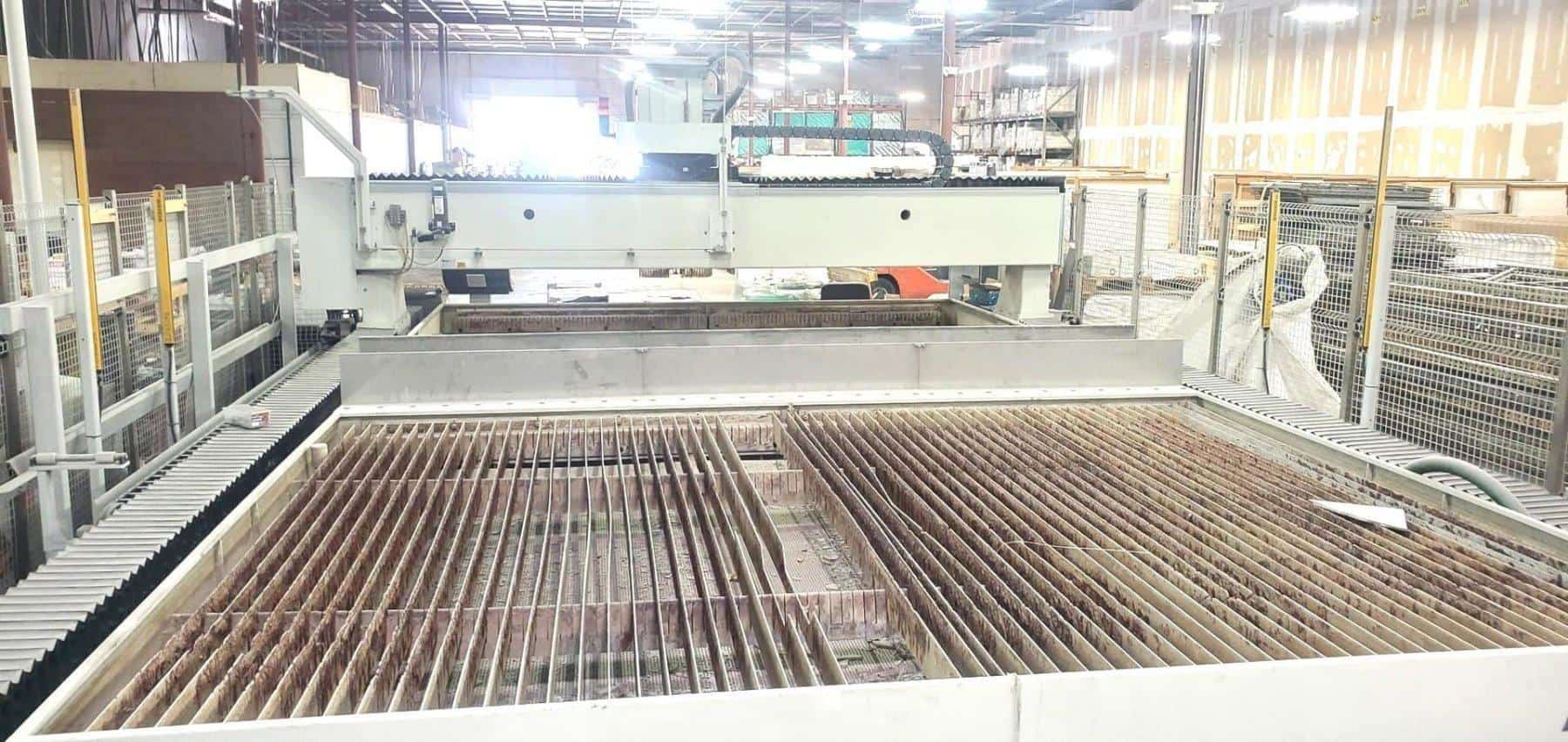

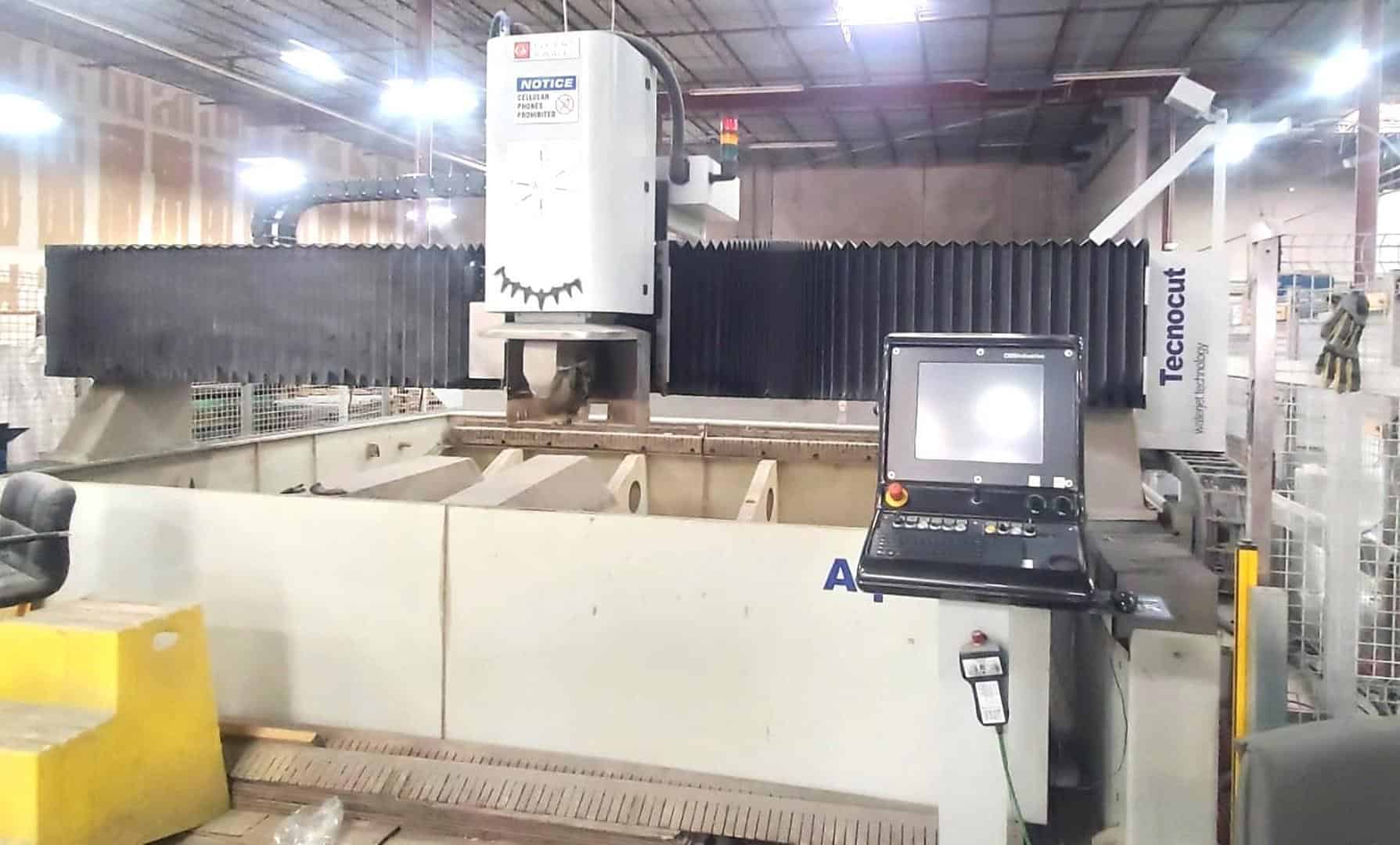

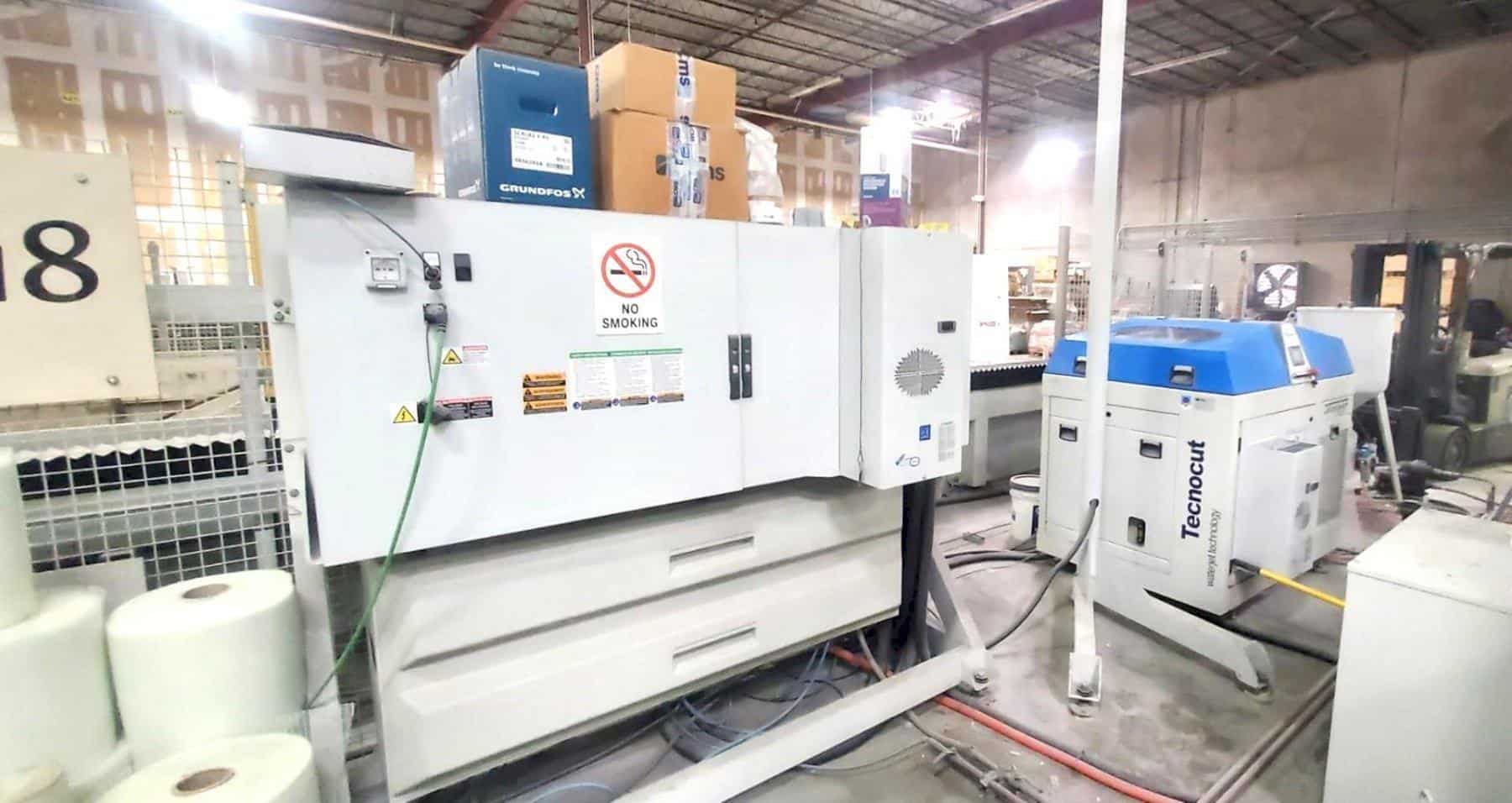

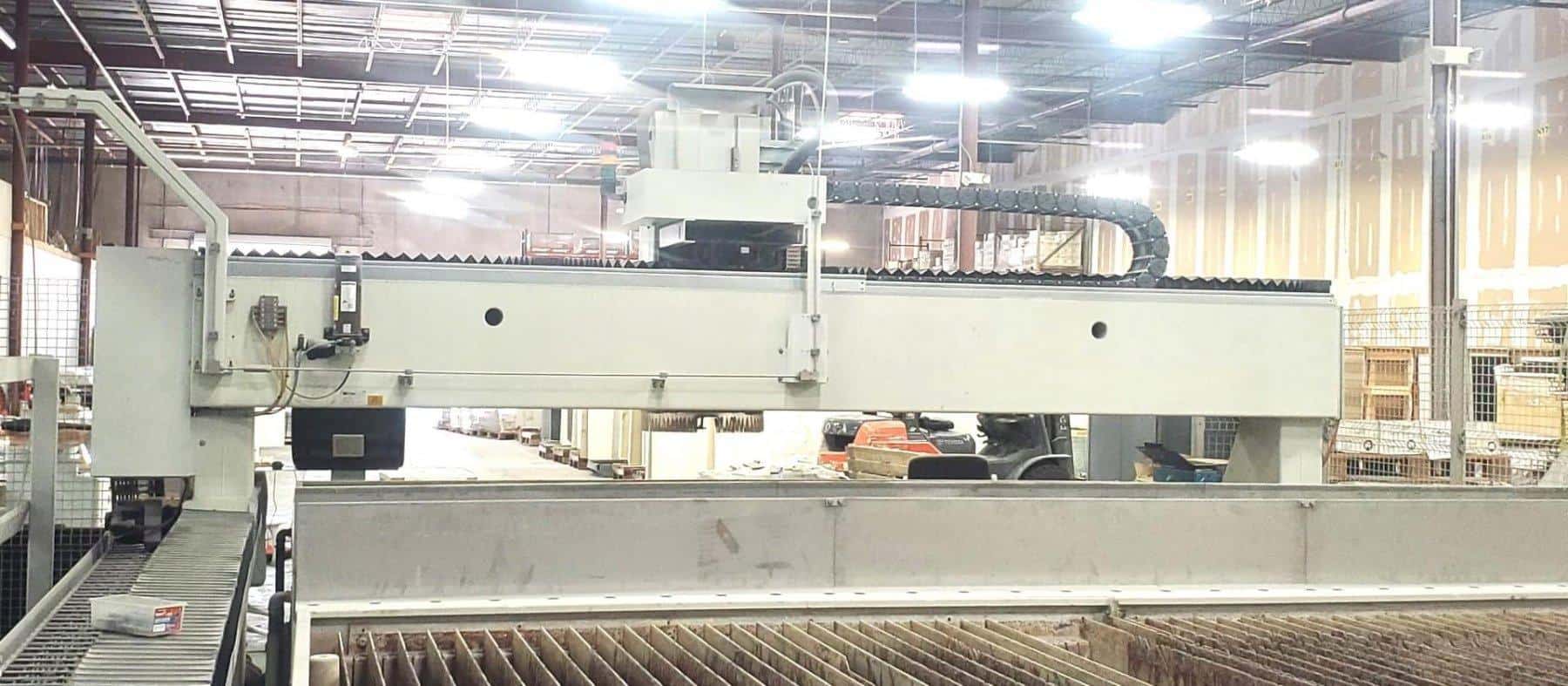

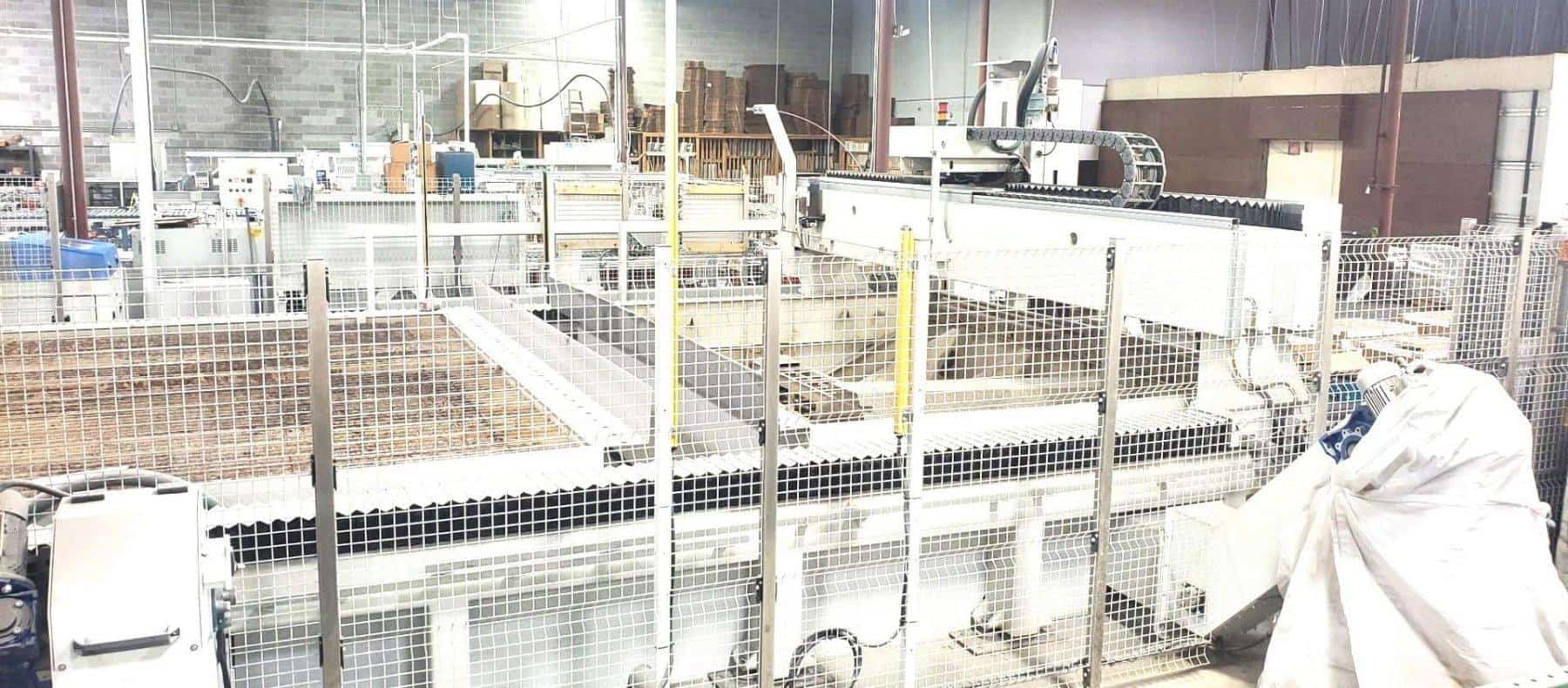

Used CMS Aquatec 3400 (2017) CNC Waterjet for Sale. This pre-owned CMS CNC waterjet is located in The United States. If you have any questions regarding this CMS Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
13' |
|---|---|
| Table Length |
22' |
| Control |
OSAI Control |
| Pump |
60 HP |
| Max Cutting Pressure |
60,000 PSI |
| X-Axis Travel |
158.3" |
| Y-Axis |
264" |
| Z-Axis Travel |
20.9" |
| X-Axis Max Feed Rate |
2126 IPM |
| Y-Axis Max Feed Rate |
2126 IPM |
| Z-Axis Max Feed Rate |
496 IPM |
| X-Acceleration |
2 m/s2 |
| Y-Acceleration |
2 m/s2 |
| Z-Acceleration |
1 m/s2 |
| Power Requirement |
400/3/60 |
| Dynamic Precision |
+/- 0.10 mm |
| Repeatability “Ps” |
+/- 0.025 mm |
| Loading Capacity |
1000 Kg/m2 |
Features
|
Portable Control Unit with Remote Commands up to 6-Axes |
Pressurized Abrasive Conveying System |
|
Numerical Control OSAI Open-M |
*
