| Year | 2017 |
|---|---|
| Make | Amada |
| Model | ENSIS 3015 AJ |
Description |
5' x 10' 3kW CNC Fiber Laser |
| Reference # | 8075538 |
Price |
Activate PricingInquire Now |

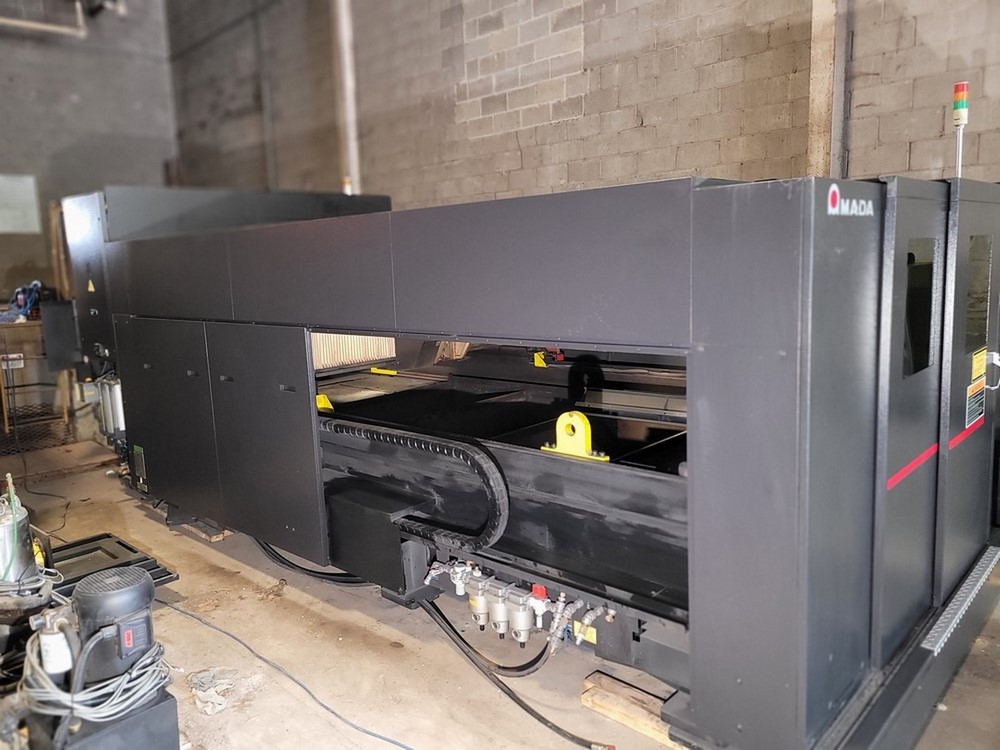

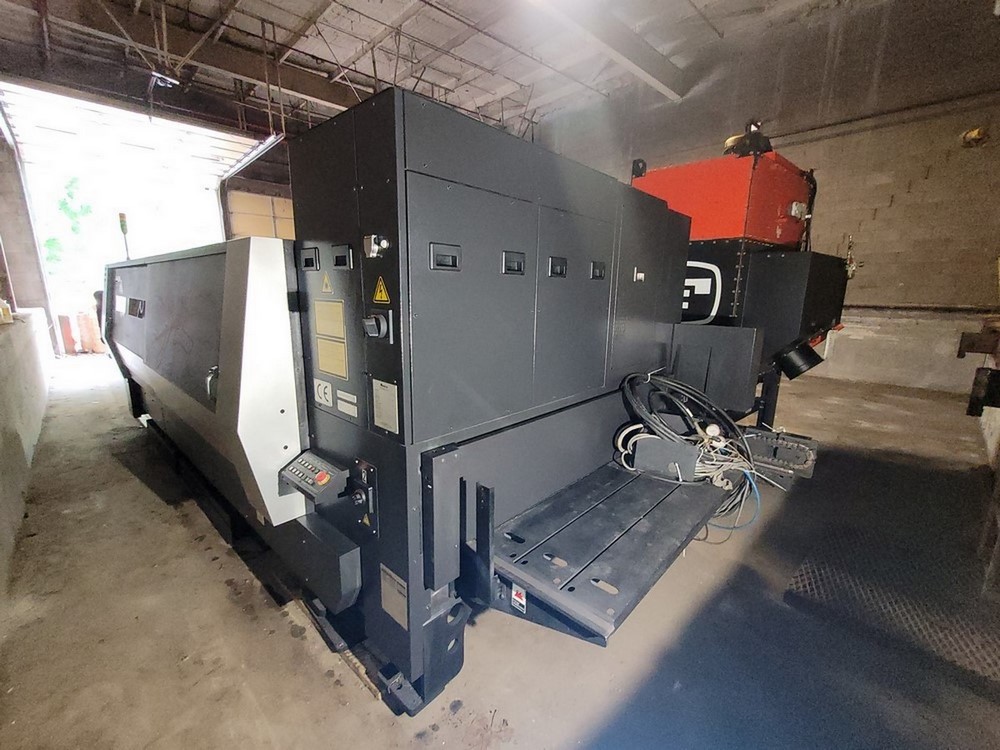

Used Amada ENSIS 3015 AJ (2017) CNC Laser for Sale. This pre-owned Amada CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Amada Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
3,000 |
| Control |
AMNC 3i Control |
| Power Requirement |
200/3/60 |
| Maximum Sheet Size (X,Y) |
120” x 60” |
| Maximum Axis Travel (X,Y,Z) |
121” x 61” x 3.93” |
| Max Positioning Speed (X,Y) |
4,724 IPM |
| Repeatability |
+/- 0.0002” |
| Max Material Cut (Mild Steel) |
1.0" |
| Max Material Cut (Stainless Steel) |
0.500" |
| Max Material Cut (Aluminum) |
0.500" |
| Laser Wavelength |
1.08 Microns |
| Maximum Material Weight |
2,000 Lbs. |
| Assist Gas |
4 Ports with NC Pressure Control |
Features
|
FIber Laser |
Chiller Unit |
|

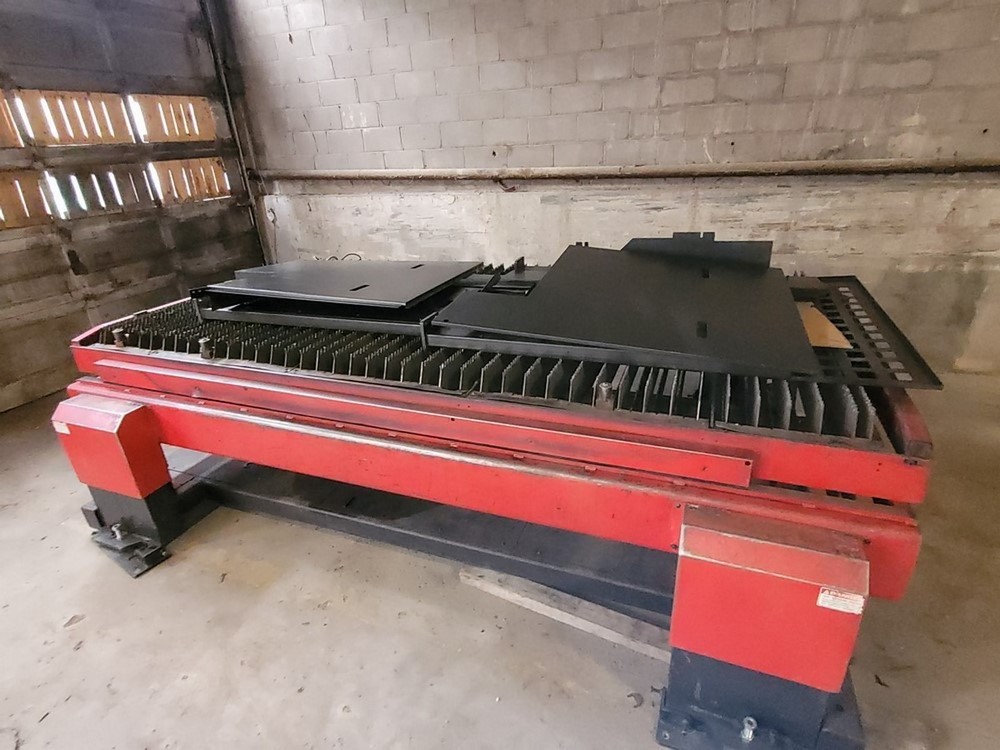

Dual Pallet Shuttle Tables |

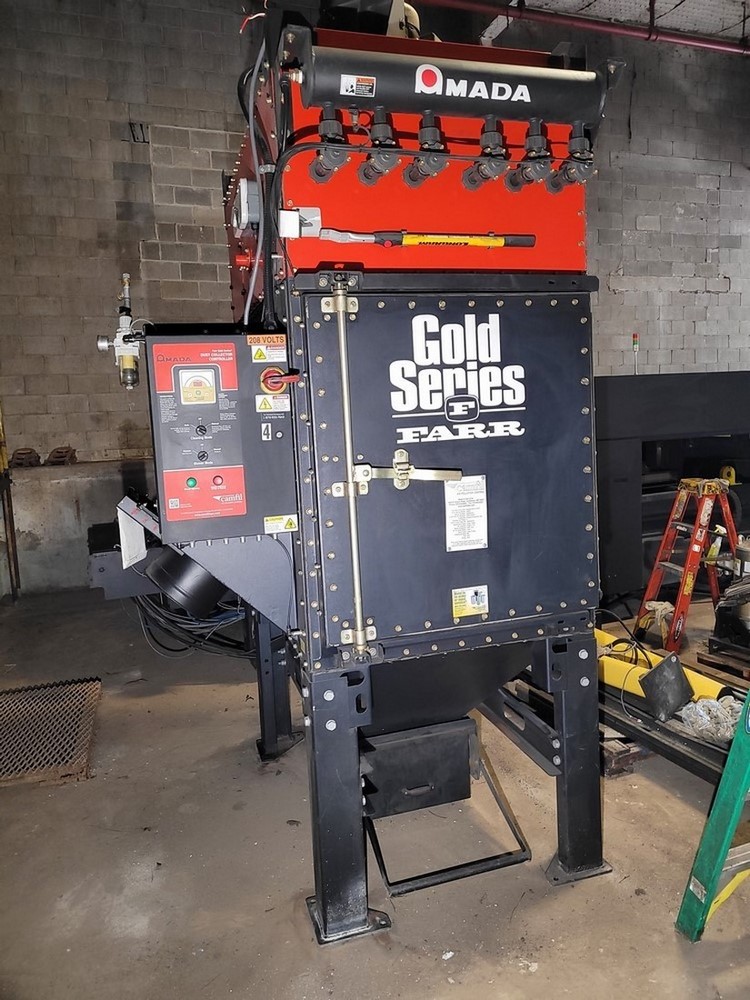

Dust Collector |
|
AJ3000 Resonator with Ensis Technology |
LD Excited YB Fiber Resonator Type |
*
