| Year | 2017 |
|---|---|
| Make | Amada |
| Model | EG 6013 |
Description |

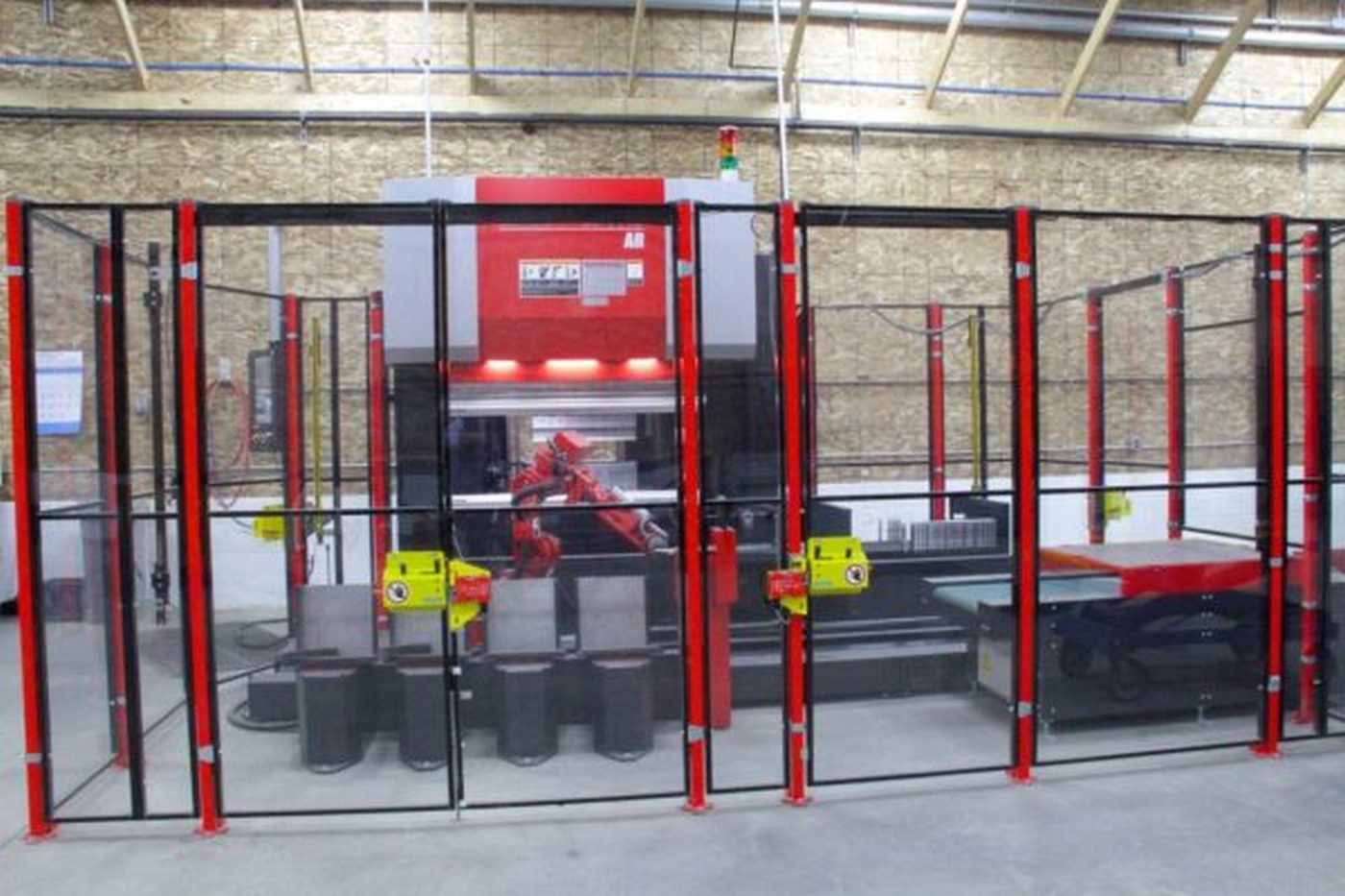

67 Ton x 4.5' Hydraulic Press Brake w/ Robot |
| Reference # | 8076126 |
Used Amada EG 6013 (2017) CNC Press Brake for Sale. This pre-owned Amada CNC press brake is located in The United States. If you have any questions regarding this Amada Press Brake, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity |
67 Ton |
|---|---|
| Overall Length of Bed |
4.5' |
| Control |
Amada AMNC 3i CNC |
| Distance Between Housings |
53.1" |
| Stroke |
6" |
| Open Height |
16.5" |
| Approach/Return Speed |
8.7 IPS |
| Bend Speed |
1 IPS |
| Robot Carriage Axis |
120" |
| Max Reach P-Point |
39.25" |
| Max. Part Weight on Robot |
22 Lbs |
| Max Tool Length/Tool Holder Length |
31.5"/49.2" |
| Floor Space |
211" x 154" x 105" |
| Weight |
8,200 Lbs |
Features
|

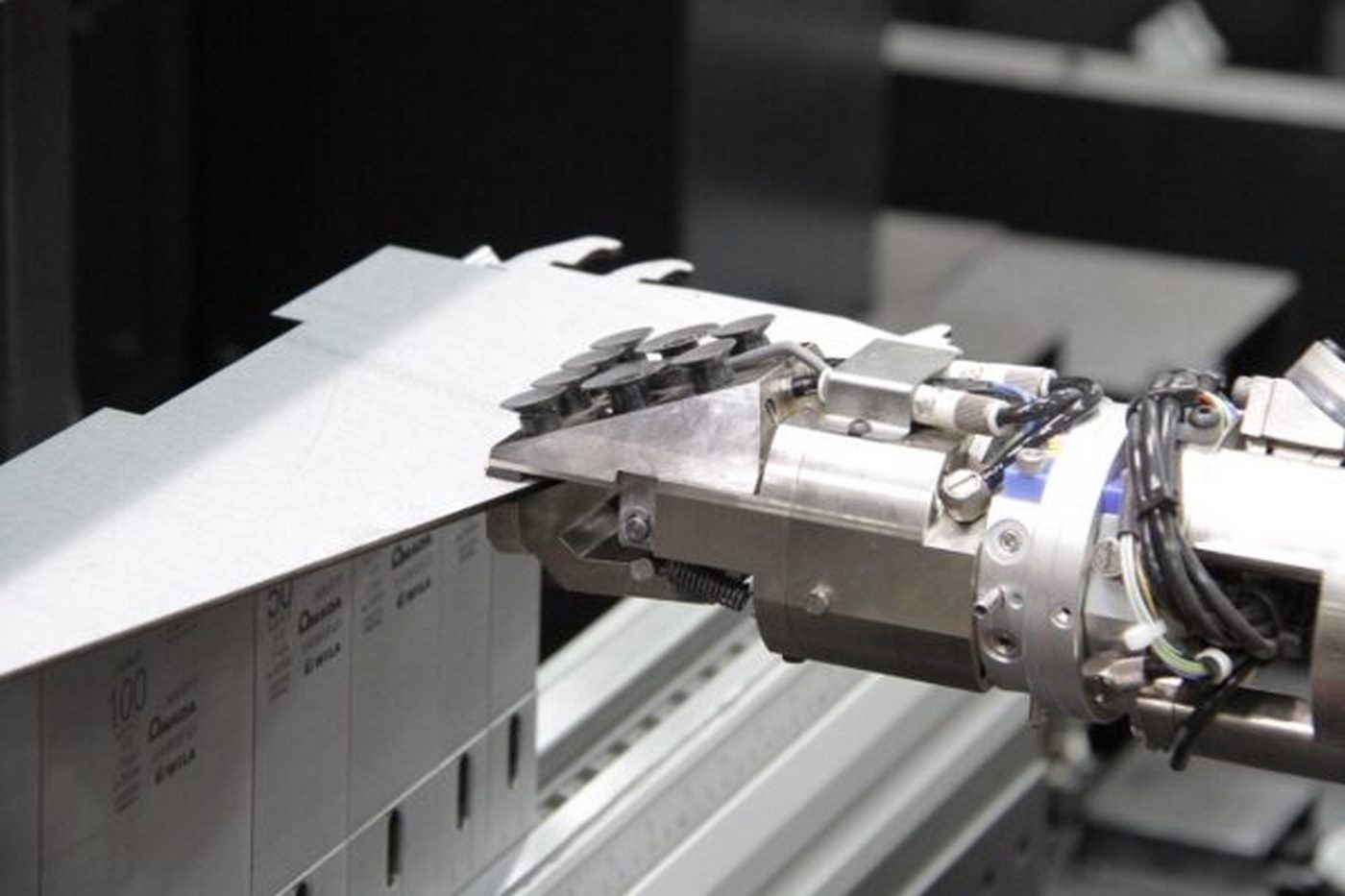

3 Gripper Station / Seamless Tool Change To Production |
7-Axis Potentiometer Backgauge With Side Gauge System |
|
High-Rigidity Frame for Large Open Height and Stroke |

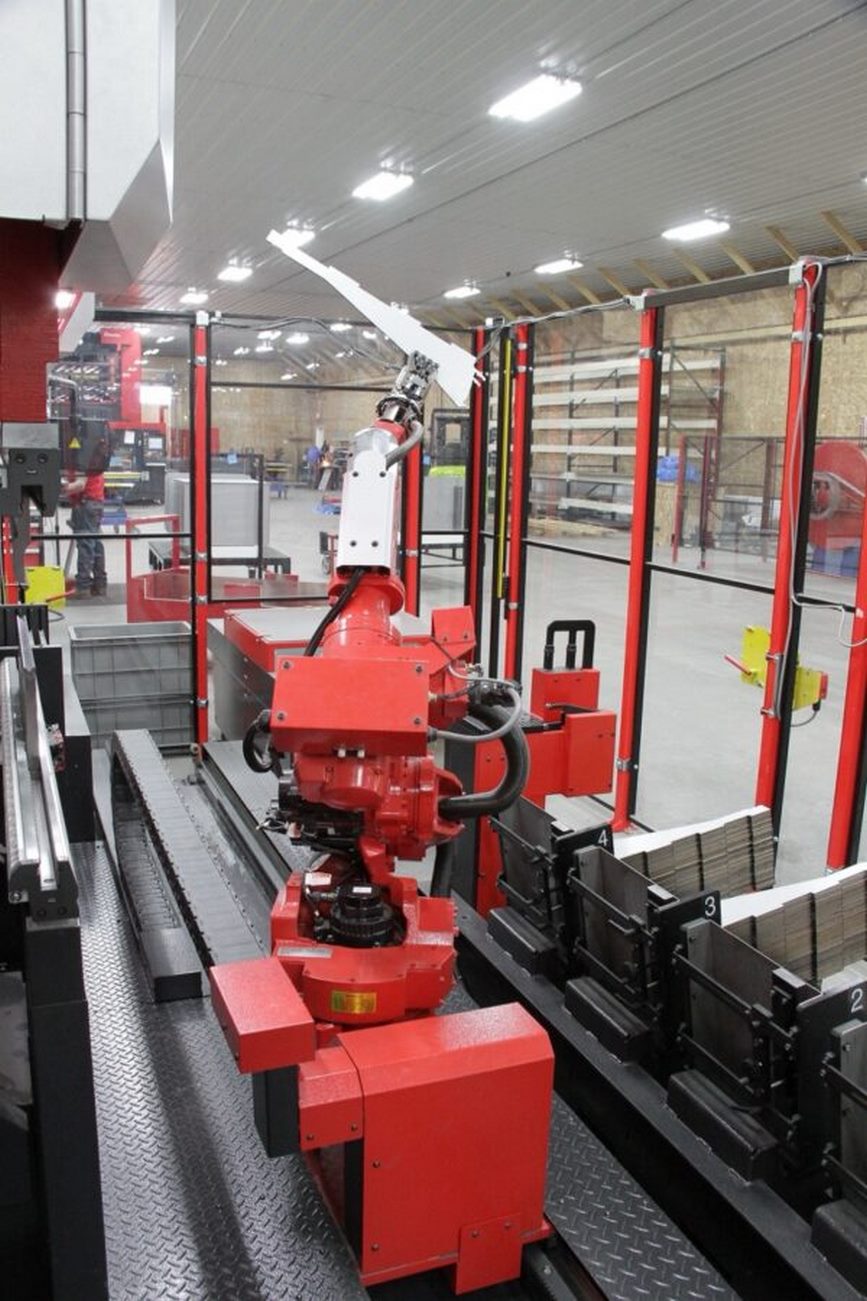

Load/Unload to Drop Box or Conveyor |
|

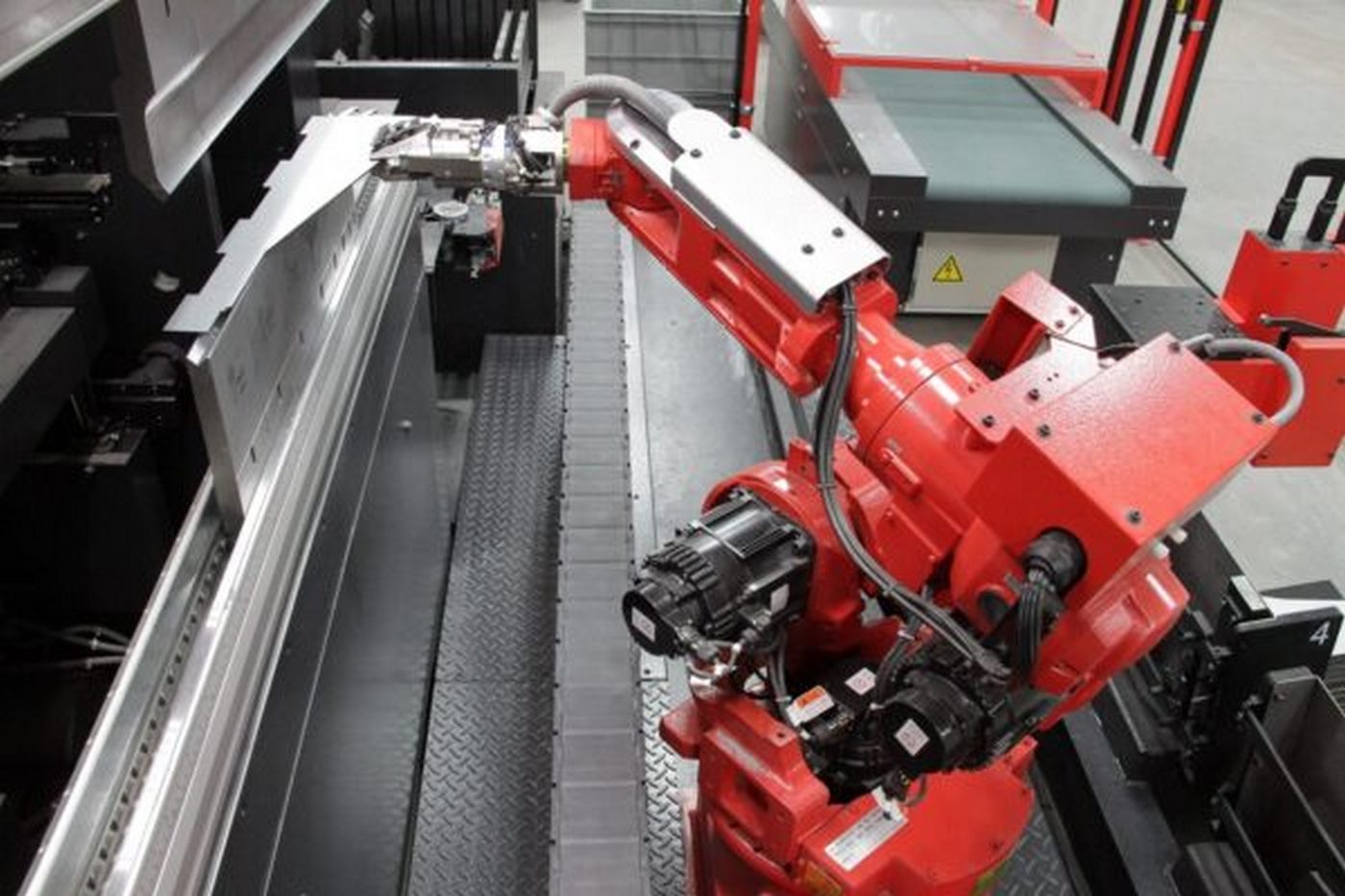

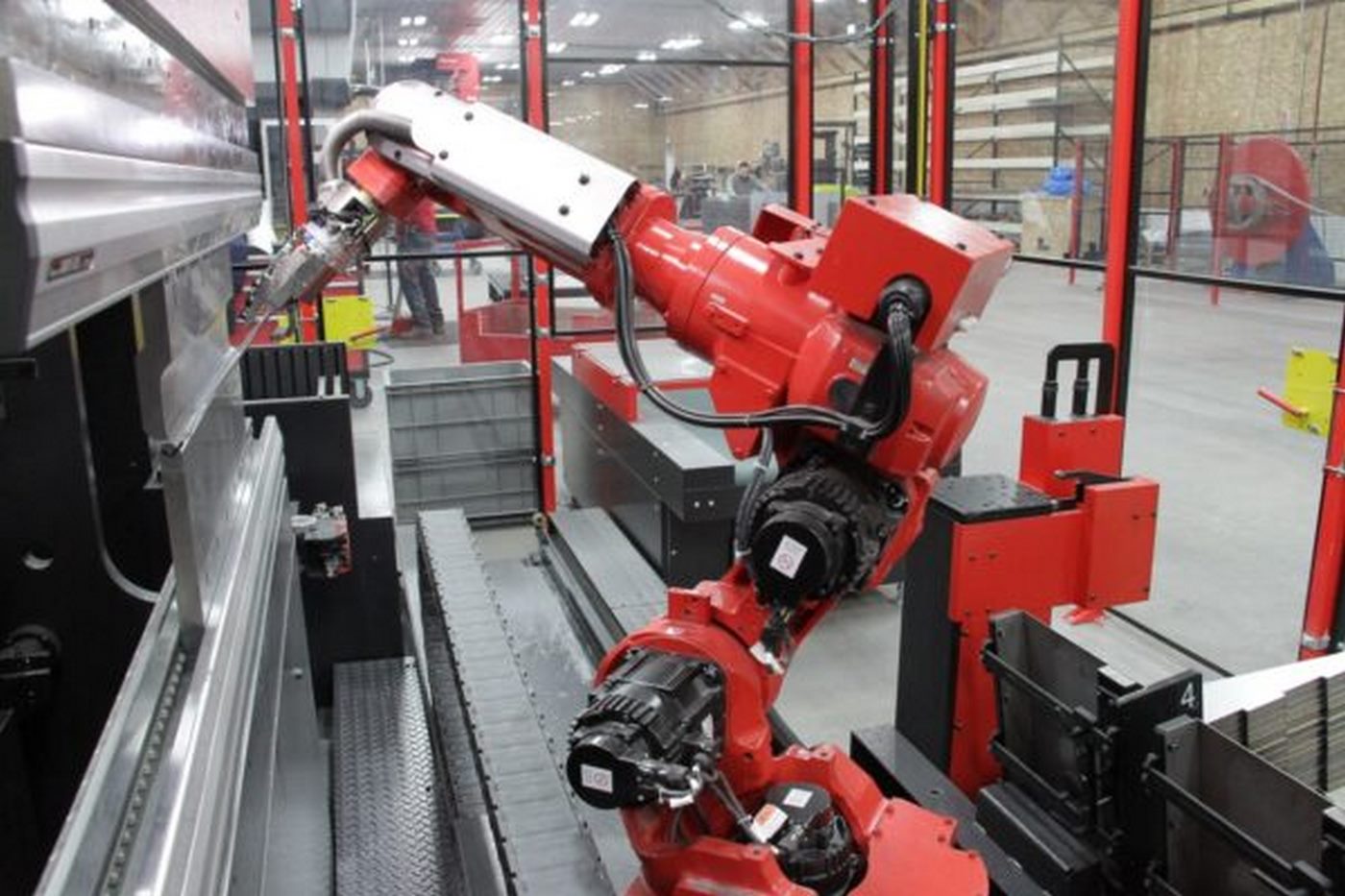

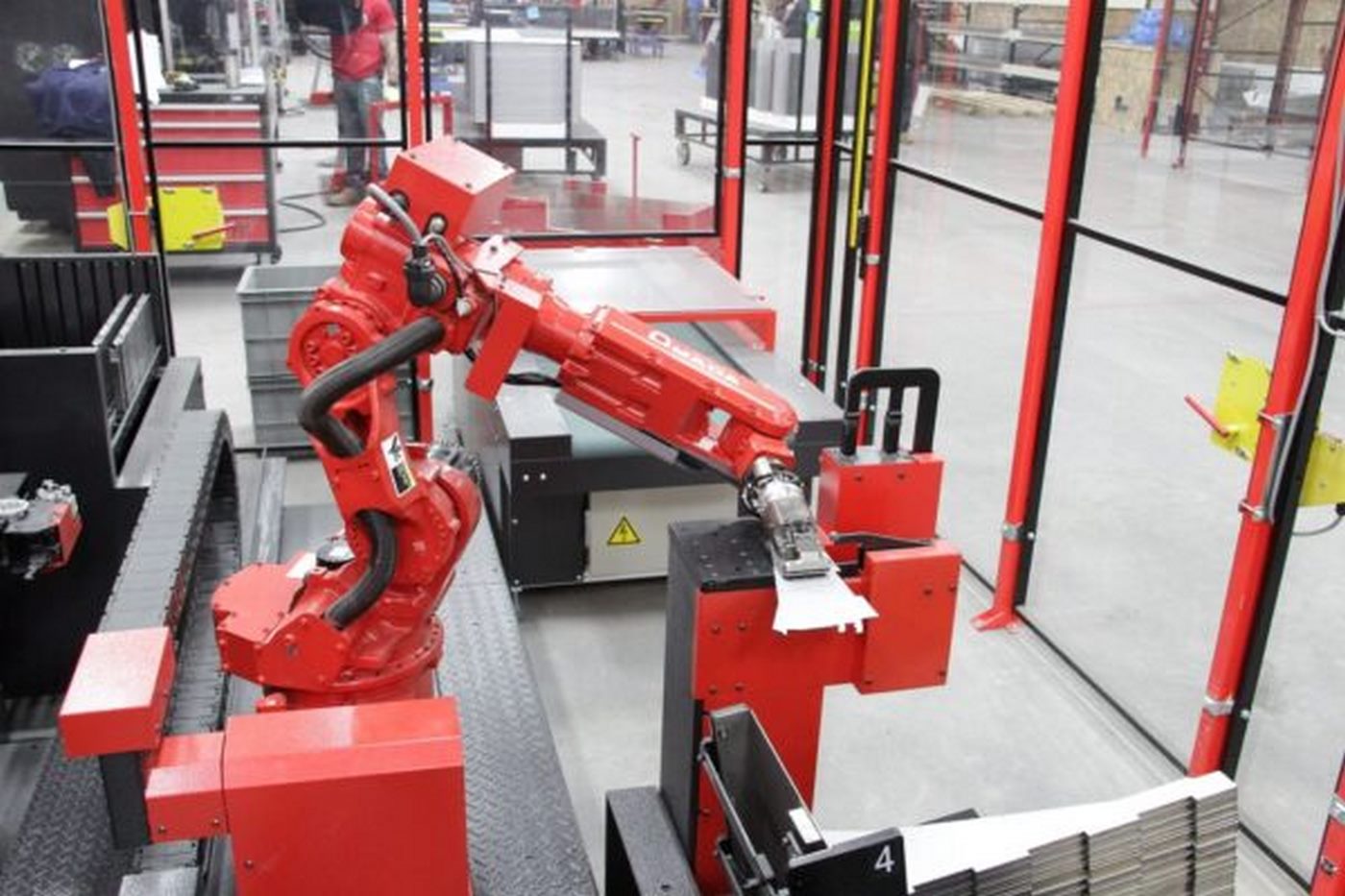

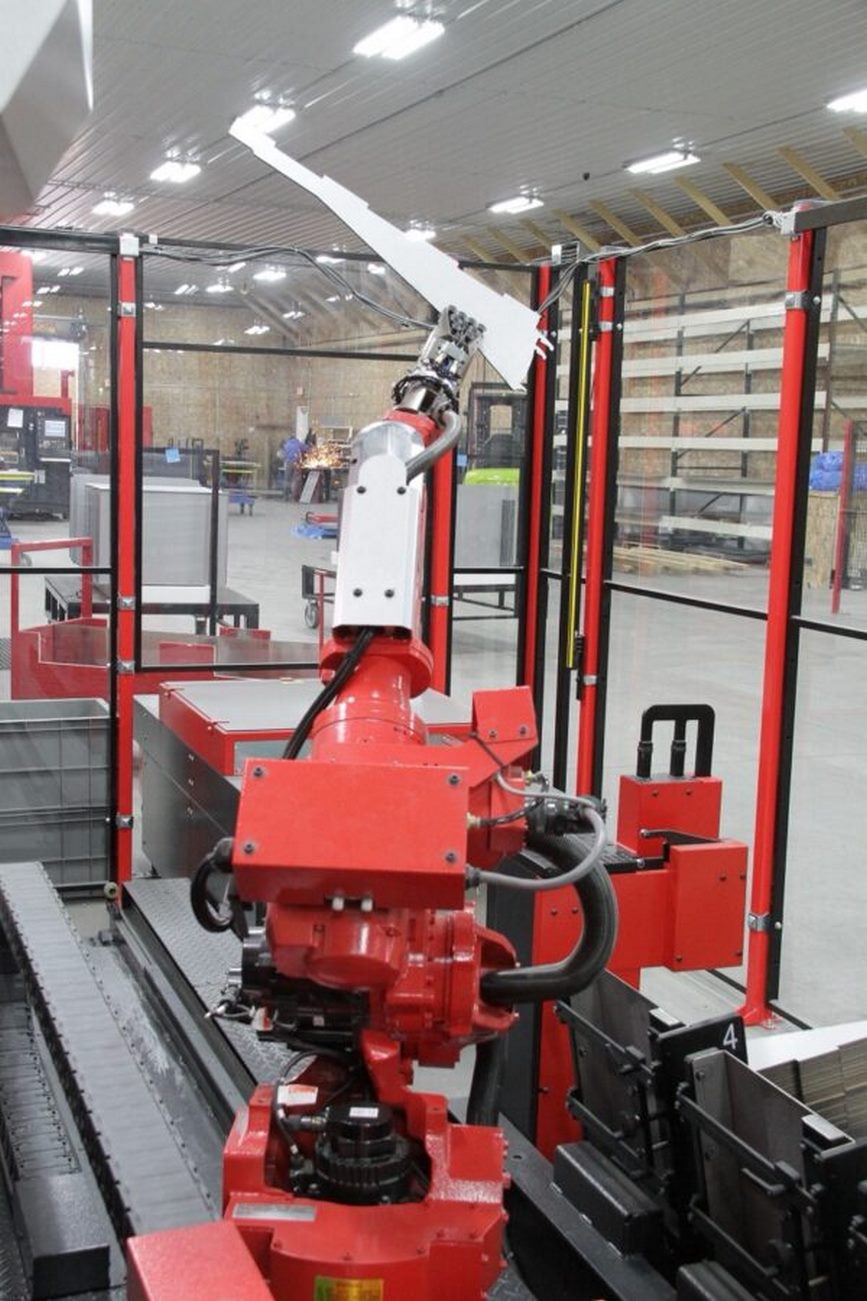

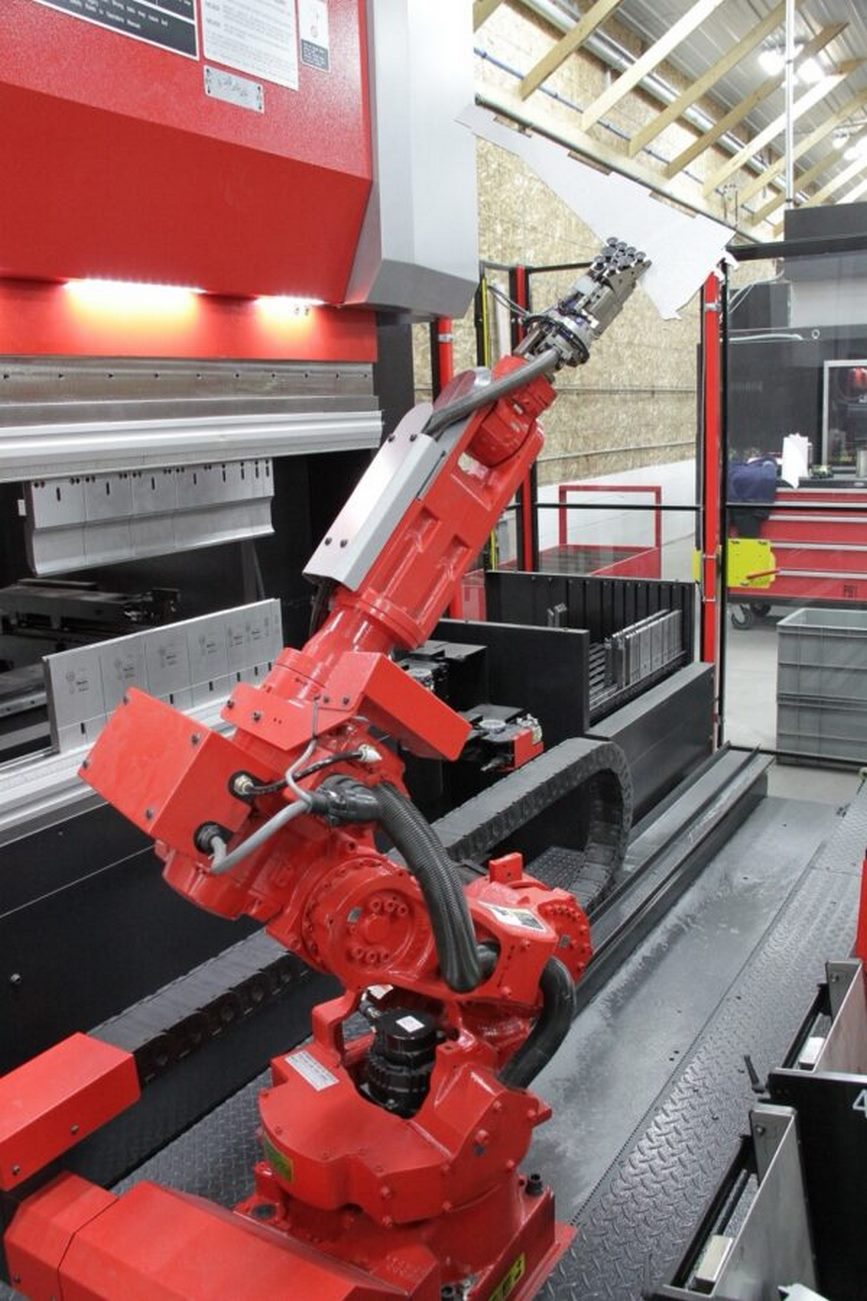

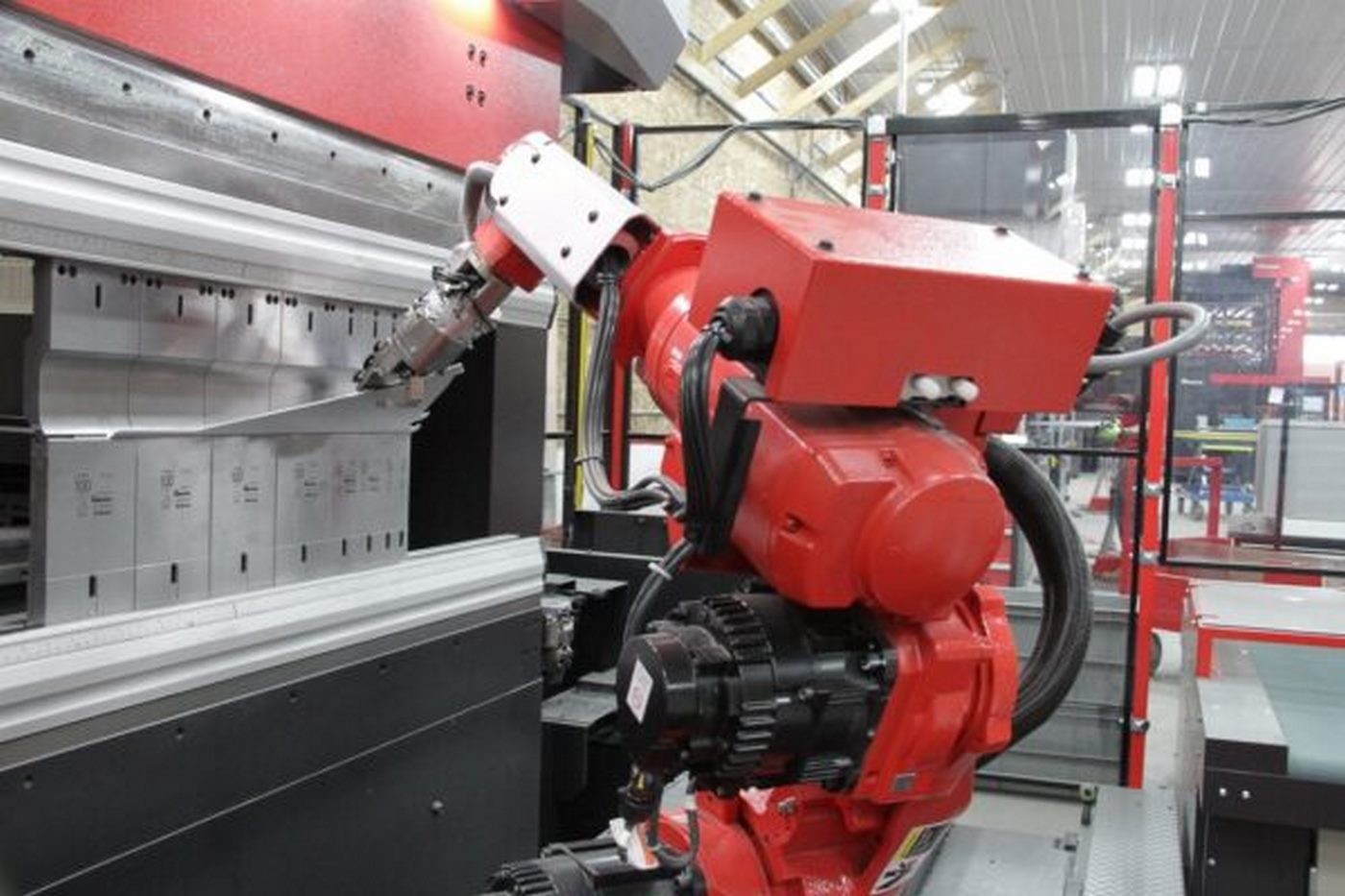

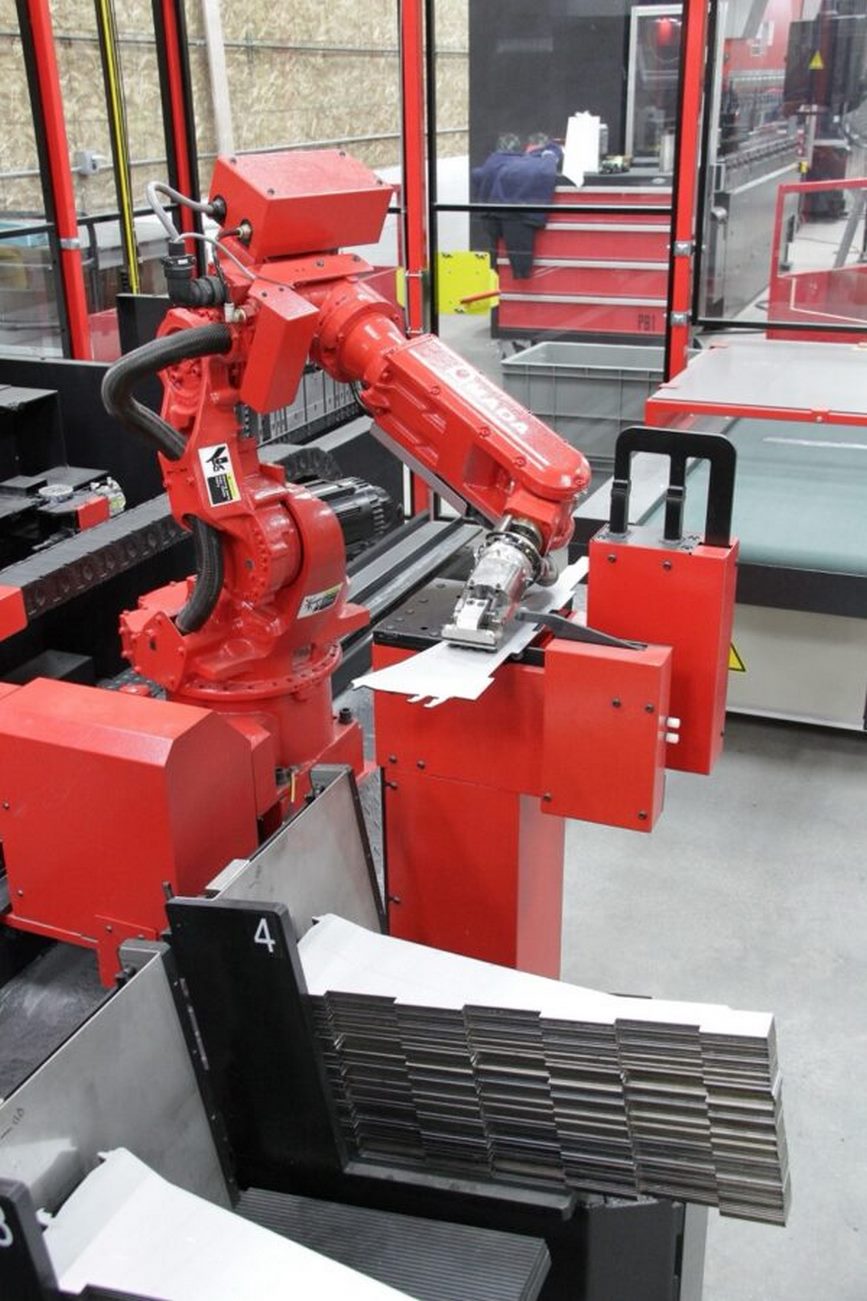

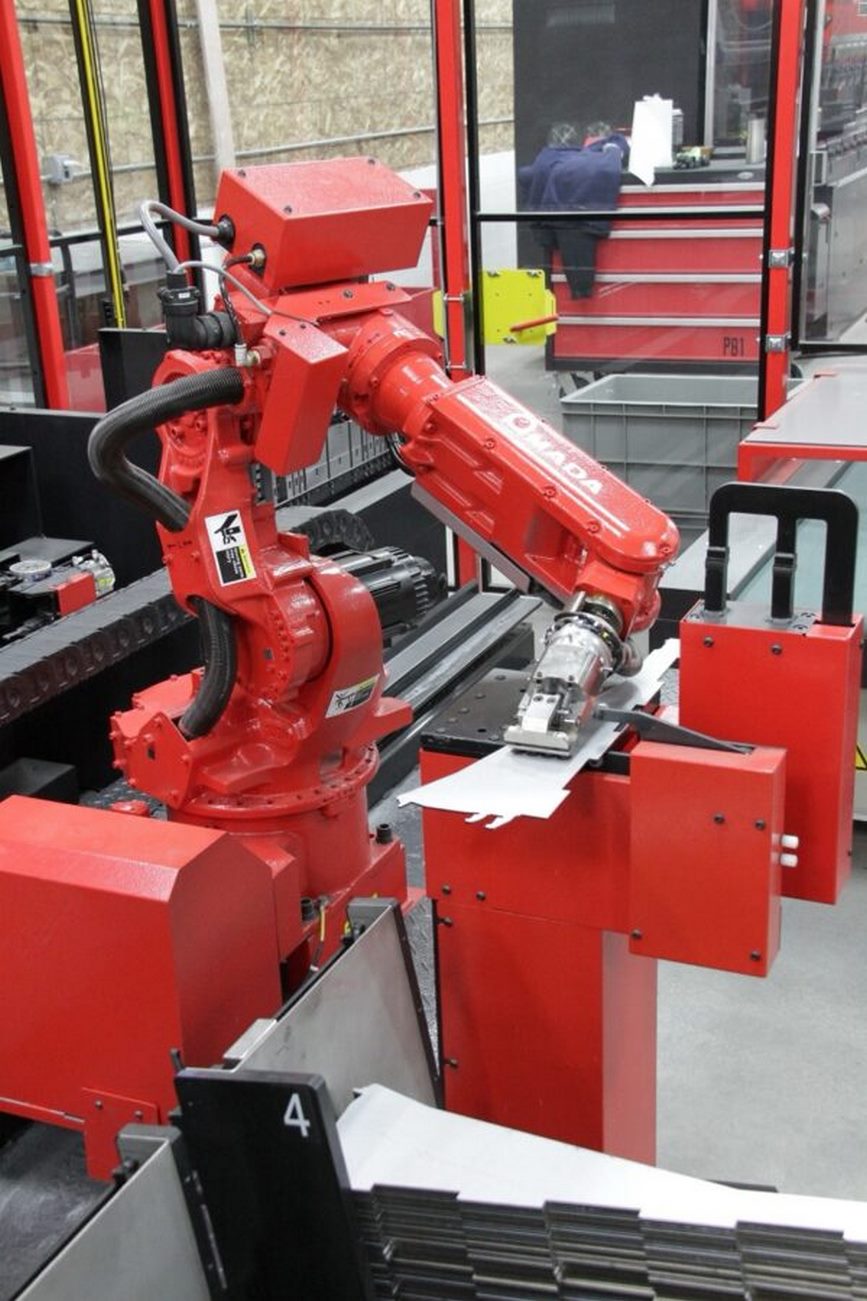

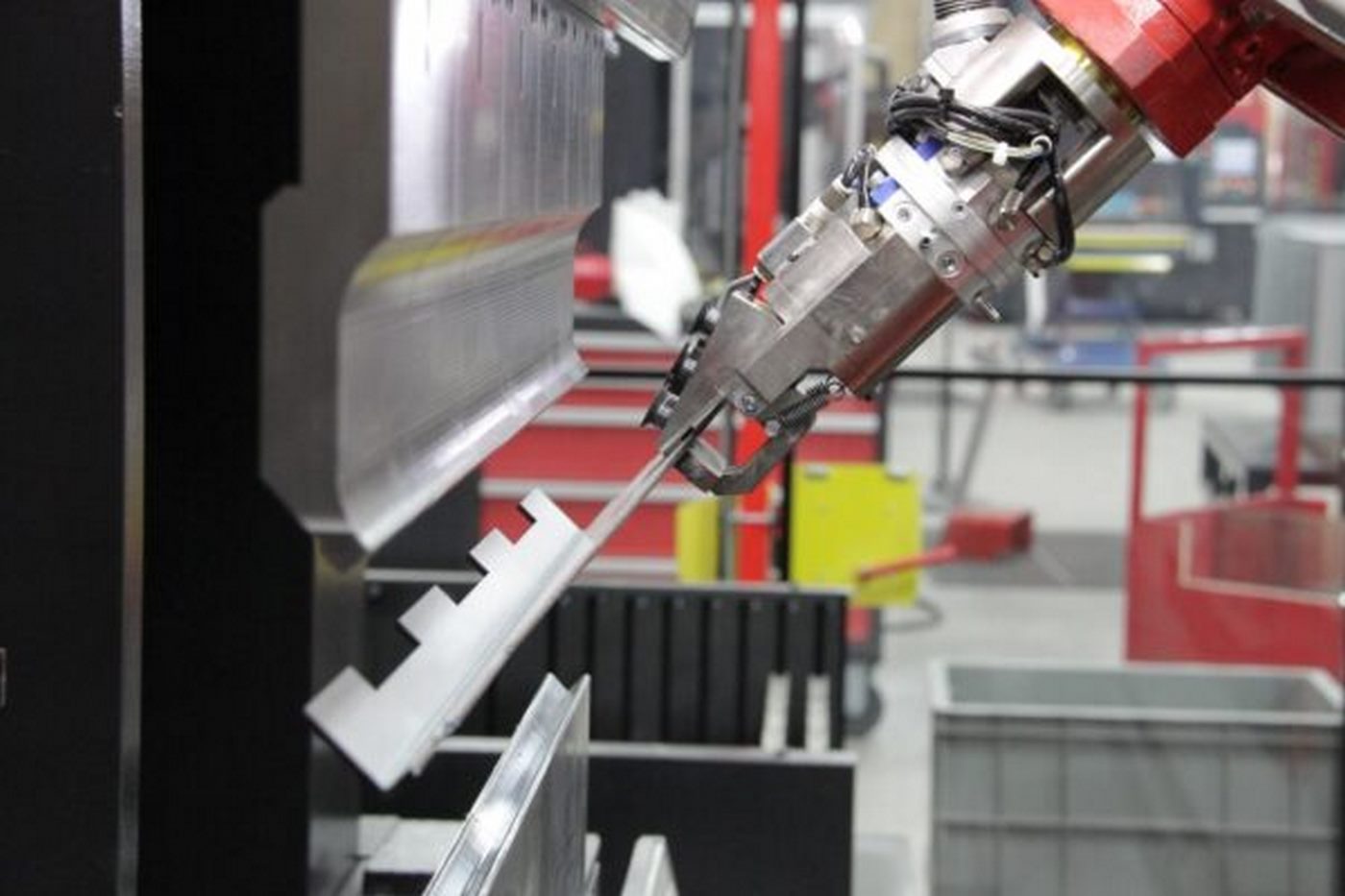

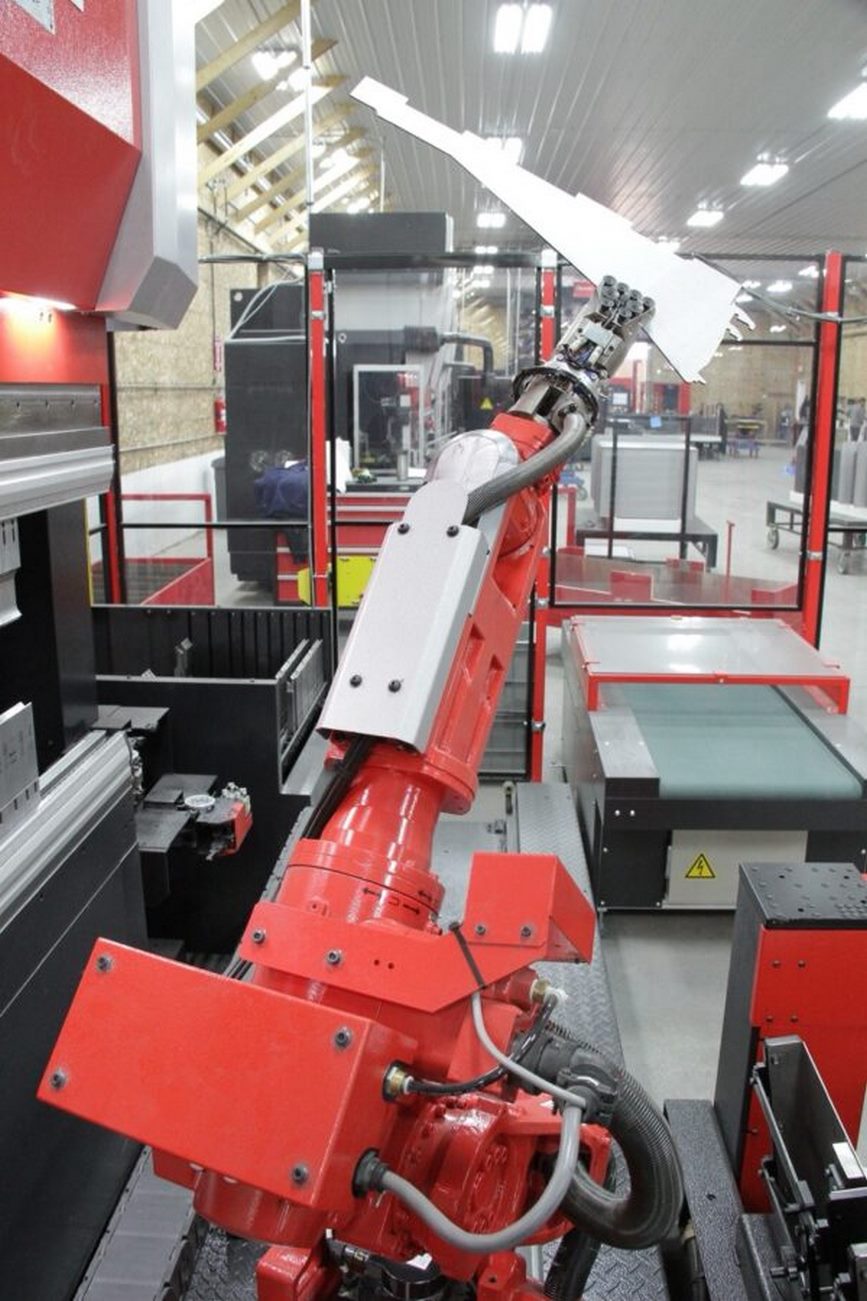

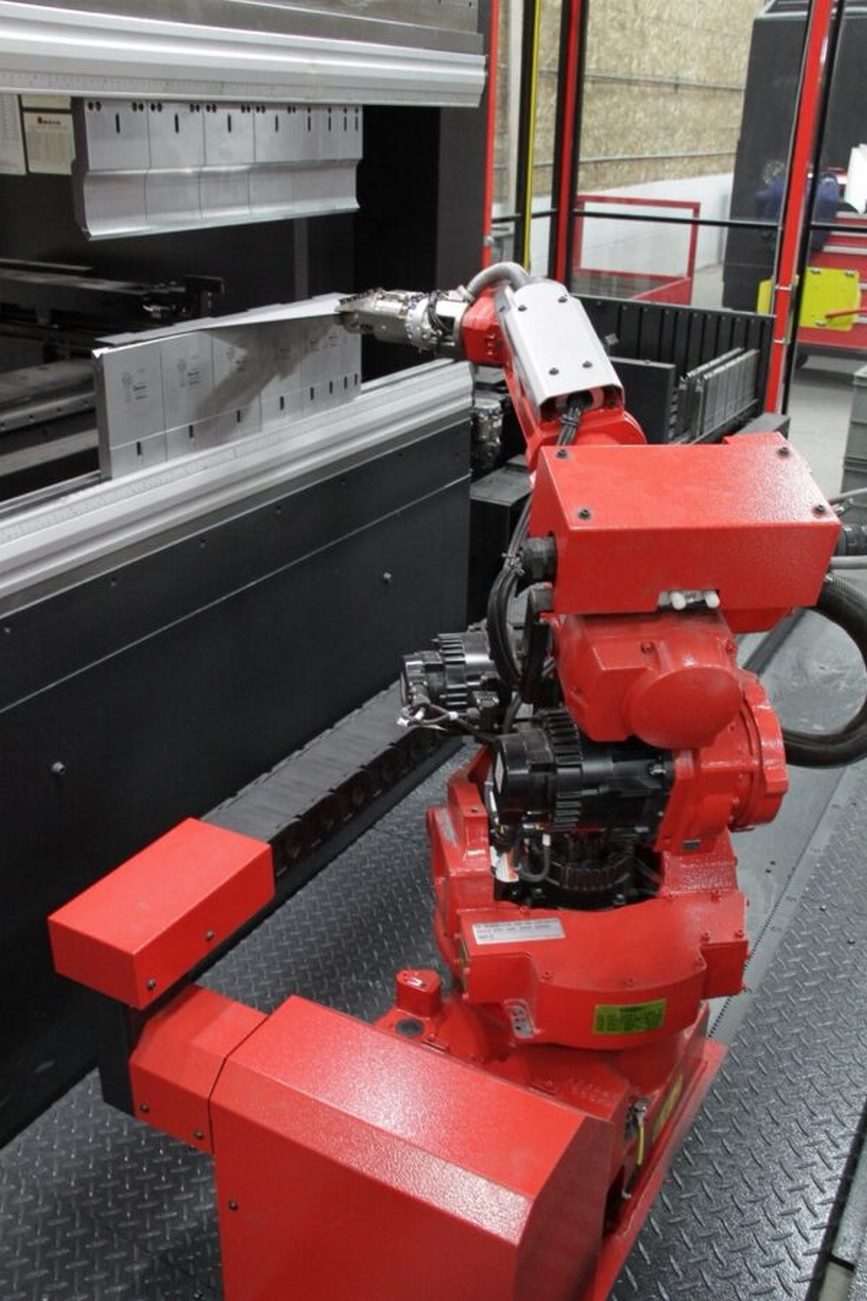

Yaskawa MH6S-10 High Precision 7-Axis Bending Robot |
Dual Electric Servo Power Drive |
|
Automatic Tool Changer |
*
