| Year | 2016 |
|---|---|
| Make | Mitsubishi |
| Model | MV4800 |
Description |
EDM Wire |
| Reference # | 8069369 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| X-Axis Travel |
31.5" |
|---|---|
| Y-Axis Travel |
23.6" |
| Z-Axis Travel |
20.1" |

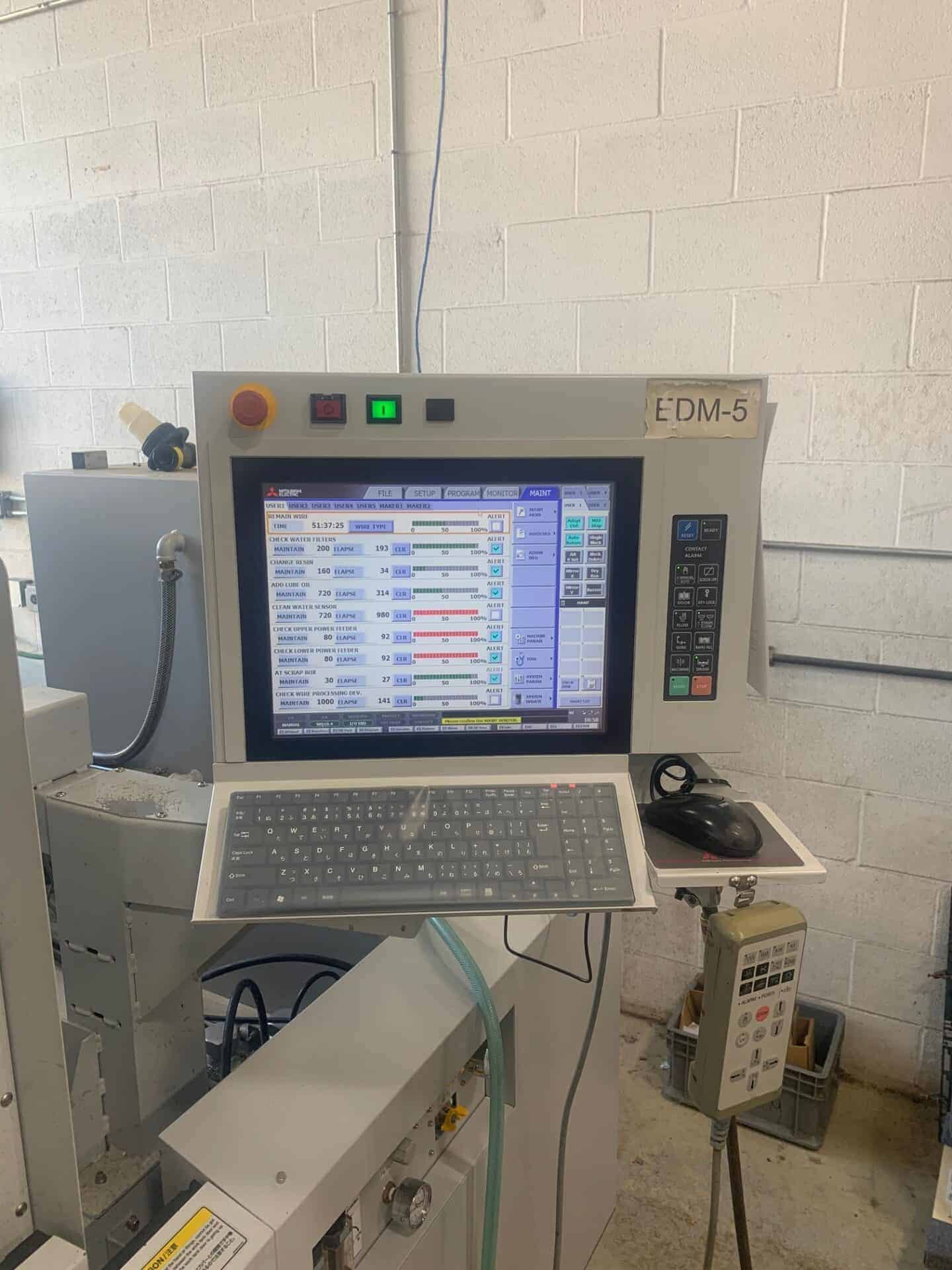

| Control |
M700 Series |
| U/V Axis Travel |
±4.0" x ±4.0" |
| Degree Taper Cutting |
15 Degree @14'' |
| Inside Tank Dimensions |
45.3" x 38.4" |
| Max. Workpiece Dimensions |
53.1” X 43.3” X 20.0” |
| Workpiece Weight |
6,600 Lbs |
| Table Dimensions |
45.3" X 38.4" |
| Resolution (Absolute Scales) |
.000002” (2 Millionths) |
| Table Rapid Feed |
51.2 IPM |
| Wire Diameter |
.006” - .012” (.010” Std) |
| Minimum Wire Thread Start Hole |
.020” |
| Maximum Workpiece AT Height |
20.0” |
| Wire Tension |
50 – 2500 G |
| Wire Spooling Speed |
0 -11.8 in/Sec |
| Filter System |
Paper Cartridge (2x) |
| Filter Precision |
5 Micron |
| Ion-Exchange Resin |
1 ft³. (6.4 Gal Dry) |
| Filter Tank Capacity |
293 Gallons |
| Dielectric System Dimensions |
37.9” X 109.7” X 67” |
| Dielectric System Weight |
990 Lbs |
| Overall Machine Unit Dimensions |
129.9” X 148.6” X 110.8” |
| Machine Weight |
12,100 Lbs |
| Glass Scale Feedback |
50nm on X,Y Axes |
Features
|
Auto Oiler |
Auto Power Recovery |
|
Chiller |
10 KG (22lb) Wire Spool |
|
Wire Alignment Gauge |
Dielectric Chiller FTS |
|
Intelligent Auto-Threader |
*
