| Year | 2016 |
|---|---|
| Make | Mitsubishi |
| Model | ML4020RX-F60 |
Description |

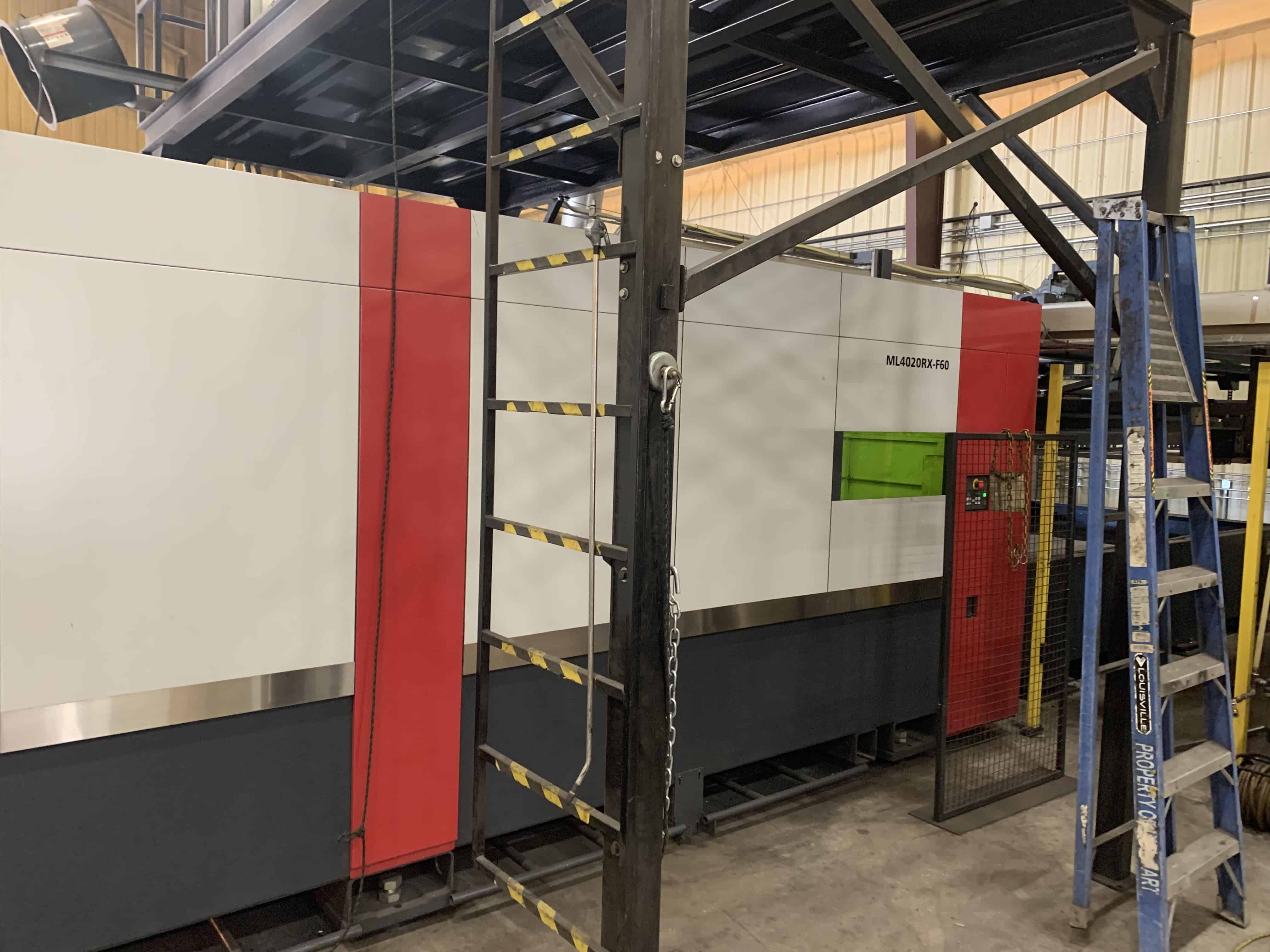

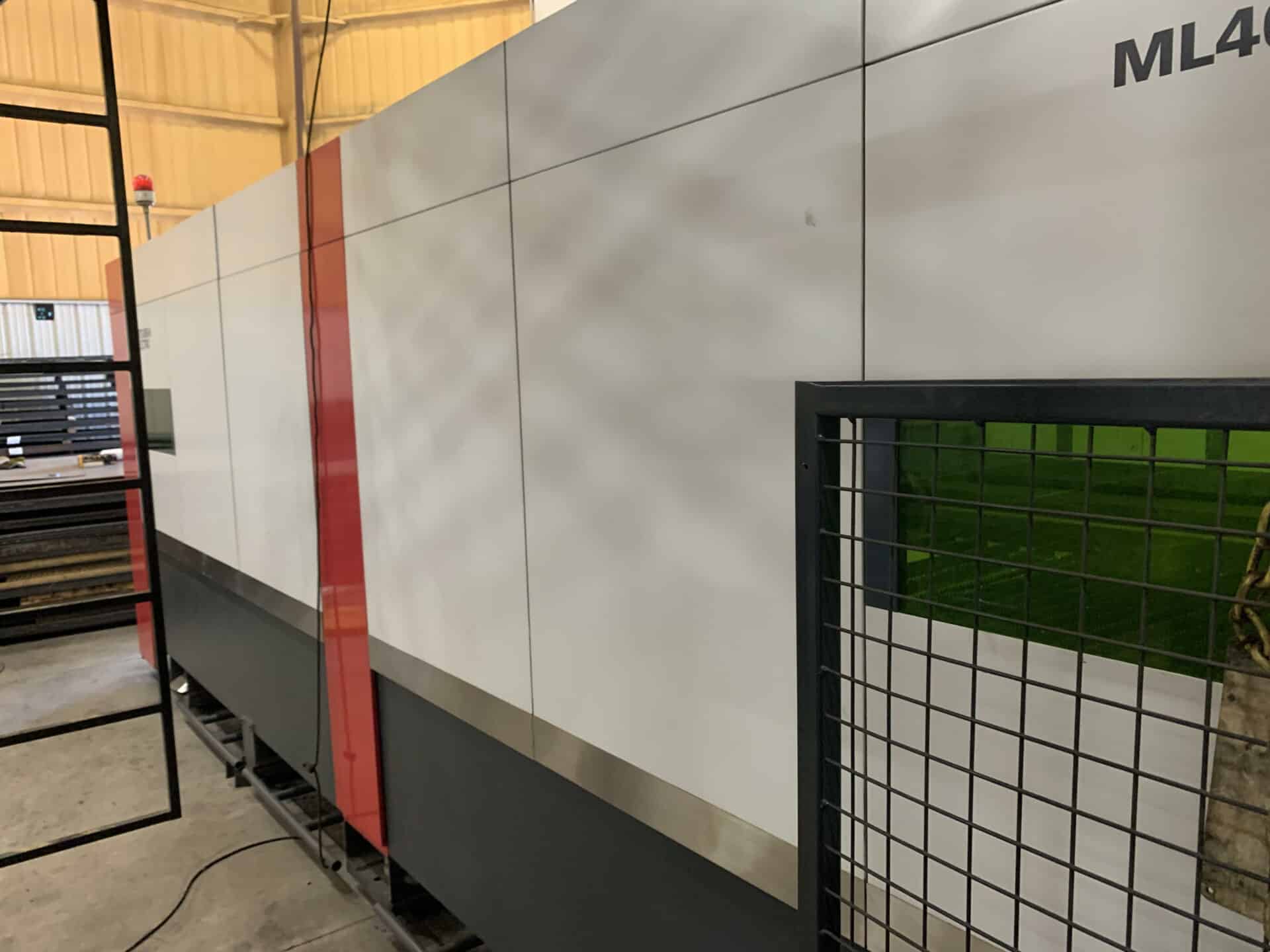

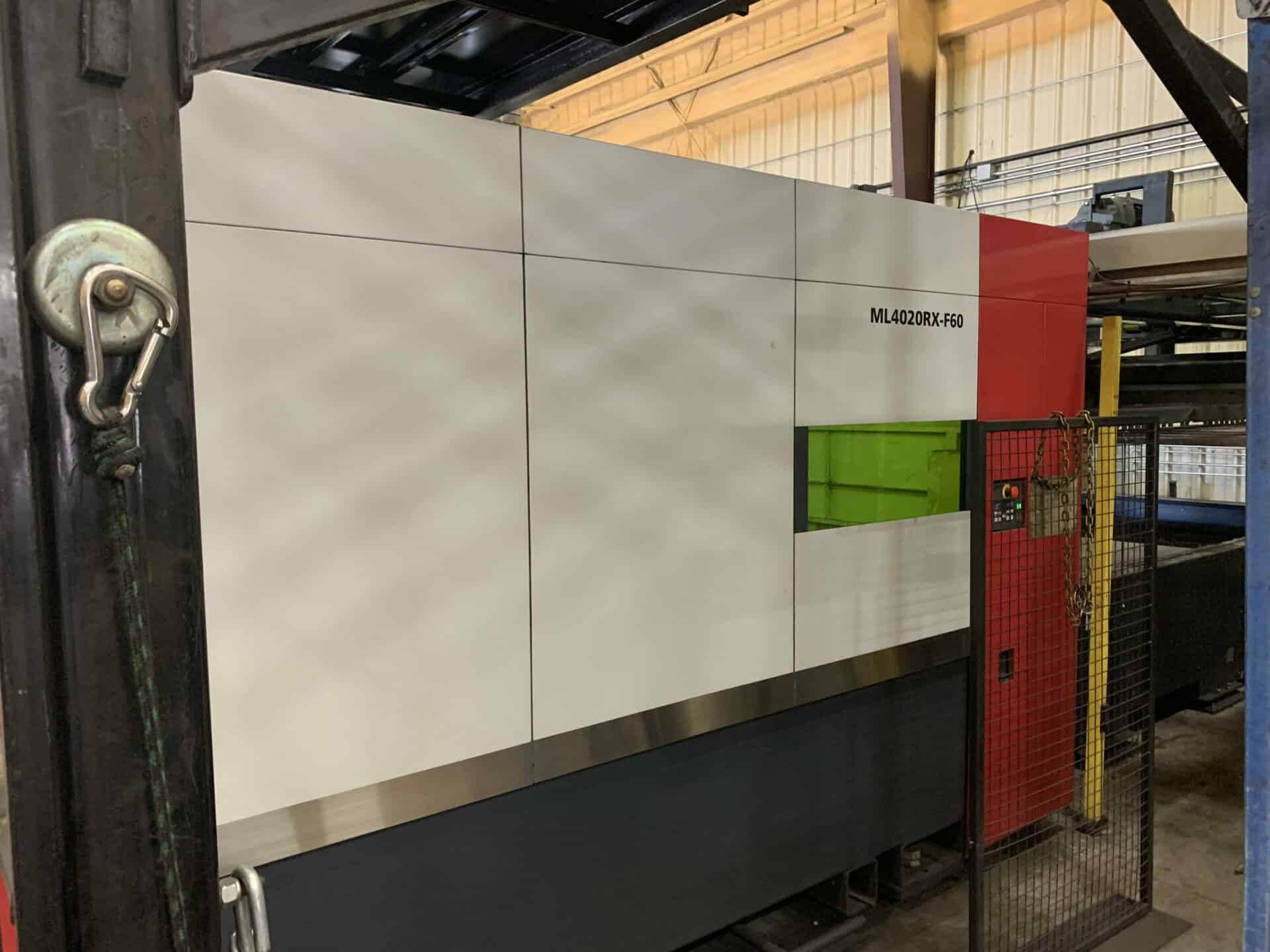

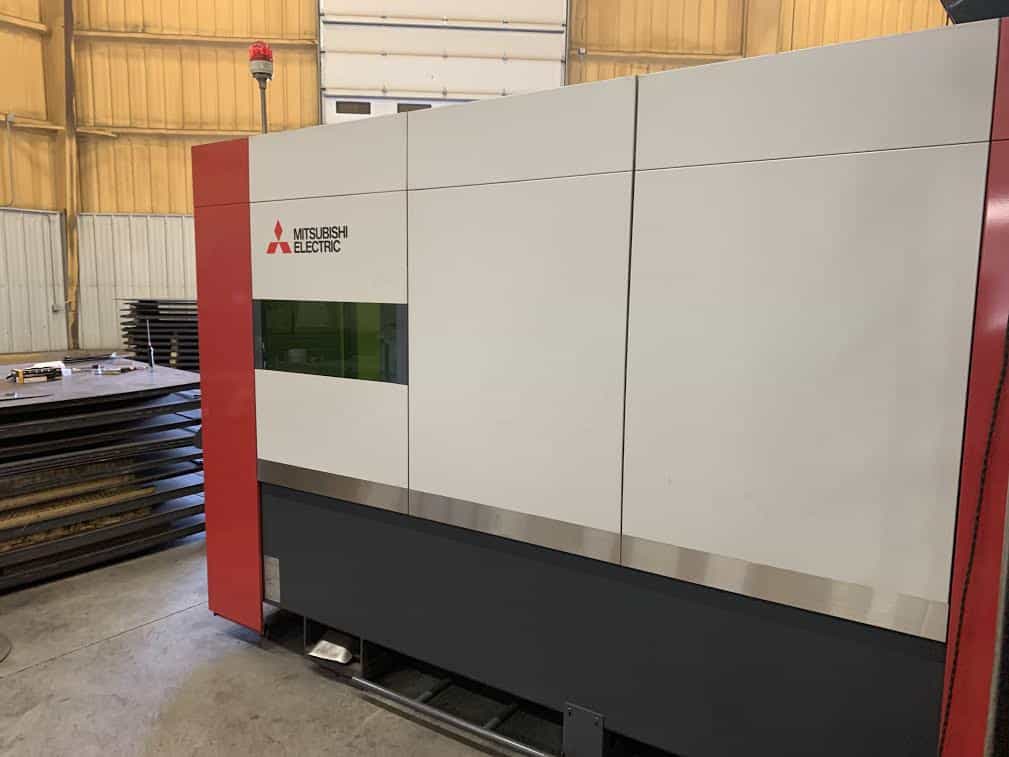

6' x 12' CNC Fiber Laser |
| Reference # | 8070311 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|
Specifications
| Table Width |
6' |
|---|---|
| Table Length |
12' |
| Max Wattage |
6,000 |
| X-Axis Travel |
161.41" |
| Y-Axis Travel |
82.67" |
| Z-Axis Travel |
5.9" |
| Control |
Mitsubishi M700 CNC |
| Hours |

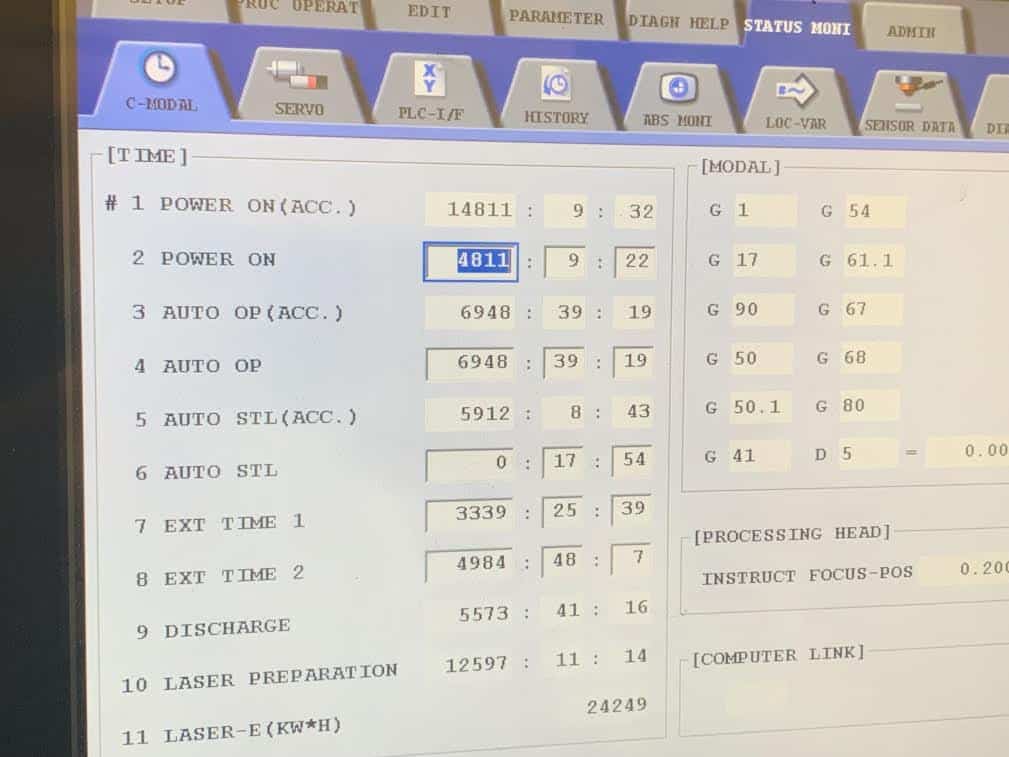

Approx 5600 Discharge Hours |
| Table Pass Height |
34.6" |
| Table Drive Method |
X,Y,Z Simultaneous 3 Axis |
| Max. Workpiece Size |
159.44" x 81.10" |
| Max. Workpiece Weight |
2,557 lbs |
| Rapid Travel (X,Y In/Min) |
3,940 Single Axis, 5,550 Simultaneous |
| Max Processing Feed Rate (In/Min) |
1,970 |
| Drive Motor Type |
Intelligent AC Servo |
| Voltage |
208V/3 Phase 60 Hz |
| Machine Unit Dimensions |
530.03" x 217.4" x 96.8" |
| Machine Footprint (W X D) |
574" x 368" |
Features
|
Chiller |

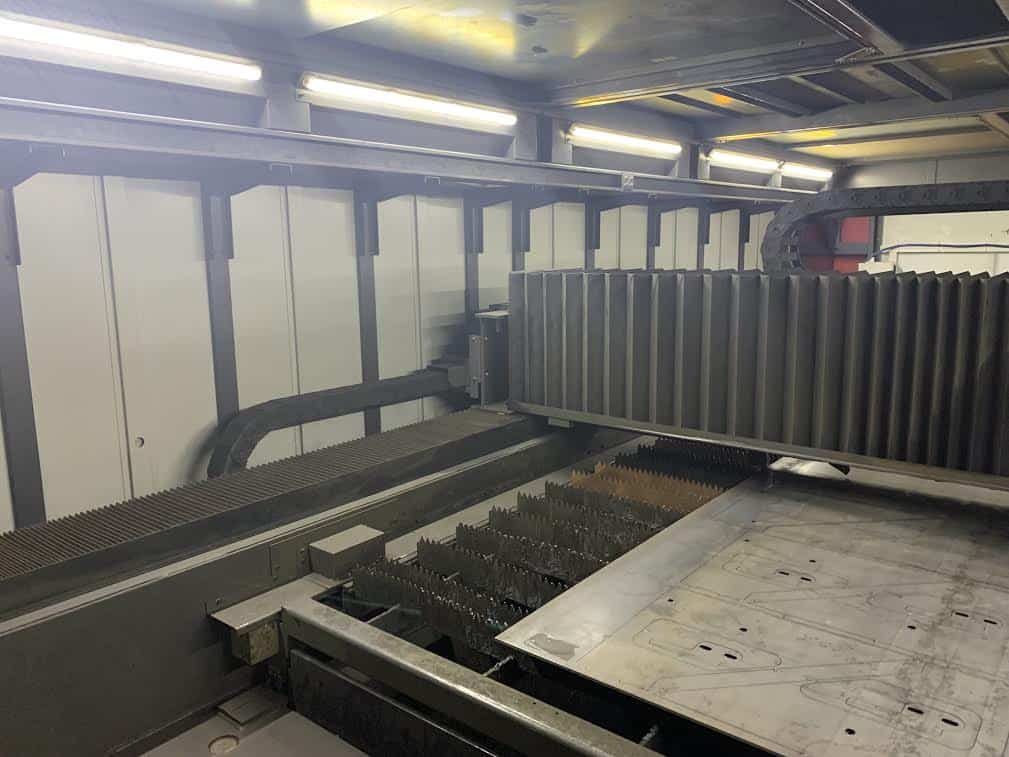

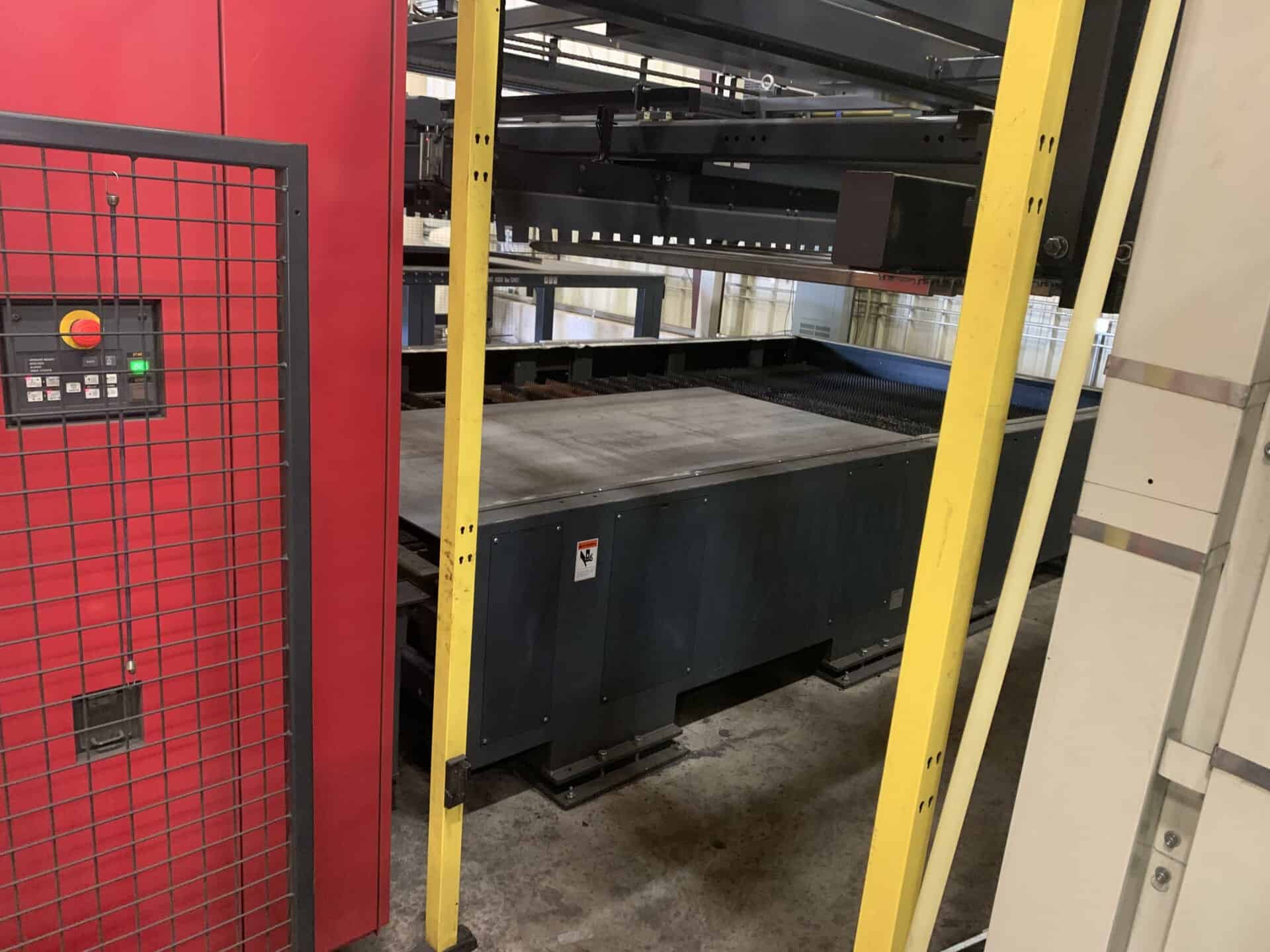

Dual Pallet Shuttle Tables |
|

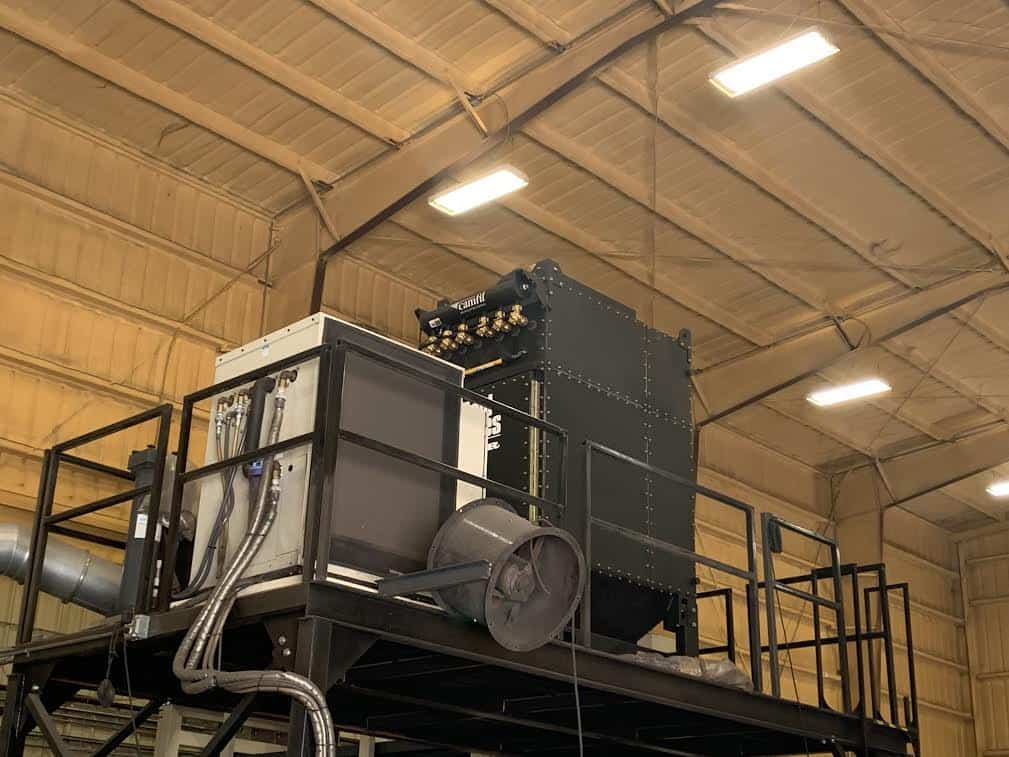

Dust Collector |
Pallet Changer |
|
USB/Ethernet LAN/Computer Link |
Automatic Oiler |
|
IPG 6000 Watt Laser Source |
Mitsubishi M700 Series Control |
|
Zoom Head ($25000 Option Under Warranty) |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
