| Year | 2018 |
|---|---|
| Make | Mitsubishi |

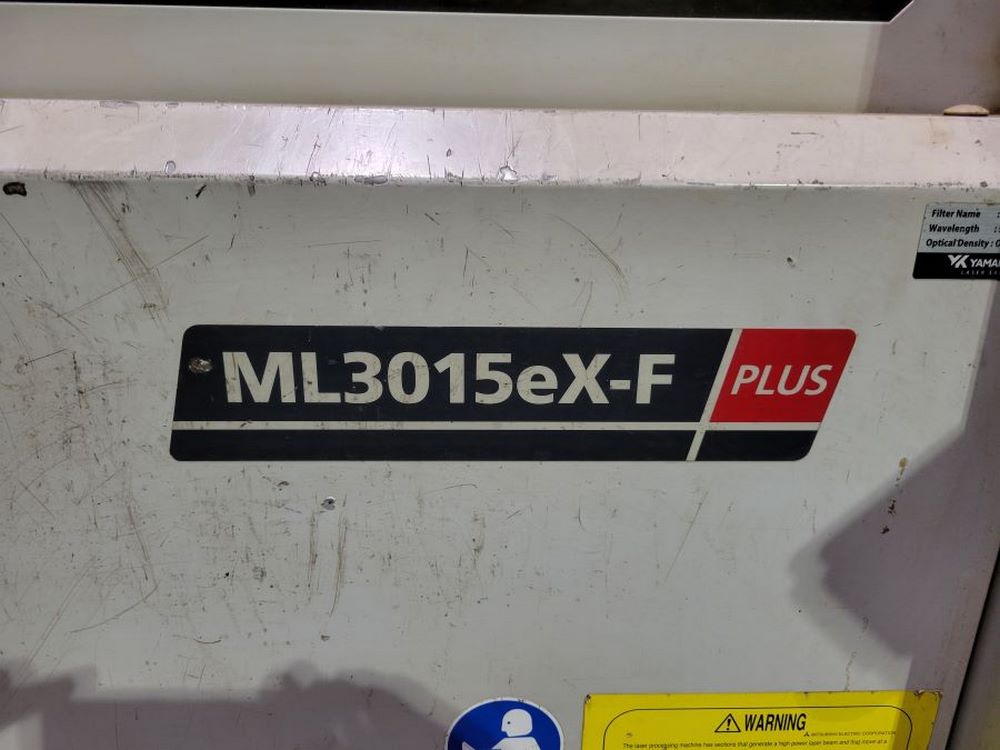

| Model | ML3015eX-F Plus |
Description |

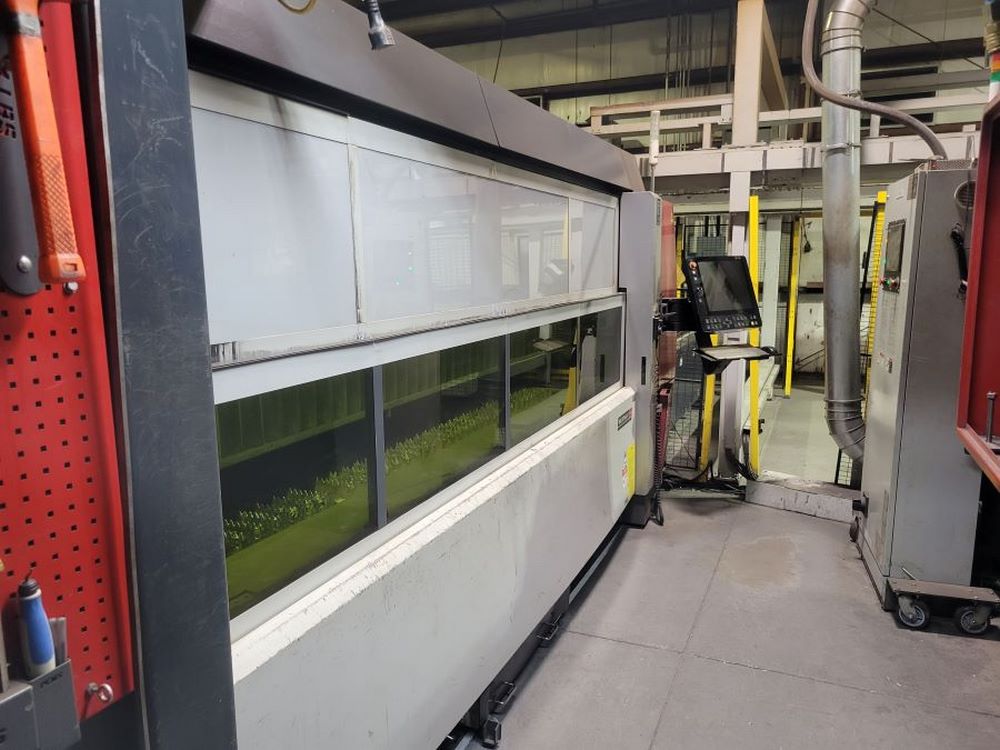

5' x 10' 8kW CNC Fiber Laser |
| Reference # | 8072513 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

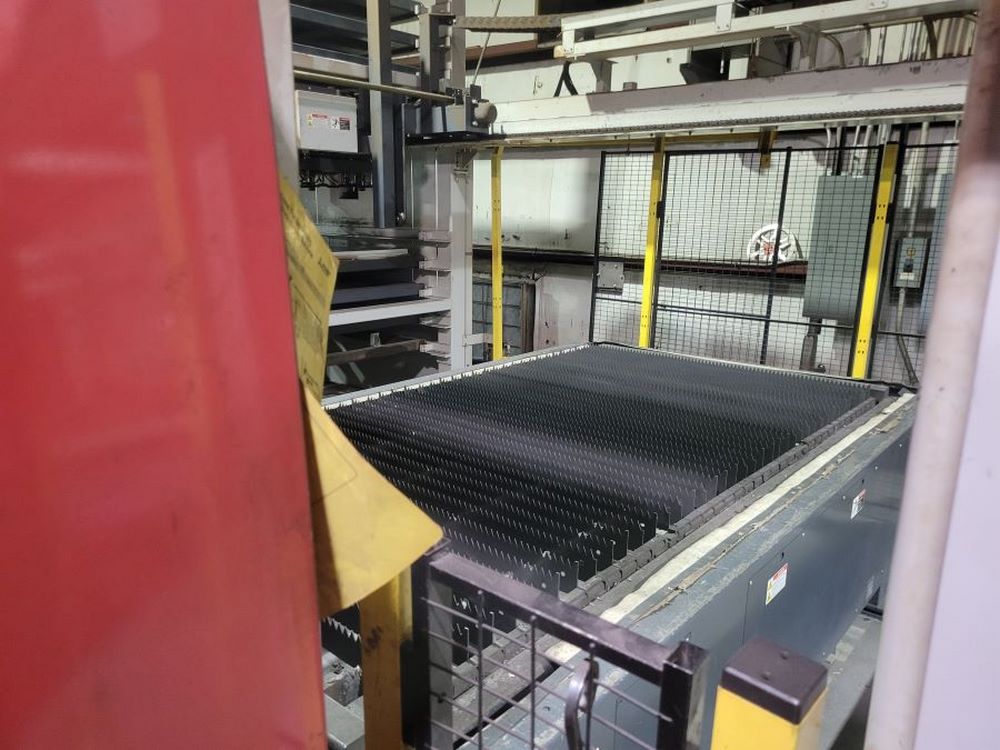

Used Mitsubishi ML3015eX-F Plus (2018) CNC Laser for Sale. This pre-owned Mitsubishi CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
5' |
|---|---|
| Table Length |
10' |
| Max Wattage |
8,000 |
| X-Axis Travel |
122" |
| Y-Axis Travel |
61" |
| Z-Axis Travel |
5.9" |
| Control |
Mitsubishi M800 |
| Rapid Travel Speed (X,Y) |
5,550 IPM Simultaneous |
| Max. Processing Feedrate |
3,937 IPM |
| Repeat Accuracy |
+/- .00039" |
| Table Pass Height |
34.6" |
| Max. Workpiece Size |
120.1" x 60" |
| Max. Workpiece Weight |
2,050 Lbs |
| Max. Material Thickness (Mild Steel) |
1.10" |
| Max. Material Thickness (Stainless Steel) |
.98" |
| Max. Material Thickness (Aluminum) |
.98" |
| Machine Dimensions |
L 408.3” x H 88.6” x W 115.2” |
Features
|
Precision Rack & Pinion (X/Y) |

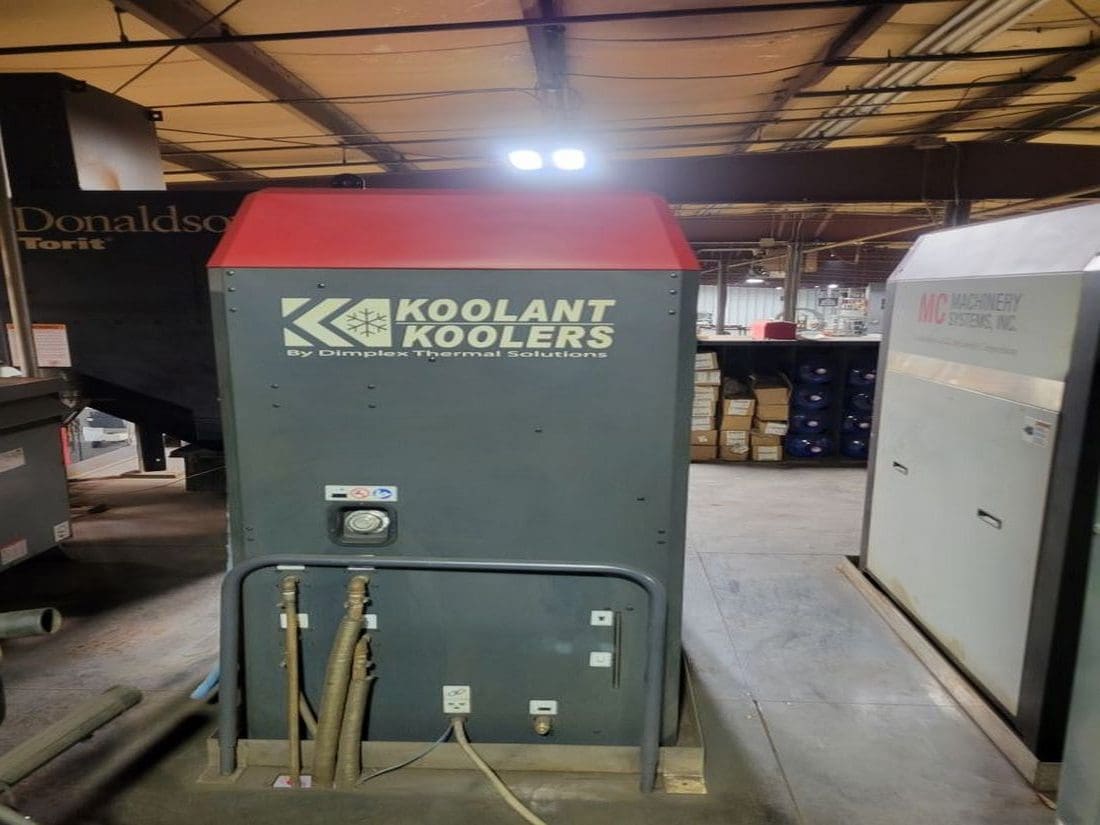

Chiller Unit |
|
Dual Pallet Shuttle Tables |

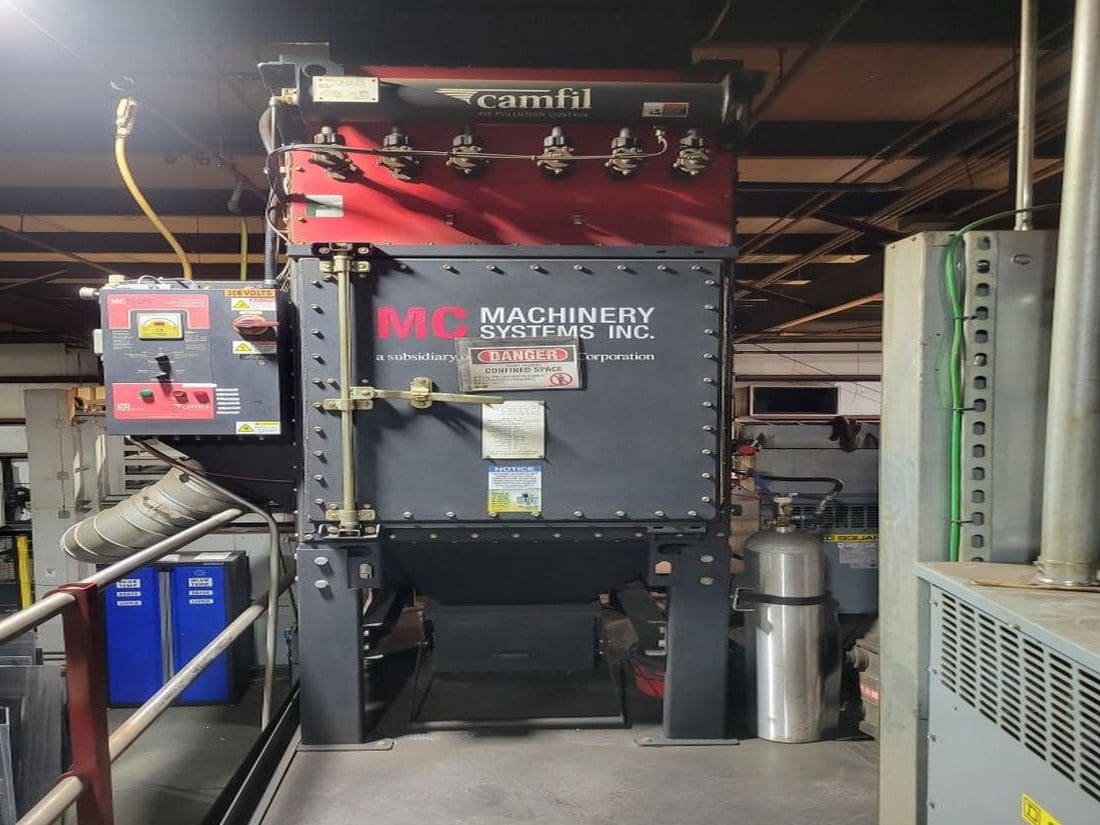

Dust Collector |
|

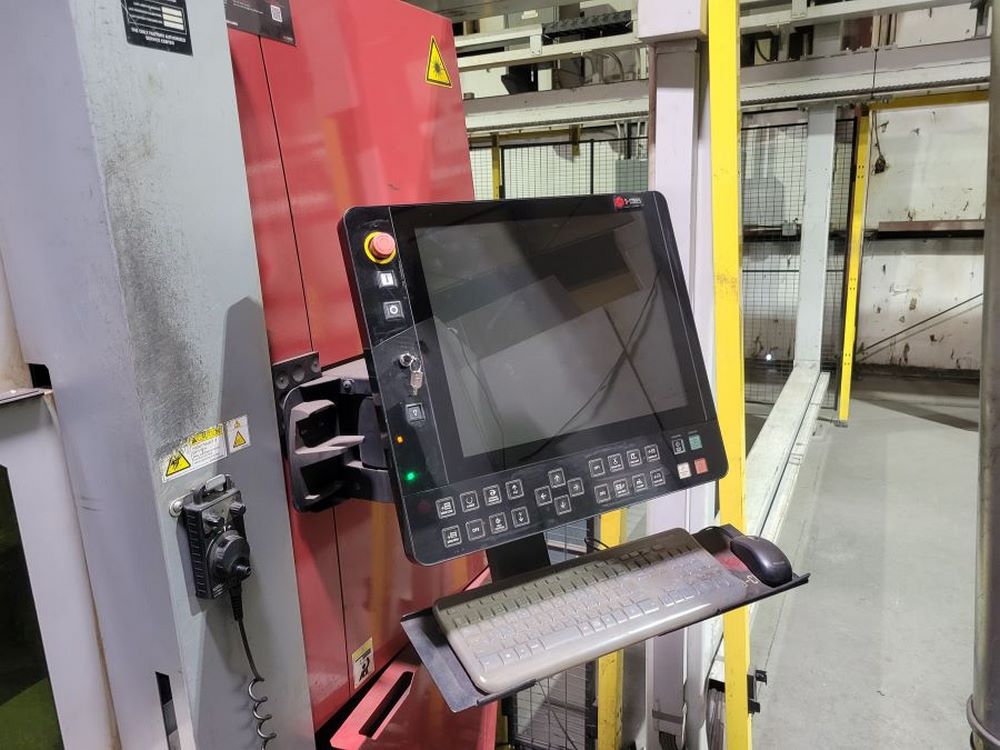

19” Mitsubishi-Electric Touch Screen |
Flying Optics Design |
|
High Precision Ball Screw Z-Axis |
Intelligent Ac Servo Drive Motor Type |
|
Zoom-Head |
