| Year | 2016 |
|---|---|
| Make | Doosan |
| Model | Puma 5100C |
Description |
CNC Lathe |
| Reference # | 8073874 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

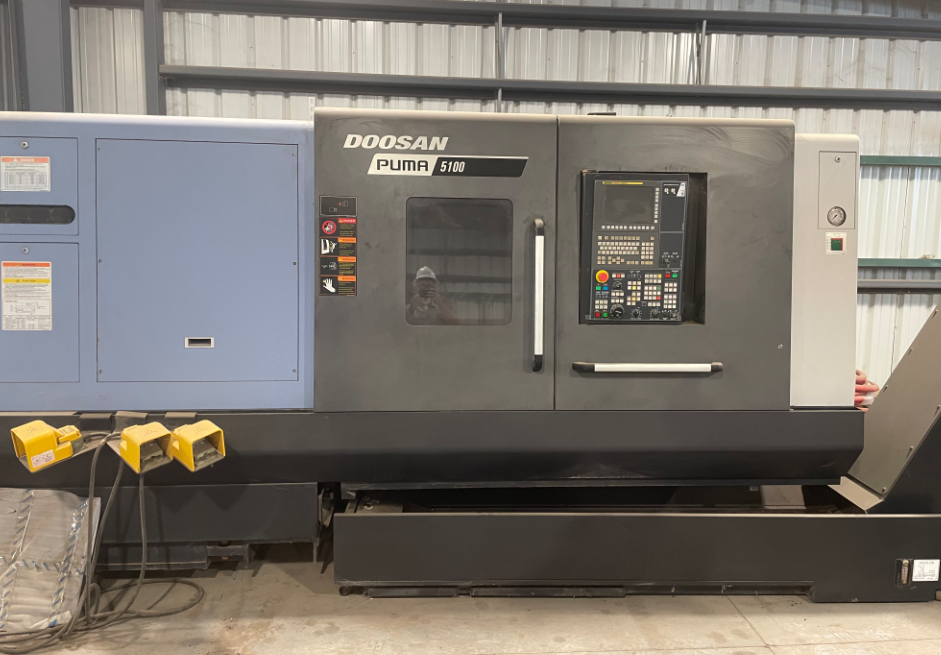

Used Doosan Puma 5100C (2016) CNC Lathe for Sale. This pre-owned Doosan CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Doosan Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
21" |
|---|---|
| Bar Capacity |
10" |
| Swing |
35.4" |
| Turning Diameter |
25.6" |
| Spindle Speed |
1,000 RPM |
| Control |
FOiTD |
| Distance Between Centers |
40" |
| Approx. Machine Dimensions |
187.5" x 81" x 86.4" |
| Approx. Machine Weight |
23,480 Lbs |
Features
|

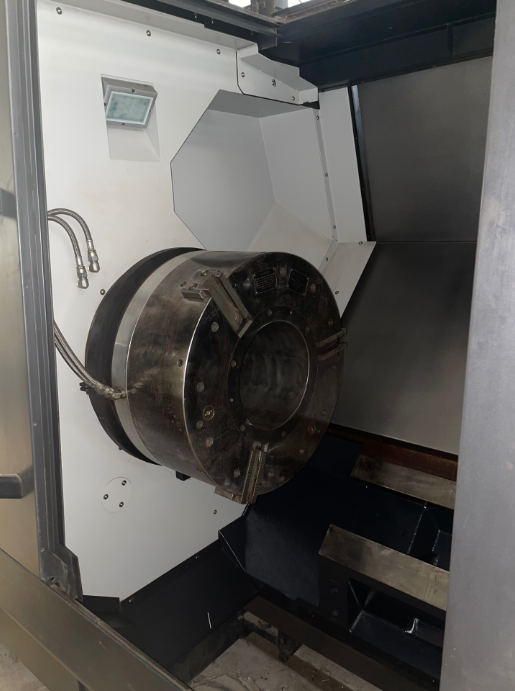

21" Air Chuck |
ATS Systems Air Control System |
|
Custom Macro B (with Extended Variables 600) Including AAPI Pin Connection Program |
Front and Rear ATS Systems BT10.8ES Pneumatic Chucks with 10.8" Thru Hole |
|
G-10 Programmable Date Input |
High Pressure Coolant Pump (145 PSI) |
|
Rear Chuck Guard for Pneumatic Chuck |
Selector Switch and Jaw Jogging |
|
Turbo Side Discharge Chip Conveyor with Variable Speed Drive & M-Code Capability |

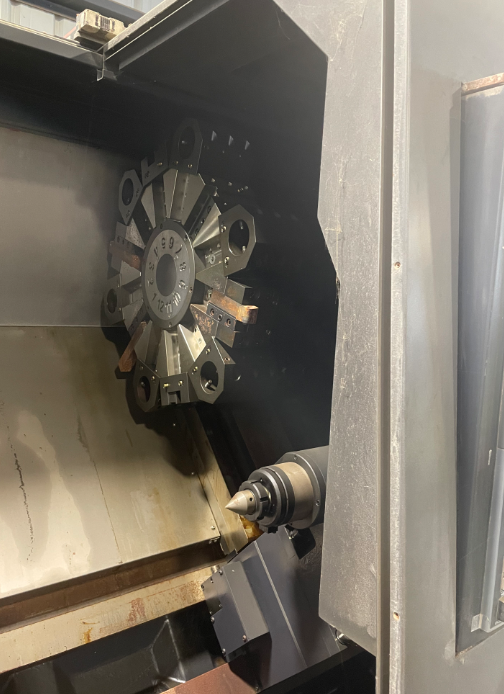

Tailstock |
|
Spindle Orientation |
Variable Speed Threading |
