| Year | 2016 |
|---|---|
| Make | DoAll |
| Model | 500 SNC |
Description |
Horizontal Band Saw |
| Reference # | 8076549 |

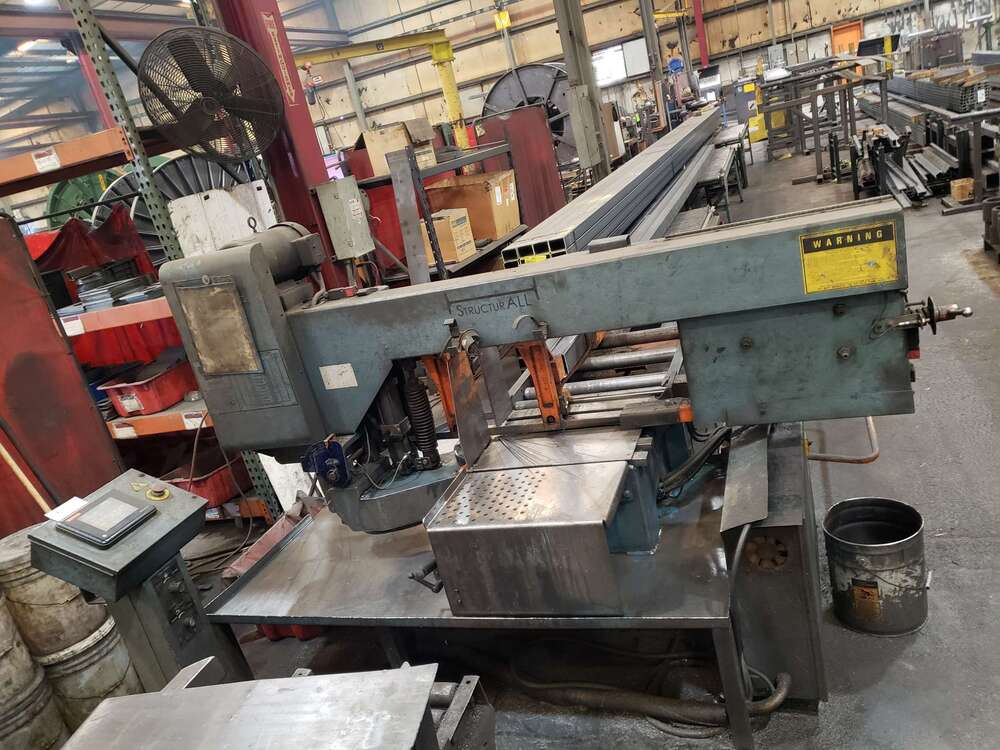

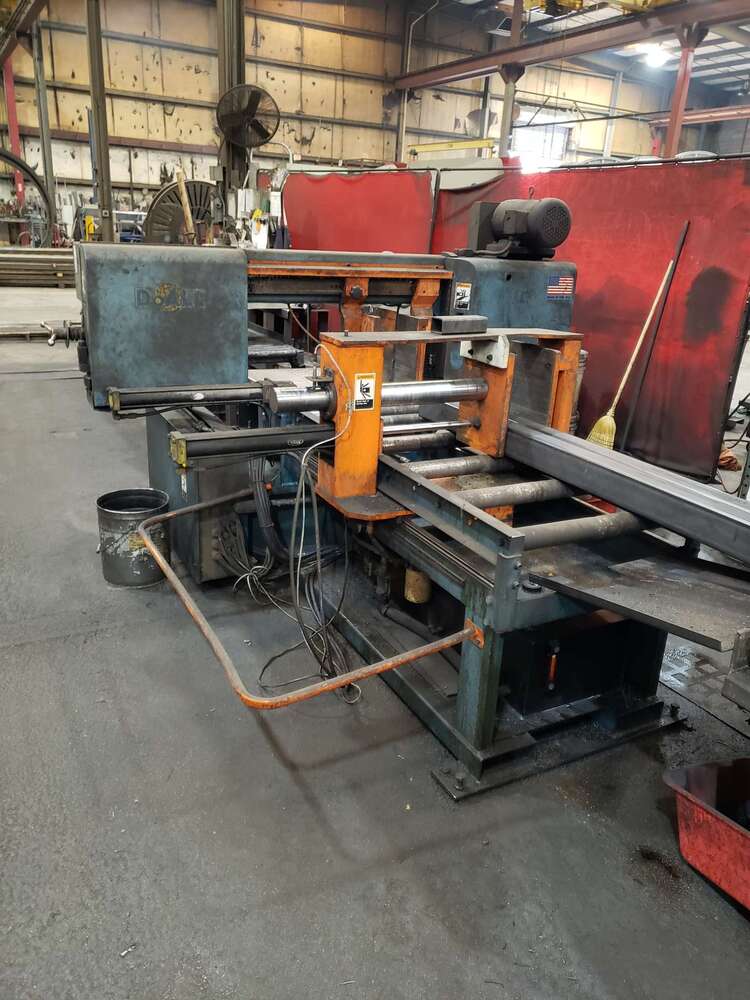

Used DoAll 500 SNC Saw for Sale. This pre-owned DoAll automatic horizontal bandsaw is located in The United States. If you have any questions regarding this DoAll Saw, please feel free to contact us. You may Activate Pricing to view the price of this Saw, or request a quote by clicking on the Inquire Now button.
Specifications
| Capacity at 90 Degrees |
14" x 20" / Rounds 14" |
|---|---|
| Capacity at 45 Degrees |
14" x 14" / Rounds 14" |
| Capacity at 60 Degrees |
14" x 8" Rounds 10" |
| Recommended Blade |
1-1/4" x .042" |
| Max. Blade Length |
197" |
| Band Speed |
50-400 FPM |
| Band Drive Motor |
5 HP |
| Hydraulic System Capacity |
12 Gal. |
| Hydraulic Motor |
20 HP |
| Approximate Dimensions |
8' x 8' |
| Machine Weight |
3000 Lbs |
Features
|
Equipped with Band Tension Spring Loaded by Handwheel |
Feed Control Adjustable Feed Rate and Feed |
|
Head Counter Balanced |
Vise Hydraulic Full Height and Stroke |
|
Wheels 20" Diameter Cast Iron |
Flood Coolant System |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
