| Year | 2015 |
|---|---|
| Make | Mazak |
| Model | Integrex i-200S |
Description |
CNC Lathe |
| Reference # | 8073303 |

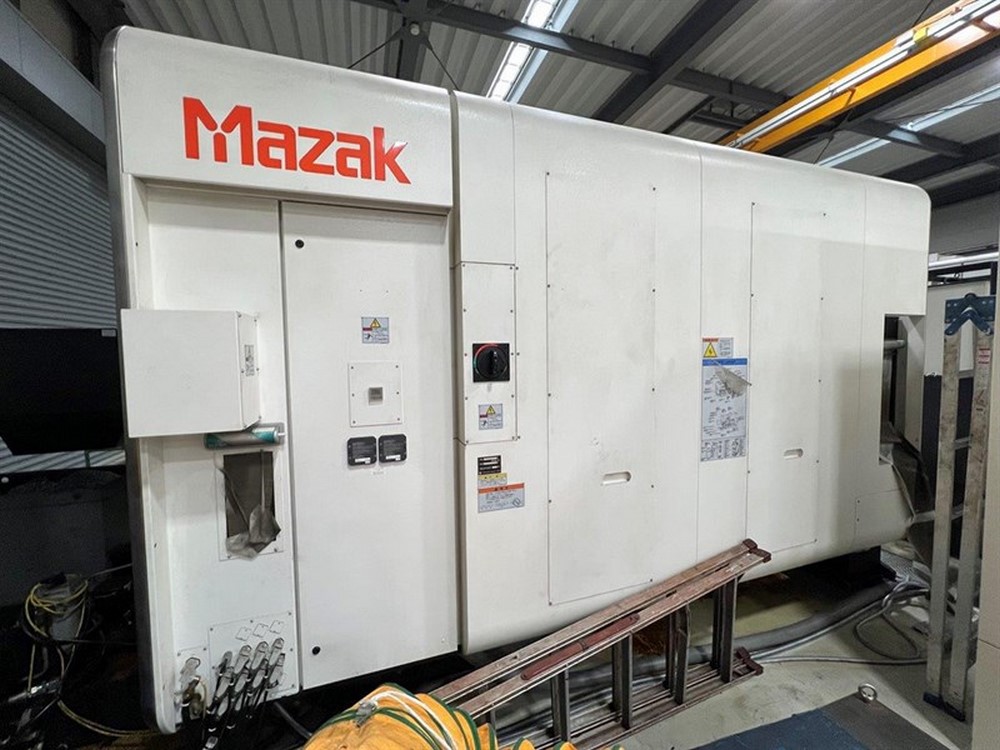

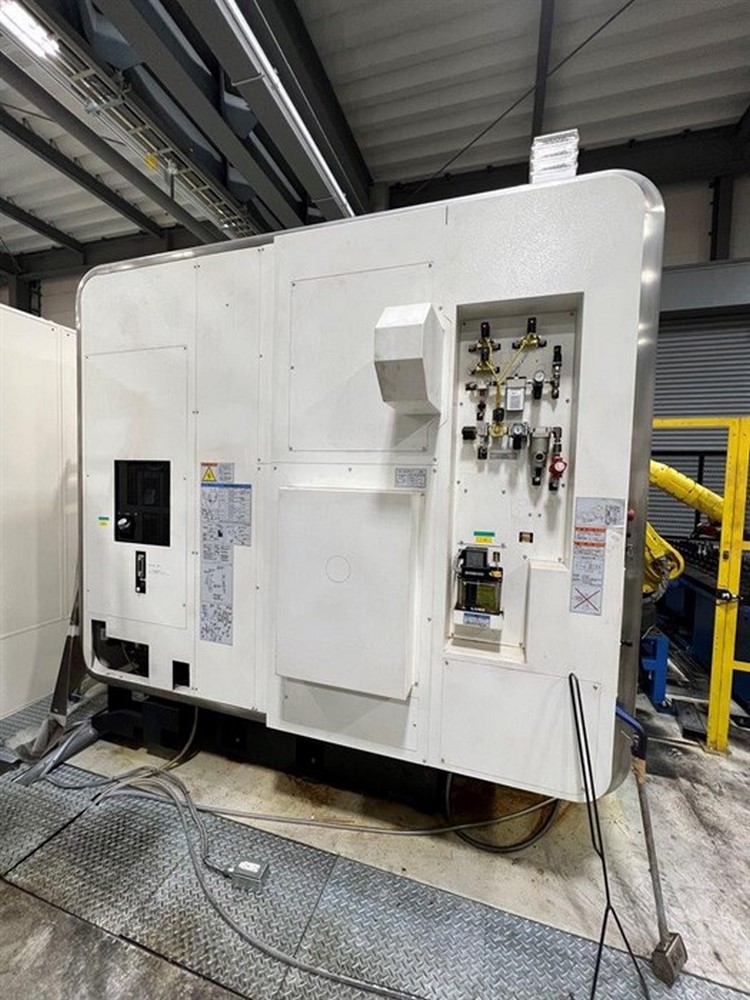

Used Mazak Integrex i-200S (2015) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications

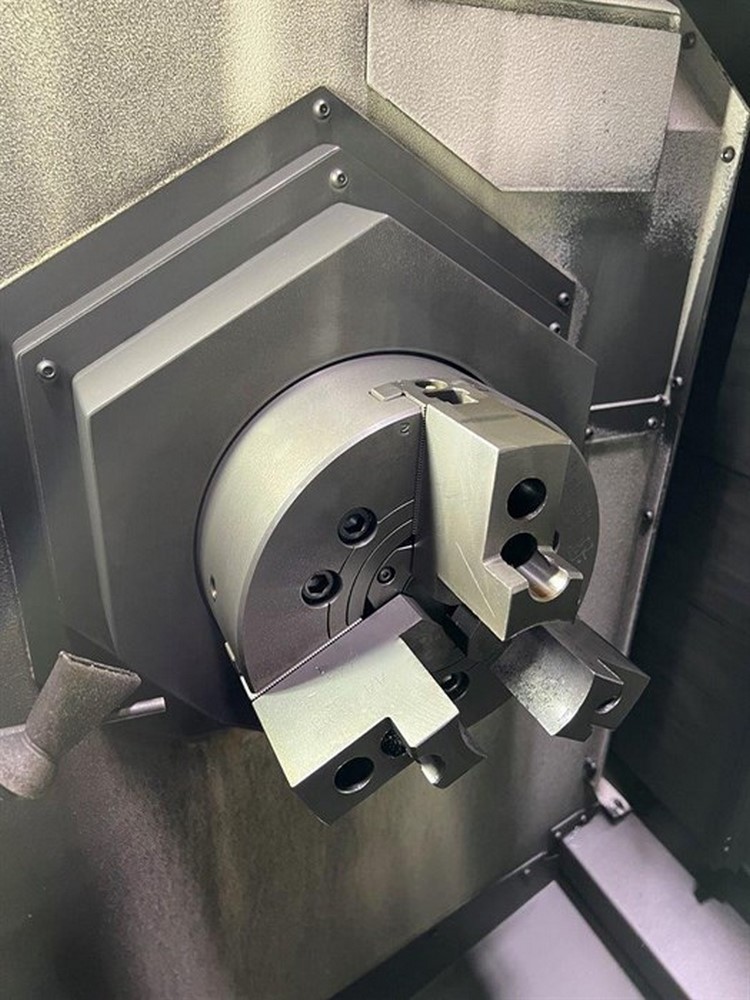

| Chuck Size |
8" |
|---|---|
| Bar Capacity |
2.56" |
| Swing |
25.9" |
| Turning Diameter |
16.53" |
| Spindle Speed |
5,000 RPM |

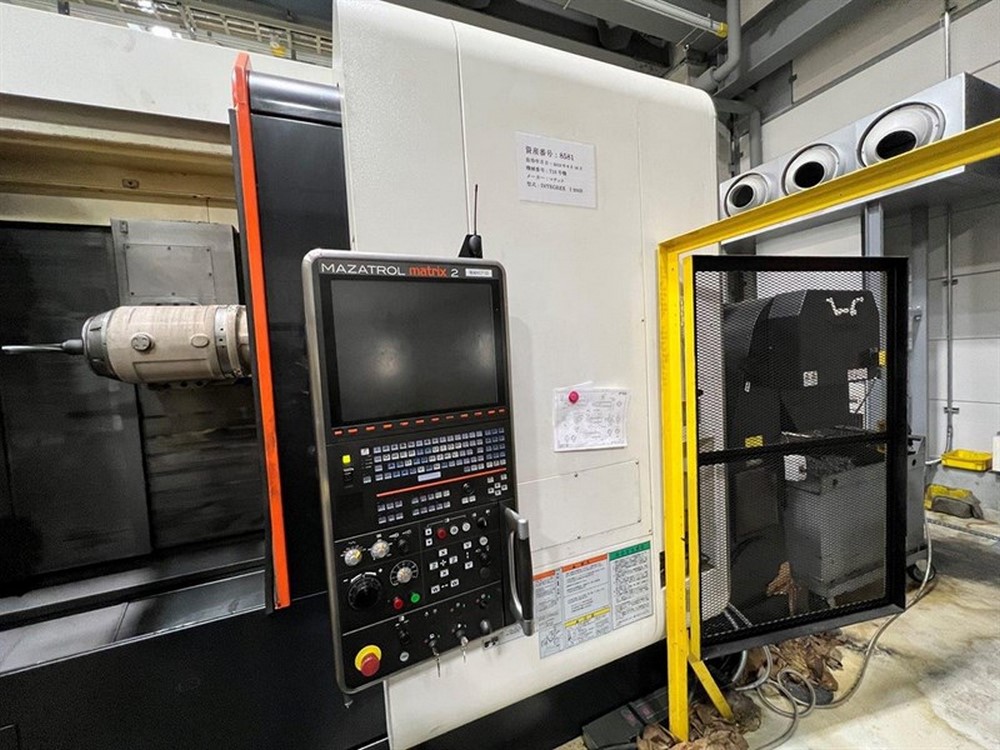

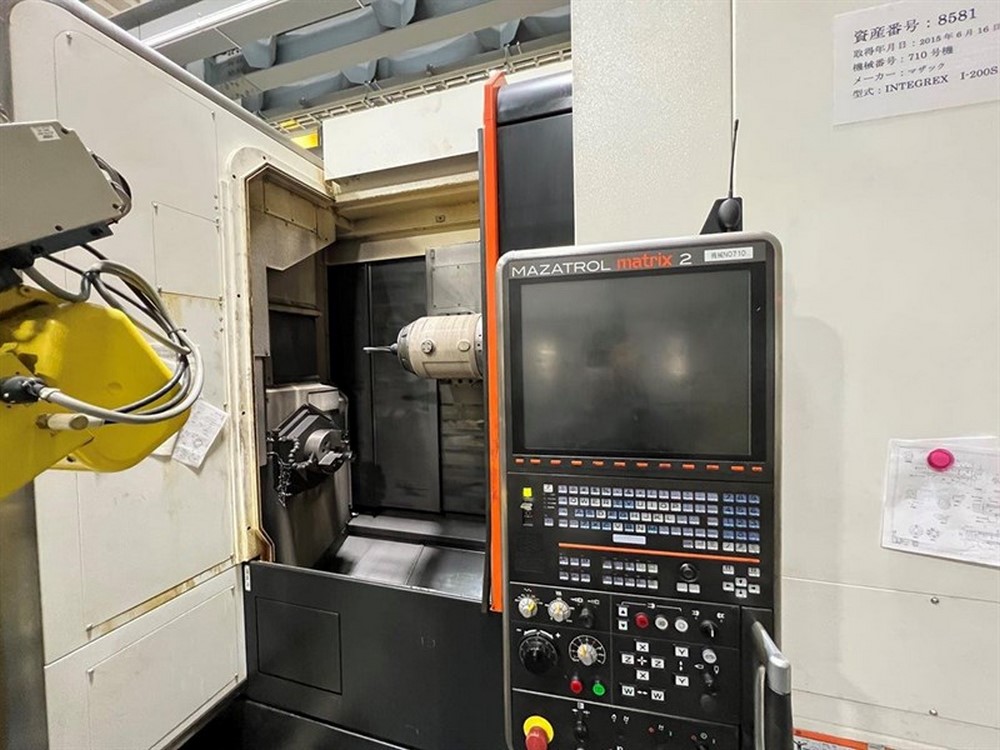

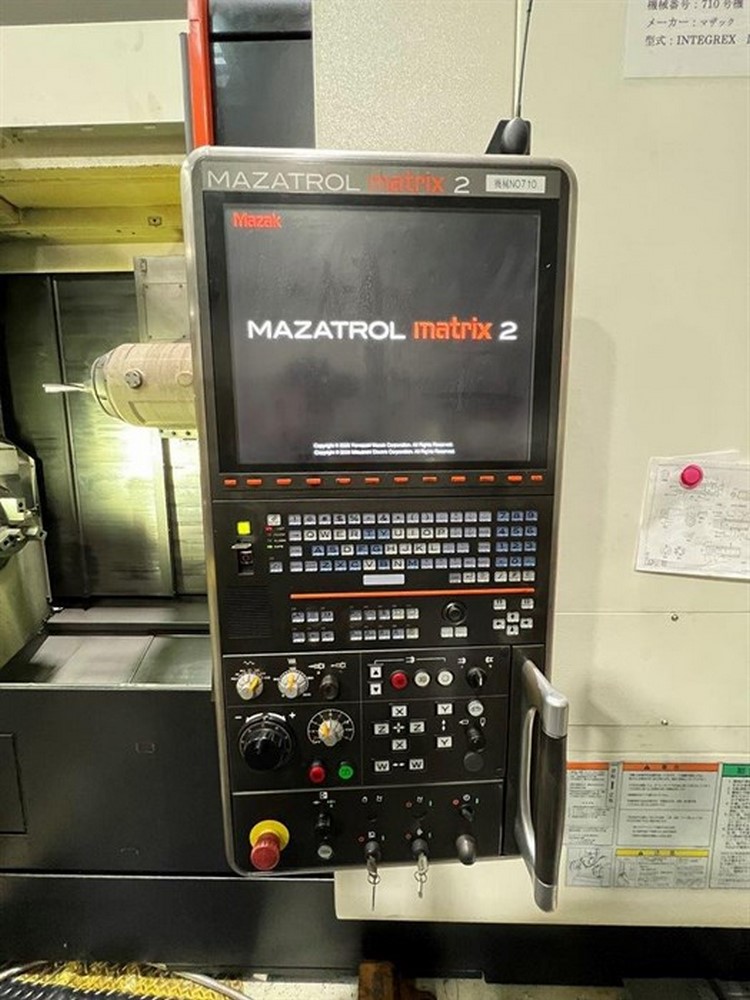

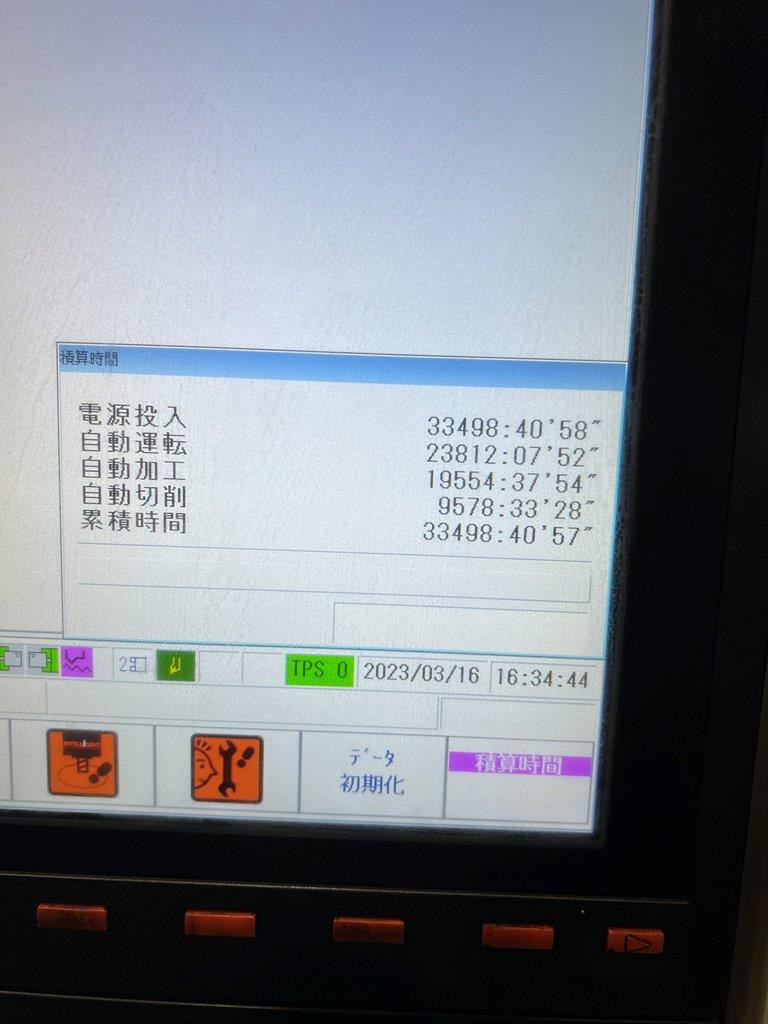

| Control |
Mazatrol Matrix II CNC Conversational |
| Distance Between Centers |
41.77" |

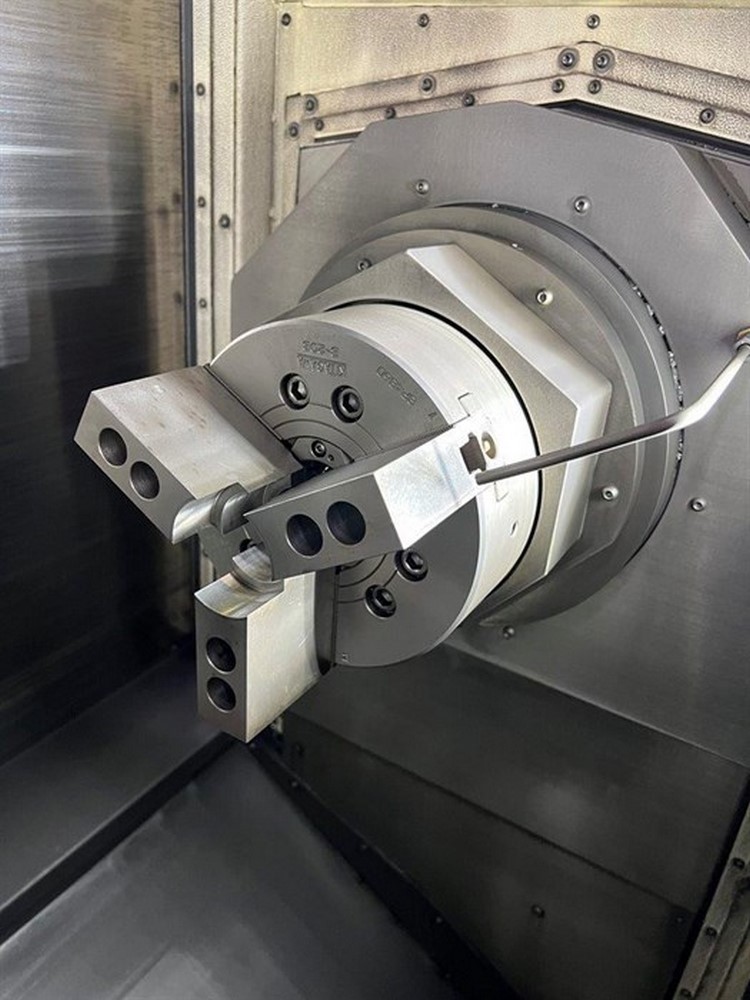

| Sub-Spindle |
5,000 RPM, 8" Chuck |

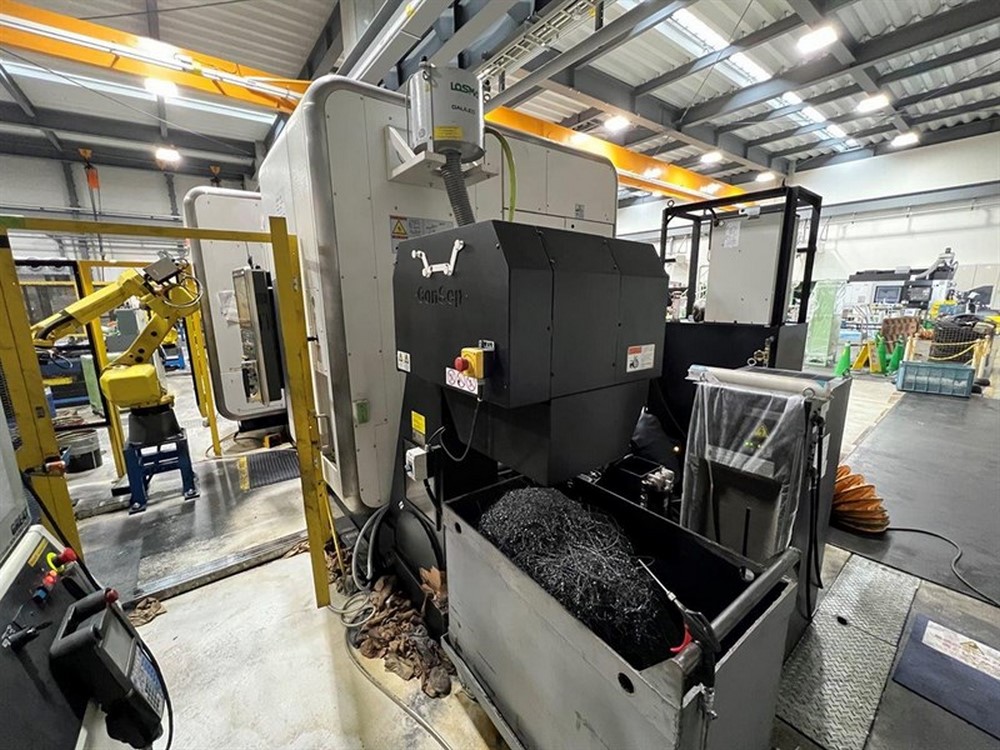

| Chip Removal |
Chip Conveyor |

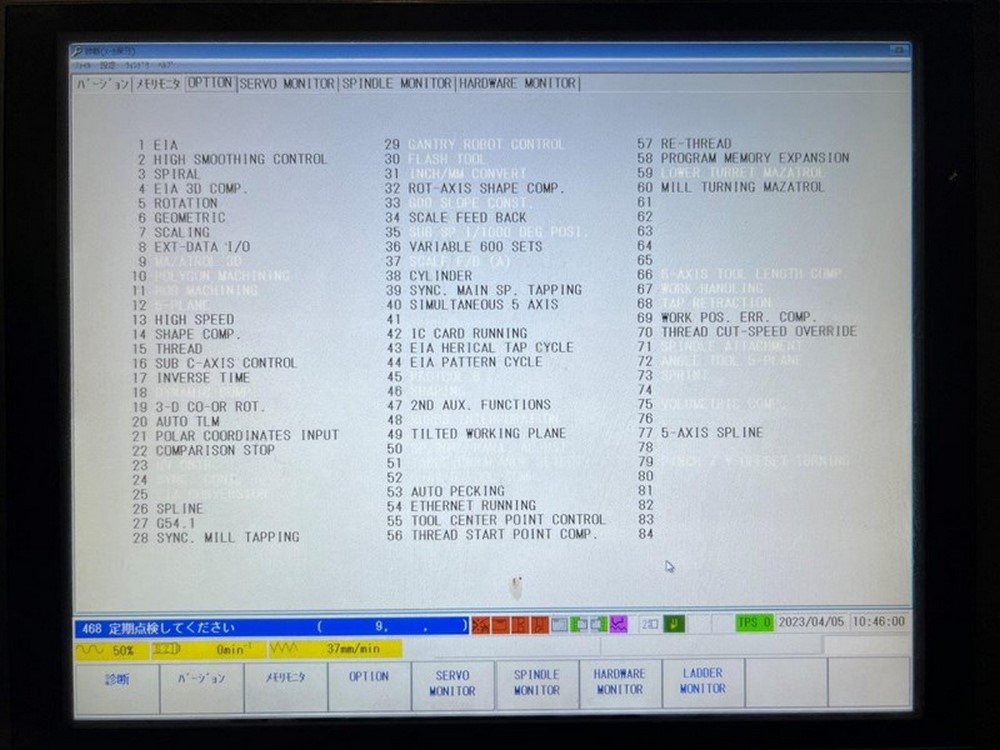

Features
|
3-D Co-Or Rotation |
Auto Door Open and Close |
|
Ethernet Running |
Ex Data I/O |
|

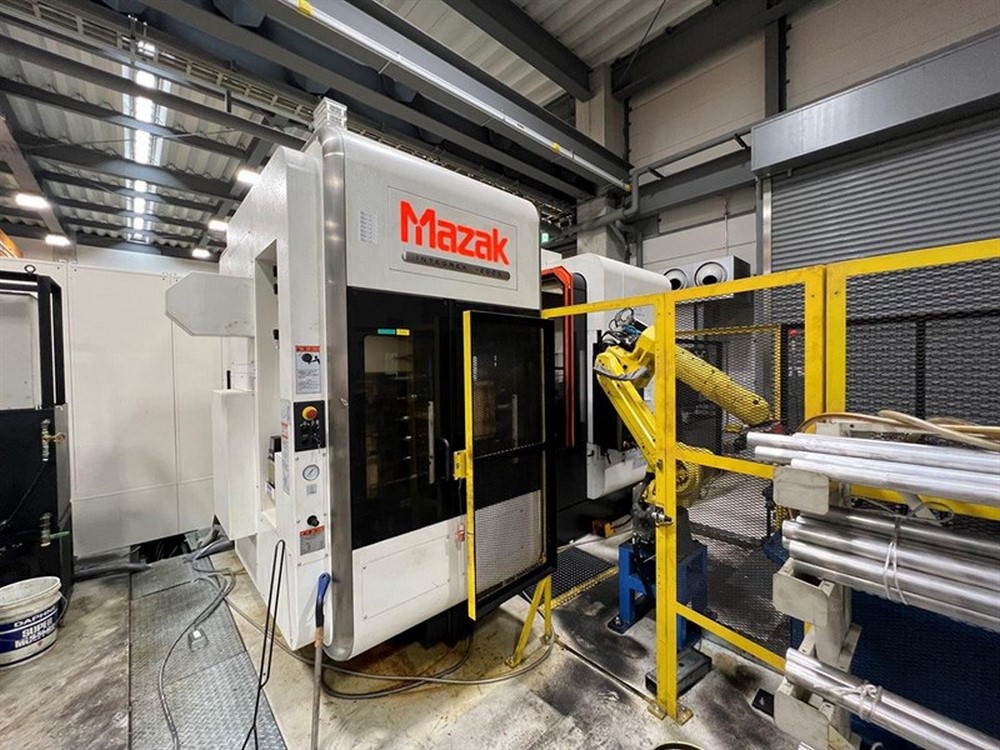

Fanuc M-20 IA 6-Axis Robot |
Fanuc System R - 30ib Robot Controller With Pendant |
|
High Speed |
Program Memory Expansion |
|
Scale Feed Back |
Sync Mill Tap |
|
Thread Cut-Speed Override |
Polar Coordinate Input |
|
Shape Compensation |
Re-Thread |
|
Rigid Tapping |
Sub C-Axis Control |
|
5-Axis Spline Interpolation |
Thread Start Point Compensation |
|
Tilted Work Plane |
Tool Center Point Control |
|
Variable 600 Sets |
Auto Pecking |
|
Comparison Stop |
Eia 3-D Comp |
|
EIA Helical Tap Cycle |
Geometric |
|
Inverse Time |
