| Year | 2015 |
|---|---|
| Make | Brandt |
| Model | Ambition 1110 |
Description |
Woodworking Machine |
| Reference # | 8076520 |

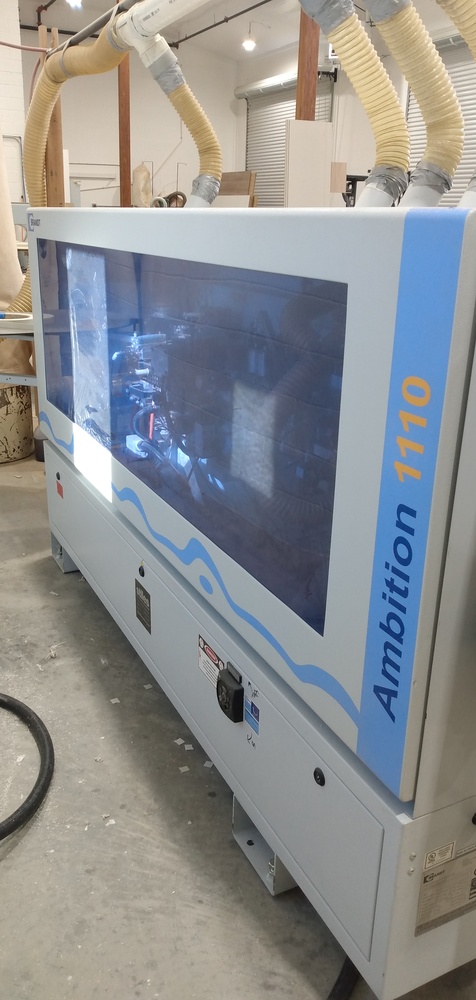

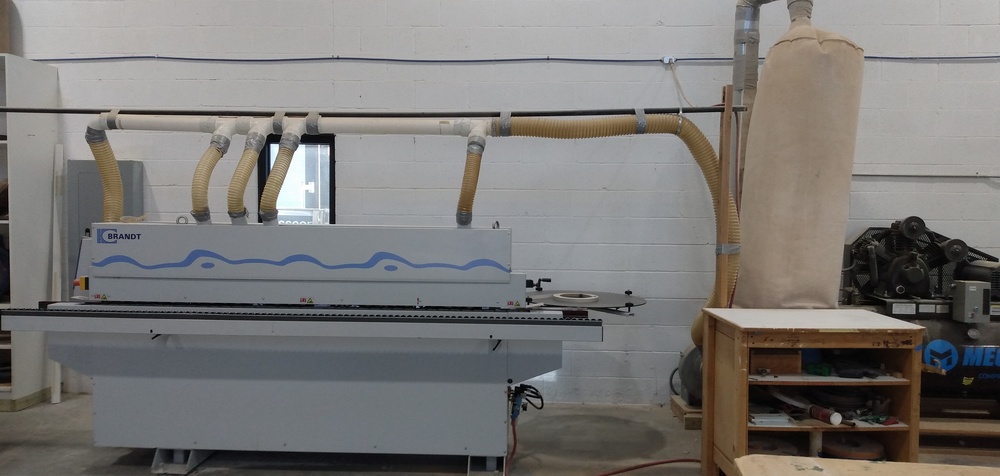

Brandt Ambition 1110
Specifications
| Min & Max Thicknesses |
016 to 1/8" (Coil or Strip) |
|---|---|
| Strip Lengths (Min/Max) |
9" min. to 2" Max (Panel Thickness) |
| Min Panel Length |
5.5" |
| Edgeband Height |
5/16 to 1-5/8" |

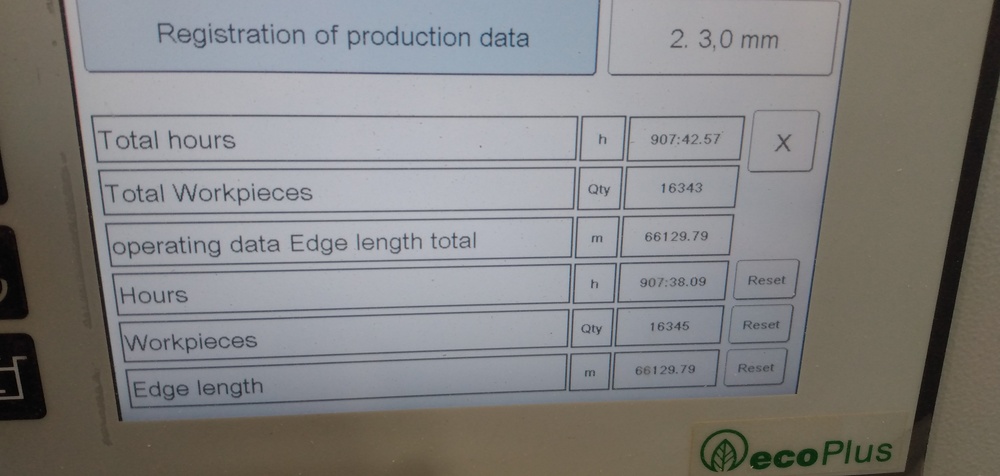

| Controller |
Electronic Easy Control with Backlit LCD Display |
| Horsepower |
1/4 HP 12000 RPM Double Motor End Trim .33 HP |
| Machine Dimensions |
12'1" Long x 4' Wide at 1650 Lbs. |
| Compressed Air Connection |
6 Bar (85 PSI) Isolation Transformer with Variable Infeed Voltage for Balancing All 3 Phases of Incoming Power |
Features
|
Digital on Top Pressure Beam for Height Indication |
Finish Scraping Unit 3/4 HP 1-Speed Feed with Speed of 26 FPM |
|
Top and Bottom Profile Quick Change Scraping Unit |
*
Important: All machinery specifications must be independently verified by buyer. All machinery sales are
subject to prior sale. Any agreement to purchase or sell machinery must be in writing.
