| Year | 2014 |
|---|---|
| Make | Tsugami |
| Model | SS327-5AX |
Description |
CNC Swiss Lathe |
| Reference # | 8073502 |

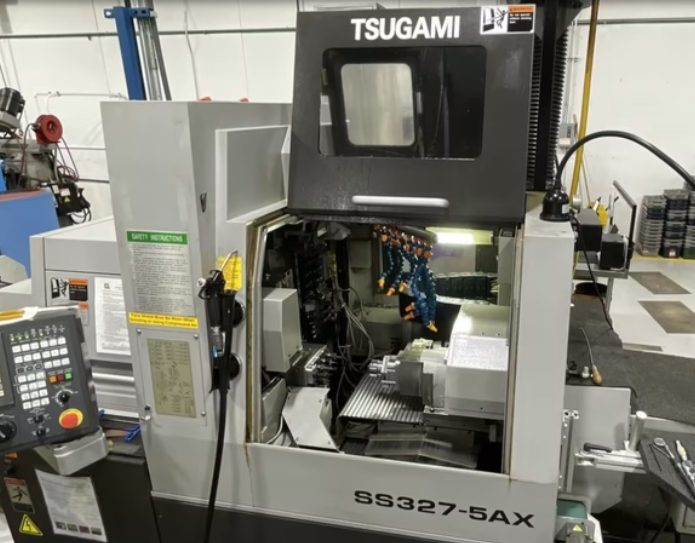

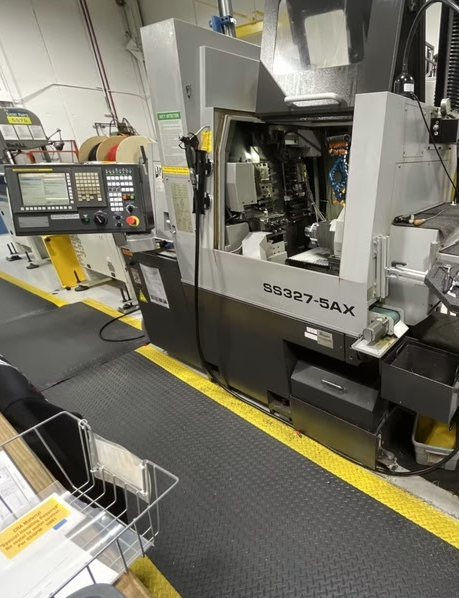

Used Tsugami SS327-5AX (2014) CNC Swiss Lathe for Sale. This pre-owned Tsugami CNC swiss lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Tsugami Swiss Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Bar Capacity |
1.26" |
|---|---|
| Spindle Speed |
10,000 RPM |
| Control |

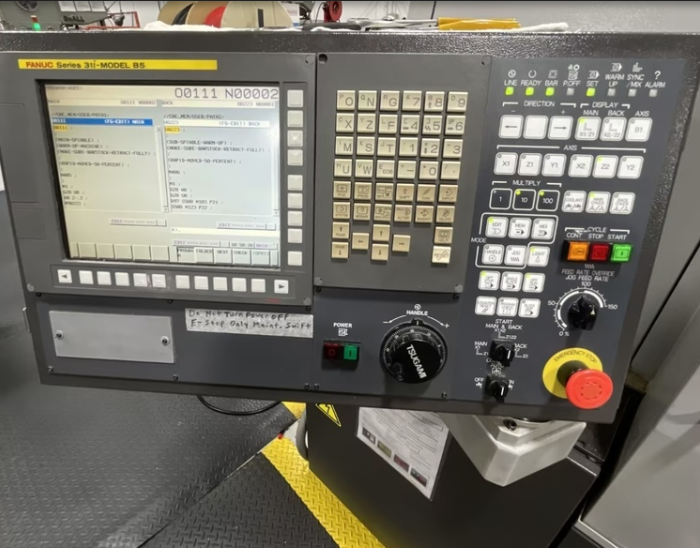

Fanuc 31i B5 |
| Turret |
38 |
| Max Headstock Stroke with Guide Bushing |
12.99" |
| Max Headstock Stroke without Guide Bushing |
2.76" |
| Approximate Weight |
8,818 Lbs |
Features
|
B-Axis Brake |

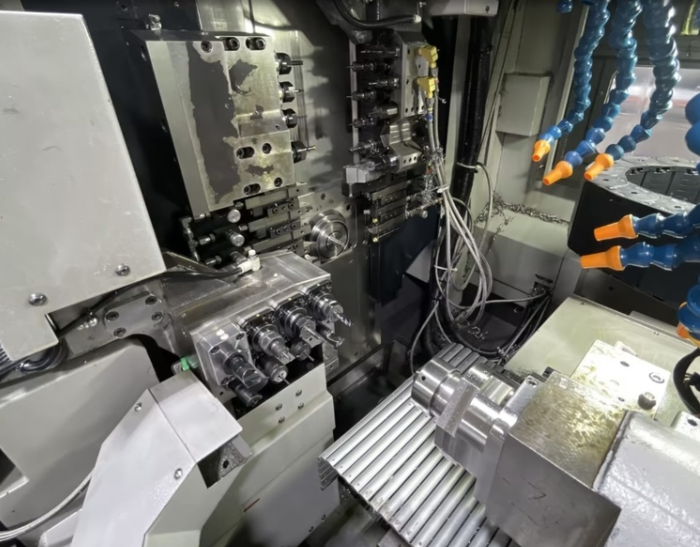

B-Axis Live Tools (4 Front/4 Rear) |
|
Back Adapter |
Back Spindle Brake |
|
Back Tool Spindle |
Drill Holder M |
|
Drill Holder S |

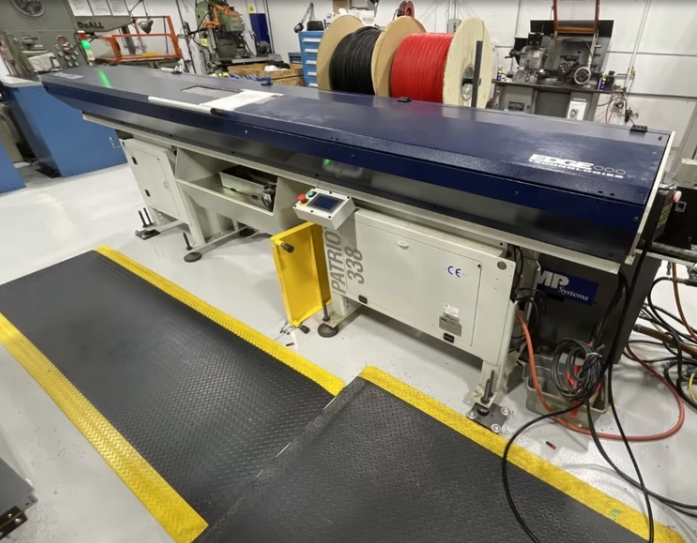

Edge Patriot 338 Barfeeder |
|
Front Discharge With Air Blow |
Mist Dust Collector |
|
Spindle Index C1 Axis and C2 Axis |
Work Conveyor |
|
Y1 Axis Touch Switch |
Parts Catcher |
|
7-Axes |
High Pressure Pump |
