| Year | 2013 |
|---|---|
| Make | You Ji |
| Model | YV 600 ATC-C |
Description |
CNC Vertical Turret Lathe |
| Reference # | 8072642 |

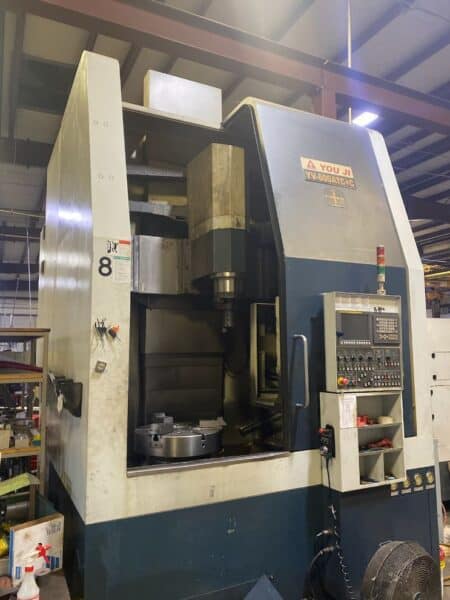

Used You Ji YV 600 ATC-C (2013) CNC Vertical Turret Lathe for Sale. This pre-owned You Ji CNC vertical turret lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this You Ji Vertical Turret Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
24" |
|---|---|
| Swing |
33.5" |
| Turning Diameter |
33.5" |
| Standard Turning Diameter |
24.4" |
| Spindle Speed |
1,500 RPM |
| Control |
Fanuc Oi-TD |
| X-Axis Travel |
-1.97"/+22.4" |
| Z-Axis Travel |
31.5" |
| Max Cutting Height |
25.6" |
| C-Axis |
.001 Degree |

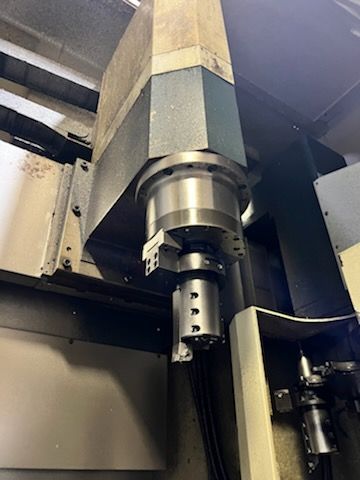

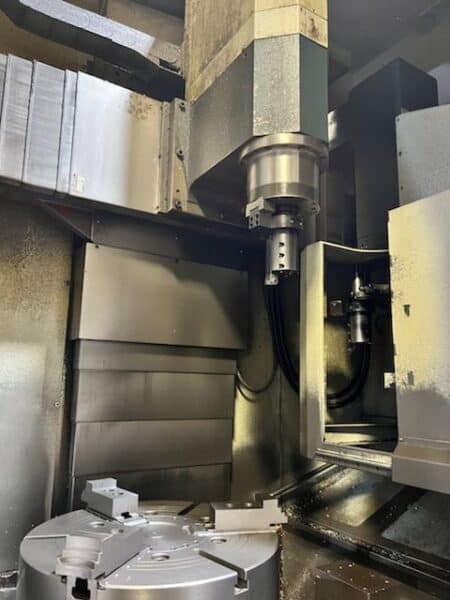

| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling |
| Chip Removal |
Chip Conveyor with Chip Bucket |
| Power Requirement |
150 AMP, 208/220V |
| Spindle Motor |
10 HP |
| Floor Space |
141" x 83" x 130" |
| Machine Weight |
34,000 Lbs |
Features
|
#50 Taper Tool Mounting |
2 Speed ZF Planetary Gearbox |
|

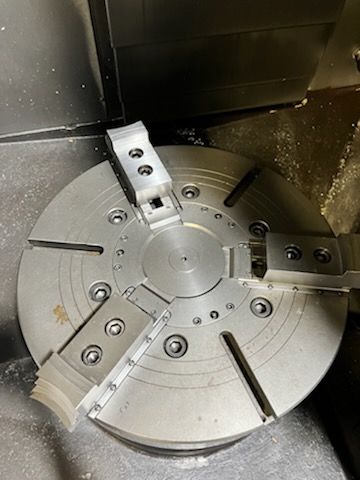

24" 3-Jaw Hydraulic Chuck with Cylinder |
Spindle Orientation |
|
Under Power |
512K Program Memory |
|
60 Gallon Coolant Tank |
8.4”Color High Res LCD |
|
A2-11 Spindle Nose |
Umbrella / Electric ATC Type |
|
Alpha i AC Digital Servo and Spindle Systems with 1M Pulse Encoders |
Automatic Lubrication System |
|
BT50 Tool Shank Type |
Coolant System with Coolant Thru Tool Holders |
|
Fanuc Manual Guide Oi Conversational Programming |
Heat Exchanger for Electrical Cabinet |
