| Year | 2013 |
|---|---|
| Make | South Bend |
| Model | SB1039F 14 x 40 |
Description |
Engine Lathe |
| Reference # | 8076793 |

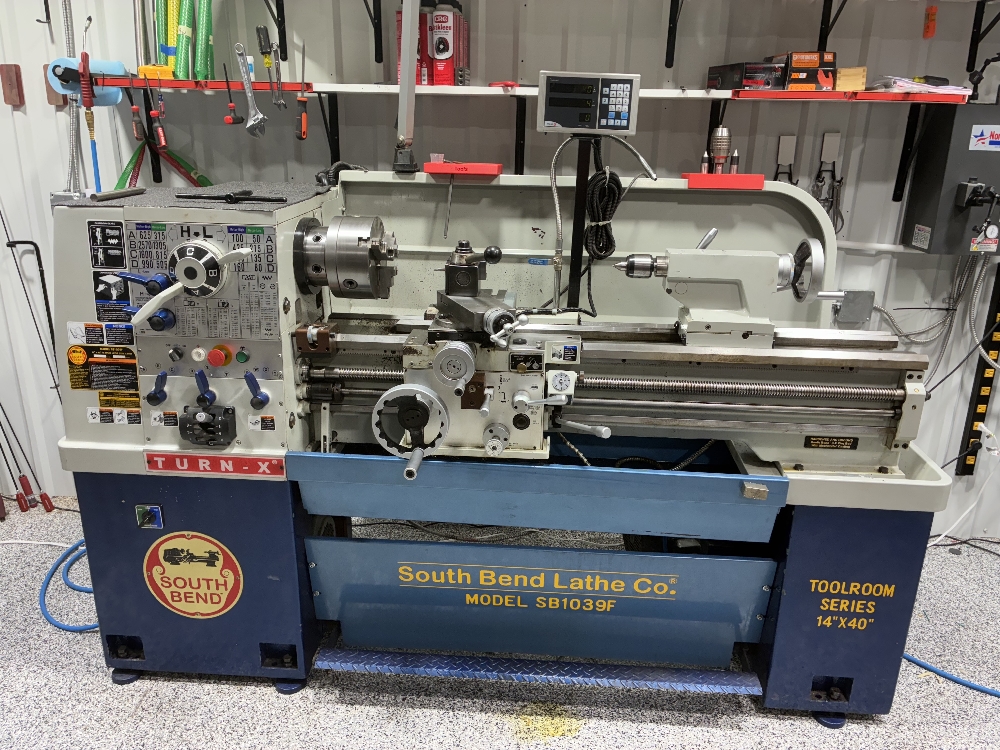

Used South Bend SB1039F 14 x 40 (2013) Engine Lathe for Sale. This pre-owned South Bend CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this South Bend Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
10" |
|---|---|
| Bar Capacity |
1.57" |
| Turning Diameter |
14.17" |
| Spindle Speed |
50-2570 |
| Control |

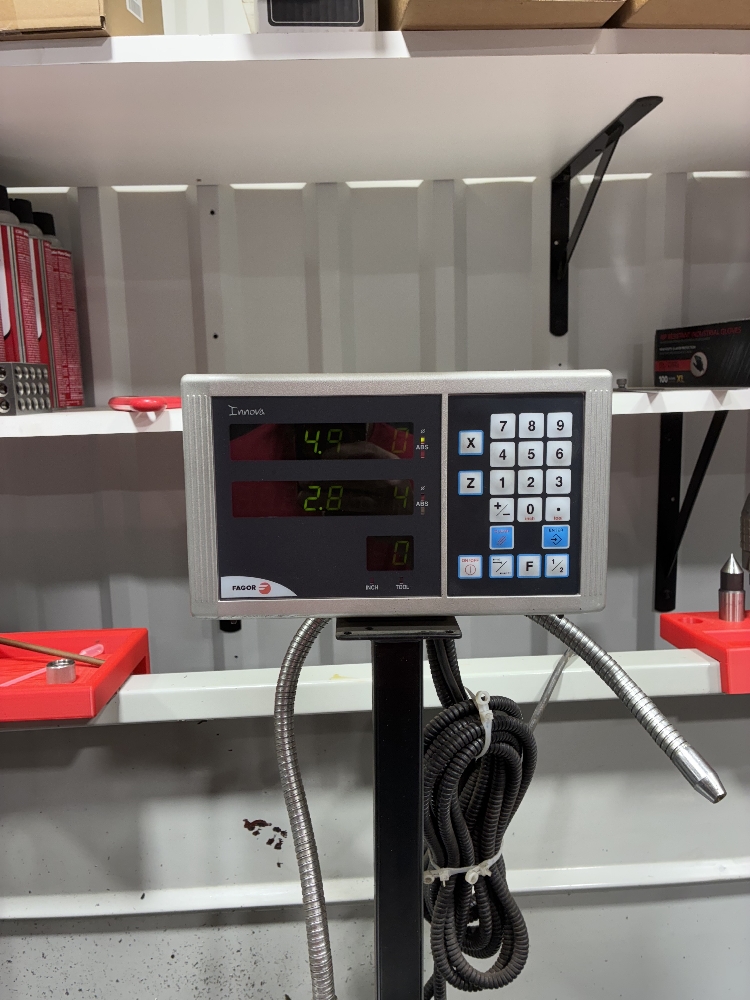

Fagor 2-Axis DRO |
| Distance Between Centers |
40" |
| Tailstock |
MT #3 w/ 4.5" of Wuill Travel |
| Power Requirement |
3PH 220V 14A/10A |
| Swing Over Bed |
14" |
| Swing Over Cross Slide |
8.66" |
| Swing Over Gap |
20.94" |
| Width of Bed |
9" |
| Cross Slide Travel |
7" |
| Spindle Nose |
D1-5 Camlock |
| Spindle Taper |
MT #5 |
Features
|
10" 4-Jaw Independent Chuck D1-5 |
16-Speed |
|
5 HP/ 2-1/2 HP |
8" 3-Jaw Scroll Chuck Mounted to D1-5 Plate |
|
Front Removable Sliding Chip Tray |
Rotary Phase Converter |
*
