| Year | 2013 |
|---|---|
| Make | Mazak |
| Model | Hyper Quadrex 450MY |
Description |
CNC Lathe |
| Reference # | 8075427 |

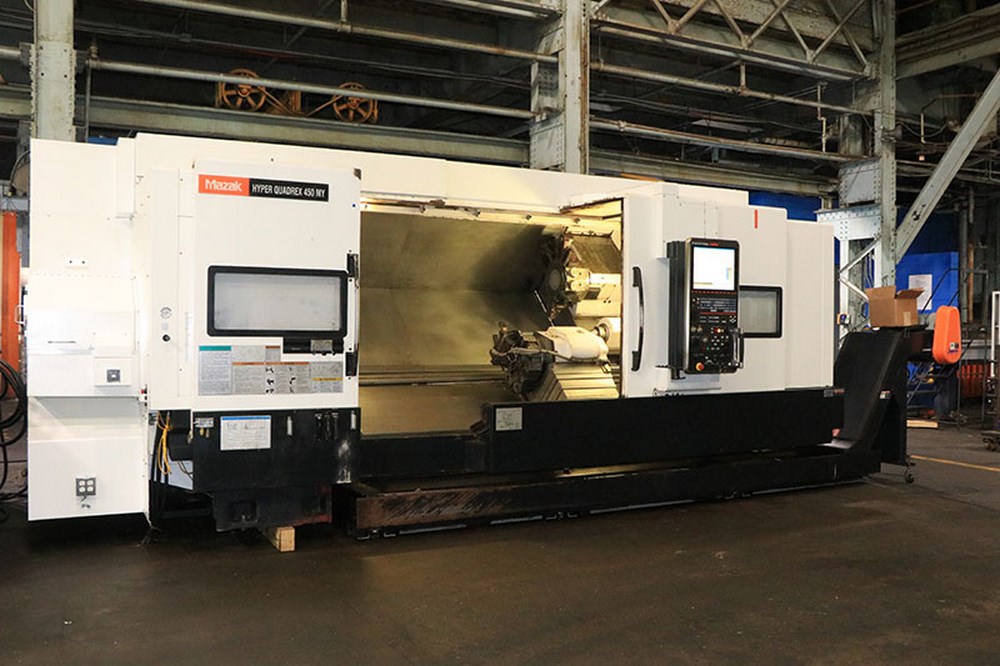

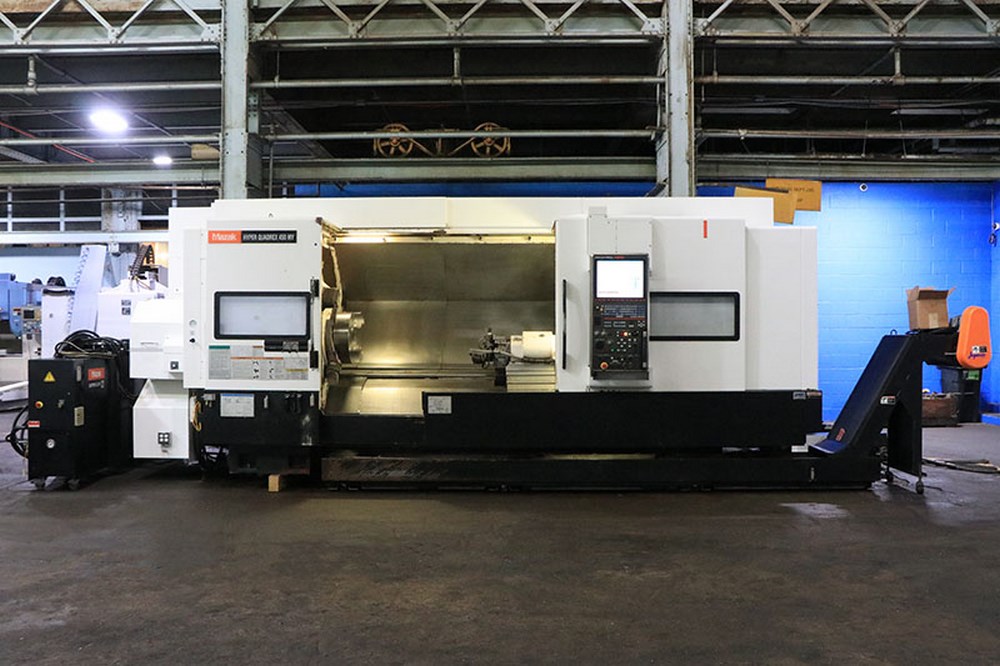

Used Mazak Hyper Quadrex 450MY (2013) CNC Lathe for Sale. This pre-owned Mazak CNC lathe is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mazak Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Chuck Size |
18" |
|---|---|
| Bar Capacity |
7.24" |
| Swing |
33.07" |
| Machining Diameter Upper Cutter |
13.23" |
| Machining Diameter Lower Cutter |
11.14" |
| Spindle Speed |
1,500 RPM |
| Control |

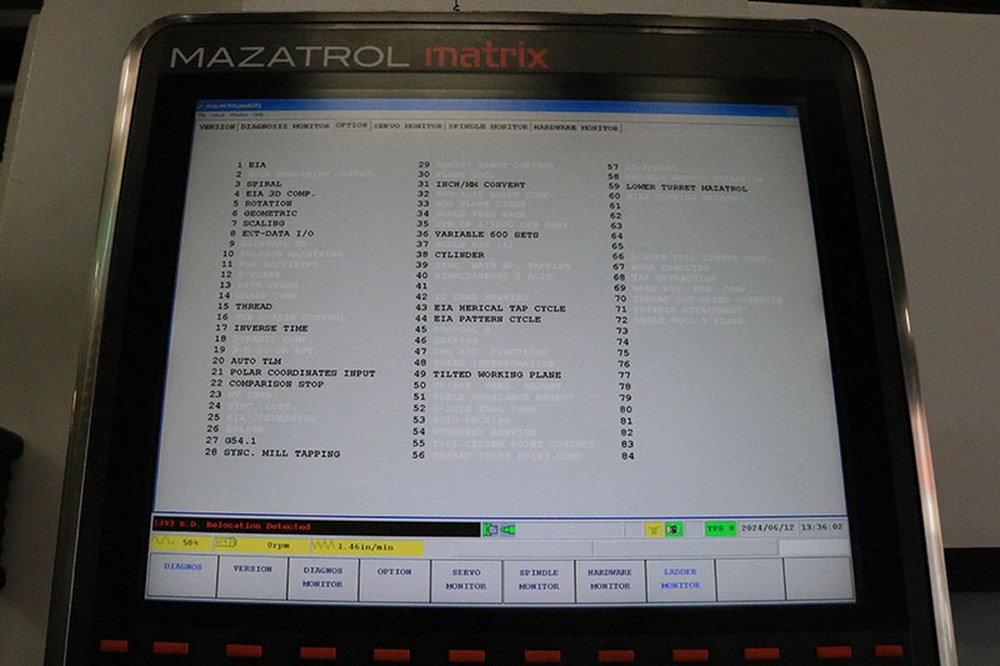

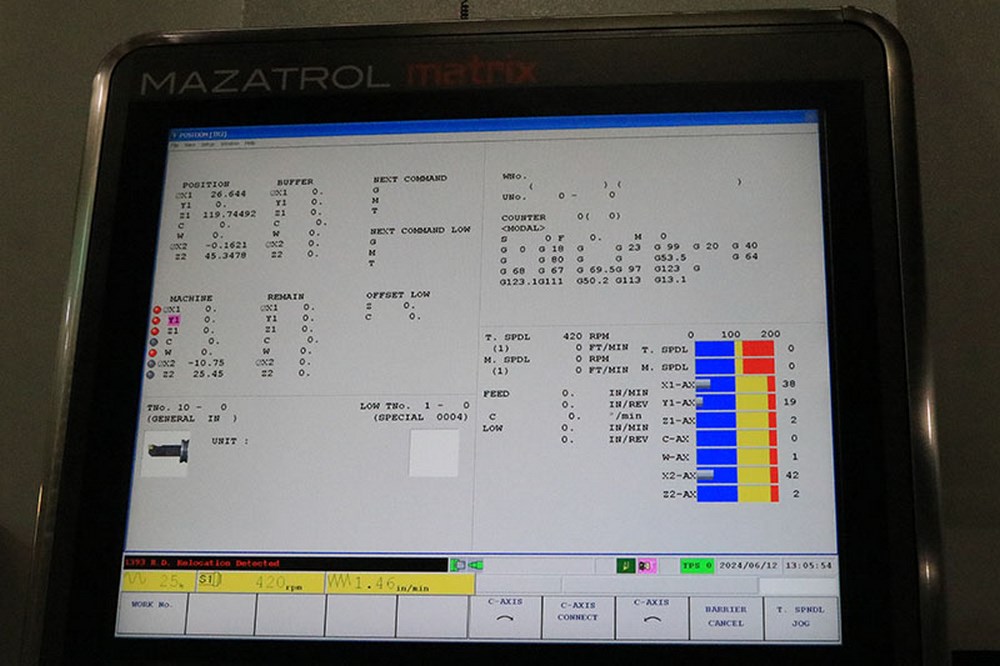

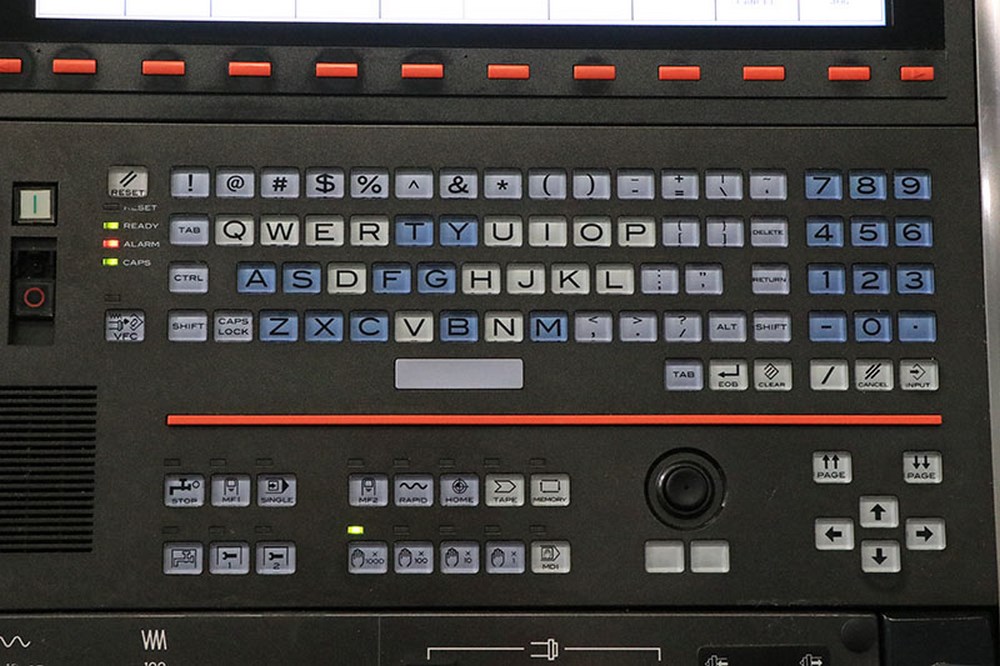

Mazatrol Matrix |
| Distance Between Centers |
82.83" |
| Turret |
12 Station |
| Live Tooling |
C-Axis Live Tooling, Y-Axis |
| Machine Weight |
39,000 Lbs |
| Machine Dimensions |
236"L x 106.5"W x 96" H |
Features
|

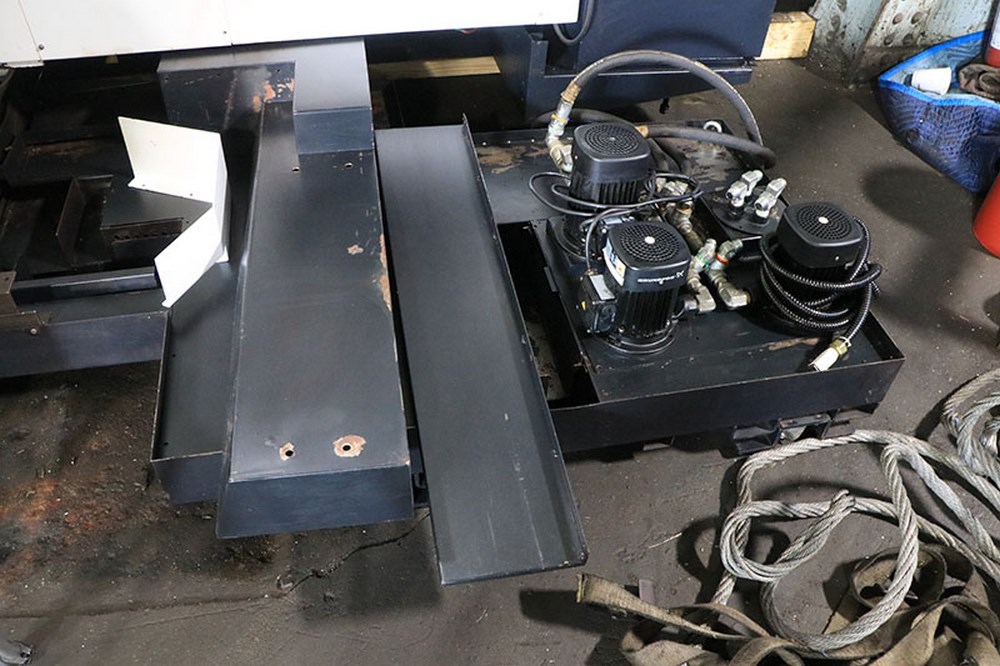

(2) Mazak Superflow High Pressure Pumps 2000 PSI |

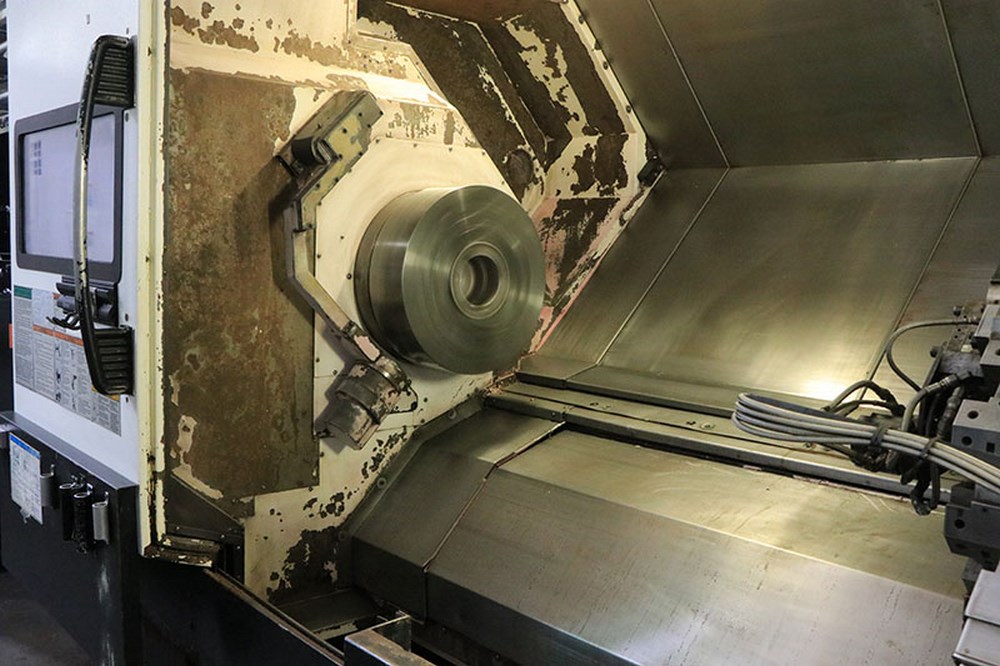

20" SMW Autoblok HG-N-500-165-3 Quick Change Manual 3-Jaw Chuck |
|
Assortment of Static Holders Plus (2) Live Holders |
SMW Autoblok SR2 Self Centering Steady Rest Mounted on Lower Turret |
|
Coolant Tank |

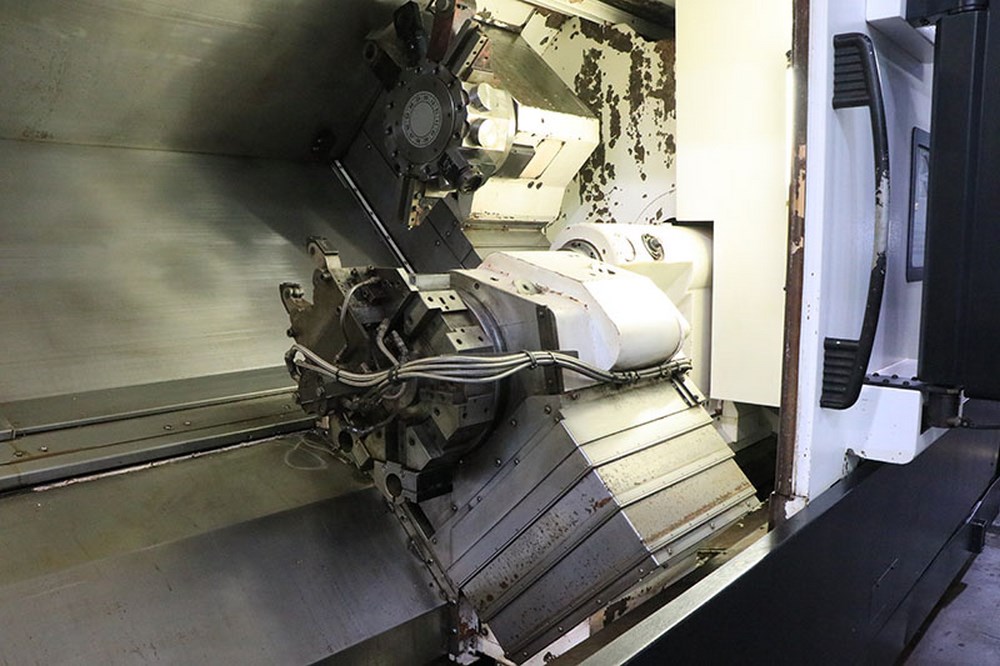

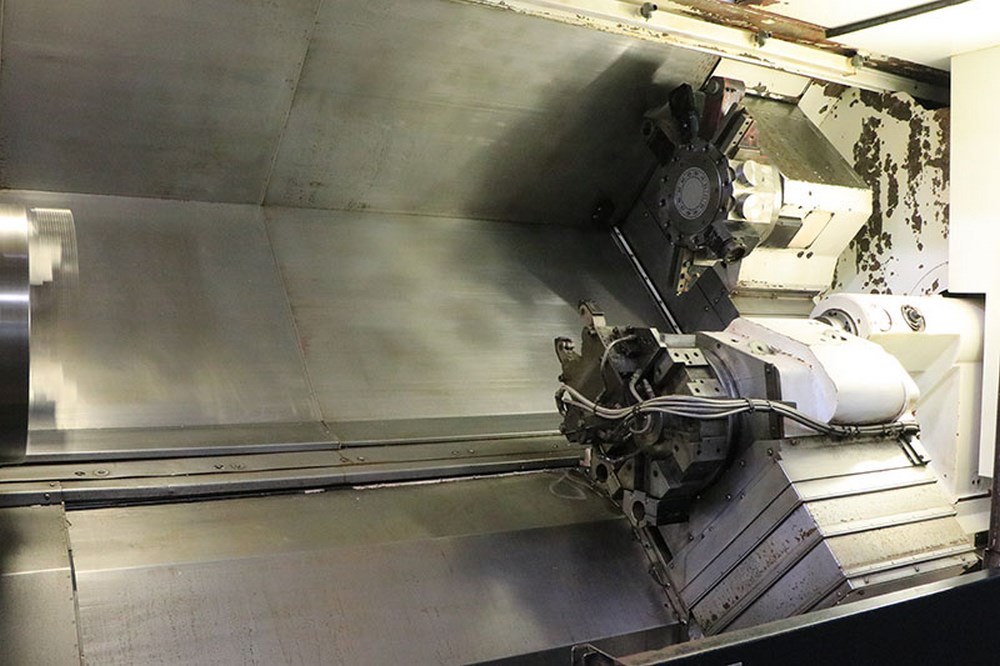

Dual Turret |
