| Year | 2013 |
|---|---|
| Make | Flow |
| Model | Mach 4 4030c-X5 |
Description |
10.1' x 13.1' XD Head CNC Waterjet |
| Reference # | 8072659 |

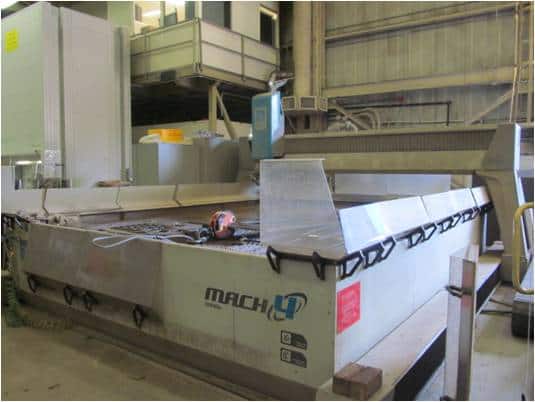

Used Flow Mach 4 4030c-X5 (2013) CNC Waterjet for Sale. This pre-owned Flow CNC waterjet is located in The United States. If you have any questions regarding this Flow Waterjet, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Table Width |
10.1' |
|---|---|
| Table Length |
13.1' |
| Control |
Flowmaster |
| Pump |
100 HP |
| Max Cutting Pressure |
94,000 PSI |
| Power Requirement |
460-480/3/60 |
| Rapid Traverse |
1400"/ Min. |
| Linear Straightness Accuracy |
.001" / 3 Ft |
| Repeatability |
.002" |
Features
|

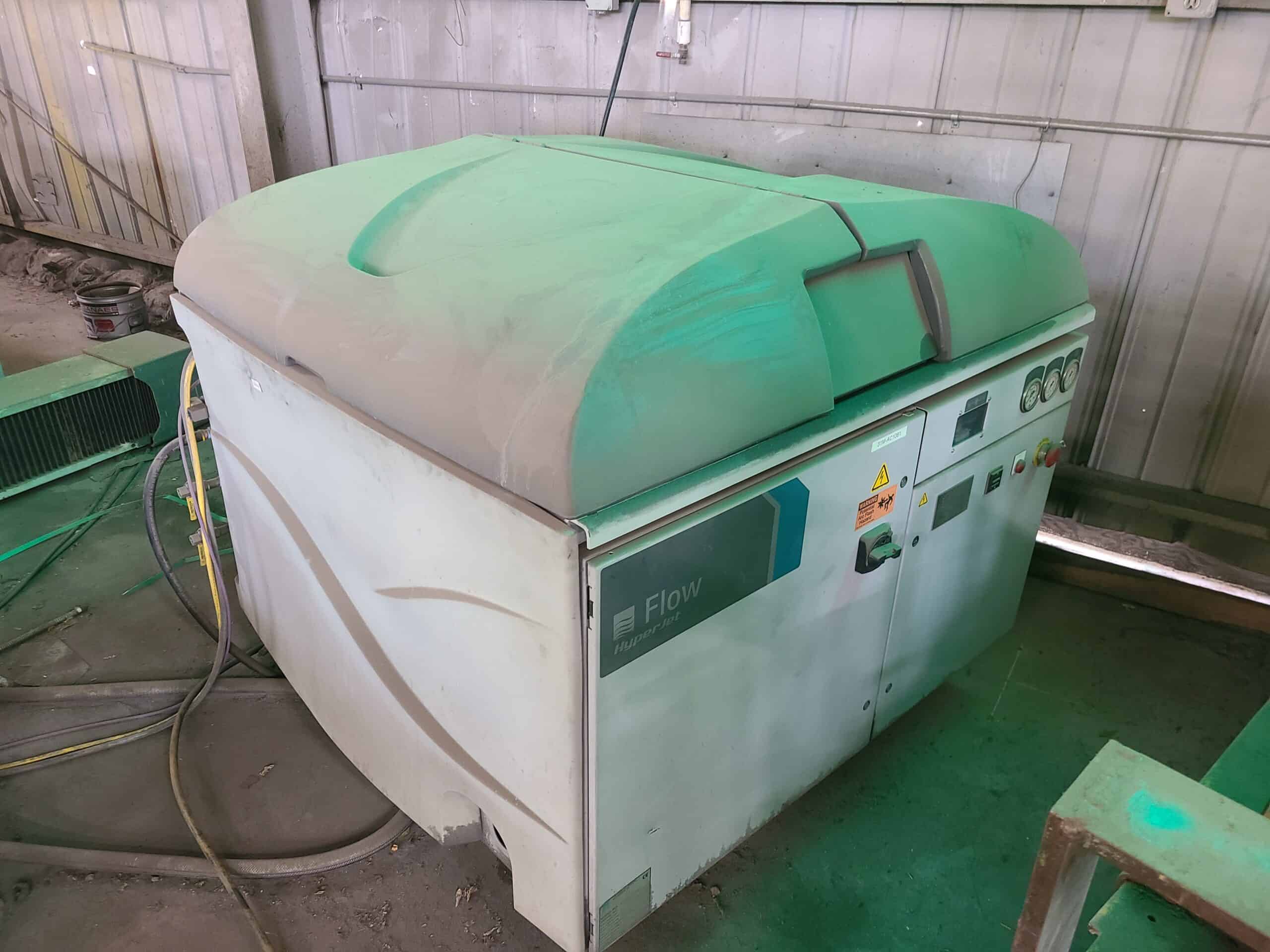

100 Hp HYPER JET 94i-D Intensifier Pump |
Solid State Soft Starter Motor Control |
|
500lbs Abrasive Garnet Hopper W/ Low Level Warning |

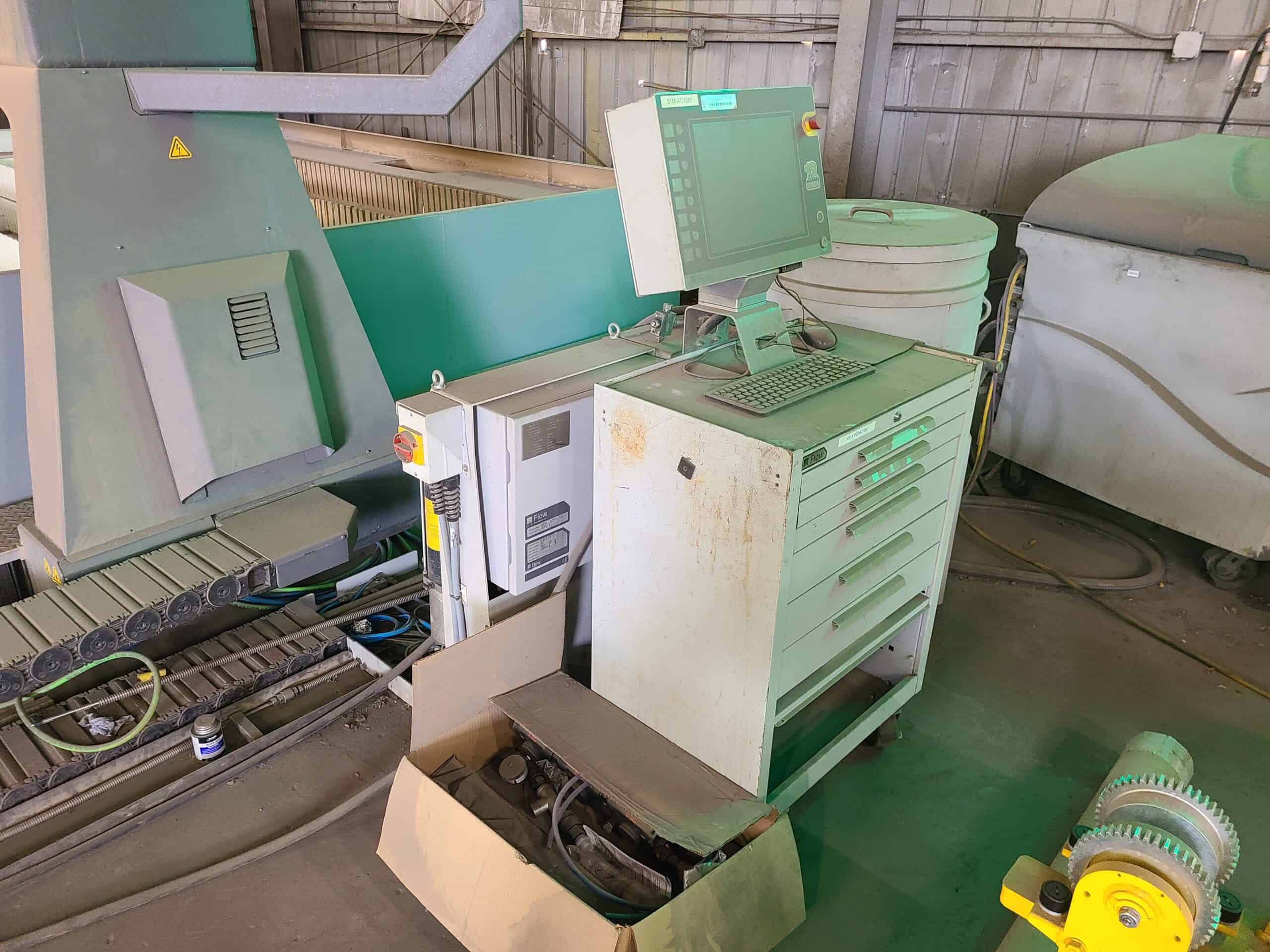

Flowmaster Roll Around PC Based Controller 15" Touch Screen |
|
Full 5 Axis XD Cutting Head 3D Cutting |
Fully Programmable 12" Z Axis |
|
Gantry Style High Precision Waterjet |
Import DXF/DWG/IGS/CADKEY/CDL/HPL Files |
|
No G-Codes Required Flownest |
Paser 4 Cutting Head |
