| Year | 2013 |
|---|---|
| Make | Fanuc |
| Model | Robocut a-C400iA |
Description |
EDM Wire |
| Reference # | 8072157 |
|
This machine has been recently sold. If you are interested in a similar machine, We will be happy to locate one for you. |
|

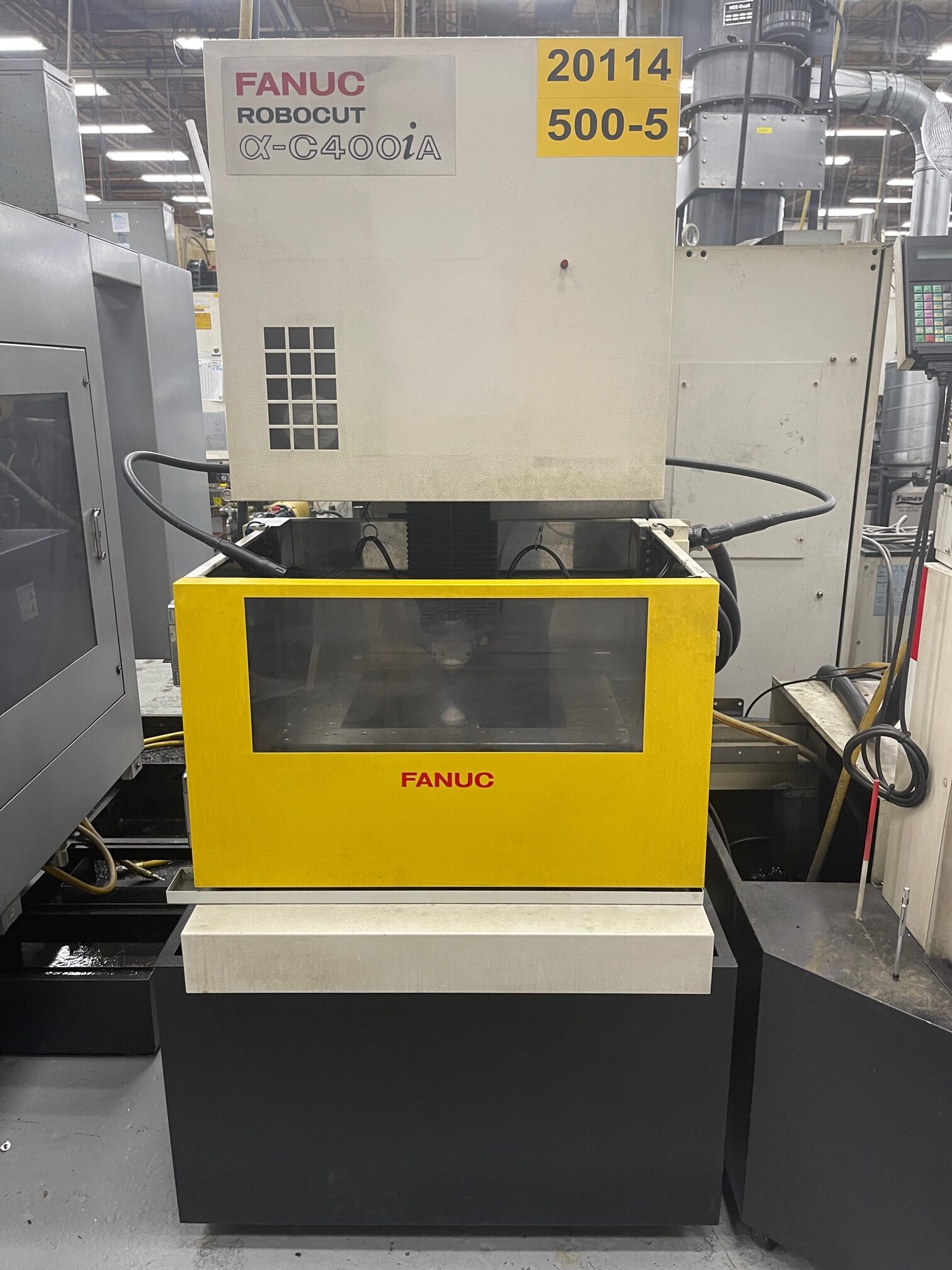

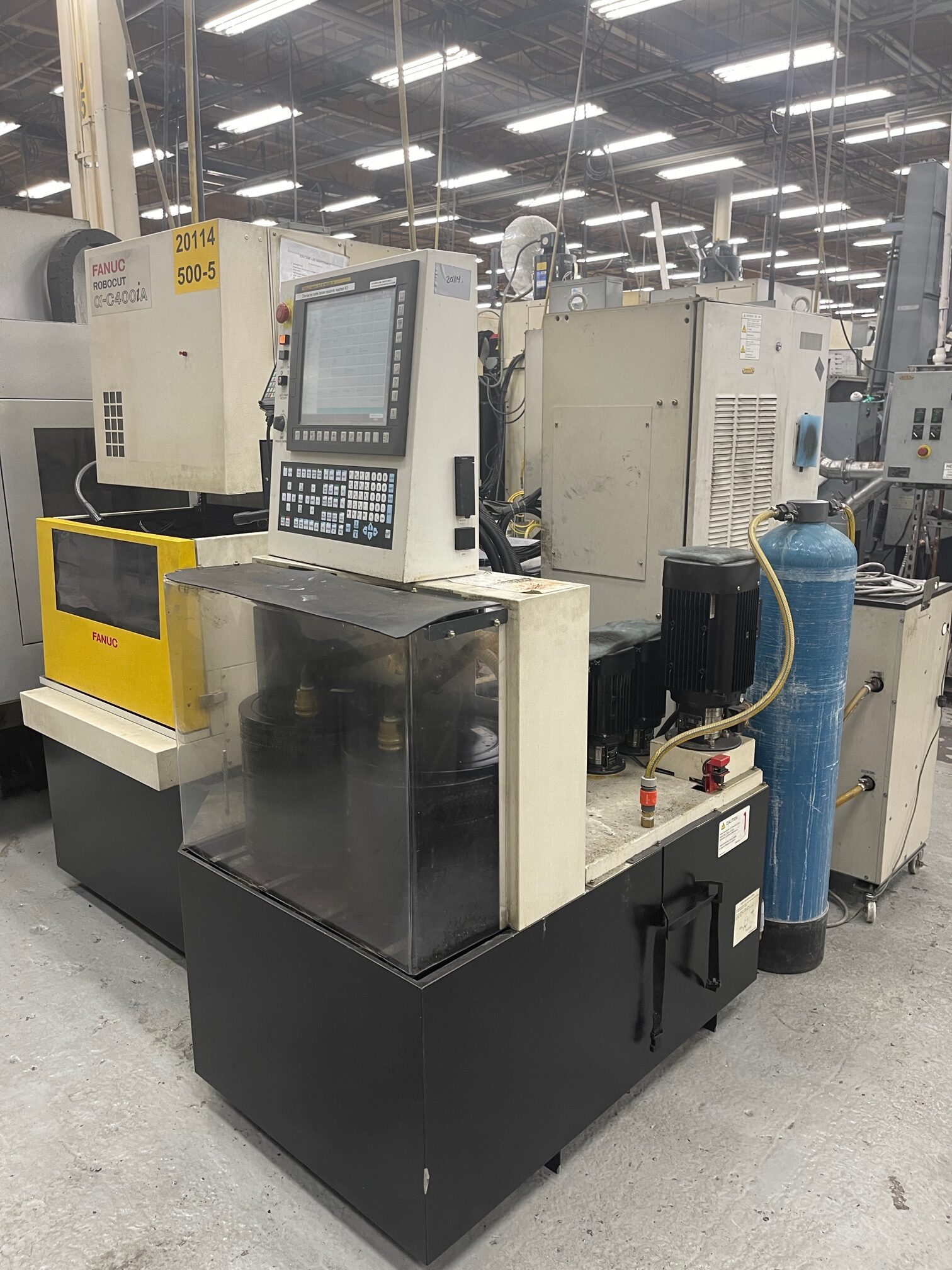

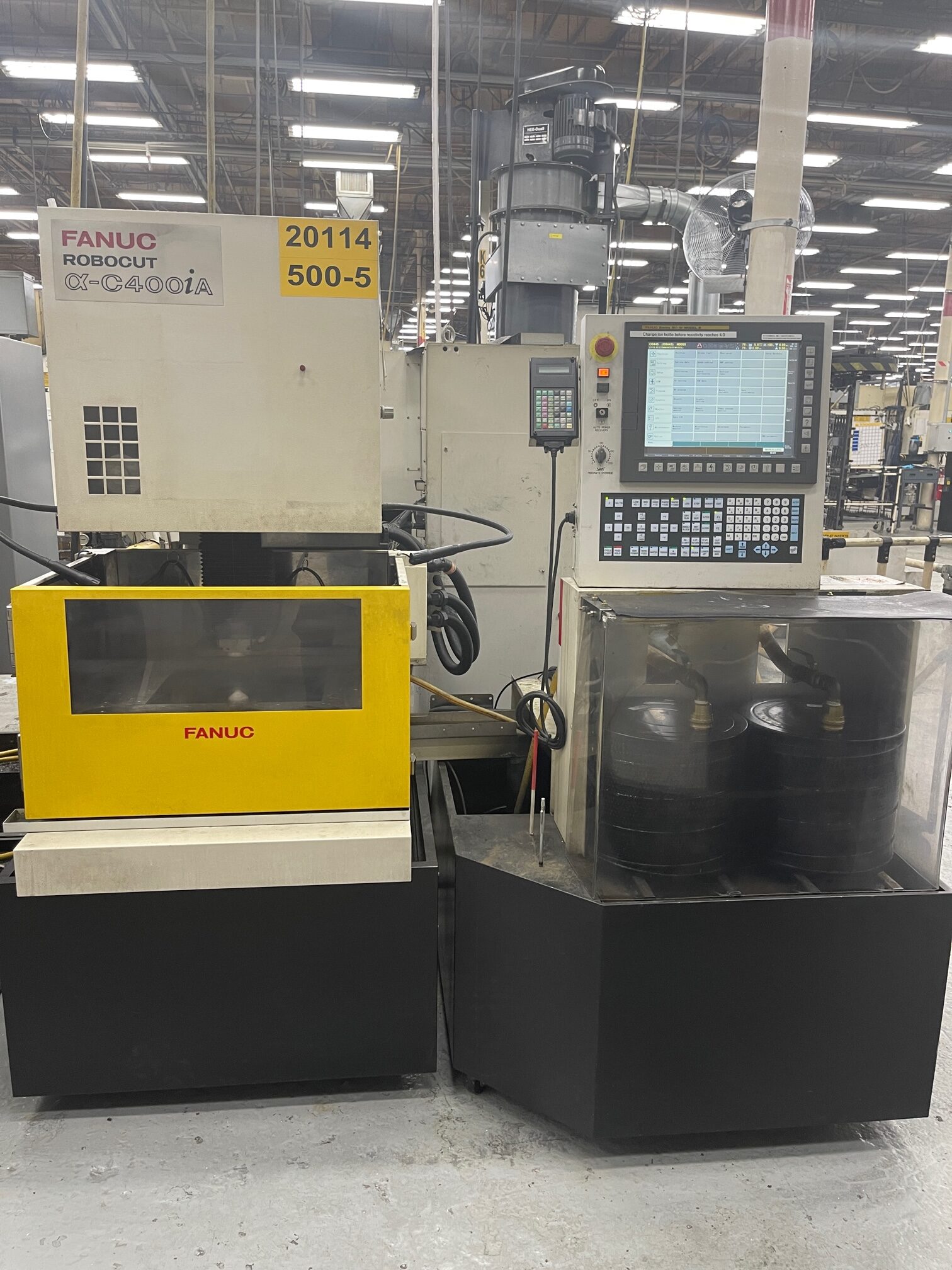

Used Fanuc Robocut a-C400iA (2013) CNC EDM for Sale. This pre-owned Fanuc CNC EDM wire is located in Arizona and available to be seen under power for an inspection. If you have any questions regarding this Fanuc EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| X-Axis Travel |
14.6" |
|---|---|
| Y-Axis Travel |
10.6" |
| Z-Axis Travel |
10" |

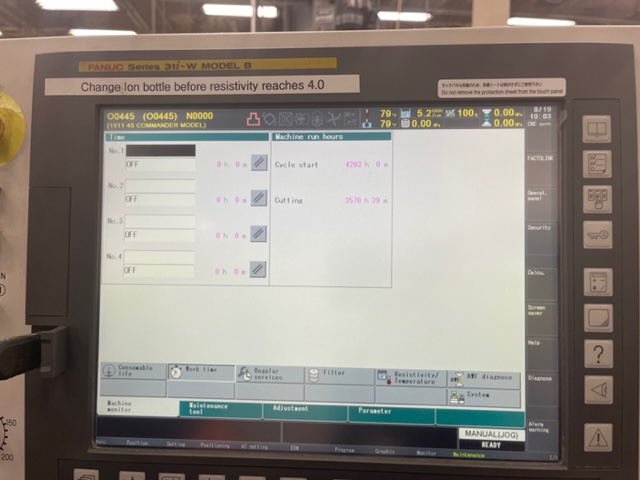

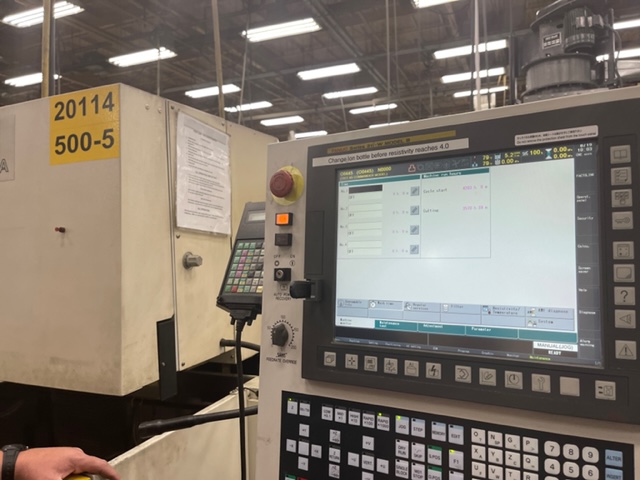

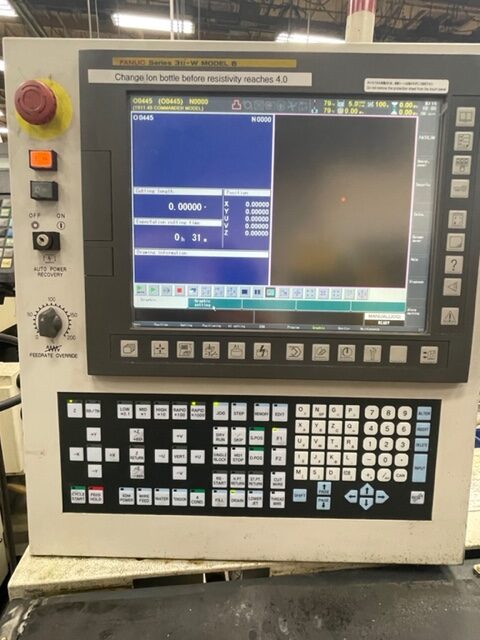

| Control |
Fanuc 31i-WB |
| U/V Axis Travel |
2.36" x 2.36" |
| Degree Taper Cutting |
30 Degree at 3.3" |

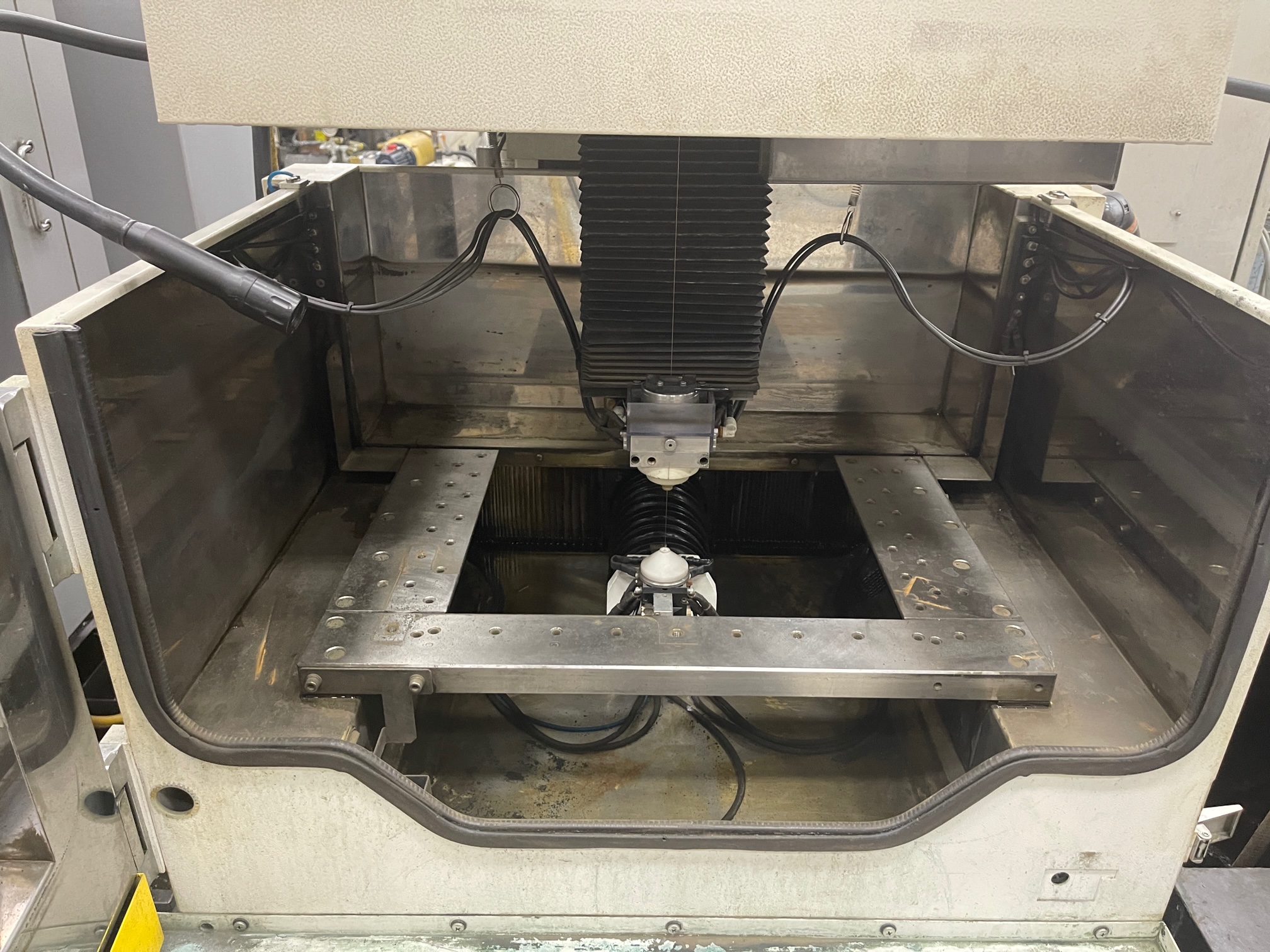

| Inside Tank Dimensions |
30.5" x 23.6" |
| Power Requirement |
200-220/3/60 |
| Glass Scale Feedback |
.00000004 Rotary |
| Max Workpiece Size |
30.5" x 23.6" x 10" |
| Max Submerged Depth |
9.84" |
| Max Workpiece Weight |
1,100 Lbs |
| Wire Diameter |
.008" - .012" |
| Max Cutting Speed |
.012 Coated Wire, 2.4" Thick, D2 33.5 Sq In/Hr |
| Positioning Accuracy |
+/- .0001 |
| Dielectric Capacity |
145 Gallons |
| Machine Footprint |
76" x 87" x 77"H |
| Machine Weight |
4,000 Lbs |
| Note |
No Wire Alignment Gauge, Transformers Not Included |
Features
|
4MB Part Storage |
AC Servo Drive Motors |
|
Auto Wire Threading |

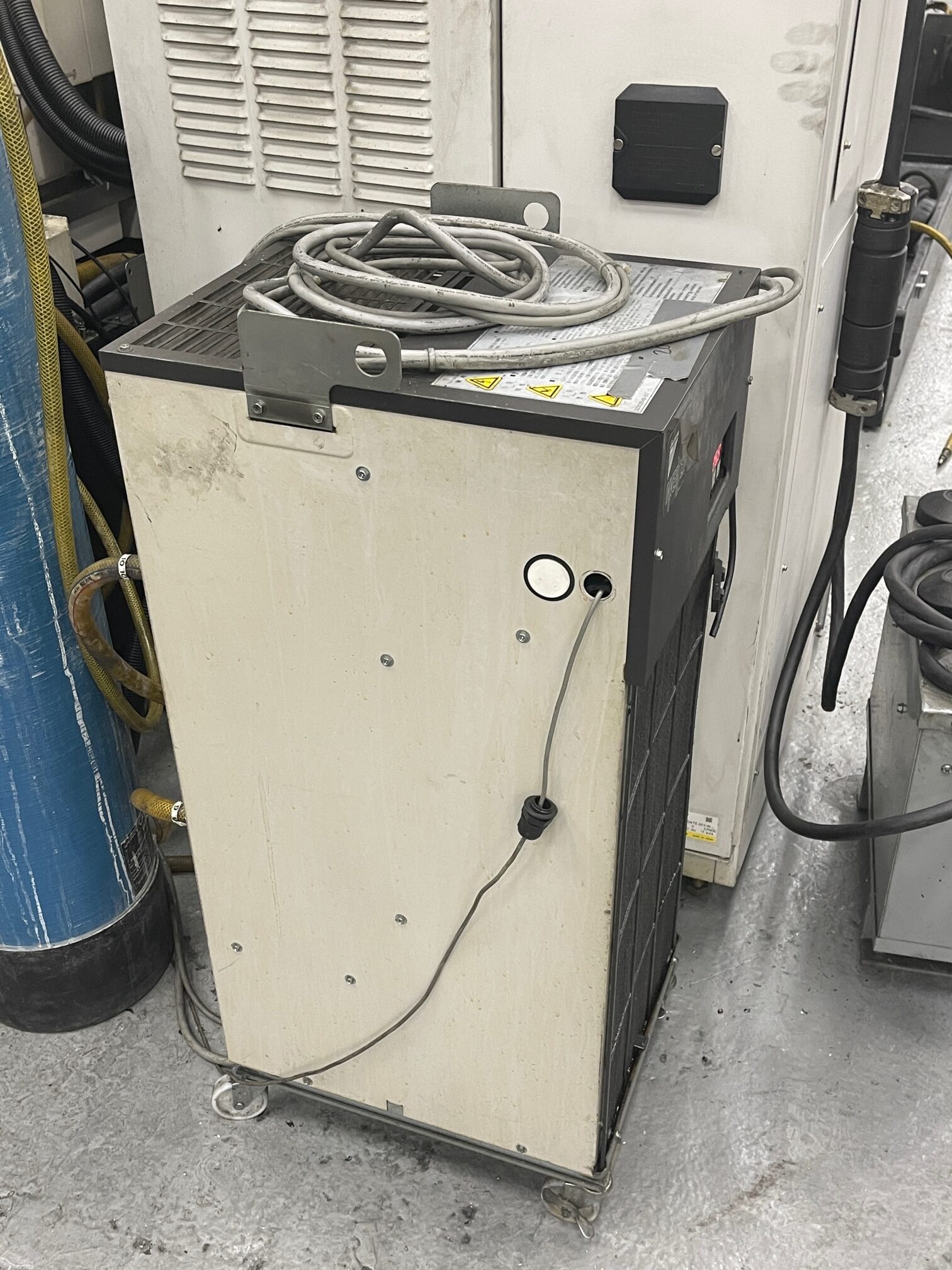

Electric Chiller |
|
Electronic Manuals |
10-Second Automatic Threading |
|
13KVA Total Power |
15" Color LCD Touch Screen |
|
Rotary Glass Scale Feedback |
RS232 Ethernet Interface |
|
Submerged Cutting |
AC & DC Generator Switchable |
|
AIP2 Discharge Control |
Built-in Conversational Programming |
|
Ethernet Connectivity |

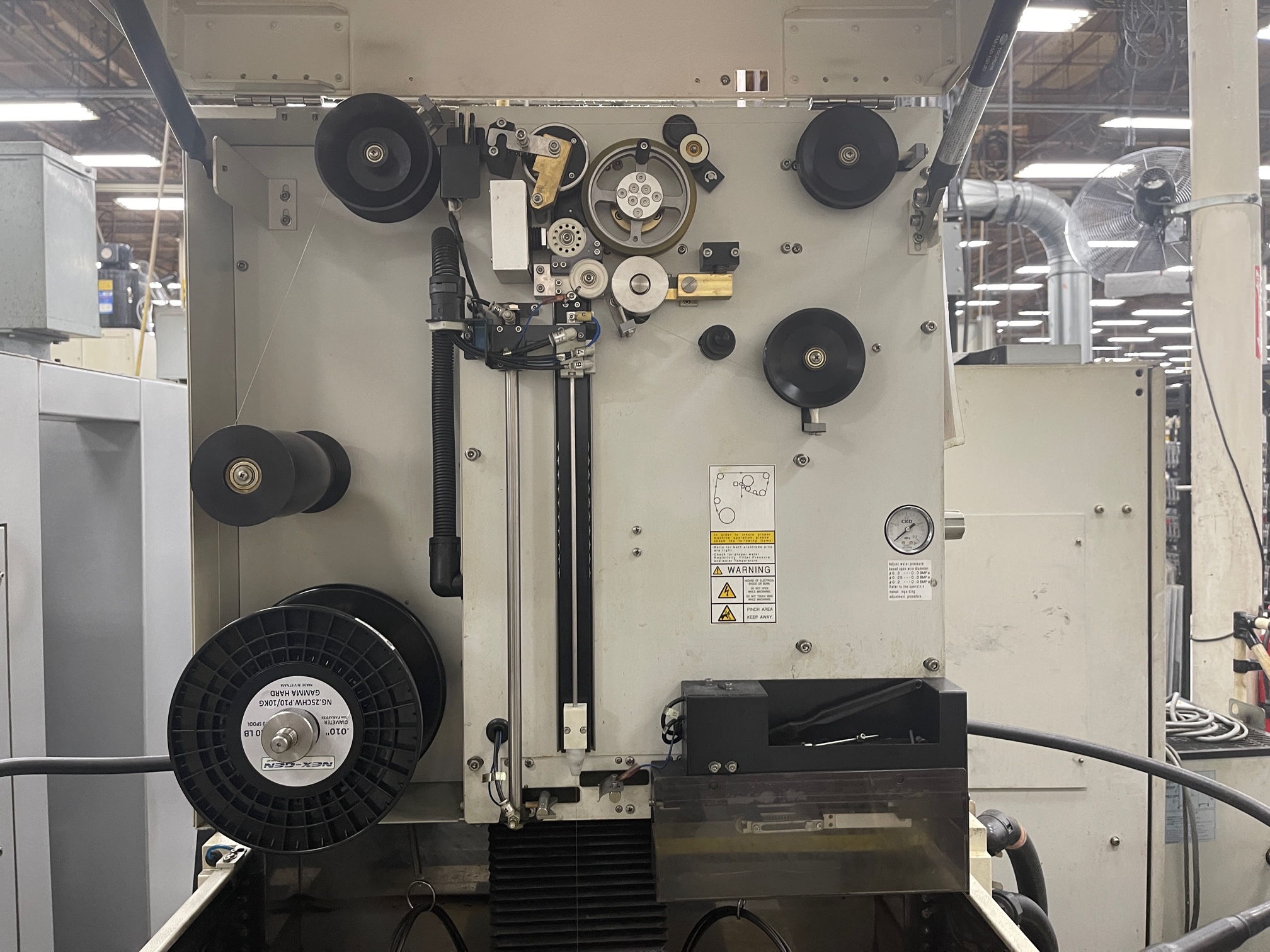

Fanuc Auto Wire Feed |
|
Keyboard / USB / CF Card and Ethernet |
X / Y / U / V / Z Servo Closed Loop System |
