| Year | 2013 |
|---|---|
| Make | BLM |
| Model | Adige LT8 |
Description |
CNC Fiber Tube Laser |
| Reference # | 8073524 |

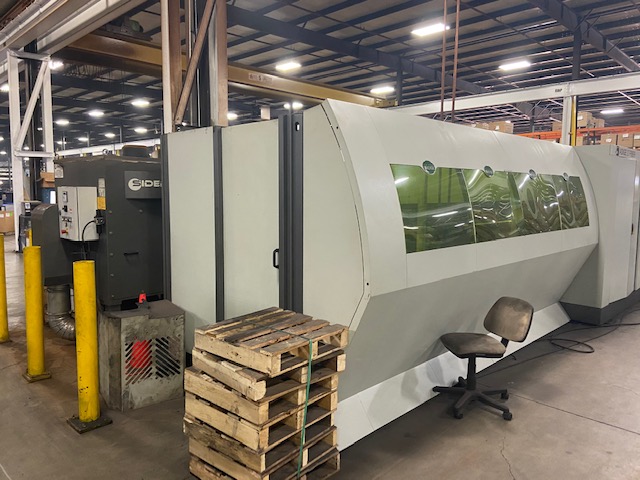

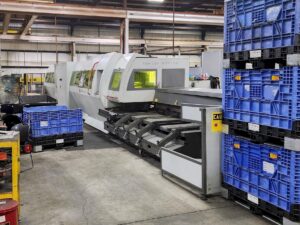

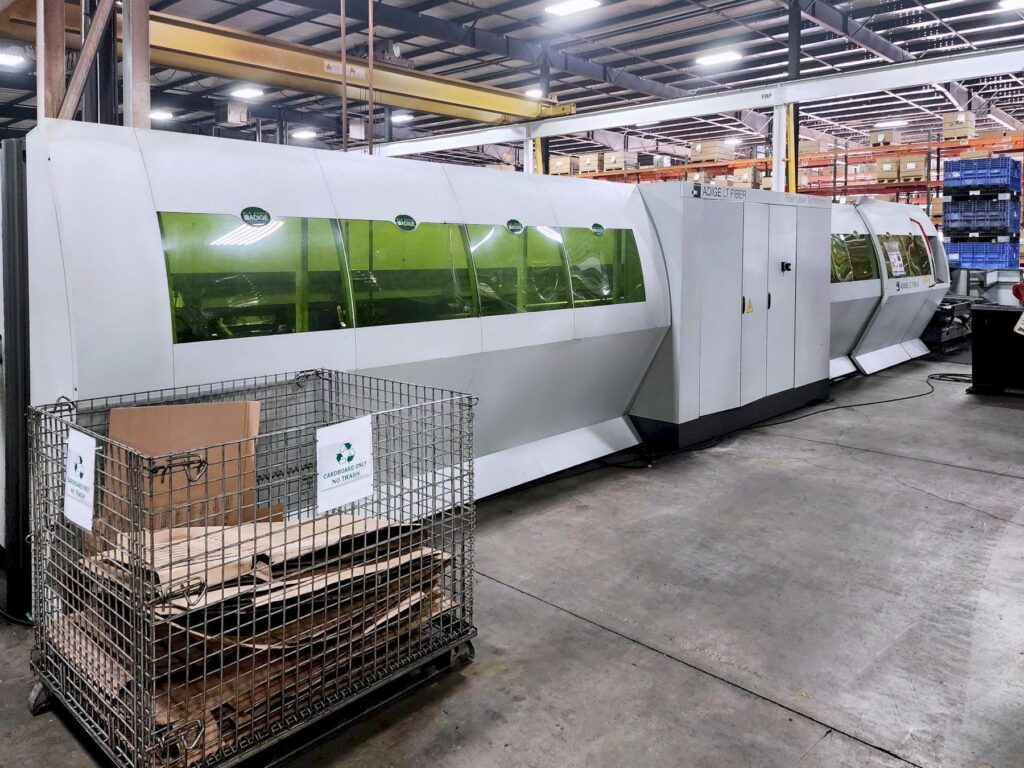

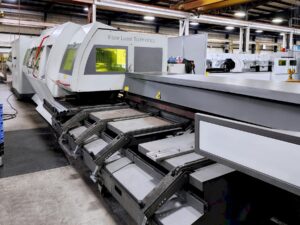

Used BLM Adige LT8 (2013) CNC Laser for Sale. This pre-owned BLM CNC laser cutter is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this BLM Laser, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Max Wattage |
2,000 |
|---|---|
| Cut Capacity |
0.5" x 4.7" |
| Cut Capacity Rounds |
0.5" x 5.5" |
| Cut Capacity Rectangular |
0.5" x 0.39" |
| Cut Capacity Special Shapes |
0.5" x 0.3" / 5.5" x 5.5" |
| Max Bar Length (8.5 Meter) |
27'10" |
| Min Bar Length (3.2 Meter) |
10'6" |
| Max Part Length (4.5 Meter) |
14’7” Front / 3.0m – 9’8” Rear |
Features
|
4.5M Finished Part Unloader |
8.5M Rear Automatic Bundle Loader |
|
Closed Loop Chiller |
Compact Multimode Fiber Laser System |
|
Delicate Tube Handling Option |
PG YSL-C2000 Fiber Laser |
|
Precitec AK-HP-SSL Focusing Head |
Rear Scrap Conveyor |
|
Rubber and Nylon Guards (For Minimizing Tube Marring During Feeding) |
Unloading Parts Collection Table |
|
Weld Seam Detector Optical Device (For Welding Seam-Line Identification and Orientation) |
Dust Collector |
