| Year | 2013 |
|---|---|
| Make | Balestrieri |
| Model | Matic 120/4A |
Description |
4-Spindle Copying Lathe |
| Reference # | 8075213 |
Price |
Activate PricingInquire Now |

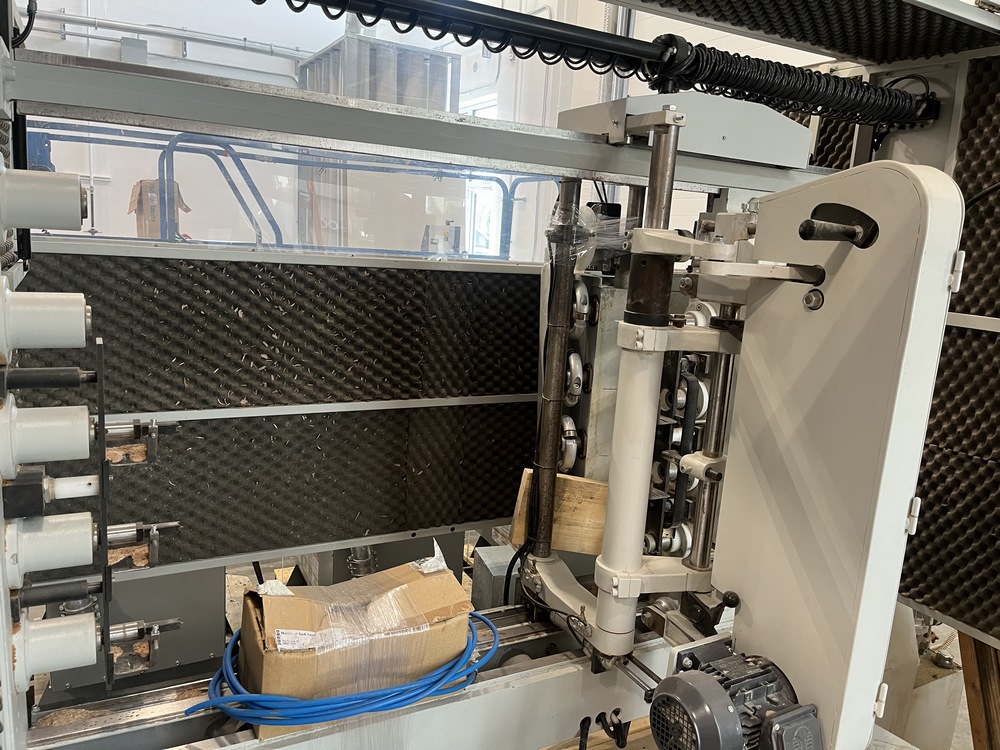

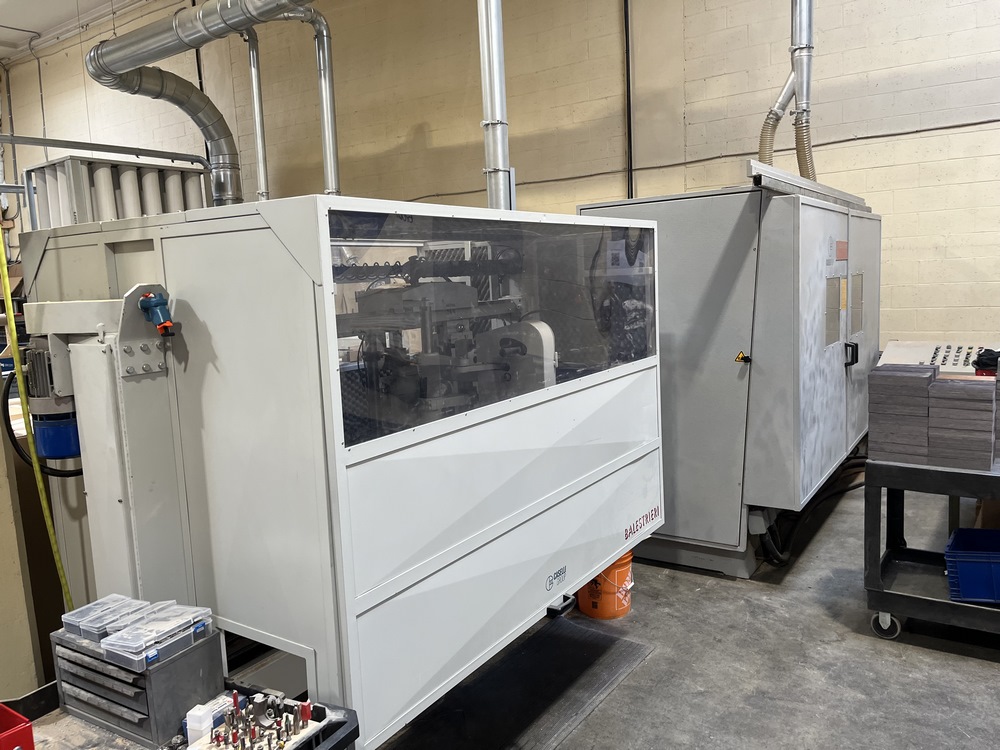

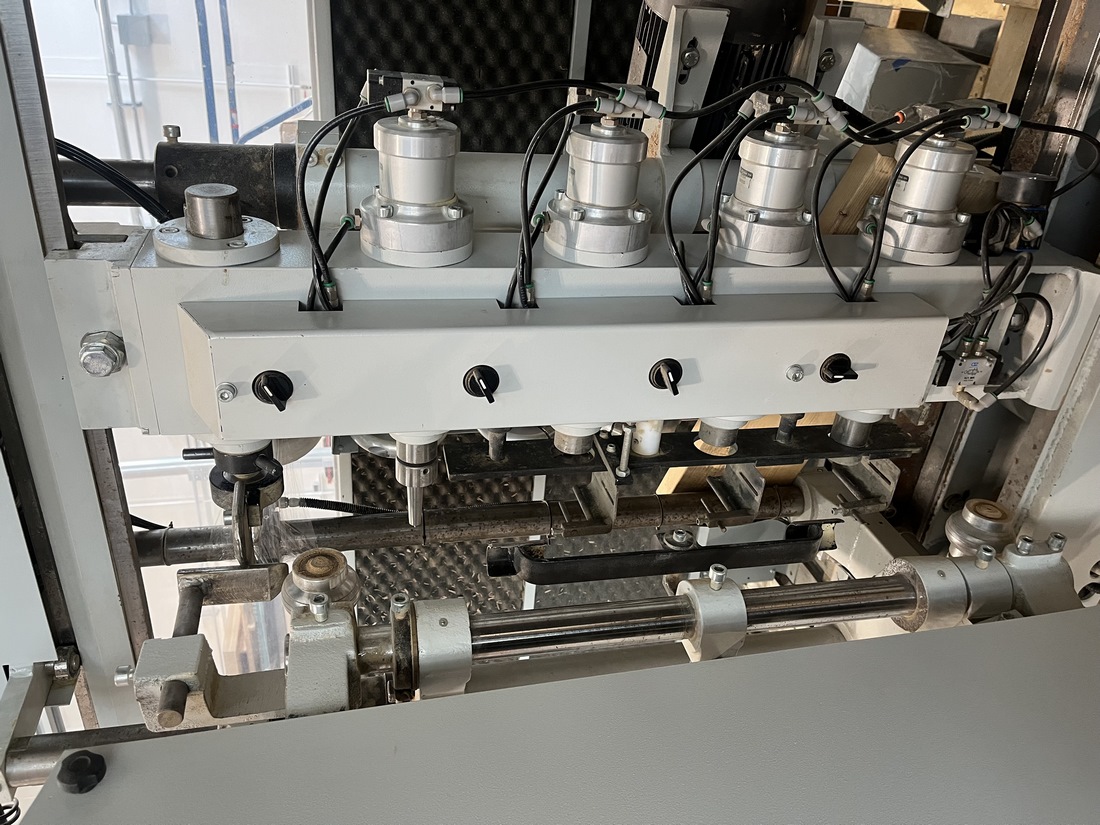

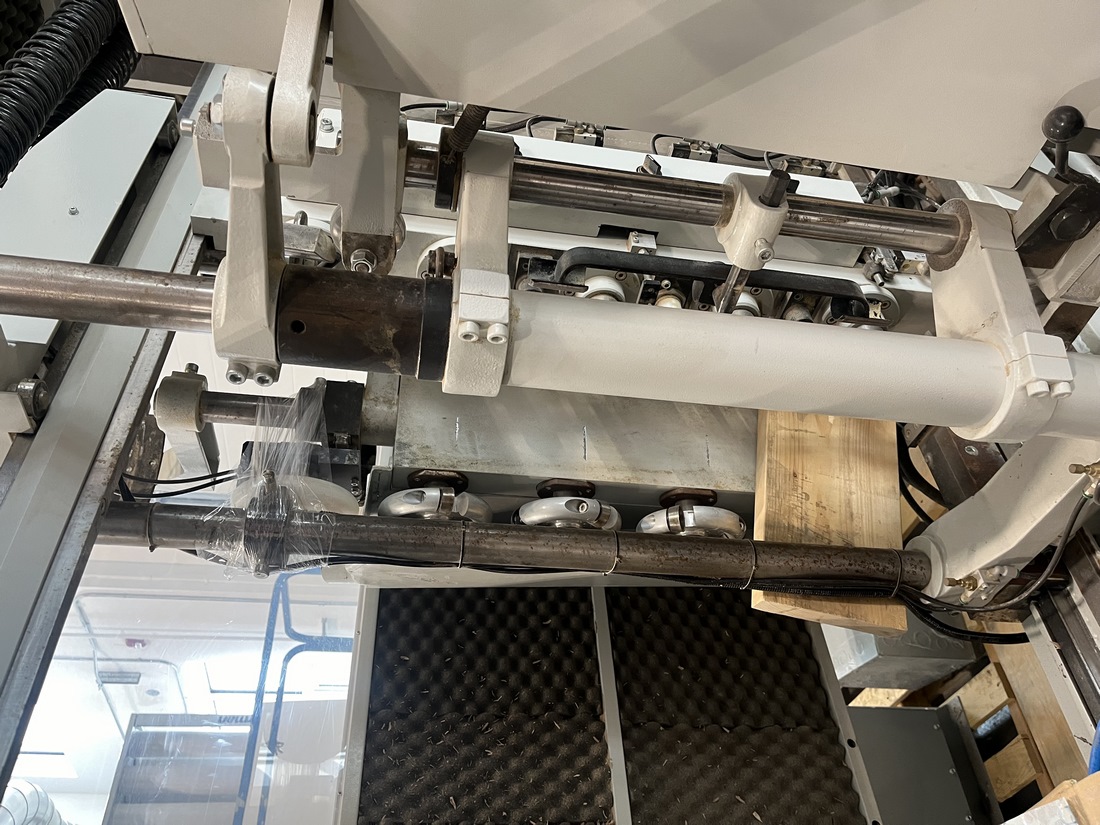

Used Balestrieri Matic 120/4A (2013) Lathe for Sale. This pre-owned Balestrieri CNC lathe is located in Canada and available to be seen under power for an inspection. If you have any questions regarding this Balestrieri Lathe, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.
Specifications
| Turning Diameter |
5.9" |
|---|---|
| Max Turning Length |
43.3" |
| Number of Spindles |
4, Simultaneous Copying of 4 Workpieces |
| Variable Carriage Feed Speed |
23.6 IPM |
| Variable Spindle Rotation Speed |
20 - 50 RPM |
| Tool Diameter |
1.37" |
| Tool Holder Diameter |
5.7" |
| Tool Speed |
4,500 RPM |
| Note |
Machine and Electrical System Complying with EC Regulations |
Features
|
Aluminum Template |
Centering Devices for Automatic Workpiece Positioning |
|
Cutter Carriage Feed on Rectified Guides and Recirculating Ball Pads |
Independent Adjustment of Cutter Carriage Feed and Wood Rotation |
|
Pneumatic Clamps |
Spindle Drive with Bronze Gears and Worm Gear |
|
Variable Rotation with Inverter |
