Year 2012
Make Nomura
Model HBA 135P-R5

Description

CNC Horizontal Boring Mill
Reference # 8076826

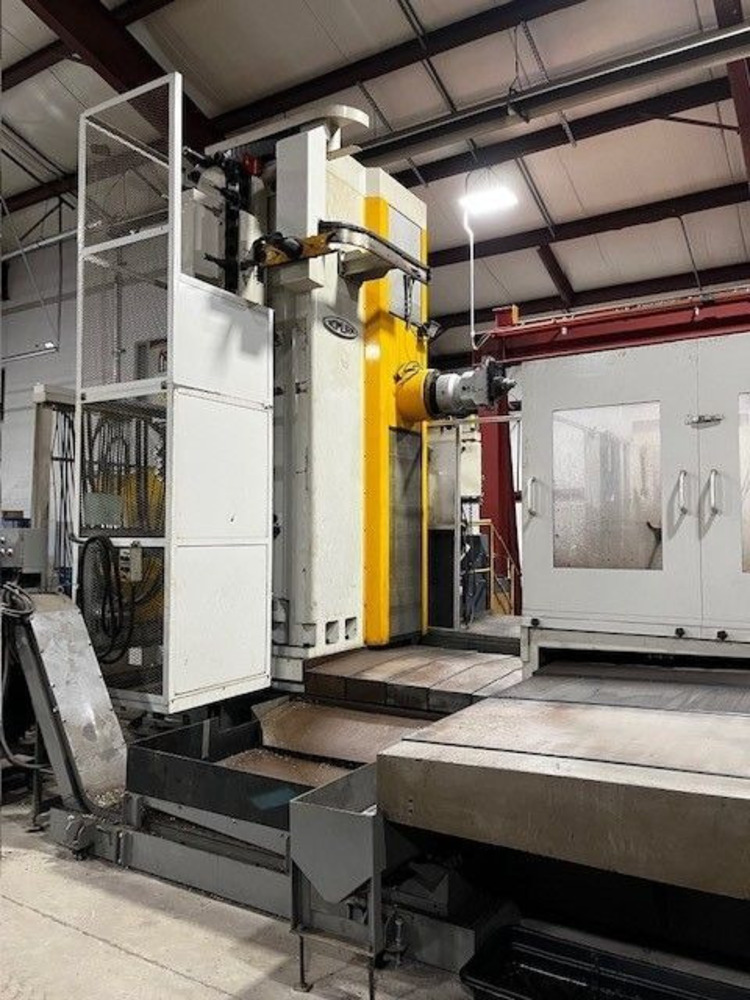

Used Nomura HBA 135P-R5 (2012) CNC Horizontal Boring Mill for Sale.  This pre-owned Nomura CNC horizontal mill is located in The United States and available to be seen under power for an inspection.  If you have any questions regarding this Nomura Horizontal Boring Mill, please feel free to contact us.  You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button.

Specifications

Pallet Size (Millimeters)

N/A

Pallet Size

71" x 79"

X-Axis Travel

118.1"

Y-Axis Travel

90.5"

Z-Axis Travel

55.1"

Tool Magazine Capacity

60 ATC

Spindle Speed

3,000 RPM

Spindle Taper

CAT-50 5.31"

Control

Fanuc CNC

Pallet Indexing

1 Degree

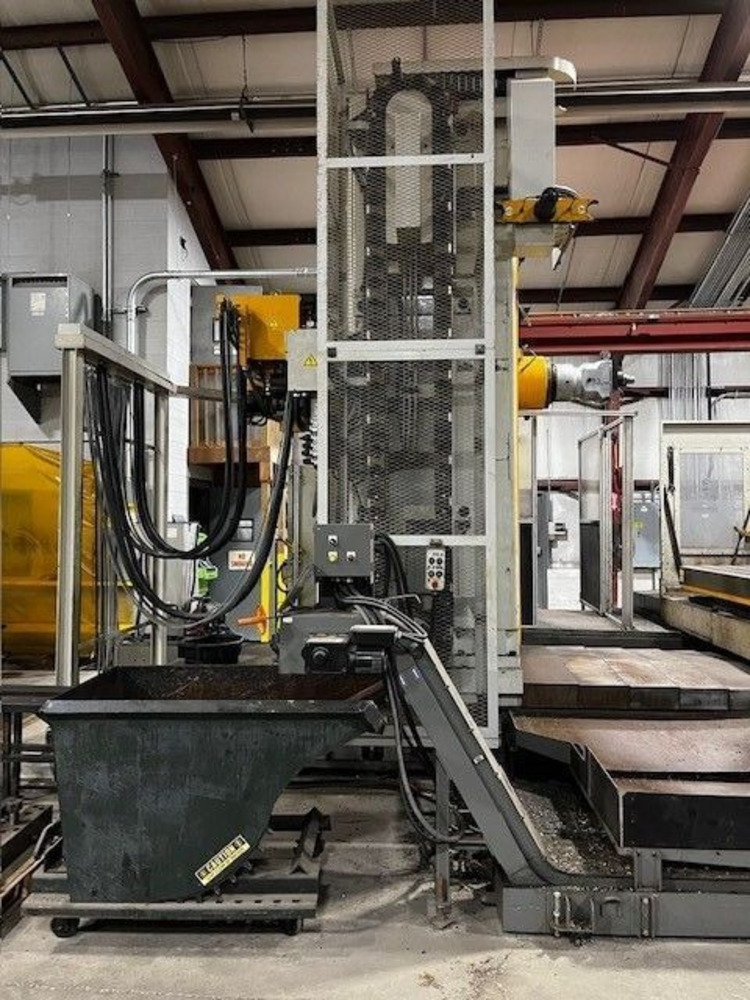

Chip Removal

Chip Conveyor

Spindle Motor

60 HP

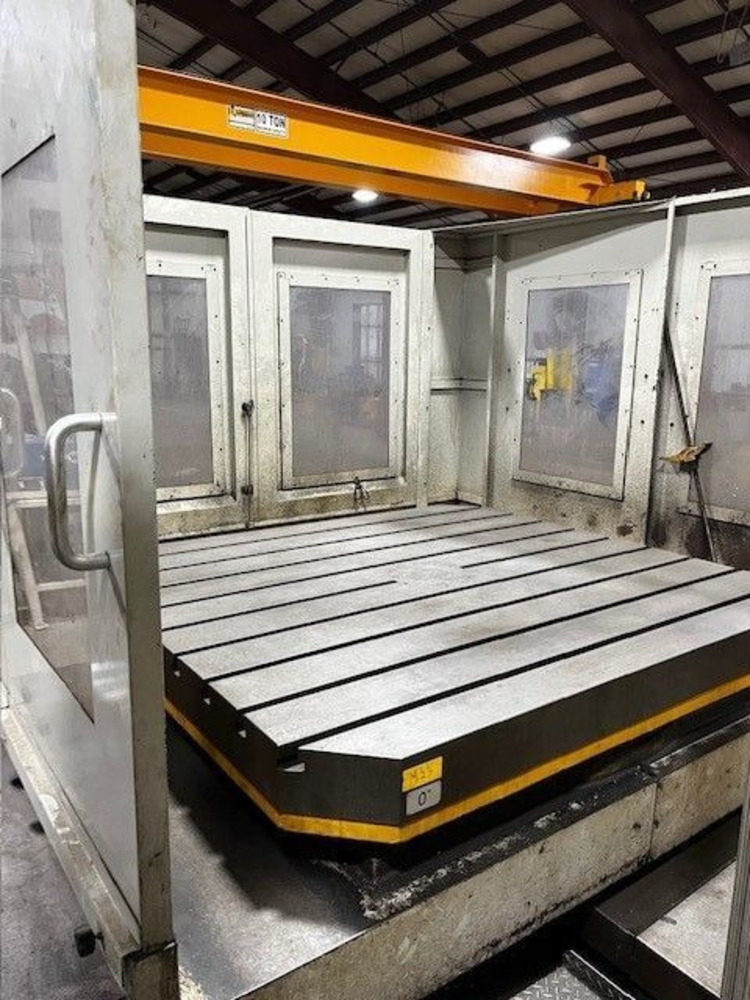

Table Size

71”x 79”

Load Capacity

33,000 Lbs

B-Axis Table Indexing

0.001 Degree

Machine Height

182"

Required Floor Space

265" x 285"

Approximate Machine Weight

88,2000 Lbs.

Features

Cogs Head Not Included

Extra-Large Spindle Bearings with Oil-Mist Cooling Device

Full CNC Controlled B Axis Rotary Table with Double Warm

Nitrided Hardened Ground and Hand-Lapped Spindle (Hrc 67+)

Oversized Large Diameter Ball Screws and Feed Motors

Surfaces Coated with Fluorine-Resin and Forced Lubricated

Three Ranges of Geared-Headstock

Probe Included
