| Year | 2012 |
|---|---|
| Make | Mitsubishi |
| Model | EA12D |
Description |
EDM Sinker |
| Reference # | 8075370 |

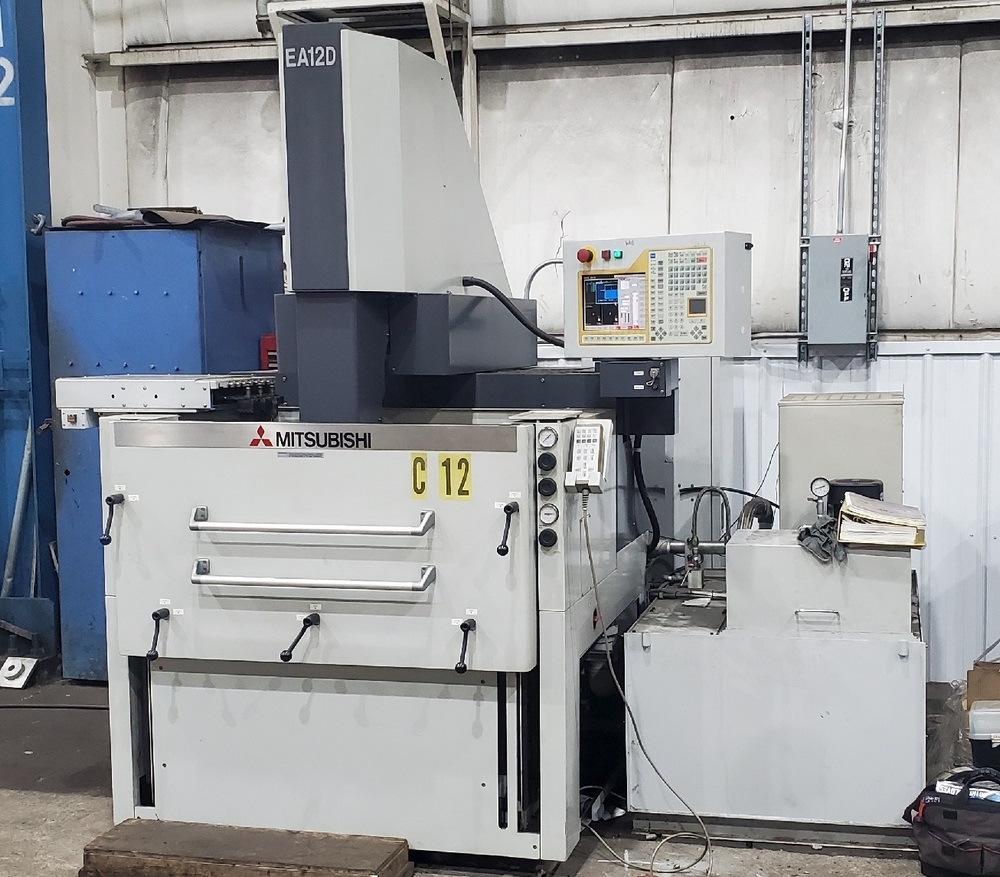

Used Mitsubishi EA12D (2012) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM sinker is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button!
Specifications
| X-Axis Travel |
15.7" |
|---|---|
| Y-Axis Travel |
11.8" |
| Z-Axis Travel |
11.8" |
| Control |

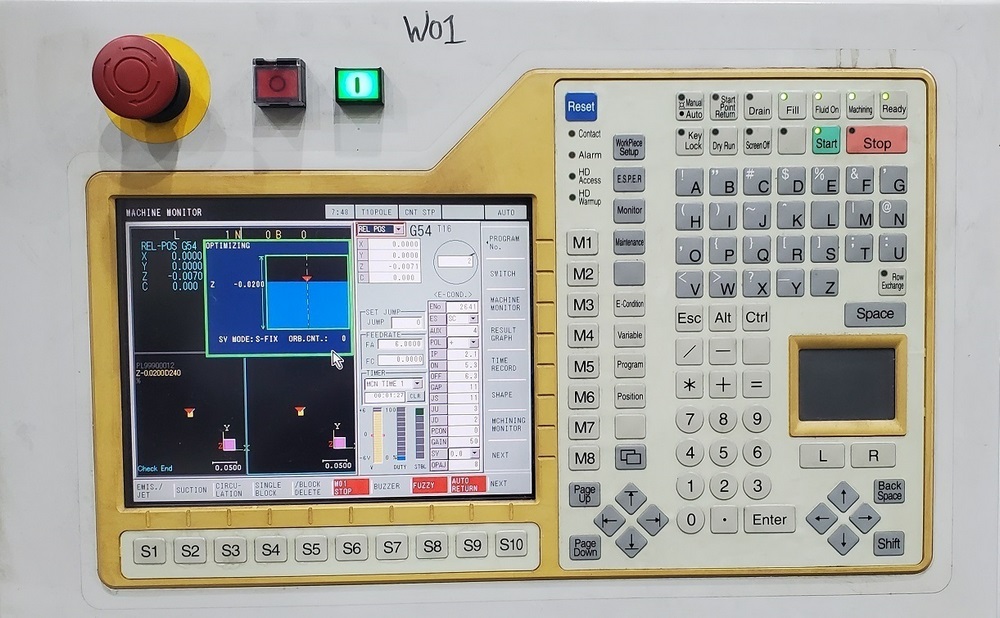

Mitsubishi M700 |
| Power Source |
80 AMP |
| C-Axis |
360 Degree (.001 Increments) |
| Tool Changer |
4/7 Shuttle |
| Chuck |
3R |
| Table to Platen Distance |
11.8" - 23.6" |
| Resolution |
.000002'' |
| Rapid Traverse |
78.74 IPM |
| Machine Total Weight |
6,889 Lbs |
Features
|

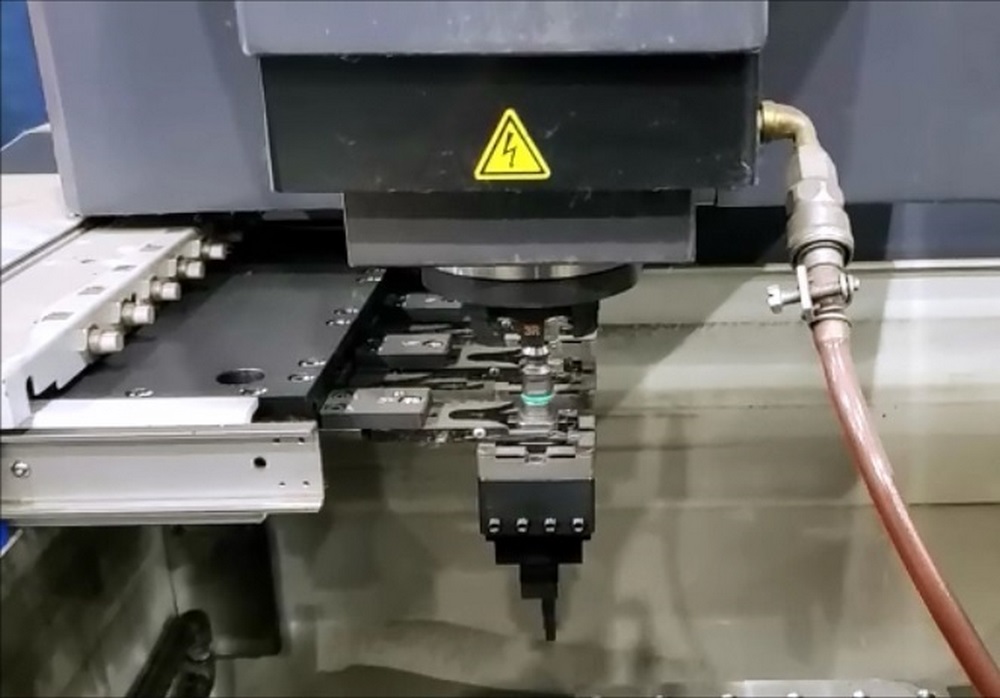

4/7 Position Automatic Electrode Changer (System 3R Macro/Macro Jr) |
Fixed Table Traveling Column Construction |
|
Fixed Tank Type |
Fuzzy Pro Plus |
|
High Speed Jump Cycle |

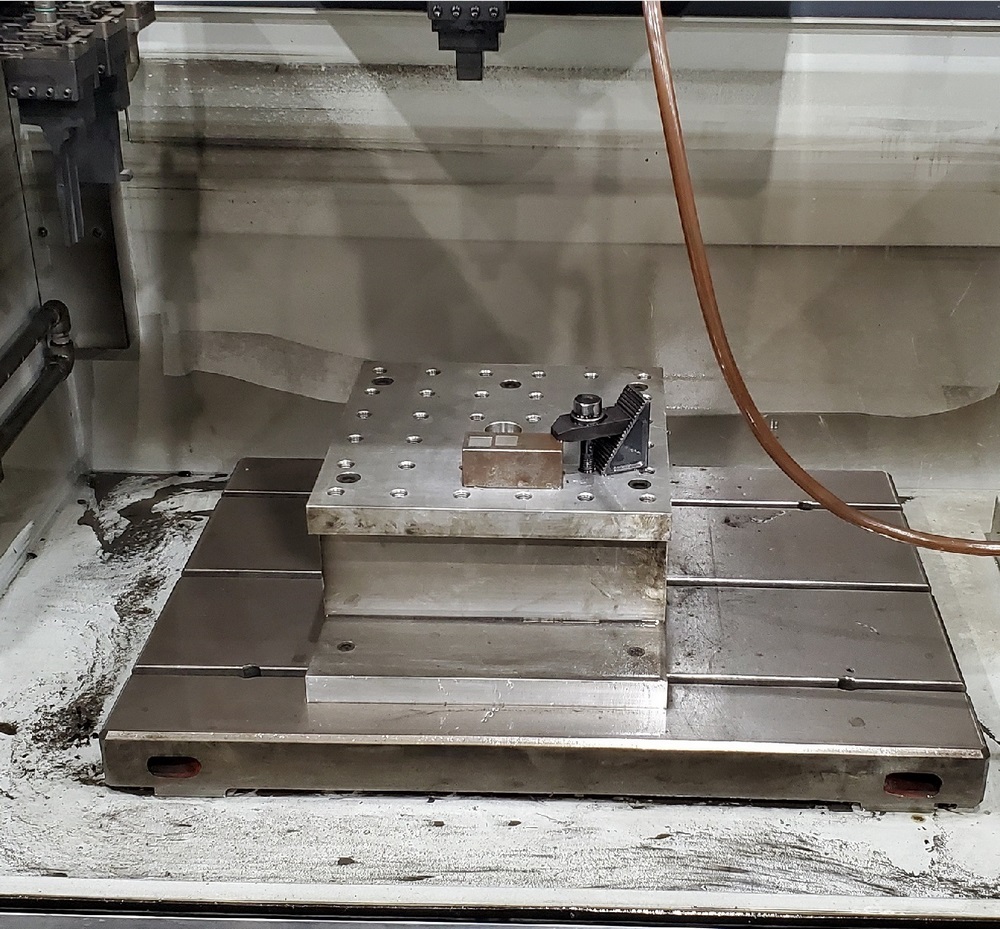

Sub Table Fixture Included |
|
Work Tank Access Front Drop Door |
C-Axis |
|
Chiller |
Dielectric Tank With Pump And Filtration |
|
Glass Scale Feedback |
10MB User Program Storage On Hard Drive |
|
Remote Hand Controller |
Auto Fill/Drain |
|
Auto Way Lubrication |
ESPER Automatic Programming |
