| Year | 2012 |
|---|---|
| Make | Mitsubishi |
| Model | EA12D |
Description |
EDM Sinker |
| Reference # | 8075197 |

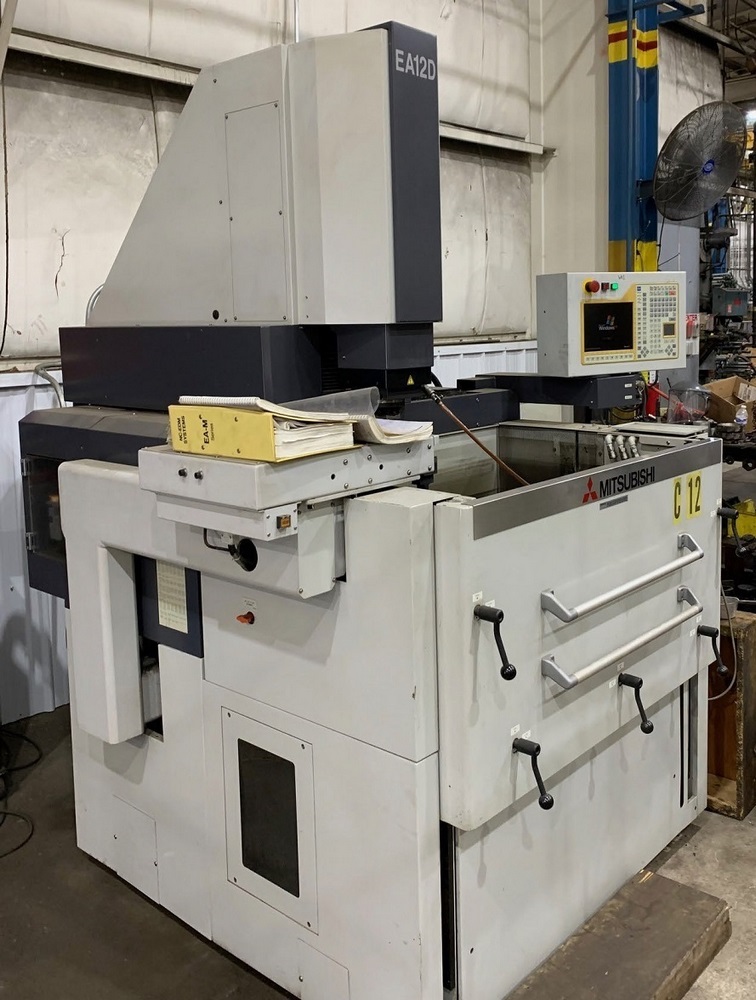

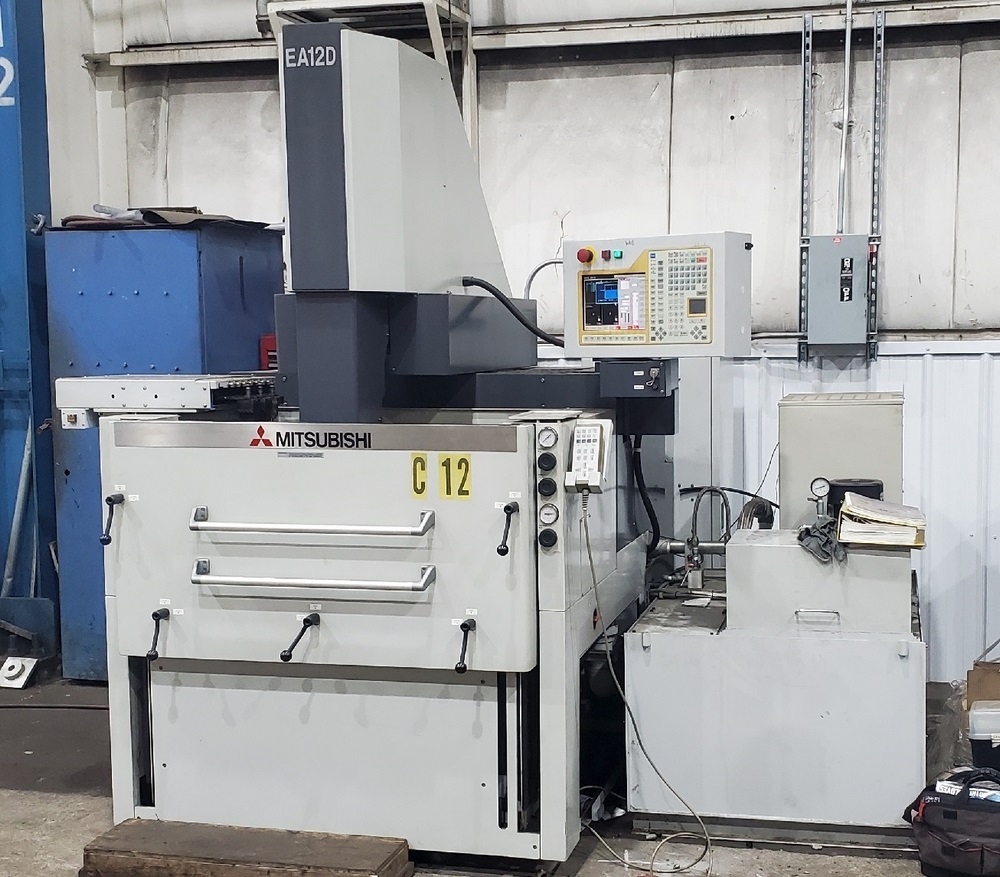

Used Mitsubishi EA12D (2012) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM sinker is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button!
Specifications
| X-Axis Travel |
15.7" |
|---|---|
| Y-Axis Travel |
11.8" |
| Z-Axis Travel |
11.8" |
| Control |
Mitsubishi M700 64 Bit Fuzzy Logic CNC Control W/14" LCD |
| Power Source |
80 AMP FP60EA Power Supply |
| Dielectric Fluid Level (Max / Min) |
15.7"/ 7.0" |
| Table to Platen Distance |
11.8" x 23.6" |
| Machining Movement (C) |
360 Degrees / .001 Degree Increment |
| Min. Command Input |
.00001" |
| Resolution |
.000002" |

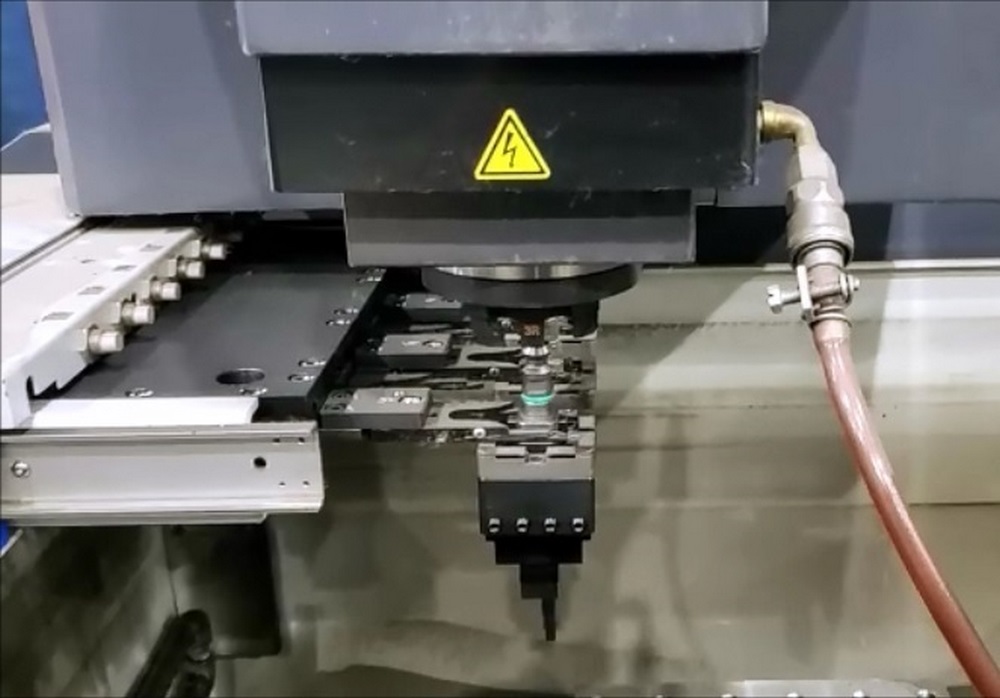

| Shuttle Type |
20 AEC |
| Rapid Traverse |
78.74 IPM |
| Dielectric Capacity |
132 Gal |
| Worktank Internal Dimensions |
41.3" x 27.5" x 17.7" |
| Maximum Workpiece Dimensions |
39.3"x 25.5" x 13.7" |
| Maximum Workpiece Weight |
2,200 lbs |

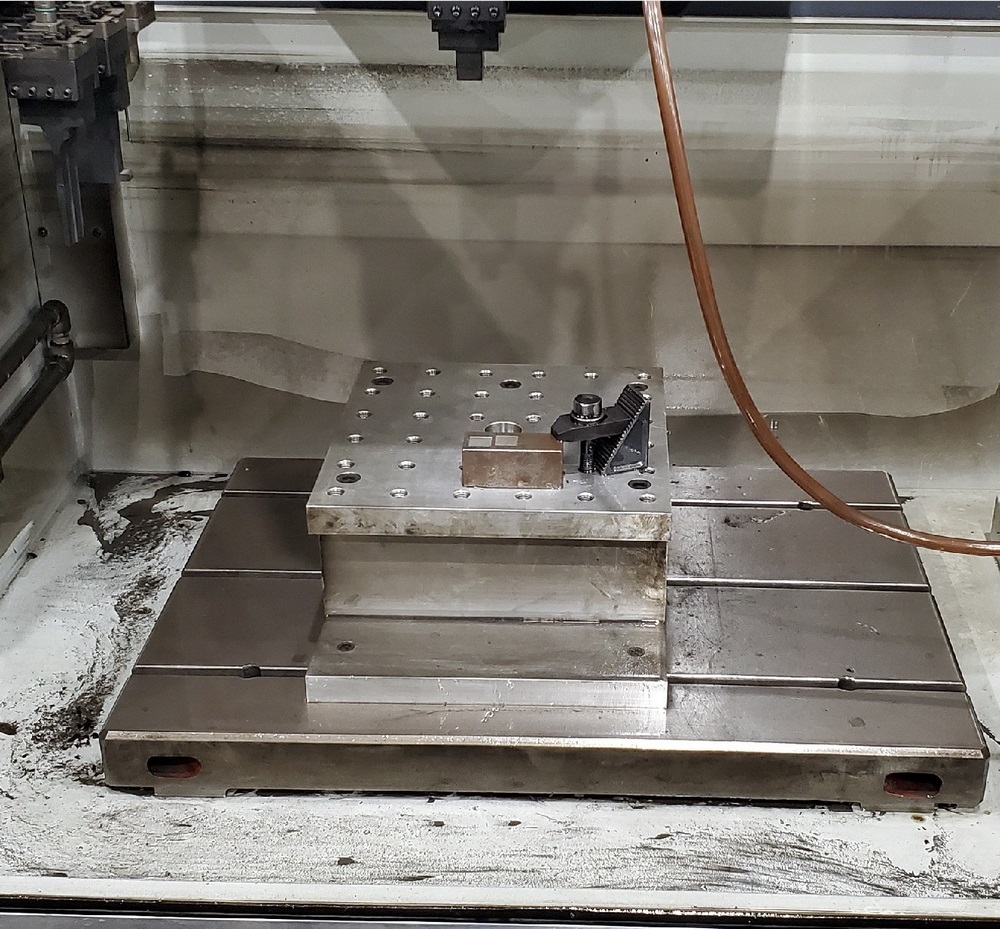

| Table Dimensions |
27.5" x 19.6" |
| Maximum Electrode Weight |
110 lbs / 11 lbs with C-Axis |
| Power Requirement |
200-220/3/60 |
| Total Shipping Weight |
6,889 Lbs |
| Installation Dimensions |
(W x D ) 91.5" x 87.2" |
Features
|
Fixed Tank Type |
Worktank Access Front Drop Door |
|

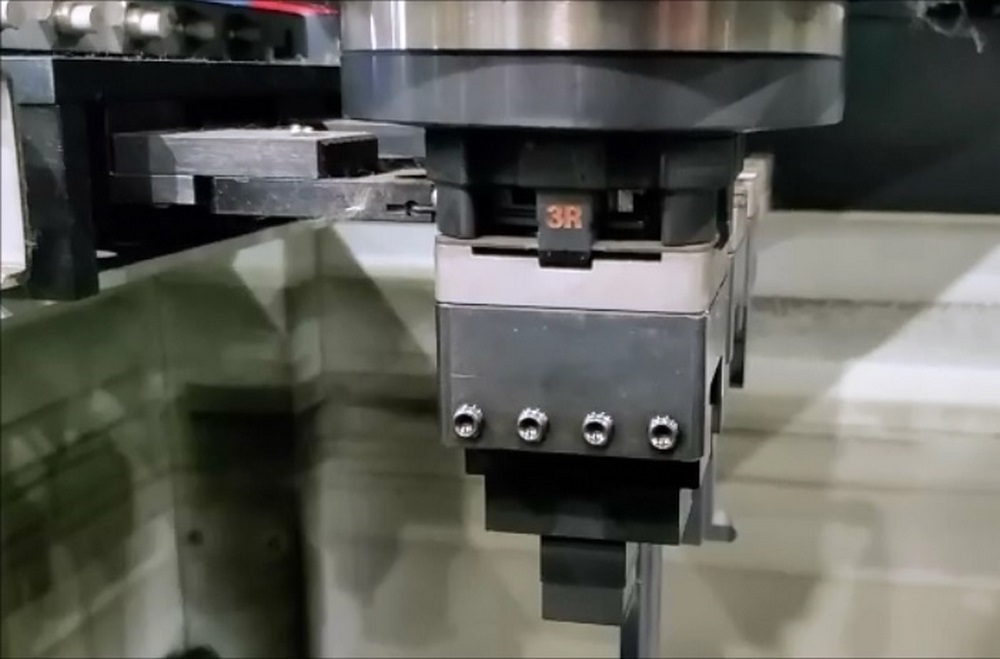

3R Chuck |
C-Axis |
|
Chiller |
Graphic Display 10.4" TFT Color LCD |
