| Year | 2012 |
|---|---|
| Make | Mitsubishi |
| Model | BA24 |
Description |
EDM Wire |
| Reference # | 8075519 |

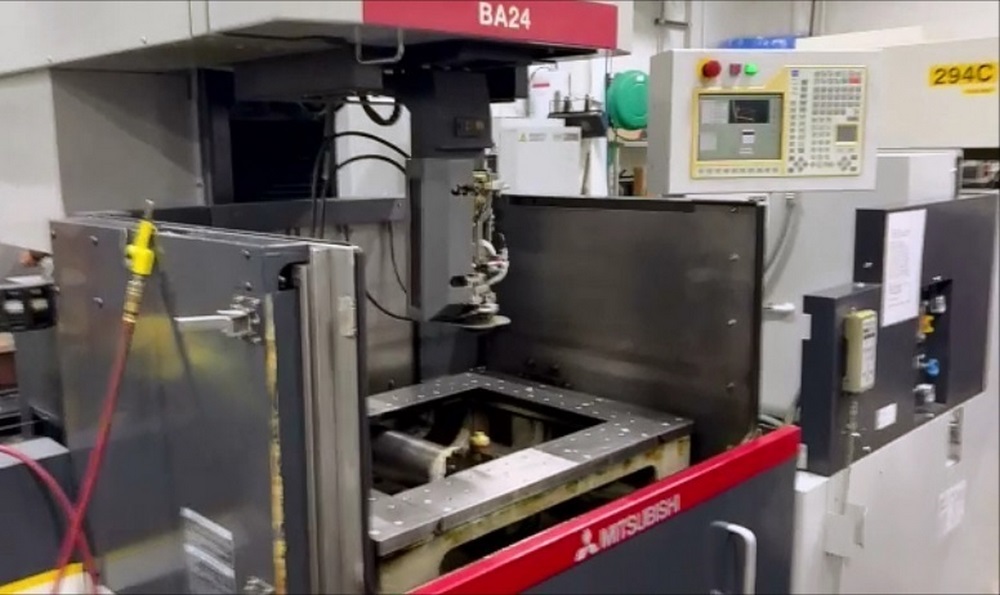

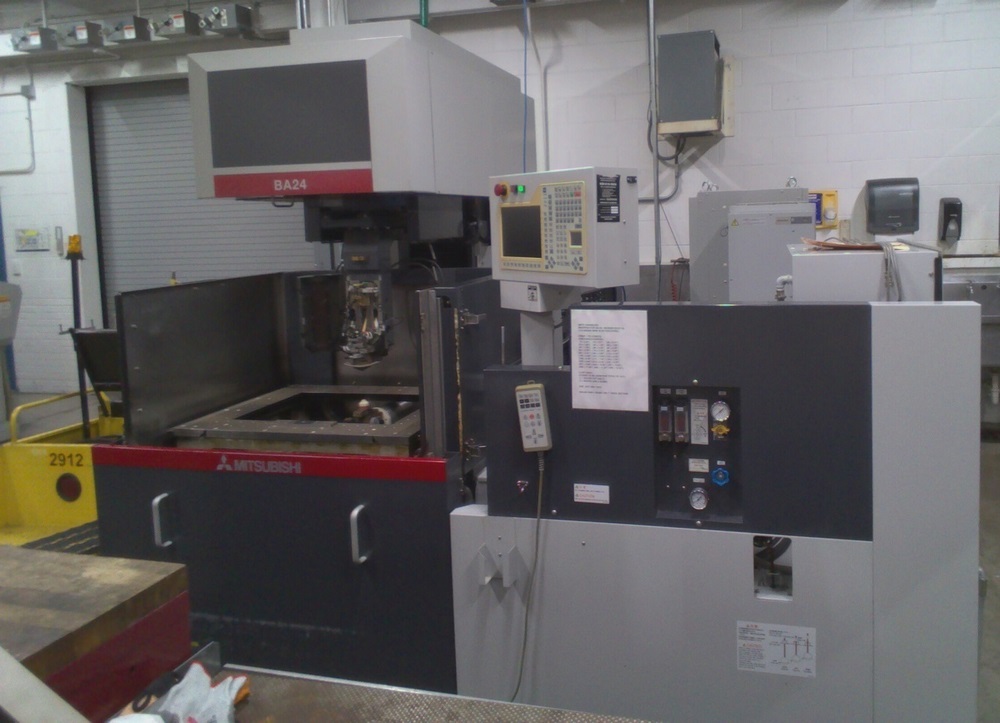

Used Mitsubishi BA24 (2012) CNC EDM for Sale. This pre-owned Mitsubishi CNC EDM wire is located in The United States and available to be seen under power for an inspection. If you have any questions regarding this Mitsubishi EDM, please feel free to contact us. You may Activate Pricing to view the price of this CNC Machine, or request a quote by clicking on the Inquire Now button!
Specifications
| X-Axis Travel |
23.6" |
|---|---|
| Y-Axis Travel |
15.7" |
| Z-Axis Travel |
16.5" |
| Control |

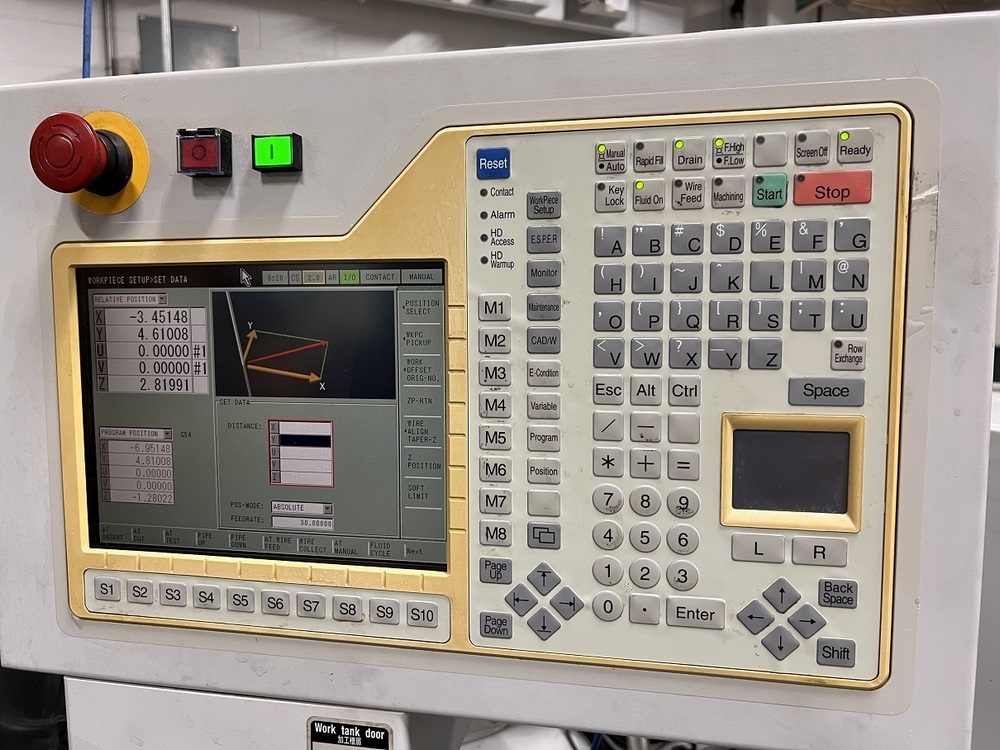

Mitsubishi PM4 64-Bit |
| U/V Axis Travel |
3" x 3" |
| Degree Taper Cutting |
15 Deg @ 10.5" |
| Wire Capabilities |
0.004" - 0.012" |
| Table Rapid Speed |
51.2 IPM |
| Resolution |
0.00001" |
| Max Wire Spool |
22 Lbs |
| Dielectric Capacity |
211 Gallons |
| Max. Workpiece Dimensions |
41.3" X 32.3" X 16.3" |
| Total Shipping Weight |
9,116 Lbs |
Features
|

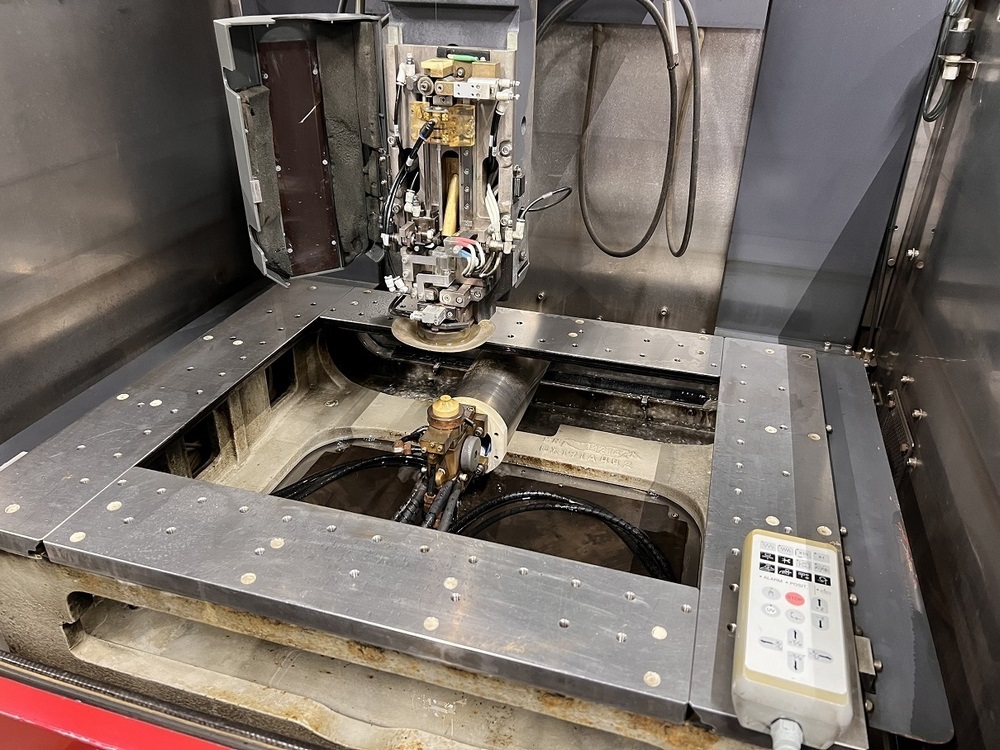

4-Sided Zeroline Table |
Automatic Wire Threader (AT2) |
|
Extended Z-Axis |
Self-Cleaning Seal Plate |
|
Stainless Steel Worktank |
V350IV High Speed Anti-Electrolysis Power Supply |
|
Vertical Sliding Front Tank Door |
Electric Chiller |
|

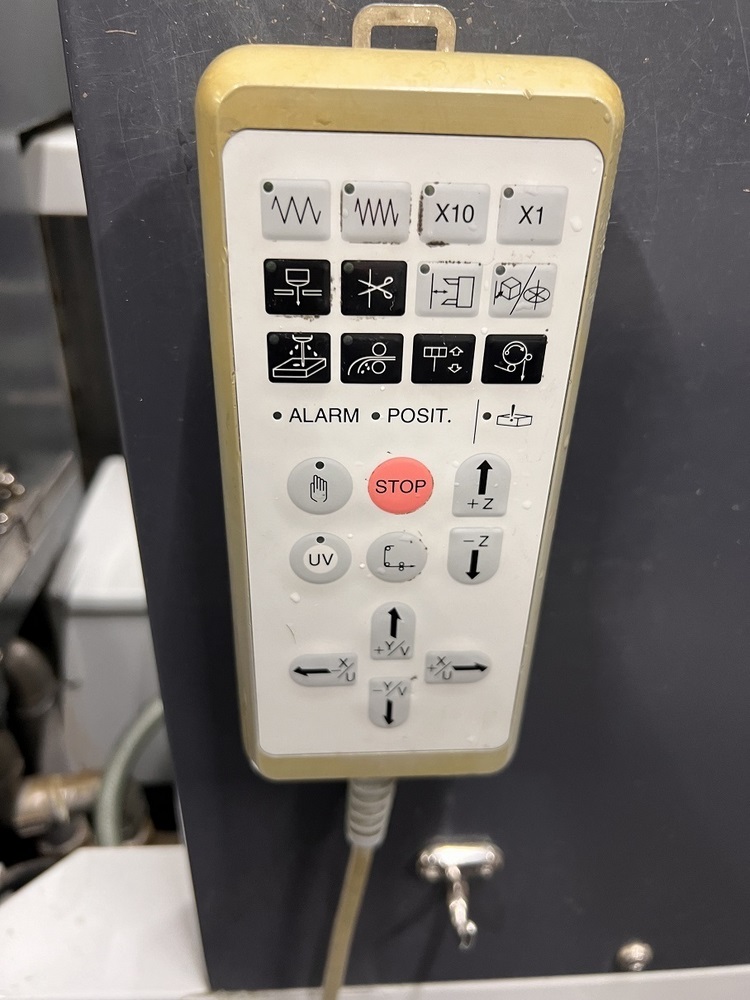

Remote Hand Pendant |

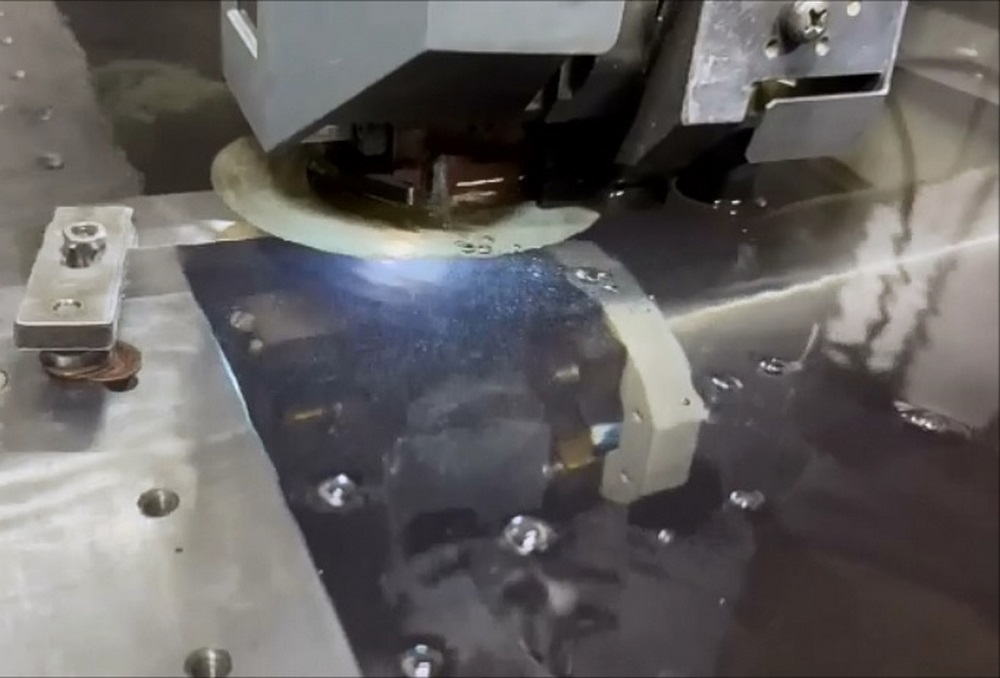

Submerged Machining Capability |
|
40GB Hard Drive |
Dielectric Filtration System |
